ZZE128-AHPNF (2001)

Toyota Will Vs

Production Apr 2001 - Apr 2004
Engine 2ZZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )2ZZGE

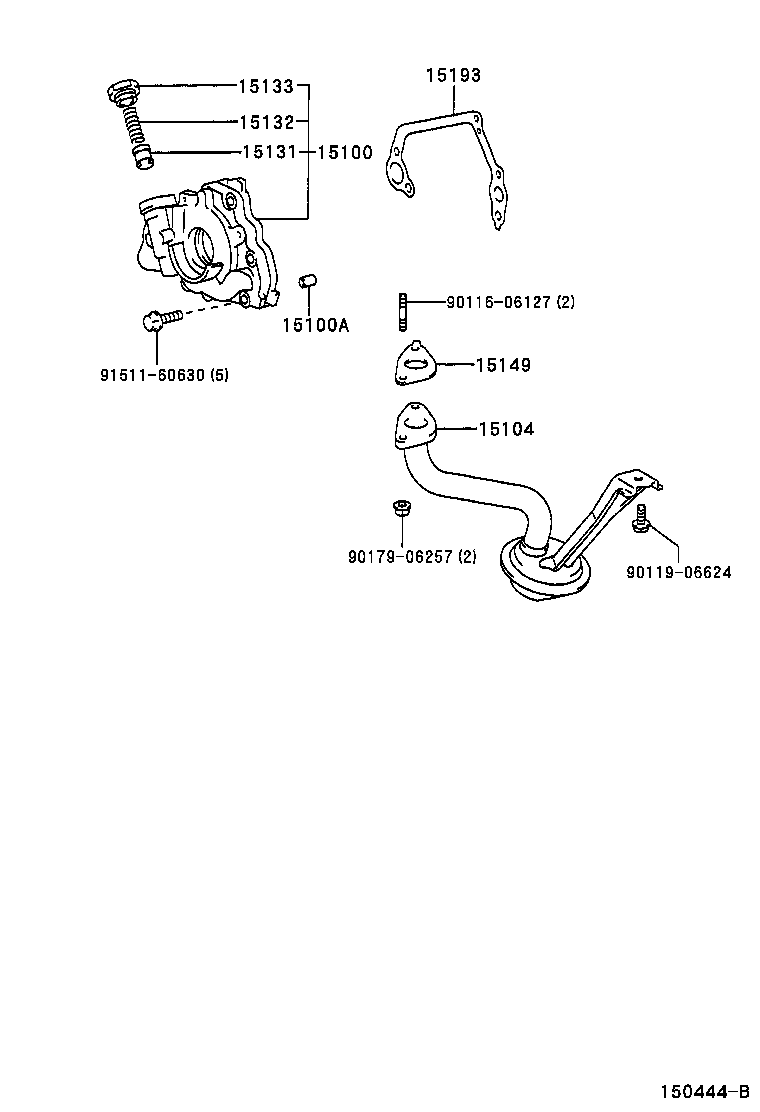

Click highlighted areas on diagram

diagram 15100 15100A 15104 15131 15132 15133 15149 15193 9011606127 9011906624 9017906257 9151160630
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-88600

2ZZGE..ZZE128

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-09003

2ZZGE..ZZE128

 2
15104 - STRAINER SUB-ASSY, OIL
15104-88600

2ZZGE..ZZE128

 1
15131 - VALVE, OIL PUMP RELIEF
15131-46040

2ZZGE..ZZE128

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46020

2ZZGE..ZZE128

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-17010

2ZZGE..ZZE128

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-88600

2ZZGE..ZZE128

 1
15193 - GASKET, OIL PUMP
15193-88600

2ZZGE..ZZE128

 1
Common parts
90116-06127
90119-06624
90179-06257
91511-60630
