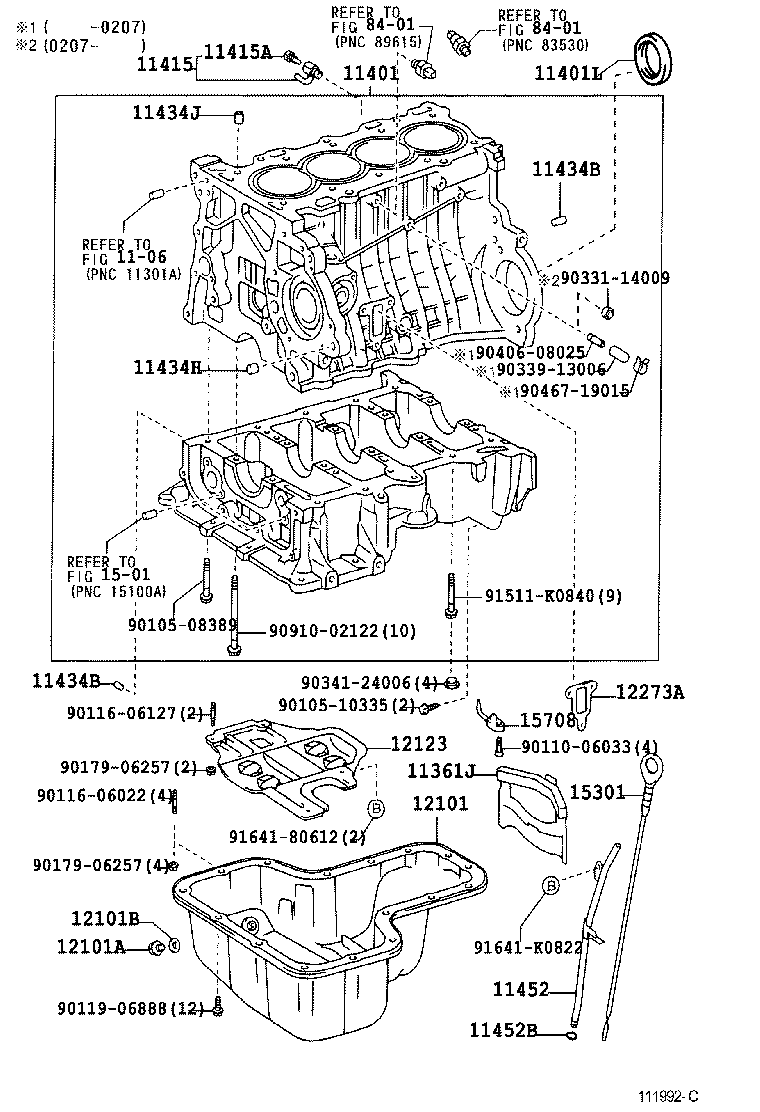

Toyota Will vs ZZE128 CYLINDER BLOCK

Part #	Description	Period	Qty
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-22021	1ZZFE,2ZZGE..ZZE12#	04/2001 - 04/2004	1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29075	2ZZGE..ZZE128	04/2001 - 04/2004	1
11401L - SEAL, ENGINE REAR OIL
90311-85010	2ZZGE..ZZE128	04/2001 - 03/2004	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075	2ZZGE..ZZE128	04/2001 - 03/2004	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	1ZZFE,2ZZGE..ZZE12#	04/2001 - 03/2004	1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-06003	2ZZGE..ZZE128 長さ=14,外径=6	04/2001 - 03/2004	2
90250-10113	2ZZGE..ZZE128 長さ=22,外径=10	04/2001 - 03/2004	2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-06003	2ZZGE..ZZE128 長さ=14,外径=6	04/2001 - 03/2004	2
90250-10113	2ZZGE..ZZE128 長さ=22,外径=10	04/2001 - 03/2004	2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-14003	2ZZGE..ZZE128	04/2001 - 03/2004	1
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017	2ZZGE..ZZE128	04/2001 - 03/2004	2
11452 - GUIDE, OIL LEVEL GAGE
11452-88600	2ZZGE..ZZE128	04/2001 - 03/2004	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010	1ZZFE,2ZZGE..ZZE12#	04/2001 - 03/2004	1
12101 - PAN SUB-ASSY, OIL
12101-22040	2ZZGE..ZZE128	04/2001 - 03/2004	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	2ZZGE..ZZE128	04/2001 - 04/2004	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	2ZZGE..ZZE128	04/2001 - 03/2004	1
12123 - PLATE, OIL PAN BAFFLE NO.3
12123-88603	2ZZGE..ZZE128	04/2001 - 03/2004	1
12273A - GASKET, OIL SEPARATOR
12273-88600	2ZZGE..ZZE128	04/2001 - 03/2004	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-88600	2ZZGE..ZZE128	04/2001 - 03/2004	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-88601	2ZZGE..ZZE128	04/2001 - 03/2004	4
Common parts
90105-08389
90105-10335
90110-06033
90116-06022
90116-06127
90119-06888
90179-06257
90331-14009
90339-13006
90341-24006
90406-08025
90467-19015
90910-02122
91511-K0840
91641-80612
91641-K0822
Linked diagrams
1106
1501
8401

ZZE128-AHPNF (2001)

(0104- )2ZZGE
