ZZE128-AHFNF (2002)

Toyota Will Vs

Production Jan 2002 - Apr 2004
Engine 2ZZGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0104-0404)

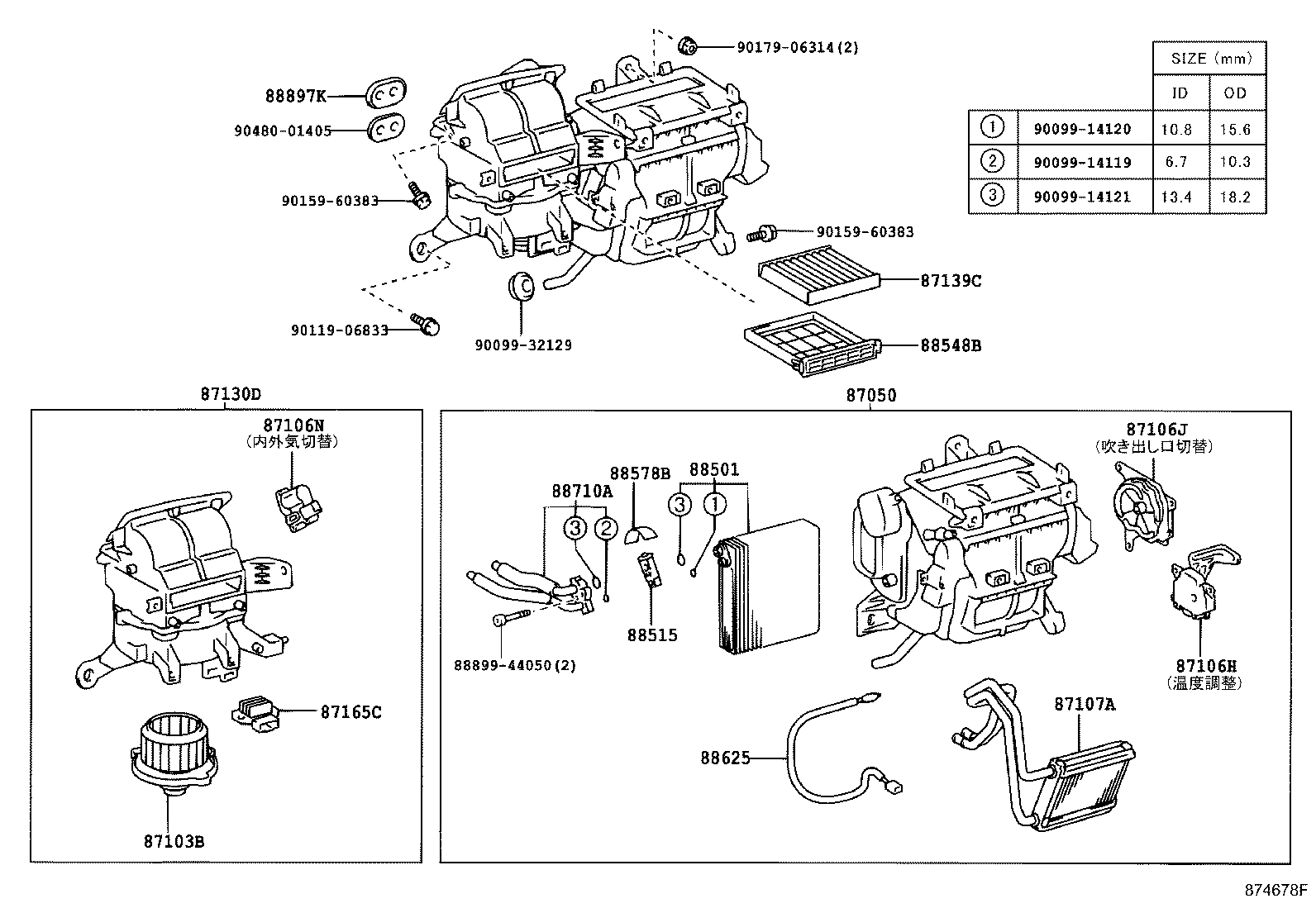

Click highlighted areas on diagram

diagram 87050 87103B 87106H 87106J 87106N 87107A 87130D 87139C 87165C 88501 88515 88548B 88578B 88625 88710A 88897K 8889944050 9009914119 9009914120 9009914121 9009932129 9011906833 9015960383 9015960383 9017906314 9048001405
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12170

NZE127,ZZE12#

 1
87050-12190

NZE127,ZZE12#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050

NZE127,ZZE12#

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-12130

NZE127,ZZE12#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-12140

NZE127,ZZE12#

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-12150

NZE127,ZZE12#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12550

NZE127,ZZE12#

 1
87130D - BLOWER ASSY
87130-12450

NZE127,ZZE12#

 1
87130-12490

NZE127,ZZE12#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87139C - FILTER, CLEAN AIR
87139-44010

NZE127,ZZE12#

脱臭 & 花粉ﾌｨﾙﾀ

 1
88568-12020

NZE127,ZZE12#

 1
87165C - CONTROL, BLOWER MOTOR
87165-13010

NZE127,ZZE12#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440

NZE127,ZZE12#

 1
88515 - VALVE, COOLER EXPANSION
88515-27020

NZE127,ZZE12#

 1
88515-48040

NZE127,ZZE12#

 1
88548B - CASE, AIR FILTER
88548-52010

NZE127,ZZE12#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520

NZE127,ZZE12#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60140

NZE127,ZZE12#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540

NZE127,ZZE12#

 1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434

NZE127,ZZE12#

 1
Common parts
88899-44050
90099-14119
90099-14120
90099-14121
90099-32129
90119-06833
90159-60383
90179-06314
90480-01405
