NCP19-DESNK (2000)

Toyota Will Vi

Production Jan 2000 - Dec 2001
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0001- )

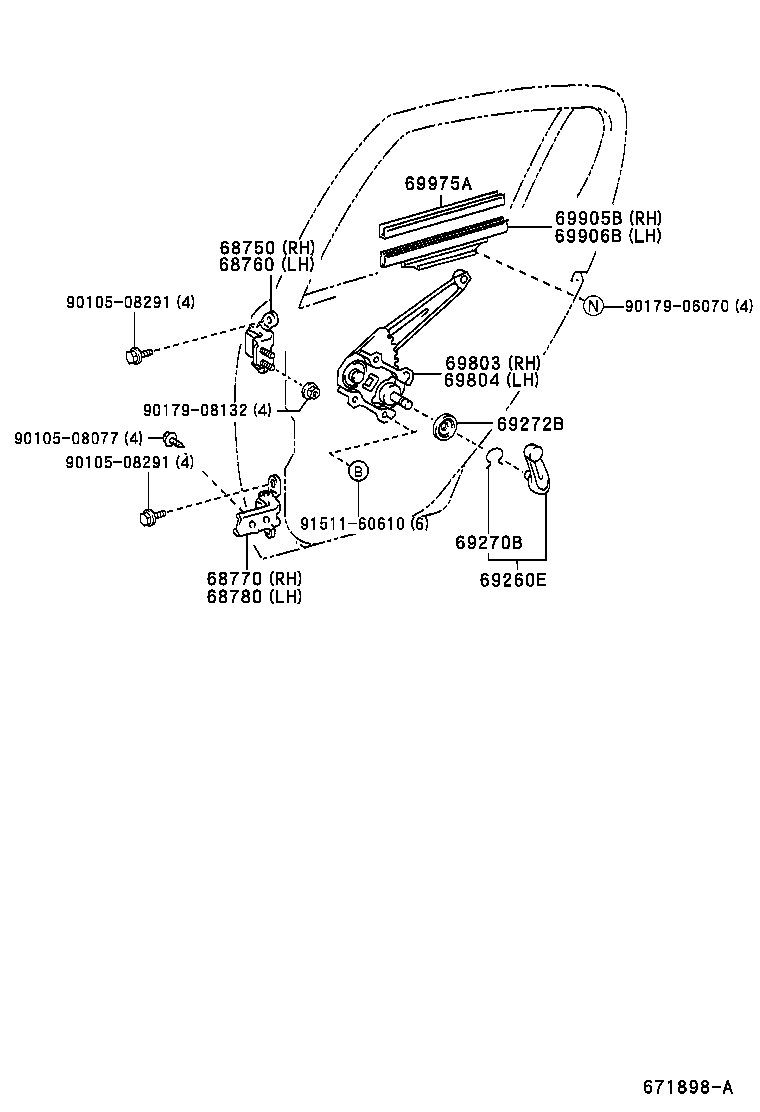

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69270B 69272B 69803 69804 69905B 69906B 69975A 9010508077 9010508291 9010508291 9017906070 9017908132 9151160610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-42010

NCP19

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-42010

NCP19

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-52030

NCP19

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-52030

NCP19

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-52030C0

NCP19

BLACK,TRIM2#

 2
69260-52030E0

NCP19

TERRCOTTA,TRIM4#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

NCP19

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-2201008

NCP19

NATURAL WHITE,TRIM2#,4#

 2
69268-20020

NCP19

 2
69285-2201008

NCP19

NATURAL WHITE,TRIM4#

 2
69285-2201008

NCP19

NATURAL WHITE,TRIM4#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-52060

NCP19

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-52060

NCP19

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-52030

NCP19

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-52030

NCP19

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NCP19

 2
Common parts
90105-08077
90105-08291
90179-06070
90179-08132
91511-60610
