NCP19-DESNK (2000)
Toyota Will Vi
Production
Jan 2000
-
Dec 2001
Engine
2NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0001- )

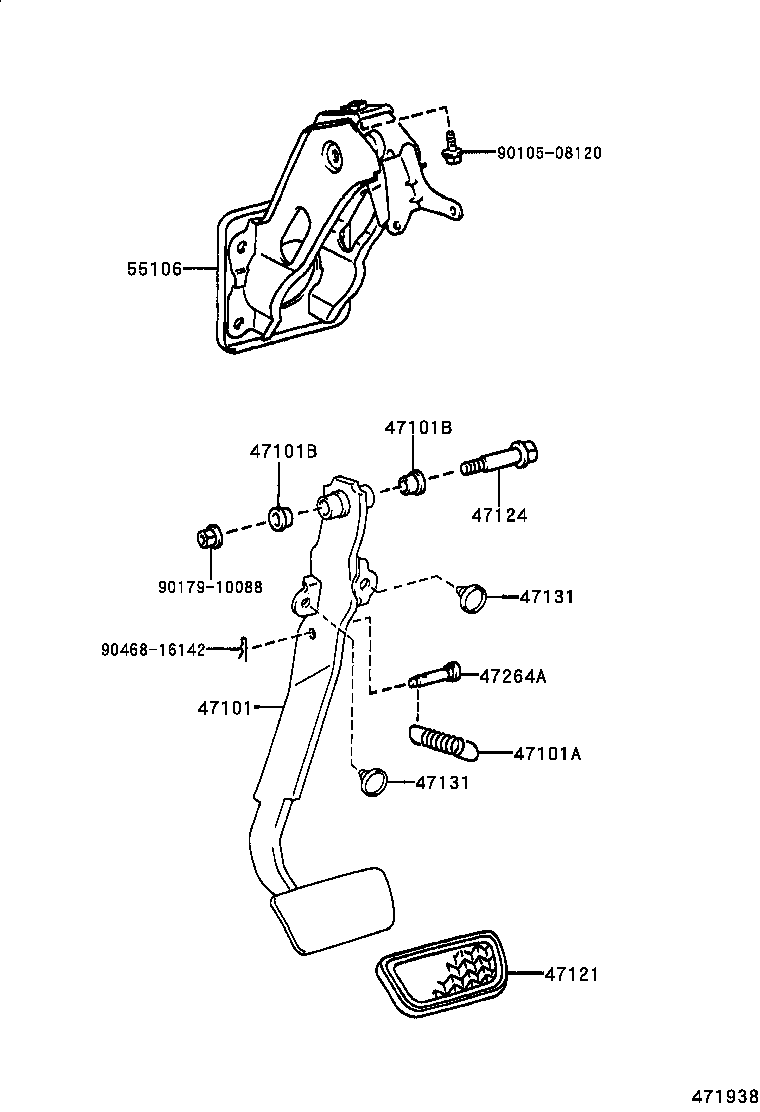

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-52080 |
NCP19 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90506-16072 |
NCP19 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
NCP19 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
NCP19 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-52010 |
NCP19 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90109-10167 |
NCP19 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06049 |
NCP19 |
2 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06049 |
NCP19 |
2 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08297 |
NCP19 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-52061 |
NCP19 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
