NCP75-JHPNK (2002)

Toyota Will Cypha

Production Sep 2002 - Jul 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

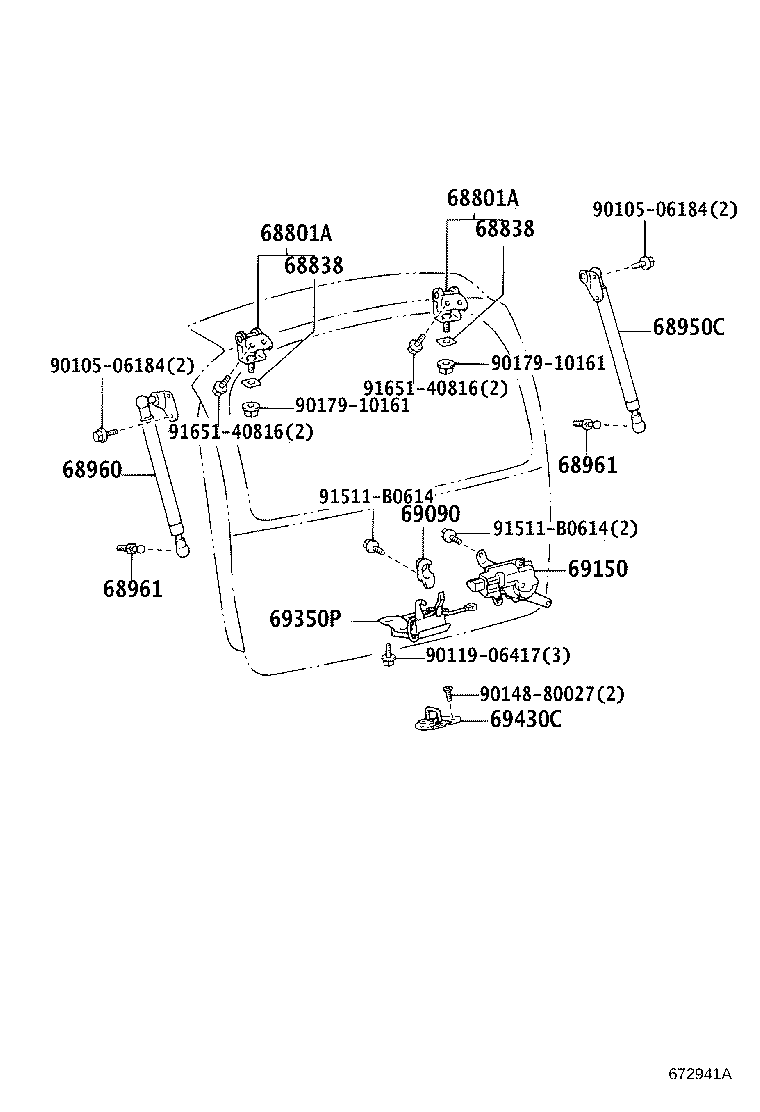

Click highlighted areas on diagram

diagram 68801A 68801A 68838 68838 68950C 68960 68961 68961 69090 69150 69350P 69430C 9010506184 9010506184 9011906417 9014880027 9017910161 9017910161 91511B0614 91511B0614 9165140816 9165140816
Part # Description Qty Price
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-52120

NCP7#

厚さ=1.1

 2
68801-52130

NCP7#

厚さ=0.5

 2
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-52120

NCP7#

厚さ=1.1

 2
68801-52130

NCP7#

厚さ=0.5

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10020

NCP7#

厚さ=1.1

 2
68838-52010

NCP7#

厚さ=0.5

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10020

NCP7#

厚さ=1.1

 2
68838-52010

NCP7#

厚さ=0.5

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-52160

NCP7#

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-52130

NCP7#

 1
68961 - BOLT, BACK DOOR STAY
68961-12050

NCP7#

 2
68961 - BOLT, BACK DOOR STAY
68961-12050

NCP7#

 2
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-52040

NCP7#

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-52040

NCP7#

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-52190

NCP7#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52020

NCP7#

 1
Common parts
90105-06184
90119-06417
90148-80027
90179-10161
91511-B0614
91651-40816
