NCP75-JHPNK (2002)
Toyota Will Cypha
Production
Sep 2002
-
Jul 2005
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )NCP75

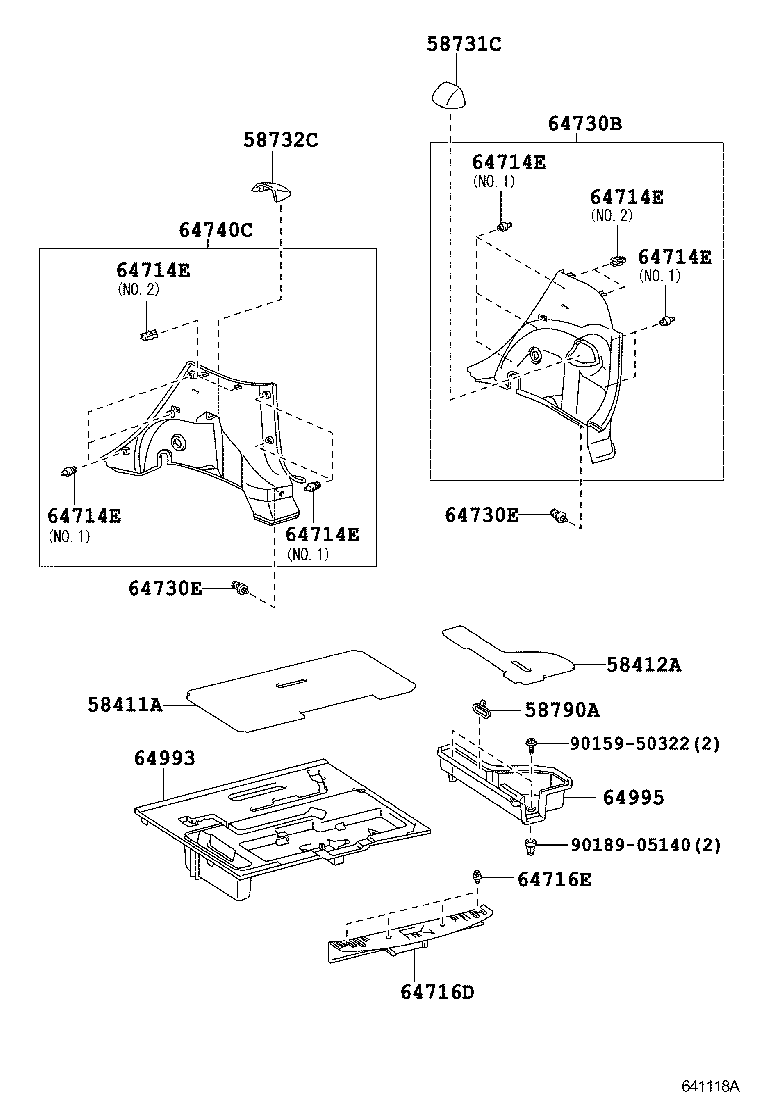

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-52010 |
NCP75 |
1 | ||
| 58412A - BOARD, DECK, NO.2 | ||||
| 58412-52010 |
NCP75 |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52010C0 |
NCP75 BLACK,TRIM2# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52010C0 |
NCP75 BLACK,TRIM2# |
1 | ||
| 58790A - CARRIER ASSY, JACK | ||||
| 58790-52020 |
NCP75 |
1 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-12080 |
NCP7# NO.2 |
4 | ||
| 90467-10161 |
NCP7# NO.1 |
10 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-12080 |
NCP7# NO.2 |
4 | ||
| 90467-10161 |
NCP7# NO.1 |
10 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-12080 |
NCP7# NO.2 |
4 | ||
| 90467-10161 |
NCP7# NO.1 |
10 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-12080 |
NCP7# NO.2 |
4 | ||
| 90467-10161 |
NCP7# NO.1 |
10 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-12080 |
NCP7# NO.2 |
4 | ||
| 90467-10161 |
NCP7# NO.1 |
10 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 90467-12080 |
NCP7# NO.2 |
4 | ||
| 90467-10161 |
NCP7# NO.1 |
10 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52080C0 |
NCP7# BLACK,TRIM2# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-07152C0 |
NCP7# BLACK,TRIM2# |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52170C0 |
NCP75 BLACK,TRIM2# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-07152C0 |
NCP7# BLACK,TRIM2# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-07152C0 |
NCP7# BLACK,TRIM2# |
2 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52240C0 |
NCP75 BLACK,TRIM2# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52011 |
NCP75 |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-52010 |
NCP75 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05140 | ||||
