NCP75-JHPNK (2002)
Toyota Will Cypha
Production
Sep 2002
-
Jul 2005
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )NCP75

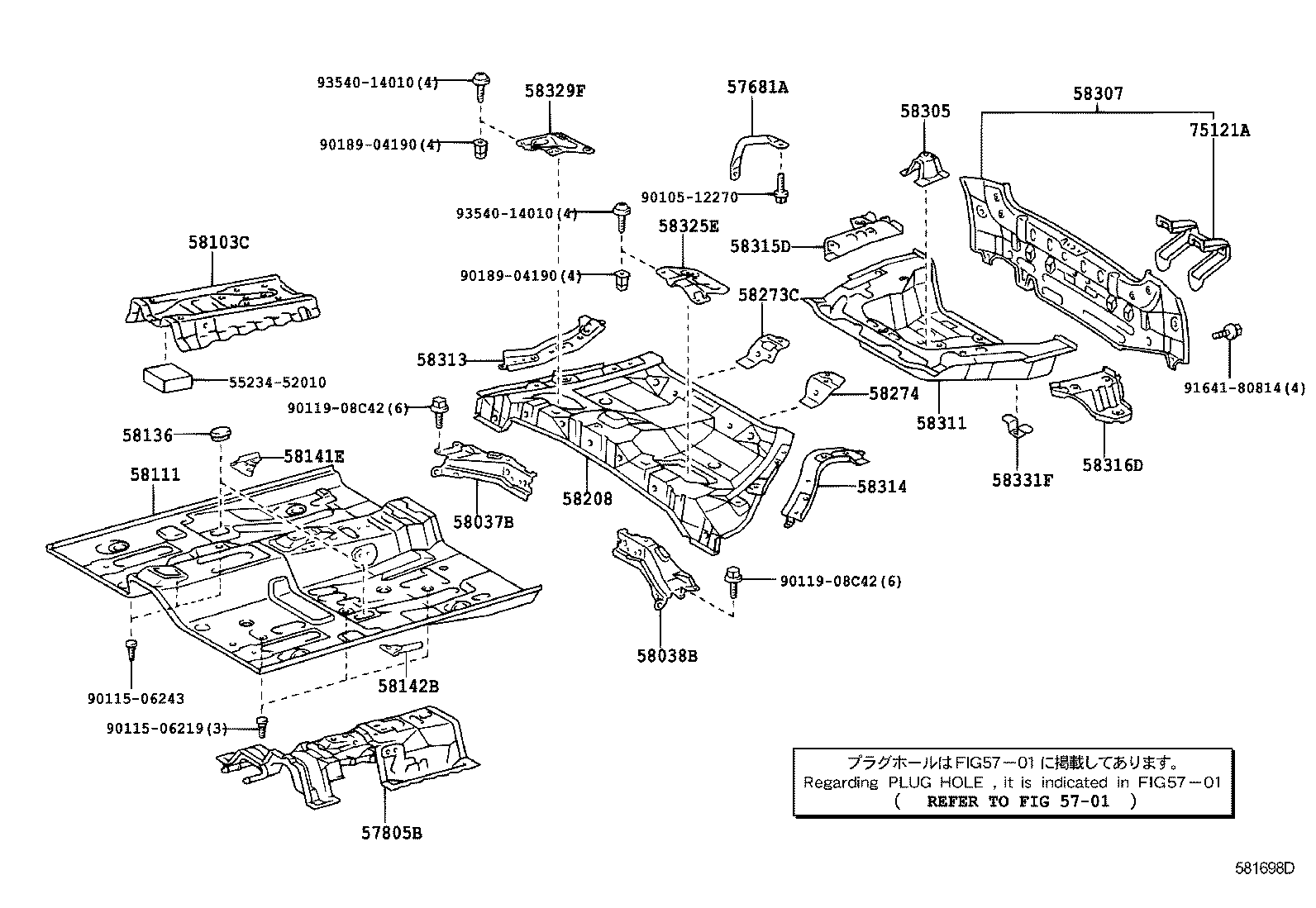

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57681A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER | ||||
| 57681-52010 |
NCP75 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-52030 |
NCP75 |
1 | ||
| 58037B - REINFORCE, CENTER PILLAR TO FLOOR, RH | ||||
| 57671-52070 |
NCP75 |
1 | ||
| 58038B - REINFORCE, CENTER PILLAR TO FLOOR, LH | ||||
| 57672-52070 |
NCP75 |
1 | ||
| 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT | ||||
| 58103-52021 |
NCP75 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-52901 |
NCP75 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-52010 |
NCP7# |
2 | ||
| 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH | ||||
| 58141-52010 |
NCP7# |
1 | ||
| 58142B - REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH | ||||
| 58142-52010 |
NCP7# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-52041 |
NCP75 |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-52070 |
NCP75 |
1 | ||
| 58274 - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1 | ||||
| 58274-52030 |
NCP75 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-52010 |
NCP75 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52230 |
NCP75 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52021 |
NCP75 |
1 | ||
| 58311-52022 |
NCP75 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-52010 |
NCP75 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-10030 |
NCP75 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-52020 |
NCP75 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-52020 |
NCP75 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58320-52010 |
NCP75 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-10010 |
NCP75 |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10011 |
NCP75 |
5 | ||
| 75121A - BRACKET, REAR LICENSE PLATE | ||||
| 75121-52040 |
NCP7# |
1 | ||
| Common parts | ||||
| 55234-52010 | ||||
| 90105-12270 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-08C42 | ||||
| 90189-04190 | ||||
| 91641-80814 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5701 | ||||
