NCP75-JHPNK (2002)

Toyota Will Cypha

Production Sep 2002 - Jul 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

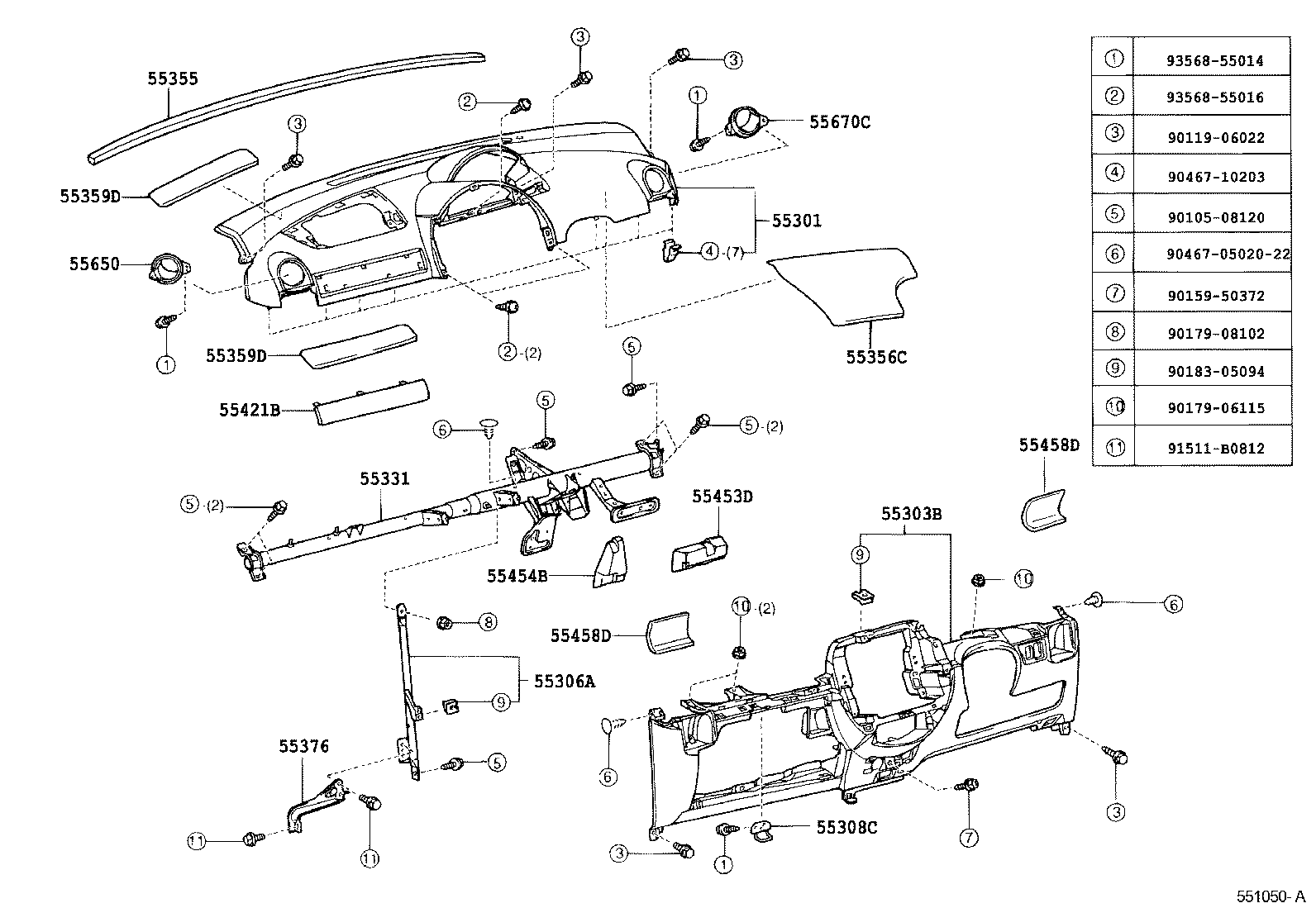

ILLUST NO. 1 OF 2(0209- )

Click highlighted areas on diagram

diagram 55301 55303B 55306A 55308C 55331 55355 55356C 55359D 55359D 55376 55421B 55453D 55454B 55458D 55458D 55650 55670C 9010508120 9011906022 9015950372 9017906115 9017908102 9018305094 904670502022 9046710203 91511B0812 9356855014 9356855016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-52130C0

NCP7#

BLACK,TRIM2#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-52070C0

NCP7#

BLACK,TRIM2#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-52100

NCP7#

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-52060

NCP7#

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-52230

NCP7#

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-52012

NCP7#

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-52100

NCP7#

 1
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-52060

NCP7#

 2
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-52060

NCP7#

 2
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-52020

NCP7#

 1
55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER
55421-52020

NCP7#

 1
55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1
55453-52030

NCP7#

 1
55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2
55454-52020

NCP7#

 1
55458D - COVER, INSTRUMENT LOWER, RH
55458-52010

NCP7#

 2
55458D - COVER, INSTRUMENT LOWER, RH
55458-52010

NCP7#

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-20330C0

NCP7#

BLACK,TRIM2#

 1
55670C - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670-20270C0

NCP7#

BLACK,TRIM2#

 1
Common parts
90105-08120
90119-06022
90159-50372
90179-06115
90179-08102
90183-05094
90467-0502022
90467-10203
91511-B0812
93568-55014
93568-55016

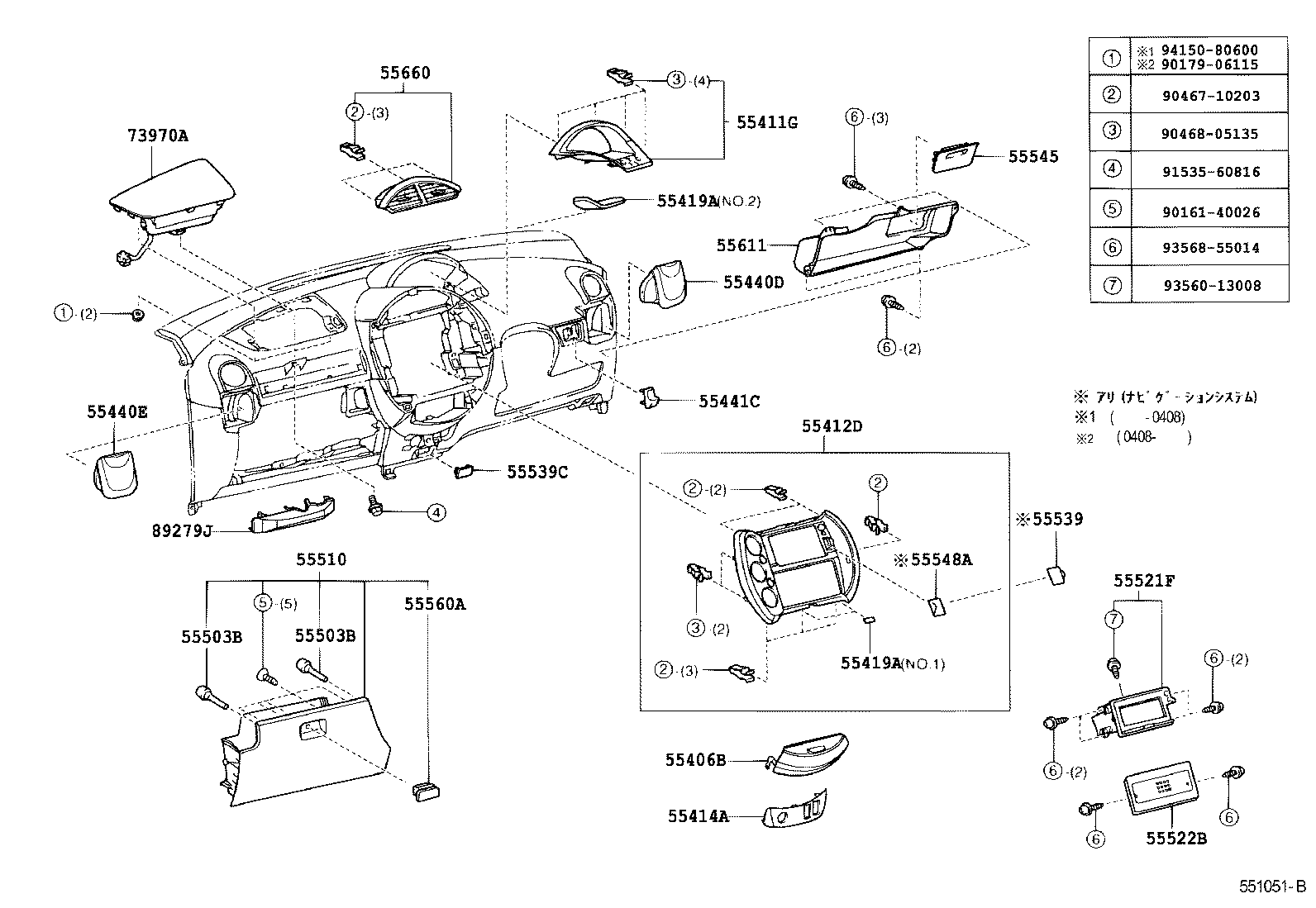

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

diagram 55406B 55411G 55412D 55414A 55419A 55419A 55440D 55440E 55441C 55503B 55503B 55510 55521F 55522B 55539 55539C 55545 55548A 55560A 55611 55660 73970A 89279J 9016140026 9017906115 9046710203 9046805135 9153560816 9356013008 9356855014 9415080600
Part # Description Qty Price
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-52030C0

NCP7#

BLACK,TRIM2#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-52100C0

NCP7#

BLACK,TRIM2#

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55405-52310C0

NCP7#

BLACK,TRIM2#

 1
55405-52380C0

NCP7#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ無し,BLACK,TRIM2#

 1
55414A - PANEL, INSTRUMENT CLUSTER FINISH, END
55414-52030C0

NCP7#

BLACK,TRIM2#

 1
55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-32020

NCP7#

NO.1

 2
55419-52020

NCP7#

NO.2

 1
55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-32020

NCP7#

NO.1

 2
55419-52020

NCP7#

NO.2

 1
55440D - BOX ASSY, INSTRUMENT PANEL
55440-52060C0

NCP7#

BLACK,TRIM2#

 1
55440E - BOX ASSY, INSTRUMENT PANEL, NO.2
55440-52070C0

NCP7#

BLACK,TRIM2#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-20140C0

NCP7#

BLACK,TRIM2#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
55557-53020

NCP7#

 2
90541-05020

NCP7#

 2
55503B - CUSHION(FOR GLOVE COMPARTMENT)
55557-53020

NCP7#

 2
90541-05020

NCP7#

 2
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-52090C0

NCP7#

BLACK,TRIM2#

 1
55521F - COVER, STEREO OPENING, NO.2
55520-52080

NCP7#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ無し

 1
55522B - COVER, RADIO TUNER OPENING
55522-52020

NCP7#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-52050C0

NCP7#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ無し,BLACK,TRIM2#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-32010P3

NCP7#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ無し,DK.GRAY,TRIM2#

 1
55545 - COVER, FUSE BOX OPENING
55545-52030C0

NCP7#

BLACK,TRIM2#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-52020C0

NCP7#

BLACK,TRIM2#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-12120C0

NCP7#

BLACK,TRIM2#

 1
55611 - TRAY, INSTRUMENT PANEL UNDER
55611-52070C0

NCP7#

BLACK,TRIM2#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-52010C0

NCP7#

BLACK,TRIM2#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-52110C0

NCP7#

BLACK,TRIM2#

 1
89279J - COVER
89279-52020

NCP7#

 1
Common parts
90161-40026
90179-06115
90467-10203
90468-05135
91535-60816
93560-13008
93568-55014
94150-80600
