NCP75-JHPNK (2002)

Toyota Will Cypha

Production Sep 2002 - Jul 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )NCP75

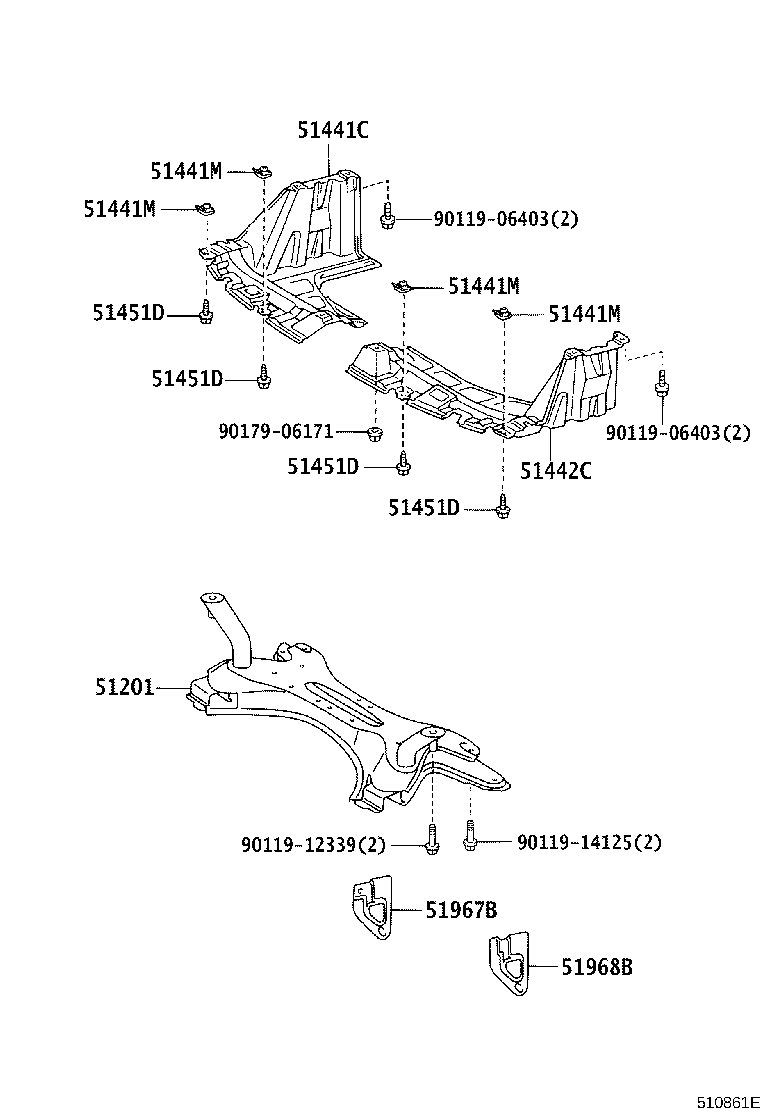

Click highlighted areas on diagram

diagram 51201 51441C 51441M 51441M 51441M 51441M 51442C 51451D 51451D 51451D 51451D 51967B 51968B 9011906403 9011906403 9011912339 9011914125 9017906171
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52022

NCP75

 1
51201-52023

NCP75

 1
51441C - COVER, ENGINE UNDER, RH
51441-52010

NCP7#

 1
51441M - NUT
90179-05060

NCP7#

 4
51441M - NUT
90179-05060

NCP7#

 4
51441M - NUT
90179-05060

NCP7#

 4
51441M - NUT
90179-05060

NCP7#

 4
51442C - COVER, ENGINE UNDER, LH
51442-52010

NCP7#

 1
51451D - SCREW, NO.1
90159-50346

NCP7#

 4
51451D - SCREW, NO.1
90159-50346

NCP7#

 4
51451D - SCREW, NO.1
90159-50346

NCP7#

 4
51451D - SCREW, NO.1
90159-50346

NCP7#

 4
51967B - HOOK, TRANSPORT, REAR RH
51967-52010

NCP75

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-52020

NCP75

 1
Common parts
90119-06403
90119-12339
90119-14125
90179-06171
