NCP70-JHPNK (2002)

Toyota Will Cypha

Production Sep 2002 - Jul 2005
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

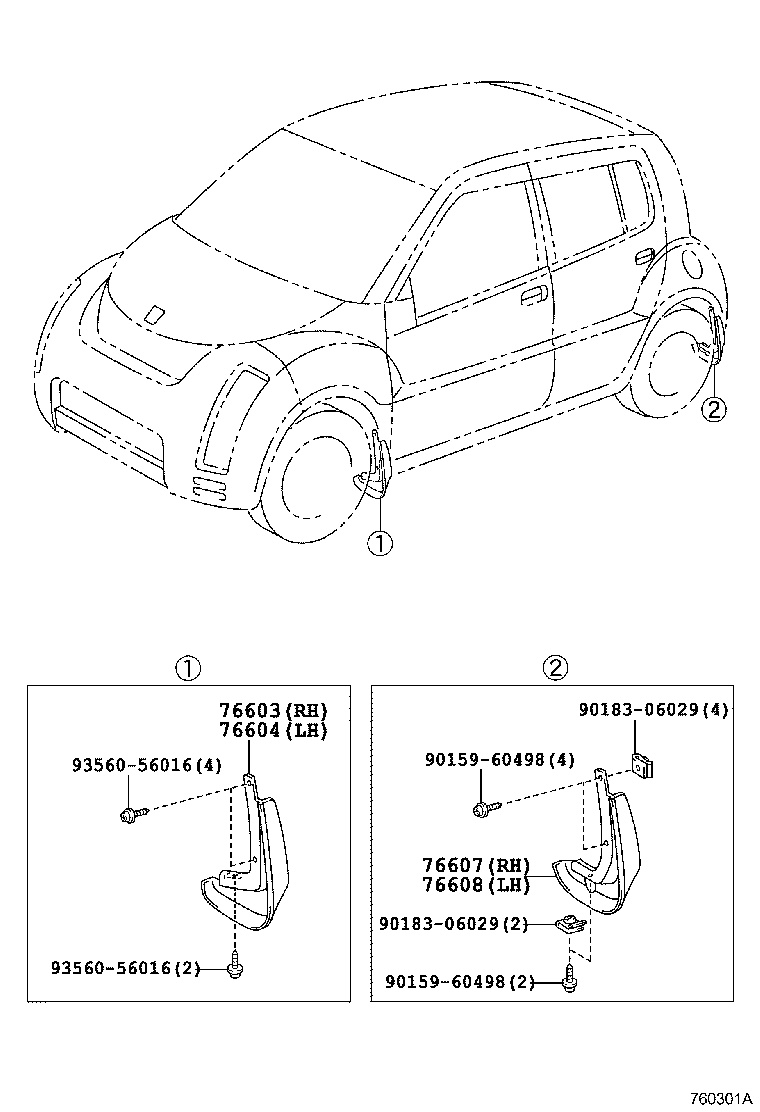

Click highlighted areas on diagram

diagram 76603 76604 76607 76608 9015960498 9015960498 9018306029 9018306029 9356056016 9356056016
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-52040

NCP7#

ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-52040

NCP7#

ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ)

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-52070

NCP7#

塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ)

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-52070

NCP7#

塗装不要,ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ&ﾘﾔ)

 1
Common parts
90159-60498
90183-06029
93560-56016
