NCP70-JHPNK (2002)

Toyota Will Cypha

Production Sep 2002 - Jul 2005
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

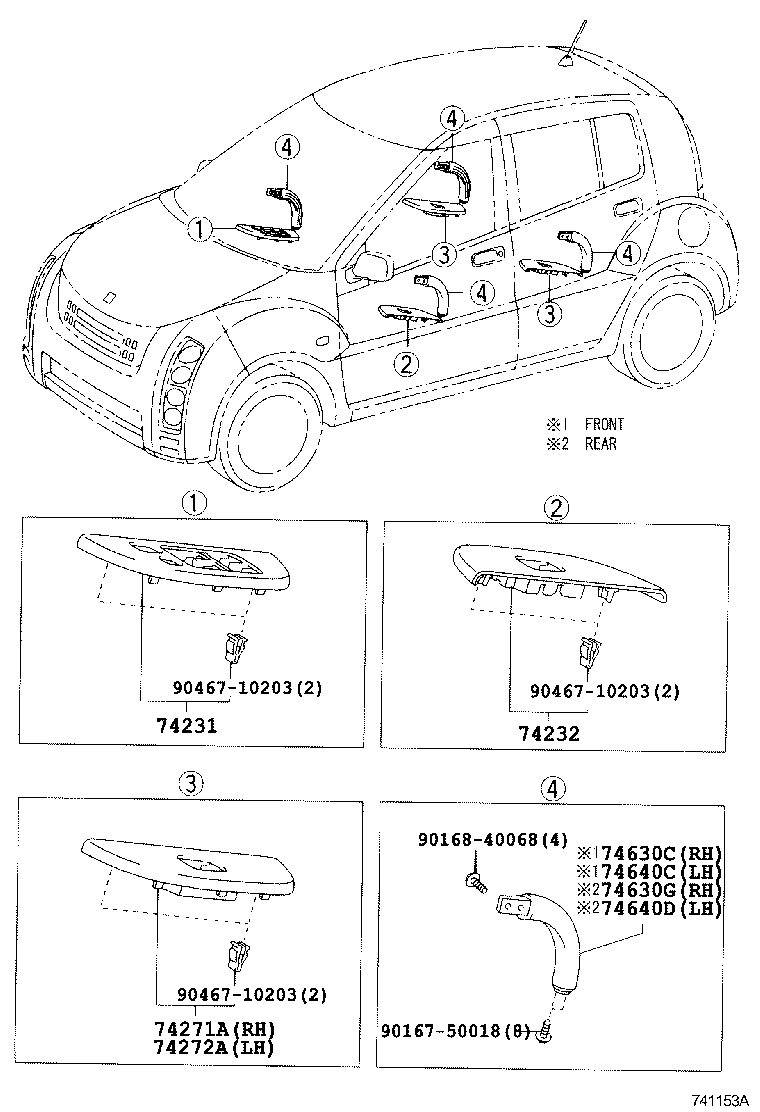

ILLUST NO. 1 OF 2(0209-0507)

Click highlighted areas on diagram

ｱ-ﾑﾚｽﾄ

diagram 74231 74232 74271A 74272A 74630C 74630G 74640C 74640D 9016750018 9016840068 9046710203 9046710203 9046710203
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52200C0

NCP7#

BLACK,TRIM2#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52140C0

NCP7#

BLACK,TRIM2#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-52030C0

NCP7#

BLACK,TRIM2#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74232-52140C0

NCP7#

BLACK,TRIM2#

 1
74630C - GRIP ASSY, DOOR ASSIST, RH
74630-52030C0

NCP7#

BLACK,TRIM2#

 1
74630G - GRIP ASSY, REAR DOOR ASSIST RH
74630-52030C0

NCP7#

BLACK,TRIM2#

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
74640-52030C0

NCP7#

BLACK,TRIM2#

 1
74640D - GRIP ASSY, REAR DOOR ASSIST LH
74640-52030C0

NCP7#

BLACK,TRIM2#

 1
Common parts
90167-50018
90168-40068
90467-10203

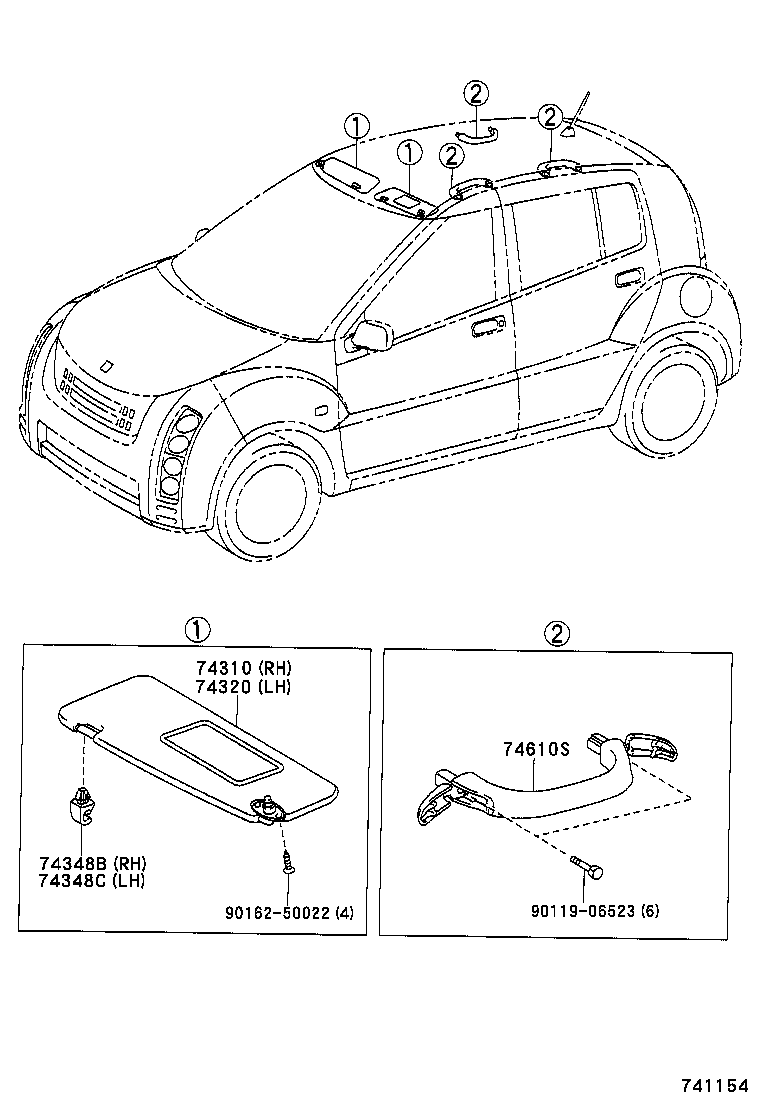

ILLUST NO. 2 OF 2(0209-0507)

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄ ｸﾞﾘﾂﾌﾟ

diagram 74310 74320 74348B 74348C 74610S 9011906523 9016250022
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-52300B0

NCP7#

LT. GRAY,TRIM2#

 1
74320 - VISOR ASSY, LH
74320-52420B0

NCP7#

LT. GRAY,TRIM2#

 1
74348B - HOLDER, VISOR, RH
74348-12040B0

NCP7#

LT.GRAY,TRIM2#

 1
74348C - HOLDER, VISOR, LH
74348-12040B0

NCP7#

LT.GRAY,TRIM2#

 1
74610S - GRIP ASSY, ASSIST
74611-52010B0

NCP7#

LT.GRAY,TRIM2#

 3
Common parts
90119-06523
90162-50022
