NCP70-JHPNK (2002)

Toyota Will Cypha

Production Sep 2002 - Jul 2005
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )NCP70

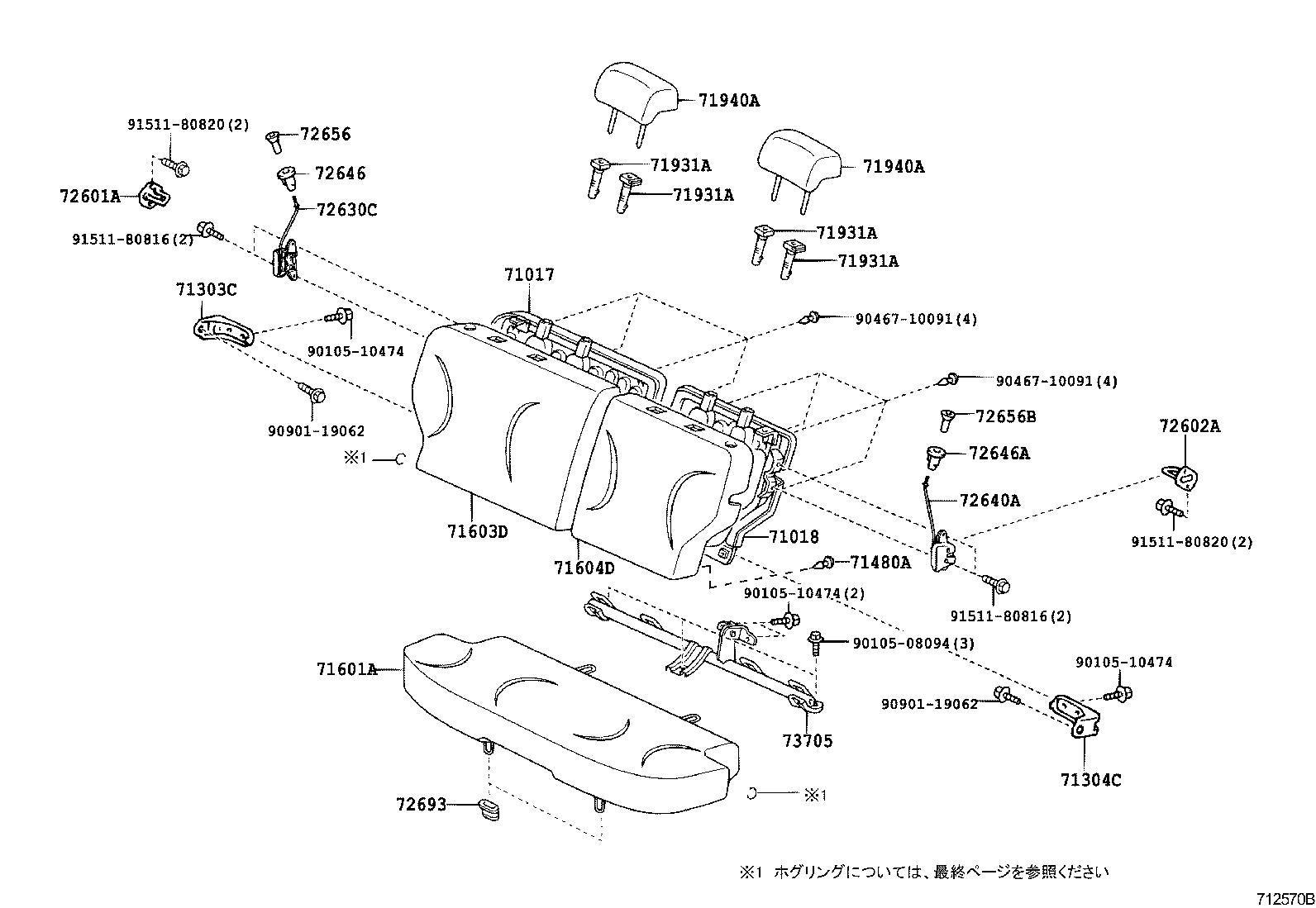

Click highlighted areas on diagram

diagram 71017 71018 71303C 71304C 71480A 71601A 71603D 71604D 71931A 71931A 71931A 71931A 71940A 71940A 72601A 72602A 72630C 72640A 72646 72646A 72656 72656B 72693 73705 9010508094 9010510474 9010510474 9010510474 9046710091 9046710091 9090119062 9090119062 9151180816 9151180816 9151180820 9151180820
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-52280

NCP70

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-52150

NCP70

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71345-52010

NCP7#

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71345-52010

NCP7#

 1
71480A - CLIP (FOR REAR SEAT BACK)
90467-07090C4

NCP7#

BLACK,TRIM2#

 4
71601A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER
71601-5C340C1

NCP70

BLACK,TRIM2#

 1
71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH
71603-5C540C0

NCP70

BLACK,TRIM2#

 1
71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH
71604-52820C0

NCP70

BLACK,TRIM2#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71970-47010C0

NCP7#

ﾛｯｸ付,BLACK,TRIM2#

 2
71956-47010C0

NCP7#

ﾛｯｸ無,BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-47010C0

NCP7#

ﾛｯｸ付,BLACK,TRIM2#

 2
71956-47010C0

NCP7#

ﾛｯｸ無,BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-47010C0

NCP7#

ﾛｯｸ付,BLACK,TRIM2#

 2
71956-47010C0

NCP7#

ﾛｯｸ無,BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-47010C0

NCP7#

ﾛｯｸ付,BLACK,TRIM2#

 2
71956-47010C0

NCP7#

ﾛｯｸ無,BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-52090C0

NCP7#

BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-52090C0

NCP7#

BLACK,TRIM2#

 2
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-52120

NCP7#

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72601-52120

NCP7#

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-52090

NCP7#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-52080

NCP7#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-33010C0

NCP7#

BLACK,TRIM2#

 2
72646A - GROMMET, REAR SEAT BACK STOP BUTTON
72646-33010C0

NCP7#

BLACK,TRIM2#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72661-32030C0

NCP7#

BLACK,TRIM2#

 2
72656B - BUTTON, REAR SEAT BACK STOP RELEASE
72661-32030C0

NCP7#

BLACK,TRIM2#

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-10040

NCP7#

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-52030

NCP70

 1
Common parts
90105-08094
90105-10474
90467-10091
90901-19062
91511-80816
91511-80820

(0209- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
