NCP70-JHPNK (2002)

Toyota Will Cypha

Production Sep 2002 - Jul 2005
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

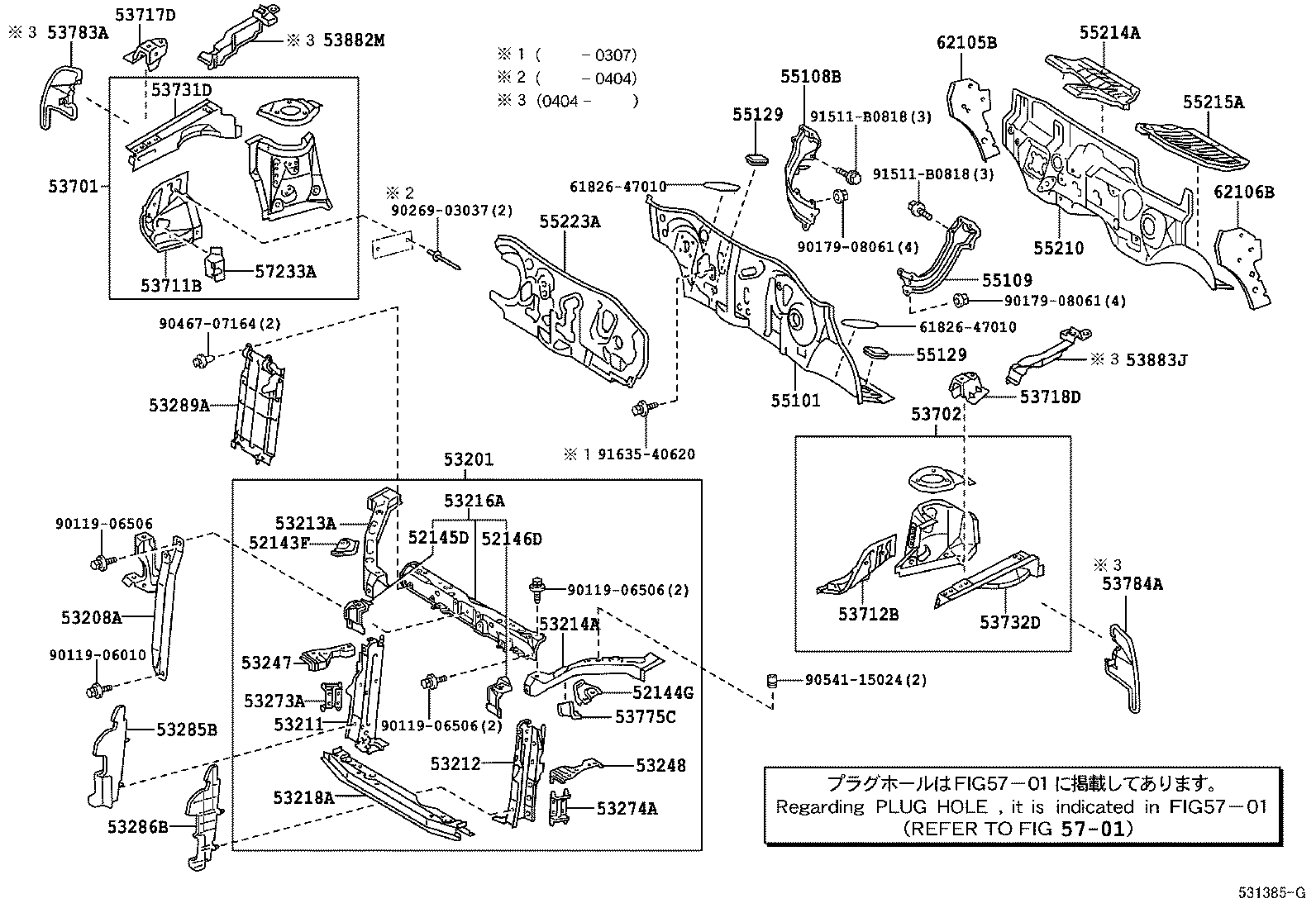

Click highlighted areas on diagram

diagram 52143F 52144G 52145D 52146D 53201 53208A 53211 53212 53213A 53214A 53216A 53218A 53247 53248 53273A 53274A 53285B 53286B 53289A 53701 53702 53711B 53712B 53717D 53718D 53731D 53732D 53775C 53783A 53784A 53882M 53883J 55101 55108B 55109 55129 55129 55210 55214A 55215A 55223A 5701 57233A 6182647010 6182647010 62105B 62106B 9011906010 9011906506 9011906506 9011906506 9017908061 9017908061 9026903037 9046707164 9054115024 91511B0818 91511B0818 9163540620
Part # Description Qty Price
52143F - BRACKET, FRONT BUMPER SIDE, RH
52143-52080

NCP7#

 1
52144G - BRACKET, FRONT BUMPER SIDE, LH
52144-52070

NCP7#

 1
52145D - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-52090

NCP7#

 1
52146D - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-52090

NCP7#

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53210-52120

NCP7#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-52060

NCP7#

 1
53211 - SUPPORT, RADIATOR, RH
53211-52040

NCP7#

 1
53212 - SUPPORT, RADIATOR, LH
53212-52040

NCP7#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-52060

NCP7#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-52060

NCP7#

 1
53216A - SUPPORT, RADIATOR, UPPER
53205-52900

NCP7#

 1
53218A - SUPPORT, RADIATOR, LOWER
53218-52010

NCP7#

 1
53247 - BRACKET, HEADLAMP MOUNTING, INNER RH
53247-52010

NCP7#

 1
53248 - BRACKET, HEADLAMP MOUNTING, INNER LH
53248-52010

NCP7#

 1
53273A - REINFORCEMENT, RADIATOR SUPPORT, RH
53273-52010

NCP7#

 2
53274A - REINFORCEMENT, RADIATOR SUPPORT, LH
53273-52010

NCP7#

 2
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-52080

NCP7#

 1
53286B - SEAL, RADIATOR SIDE AIR, NO.2
53286-52050

NCP7#

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-52010

NCP7#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-52902

NCP7#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-52902

NCP7#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-52010

NCP7#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-52010

NCP7#

 1
53717D - GUSSET, FENDER APRON, RH
53717-52050

NCP7#

 1
53718D - GUSSET, FENDER APRON, LH
53718-52060

NCP7#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-52050

NCP7#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-52050

NCP7#

 1
53775C - BRACKET, COOL AIR INTAKE DUCT MOUNTING
53775-52010

NCP7#

 1
53783A - INSULATOR, APRON FRONT FENDER, RH
53783-52010

NCP7#

 1
53784A - INSULATOR, APRON FRONT FENDER, LH
53784-52010

NCP7#

 1
53882M - SEAL, FRONT FENDER
53882-52020

NCP7#

 1
53883J - SEAL, FRONT FENDER, LH
53883-52010

NCP7#

 1
55101 - PANEL SUB-ASSY, DASH
55101-52241

NCP7#

 1
55101-52240

NCP7#

 1
55108B - BRACE SUB-ASSY, DASH TO FRAME, RH
55108-52010

NCP7#

 1
55109 - BRACE SUB-ASSY, DASH TO FRAME, LH
55109-52060

NCP7#

 1
55129 - COVER, DASH PANEL HOLE
55129-52030

NCP7#

 2
55129 - COVER, DASH PANEL HOLE
55129-52030

NCP7#

 2
55210 - INSULATOR ASSY, DASH PANEL
55210-52120

NCP7#

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-52040

NCP7#

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-52030

NCP7#

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-52010

NCP7#

 1
57233A - RETAINER, ENGINE FRONT SUPPORT, RH
57233-52011

NCP7#

 1
57233-52010

NCP7#

 1
62105B - INSULATOR SUB-ASSY, COWL SIDE, RH
62105-52030

NCP7#

 1
62106B - INSULATOR SUB-ASSY, COWL SIDE, LH
62106-52010

NCP7#

 1
Common parts
61826-47010
90119-06010
90119-06506
90179-08061
90269-03037
90467-07164
90541-15024
91511-B0818
91635-40620
Linked diagrams
5701
