NCP70-JHPNK (2002)
Toyota Will Cypha
Production
Sep 2002
-
Jul 2005
Engine
2NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )NCP70

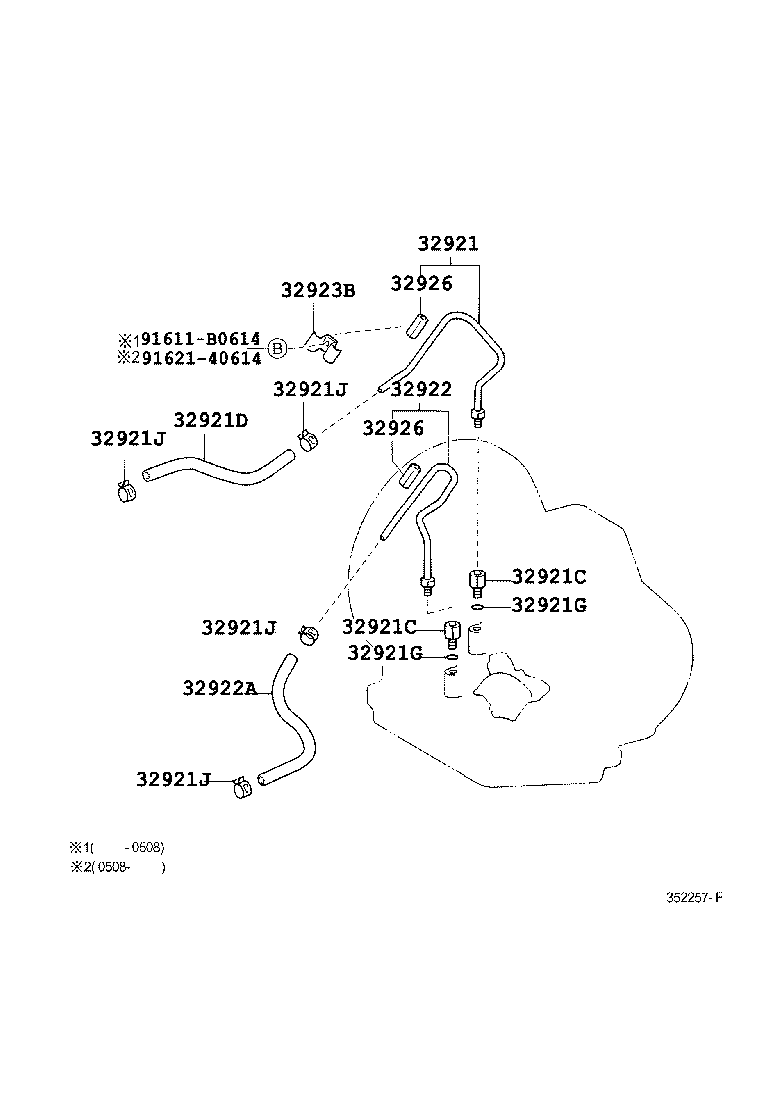

Click highlighted areas on diagram
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-52020 |
NCP70 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
NCP70 |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
NCP70 |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15054 |
NCP70 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
NCP7# |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
NCP7# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NCP7# |
4 | ||
| 96135-51300 |
NCP7# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NCP7# |
4 | ||
| 96135-51300 |
NCP7# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NCP7# |
4 | ||
| 96135-51300 |
NCP7# |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NCP7# |
4 | ||
| 96135-51300 |
NCP7# |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-52020 |
NCP70 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15034 |
NCP70 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90462-12085 |
NCP70 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
NCP70 長さ=30,内径=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
NCP70 長さ=30,内径=8 |
2 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 91621-40614 | ||||
