NSP131-CGFNB (2017)

Toyota Vitz Grmn

Production Nov 2017 - Apr 2018
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

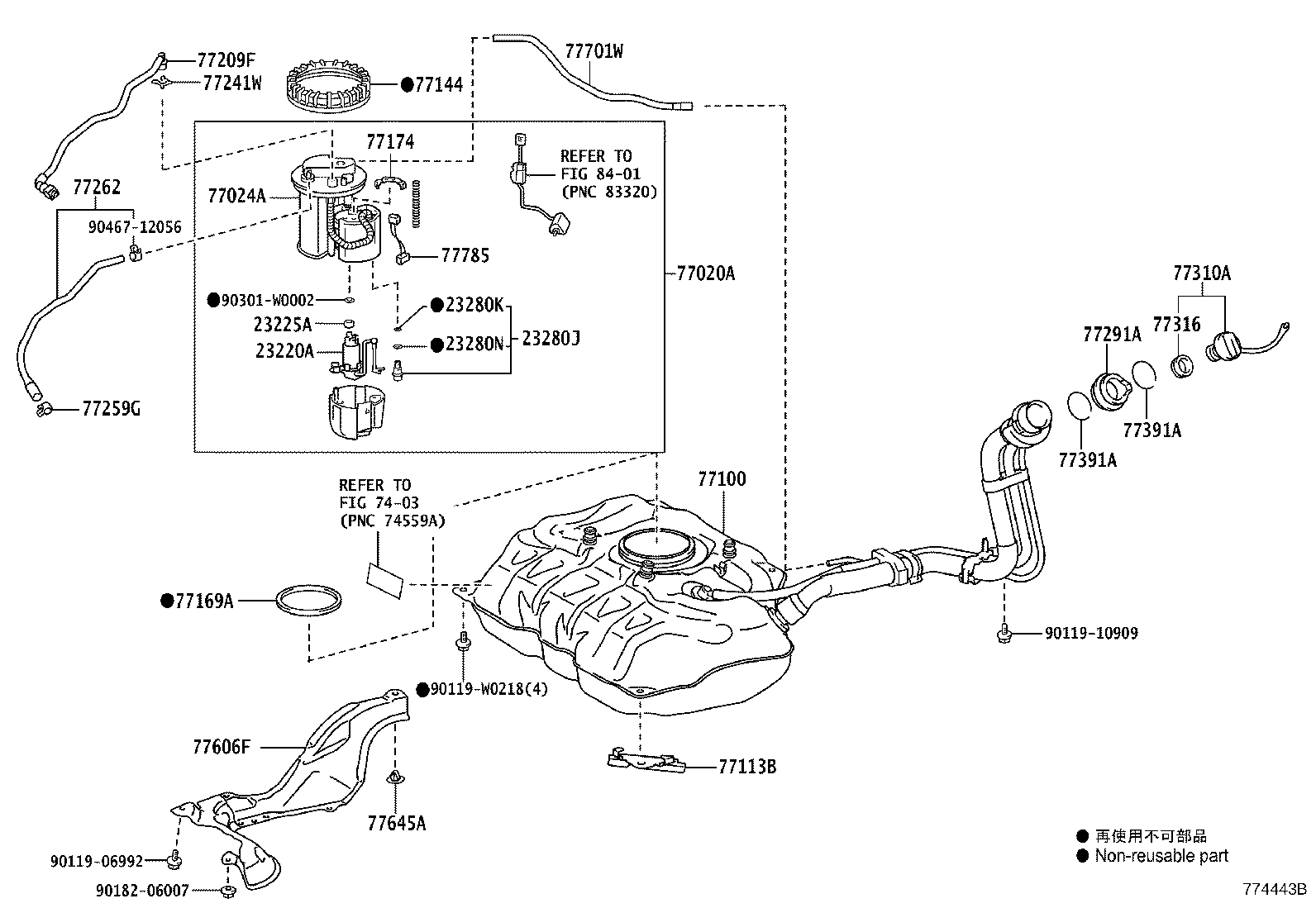

ILLUST NO. 1 OF 3(1711- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

diagram 23220A 23225A 23280J 23280K 23280N 7403 77020A 77024A 77100 77113B 77144 77169A 77174 77209F 77241W 77259G 77262 77291A 77310A 77316 77391A 77391A 77606F 77645A 77701W 77785 8401 9011906992 9011910909 90119W0218 9018206007 90301W0002 9046712056
Part # Description Qty Price
23220A - PUMP ASSY, FUEL W/FILTER
23220-0T071

2ZRFE..NSP131

 1
23225A - SPACER, FUEL PUMP
23225-0T010

2ZRFE..NSP131

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010

2ZRFE..NSP131

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

2ZRFE..NSP131

 1
23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2
90301-15024

2ZRFE..NSP131

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0D400

NSP131

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-0D080

NSP131

 1
77100 - TANK ASSY, FUEL
77001-0D160

NSP131

 1
77113B - PLATE, FUEL TANK SIDE
77113-0D050

NSP131

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0D070

NSP131

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0D070

NSP131

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-0D050

NSP131

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0D280

NSP131

 1
77241W - CLIP, TUBE JOINT
77241-32060

NSP131

 1
77259G - CLIP, FUEL HOSE
90466-13005

NSP131

 1
77262 - TUBE, FUEL EMISSION, NO.2
77028-0D200

NSP131

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0D130

NSP131

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

NSP131

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

NSP131

 1
77391A - RING, FUEL INLET BOX
77391-12020

NSP131

 2
77391A - RING, FUEL INLET BOX
77391-12020

NSP131

 2
77606F - CASE SUB-ASSY, FUEL TANK COVER VENT
77606-0D050

NSP131

 1
77645A - RETAINER, FUEL TANK PROTECTOR
77645-52040

NSP131

 1
77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1
77701-0D170

NSP131

 1
77785 - HARNESS, FUEL PUMP
77785-0D080

NSP131

 1
Common parts
90119-06992
90119-10909
90119-W0218
90182-06007
90301-W0002
90467-12056
Linked diagrams
7403
8401

ILLUST NO. 2 OF 3(1711- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

diagram 1708 2211 2211 77251B 77261D 77267A 77285D 77286D 77289B 77298A
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-0D270

NSP131

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-0D230

NSP131

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-52050

NSP131

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52060

NSP131

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-52100

NSP131

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-52060

NSP131

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52070

NSP131

 4
Linked diagrams
1708
2211

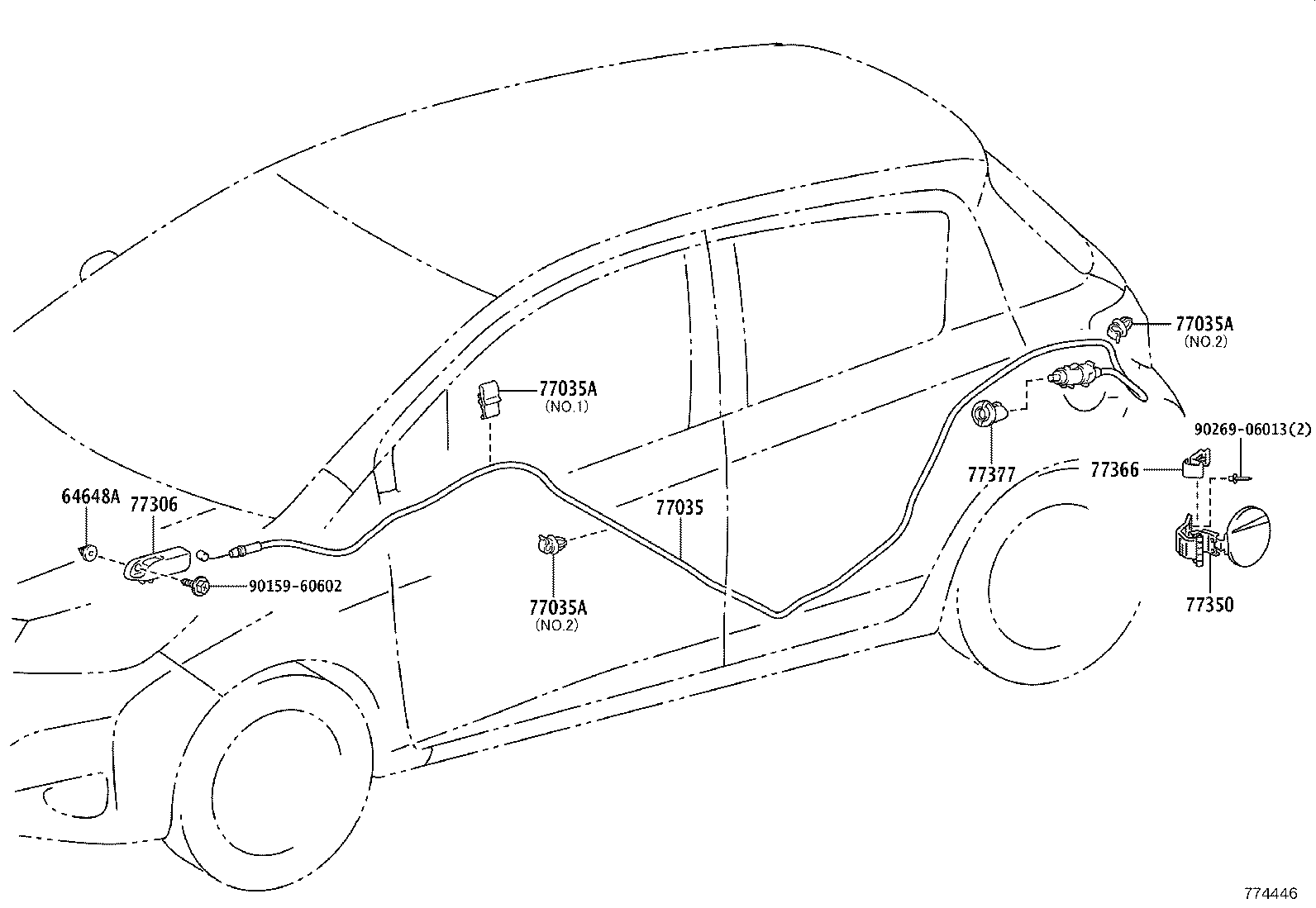

ILLUST NO. 3 OF 3(1711- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ

diagram 64648A 77035 77035A 77035A 77035A 77306 77350 77366 77377 9015960602 9026906013
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32020

NSP131

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0D242

NSP131

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

NSP131

NO.2:ｲﾗｽﾄ参照

 2
90469-04004

NSP131

NO.1:ｲﾗｽﾄ参照

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

NSP131

NO.2:ｲﾗｽﾄ参照

 2
90469-04004

NSP131

NO.1:ｲﾗｽﾄ参照

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

NSP131

NO.2:ｲﾗｽﾄ参照

 2
90469-04004

NSP131

NO.1:ｲﾗｽﾄ参照

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0D110

NSP131

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0D080

NSP131

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-52011

NSP131

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0D060

NSP131

 1
Common parts
90159-60602
90269-06013
