SCP90-AHXVK (2007)
Toyota Vitz
(0501-0809)RS

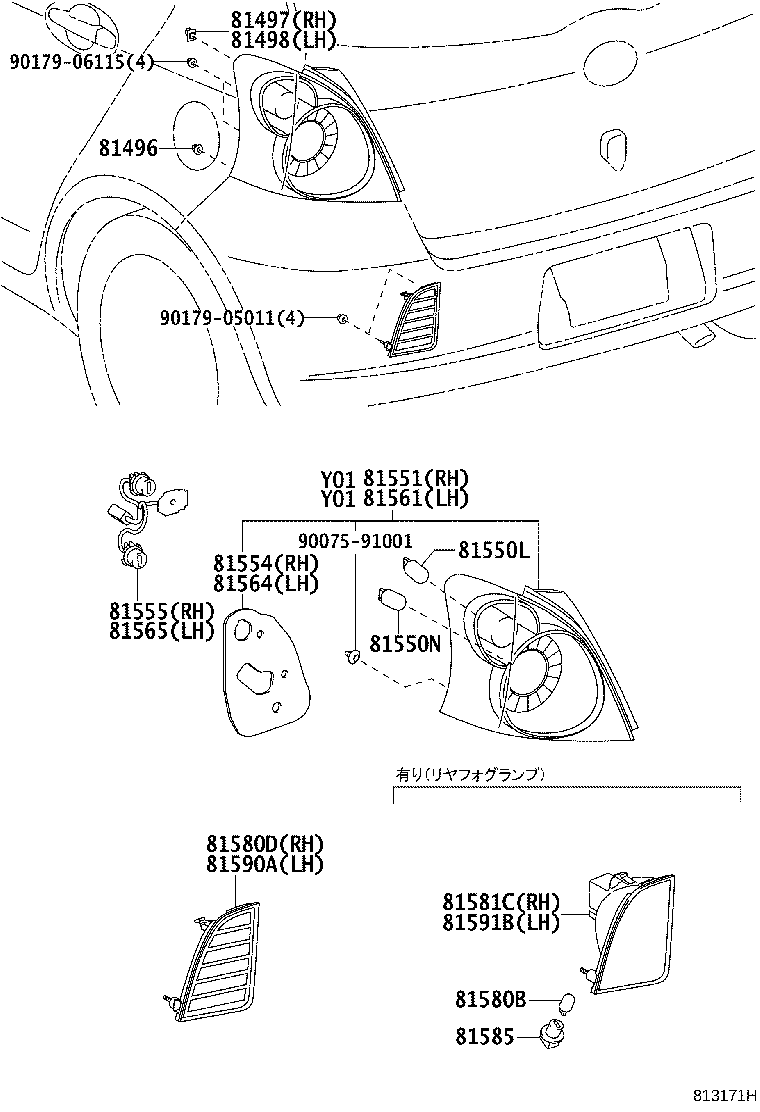

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
KSP90,NCP9#,SCP90 |
2 | ||
| 81496-52020 |
NCP91,SCP90..RS |
2 | ||
| 81496-52020 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-52020 |
NCP91,SCP90..RS |
1 | ||
| 81497-52020 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81497-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81497-52020 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81497-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 81497-52020 |
NCP91,SCP90..RS |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15009 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
2 | ||
| 99132-11210 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
2 | ||
| 90981-13043 |
NCP91,SCP90..RS |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 99132-11210 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 90981-13043 |
NCP91,SCP90..RS |
2 | ||
| 99132-11210 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
2 | ||
| 99132-11210 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 99132-11210 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-52570 |
NCP91,SCP90..RS |
1 | ||
| 81551-52540 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 81551-52720 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 81551-52530 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81551-52730 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-52530 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81554-52710 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81554-52570 |
NCP91,SCP90..RS |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-52540 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 81555-52730 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81555-52720 |
KSP90,NCP9#,SCP90..B,F,ILL,U ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 81555-52570 |
NCP91,SCP90..RS |
1 | ||
| 81555-52530 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-52640 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81561-52500 |
NCP91,SCP90..RS |
1 | ||
| 81561-52470 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-52500 |
NCP91,SCP90..RS |
1 | ||
| 81564-52630 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81564-52470 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-52470 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 81565-52640 |
KSP90,NCP9#,SCP90..B,F,ILL,U |
1 | ||
| 81555-52570 |
NCP91,SCP90..RS |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
NCP91,SCP90..RS 12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け) |
2 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-52170 |
NCP91,SCP90..RS |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-52160 |
NCP91,SCP90..RS ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 90075-99080 |
NCP91,SCP90..RS ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け) |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-52090 |
NCP91,SCP90..RS ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 81590-52100 |
NCP91,SCP90..RS |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-52090 |
NCP91,SCP90..RS ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| Common parts | ||||
| 90075-91001 | ||||
| 90179-05011 | ||||
| 90179-06115 | ||||
