SCP90-AHXNK (2005)
Toyota Vitz

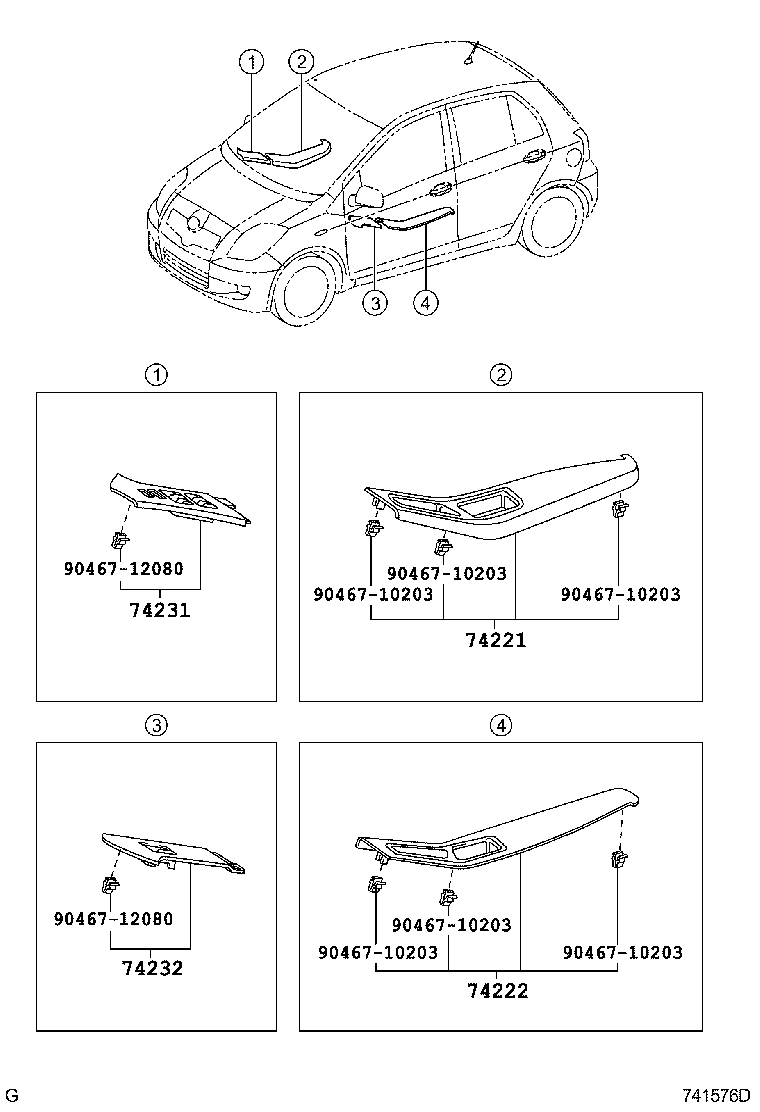

ILLUST NO. 1 OF 2(0501- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-52010B0 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
1 | ||
| 74221-52010E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-52010B0 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
1 | ||
| 74222-52010E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52290E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
1 | ||
| 74231-52290B0 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52220B0 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
1 | ||
| 74232-52220E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||

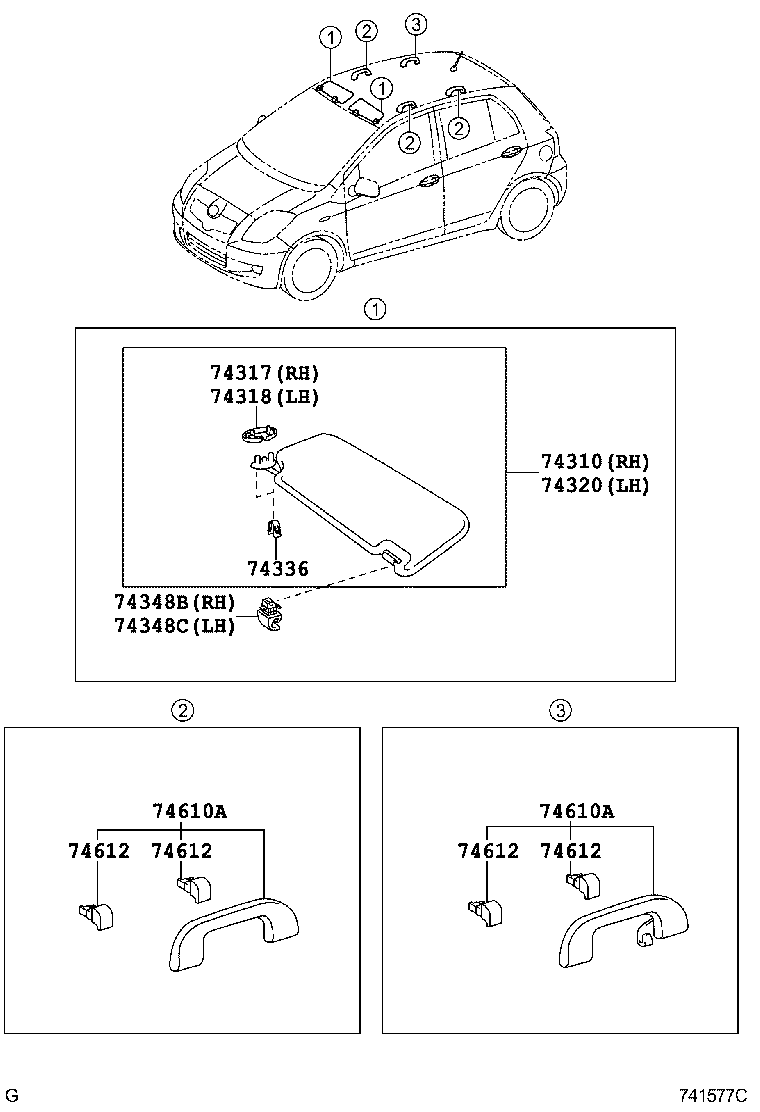

ILLUST NO. 2 OF 2(0501- )
ﾊﾞｲｻﾞ & ｱｼｽﾄ ｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52490B0 |
KSP90,NCP9#,SCP90..F,U,X GRAY,TRIM1# |
1 | ||
| 74310-52490E0 |
KSP90,NCP9#,SCP90..F,ILL,U,X GREGE,TRIM4# |
1 | ||
| 74310-52491E0 |
KSP90,NCP9#,SCP90..F,ILL,U,X GREGE,TRIM4# |
1 | ||
| 74310-52491B0 |
KSP90,NCP9#,SCP90..F,U,X GRAY,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
1 | ||
| 74317-52010B0 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020B0 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
1 | ||
| 74318-52020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52600E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
1 | ||
| 74320-52601E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
1 | ||
| 74320-52600B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
1 | ||
| 74320-52601B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-12040B4 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
1 | ||
| 74348-12040E2 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-12040B4 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
1 | ||
| 74348-12040E2 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B0 |
KSP90,NCP9#,SCP90..B,F,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1# |
3 | ||
| 74610-52020B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
1 | ||
| 74610-52020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
1 | ||
| 74610-52020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
3 | ||
| 74610-52030B0 |
KSP90,NCP9#,SCP90..B,F,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 74610-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B0 |
KSP90,NCP9#,SCP90..B,F,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1# |
3 | ||
| 74610-52020B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
1 | ||
| 74610-52020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
1 | ||
| 74610-52020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
3 | ||
| 74610-52030B0 |
KSP90,NCP9#,SCP90..B,F,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 74610-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4#,ｺｰﾄﾌｯｸ付き |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
8 | ||
| 74612-52030B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
2 | ||
| 74612-52030B0 |
KSP90,NCP9#,SCP90..B,F,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1# |
8 | ||
| 74612-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
8 | ||
| 74612-52030B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
2 | ||
| 74612-52030B0 |
KSP90,NCP9#,SCP90..B,F,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1# |
8 | ||
| 74612-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
8 | ||
| 74612-52030B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
2 | ||
| 74612-52030B0 |
KSP90,NCP9#,SCP90..B,F,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1# |
8 | ||
| 74612-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
8 | ||
| 74612-52030B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
2 | ||
| 74612-52030B0 |
KSP90,NCP9#,SCP90..B,F,X ｱｼｽﾄｸﾞﾘｯﾌﾟ−FR−2､RR−2&SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1# |
8 | ||
| 74612-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
2 | ||
