SCP90-AHXNK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 2SZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

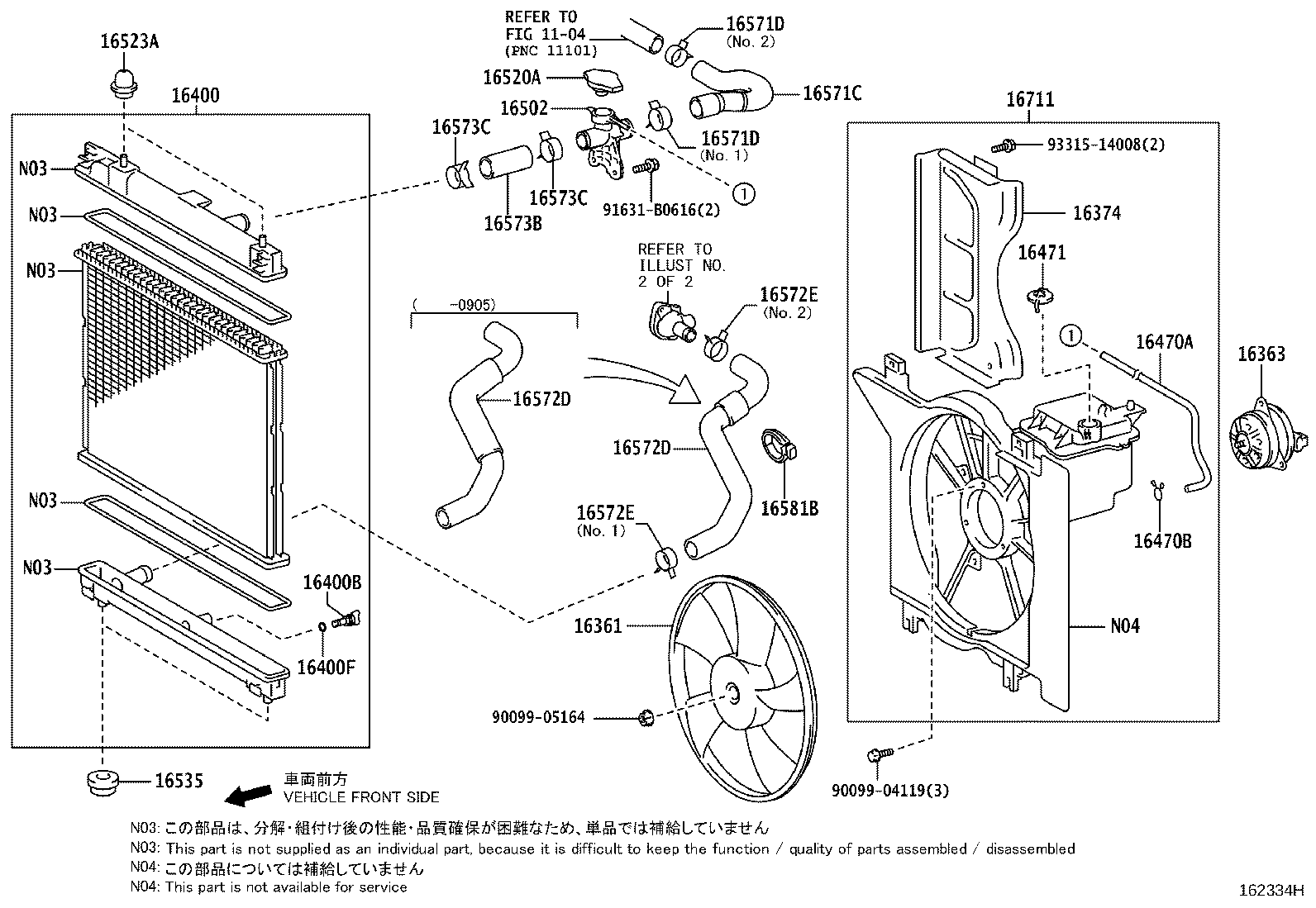

ILLUST NO. 1 OF 2(0501- )2SZFE

Click highlighted areas on diagram

diagram 1104 16361 16363 16374 16400 16400B 16400F 16470A 16470B 16471 16502 16520A 16523A 16535 16571C 16571D 16571D 16572D 16572D 16572E 16572E 16573B 16573C 16573C 16581B 16711 9009904119 9009905164 91631B0616 9331514008
Part # Description Qty Price
16361 - FAN
16361-23070

2SZFE..SCP90

 1
16363 - MOTOR, COOLING FAN
16363-28150

2SZFE..SCP90

 1
16374 - INSULATOR, COOLING FAN MOTOR
16366-40010

2SZFE..SCP90

 1
16400 - RADIATOR ASSY
16400-23160

2SZFE..SCP90

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280

2SZFE..SCP90

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

2SZFE..SCP90

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2SZFE..SCP90

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2SZFE..SCP90

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-23030

2SZFE..SCP90

 1
16502 - FILLER SUB-ASSY, WATER
16502-23010

2SZFE..SCP90

 1
16520A - CAP SUB-ASSY, WATER FILLER
16401-62100

2SZFE..SCP90

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-21030

2SZFE..SCP90

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-22025

2SZFE..SCP90

 2
16571C - HOSE, RADIATOR, NO.1
16571-23080

2SZFE..SCP90

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-30001

2SZFE..SCP90

NO.2

 1
90467-33006

2SZFE..SCP90

NO.1

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-30001

2SZFE..SCP90

NO.2

 1
90467-33006

2SZFE..SCP90

NO.1

 1
16572D - HOSE, RADIATOR, NO.2
16572-23080

2SZFE..SCP90

 1
16572D - HOSE, RADIATOR, NO.2
16572-23080

2SZFE..SCP90

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-30001

2SZFE..SCP90

NO.2

 1
90467-34004

2SZFE..SCP90

NO.1

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-30001

2SZFE..SCP90

NO.2

 1
90467-34004

2SZFE..SCP90

NO.1

 1
16573B - HOSE, RADIATOR, NO.3
16573-23010

2SZFE..SCP90

長さ=94.2

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-33006

2SZFE..SCP90

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-33006

2SZFE..SCP90

 2
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
90469-41001

2SZFE..SCP90

 1
16711 - SHROUD, FAN
16711-23090

2SZFE..SCP90

 1
Common parts
90099-04119
90099-05164
91631-B0616
93315-14008
Linked diagrams
1104

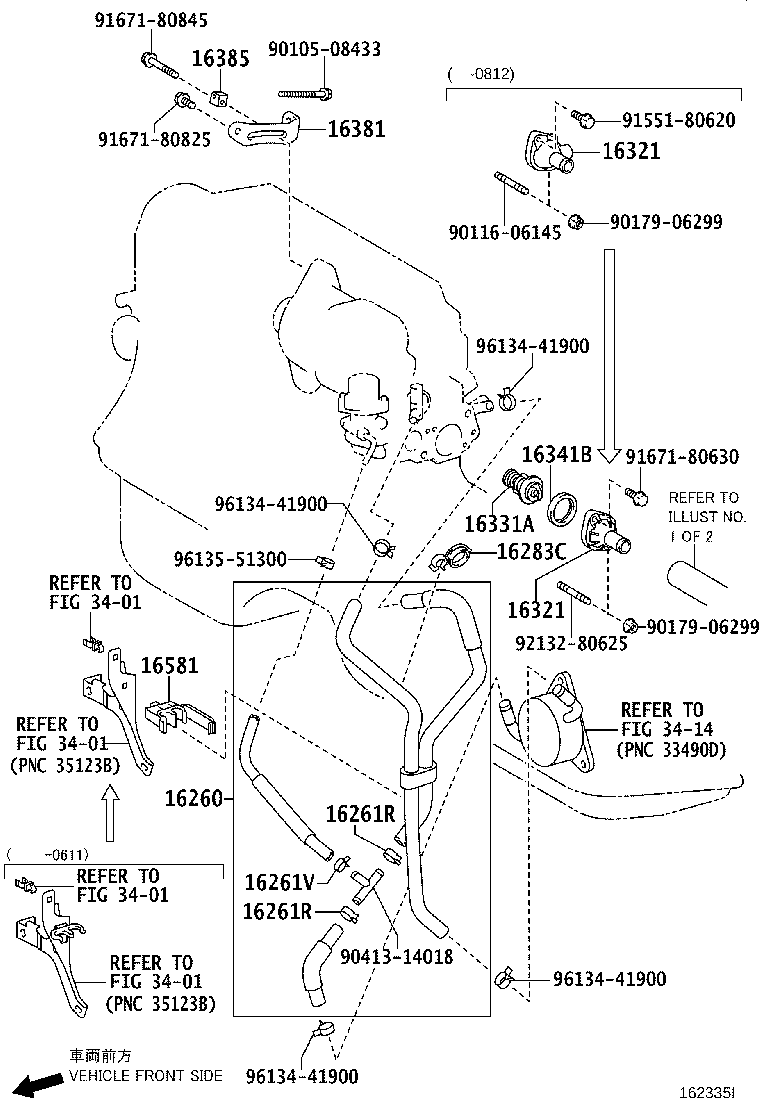

ILLUST NO. 2 OF 2(0501- )2SZFE

Click highlighted areas on diagram

diagram 16260 16261R 16261R 16261V 16283C 16321 16321 16331A 16341B 16381 16385 16581 3401 3401 3401 3401 3414 9010508433 9011606145 9017906299 9017906299 9041314018 9155180620 9167180630 9167180825 9167180845 9213280625 9613441900 9613441900 9613441900 9613441900 9613551300
Part # Description Qty Price
16260 - HOSE ASSY, WATER BY-PASS
16260-23040

2SZFE..SCP90

 1
16260-23042

2SZFE..SCP90

 1
16260-23041

2SZFE..SCP90

 1
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
96134-41900

2SZFE..SCP90

 6
96134-41900

2SZFE..SCP90..F,U

 6
96134-41900

2SZFE..SCP90

 4
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
96134-41900

2SZFE..SCP90

 6
96134-41900

2SZFE..SCP90..F,U

 6
96134-41900

2SZFE..SCP90

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-14037

2SZFE..SCP90

 1
90467-14037

2SZFE..SCP90..F,U

 1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90464-00887

2SZFE..SCP90

 1
16321 - INLET, WATER
16321-23010

2SZFE..SCP90

 1
16321 - INLET, WATER
16321-23010

2SZFE..SCP90

 1
16331A - THERMOSTAT
90916-03122

2SZFE..SCP90

*WAX 80−93

 1
16341B - GASKET, WATER INLET
16341-35010

2SZFE..SCP90

 1
16381 - BAR, FAN BELT ADJUSTING
16381-23060

2SZFE..SCP90

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-23030

2SZFE..SCP90

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-40030

2SZFE..SCP90

 1
Common parts
90105-08433
90116-06145
90179-06299
90413-14018
91551-80620
91671-80630
91671-80825
91671-80845
92132-80625
96134-41900
96135-51300
Linked diagrams
3401
3414
