SCP90-AHXNK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 2SZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2SZFE

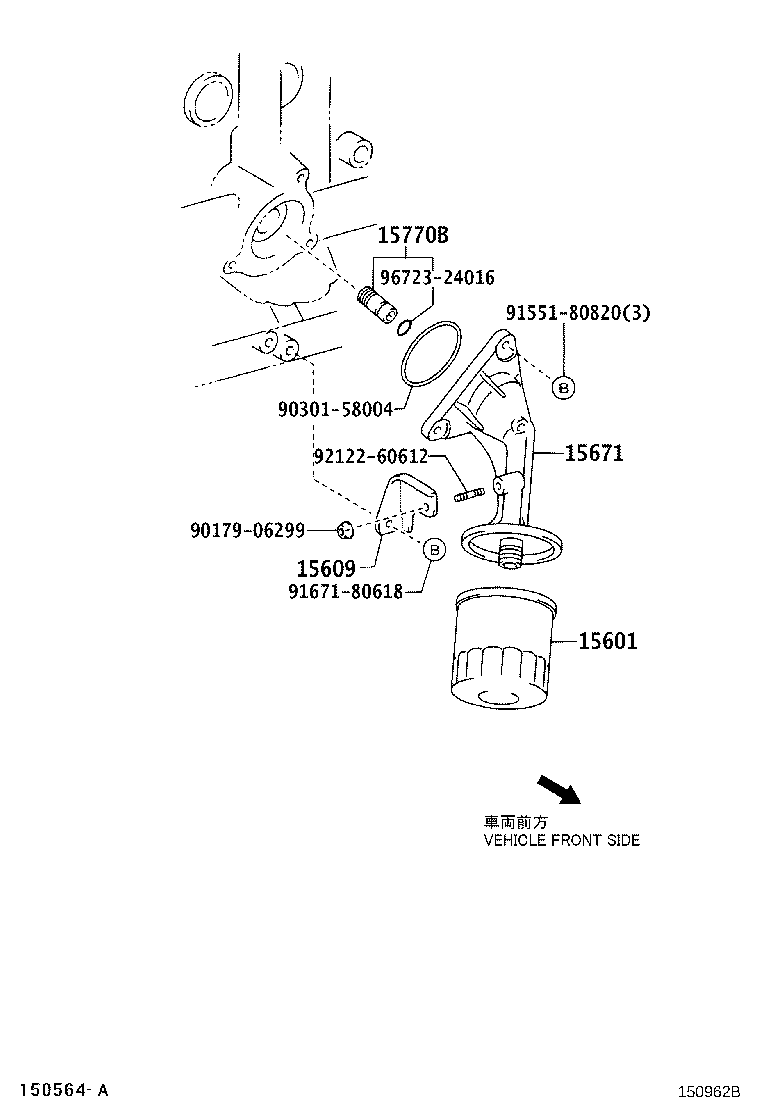

Click highlighted areas on diagram

diagram 15601 15609 15671 15770B 9017906299 9030158004 9155180820 9167180618 9212260612 9672324016
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-10003

2SZFE..SCP90

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-23020

2SZFE..SCP90

 1
15671 - BRACKET, OIL FILTER
15677-23021

2SZFE..SCP90

 1
15770B - PIPE ASSY, OIL
15770-23010

2SZFE..SCP90

 1
Common parts
90179-06299
90301-58004
91551-80820
91671-80618
92122-60612
96723-24016
