SCP90-AHXGK (2005)

Toyota Vitz

Production Dec 2005 - Aug 2007
Engine 2SZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

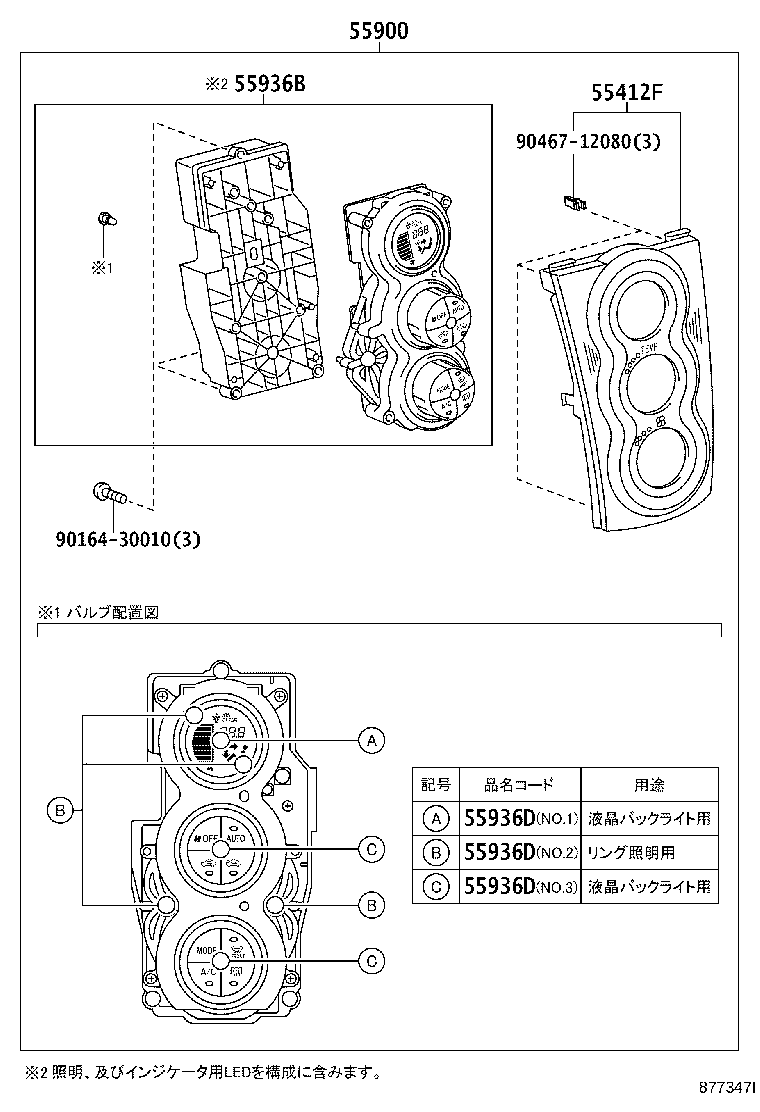

ILLUST NO. 1 OF 3(0501-0708)NCP95,SCP90..ILL,U ; (0501-0708)KSP90,NCP91..B,F,ILL,X ; (0708- )KSP9

Click highlighted areas on diagram

ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ---ｵｰﾄ

diagram 55412F 55900 55936B 55936D 55936D 55936D 9016430010 9046712080
Part # Description Qty Price
55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55410-52050B1

KSP90,NCP95,SCP90..ILL

SILVER,TRIM4#

 1
55410-52050B0

NCP9#,SCP90..U,X

LT.SILVER,TRIM1#,4#

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-52430B0

KSP90,NCP95,SCP90..ILL

SILVER,TRIM4#

 1
55900-52390B0

NCP9#,SCP90..U,X

LT.SILVER,TRIM1#,4#

 1
55936B - SWITCH, CENTER CLUSTER MODULE
55936-52180

NCP9#,SCP90..U,X

 1
55936-52190

KSP90,NCP95,SCP90..ILL

 1
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
90010-01097

NCP9#,SCP90..U,X

14V 1.12W,ｷｬｯﾌﾟ付き,NO.3

 2
90010-01114

NCP9#,SCP90..U,X

14V 0.98W,ｷｬｯﾌﾟ付き,NO.1

 1
90010-01132

KSP90,NCP95,SCP90..ILL

14V 0.63W,NO.1

 1
90010-01115

NCP9#,SCP90..U,X

14V 0.98W,ｷｬｯﾌﾟ付き,NO.2

 4
90010-01131

KSP90,NCP95,SCP90..ILL

14V 0.84W,NO.3

 2
90010-01124

KSP90,NCP95,SCP90..ILL

14V 0.63W,NO.2

 4
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
90010-01097

NCP9#,SCP90..U,X

14V 1.12W,ｷｬｯﾌﾟ付き,NO.3

 2
90010-01114

NCP9#,SCP90..U,X

14V 0.98W,ｷｬｯﾌﾟ付き,NO.1

 1
90010-01132

KSP90,NCP95,SCP90..ILL

14V 0.63W,NO.1

 1
90010-01115

NCP9#,SCP90..U,X

14V 0.98W,ｷｬｯﾌﾟ付き,NO.2

 4
90010-01131

KSP90,NCP95,SCP90..ILL

14V 0.84W,NO.3

 2
90010-01124

KSP90,NCP95,SCP90..ILL

14V 0.63W,NO.2

 4
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
90010-01097

NCP9#,SCP90..U,X

14V 1.12W,ｷｬｯﾌﾟ付き,NO.3

 2
90010-01114

NCP9#,SCP90..U,X

14V 0.98W,ｷｬｯﾌﾟ付き,NO.1

 1
90010-01132

KSP90,NCP95,SCP90..ILL

14V 0.63W,NO.1

 1
90010-01115

NCP9#,SCP90..U,X

14V 0.98W,ｷｬｯﾌﾟ付き,NO.2

 4
90010-01131

KSP90,NCP95,SCP90..ILL

14V 0.84W,NO.3

 2
90010-01124

KSP90,NCP95,SCP90..ILL

14V 0.63W,NO.2

 4
Common parts
90164-30010
90467-12080

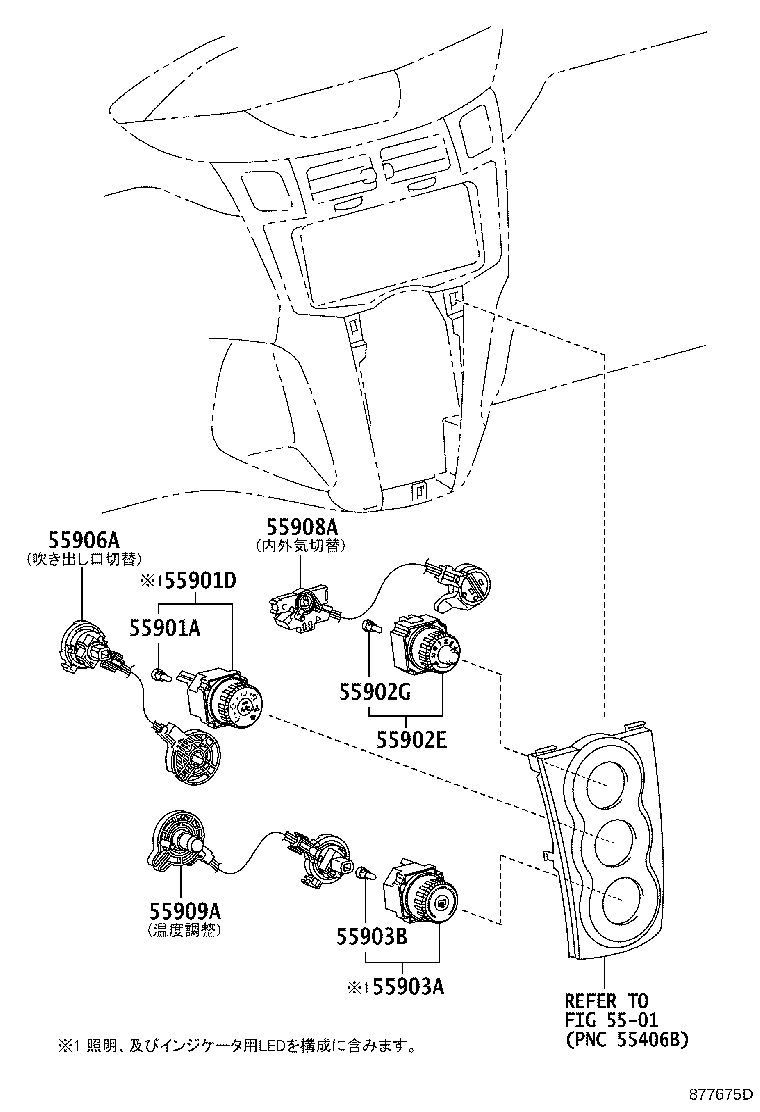

ILLUST NO. 1 OF 3(0501-0708)B,F,RS ; (0708- )KSP90,NCP95,SCP90..B,F,RS

Click highlighted areas on diagram

ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ---ﾏﾆｭｱﾙ

diagram 5501 55901A 55901D 55902E 55902G 55903A 55903B 55906A 55908A 55909A
Part # Description Qty Price
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90010-01113

KSP90,NCP95,SCP90..B,F

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-52090

KSP90,NCP95,SCP90..B,F

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-52010

KSP90,NCP95,SCP90..B,F

 1
55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2
90010-01113

KSP90,NCP95,SCP90..B,F

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-52020

KSP90,NCP95,SCP90..B,F

寒冷地仕様

 1
55903-52010

KSP90,NCP95,SCP90..B,F

 1
55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3
90010-01113

KSP90,NCP95,SCP90..B,F

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52131

KSP90,NCP9#,SCP90..B,F,RS

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52130

KSP90,NCP9#,SCP90..B,F,RS

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52120

KSP90,NCP9#,SCP90..B,F,RS

 1
Linked diagrams
5501
