SCP90-AHXGK (2005)
Toyota Vitz
ILLUST NO. 5 OF 7(0501-0808)B,F,ILL,U,X ; (0501-0809)RS
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52080 |
KSP90,NCP95,SCP90..ILL |
1 | ||
| 84152-52080 |
KSP90,NCP95,SCP90..ILL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84152-52070 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84152-52070 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52020 |
KSP90,NCP9#,SCP90 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52020 |
KSP90,NCP9#,SCP90..ILL,RS 寒冷地仕様 |
1 | ||
| 84794-52010 |
KSP90,NCP9#,SCP90..B,F,U,X 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-26040 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 85530-42010 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52050 |
KSP90,NCP9#,SCP90 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85535-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52010 |
KSP90,NCP9#,SCP90..F,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 89611-52020 |
KSP90,NCP9#,SCP90..ILL,RS ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||
| 8601 | ||||

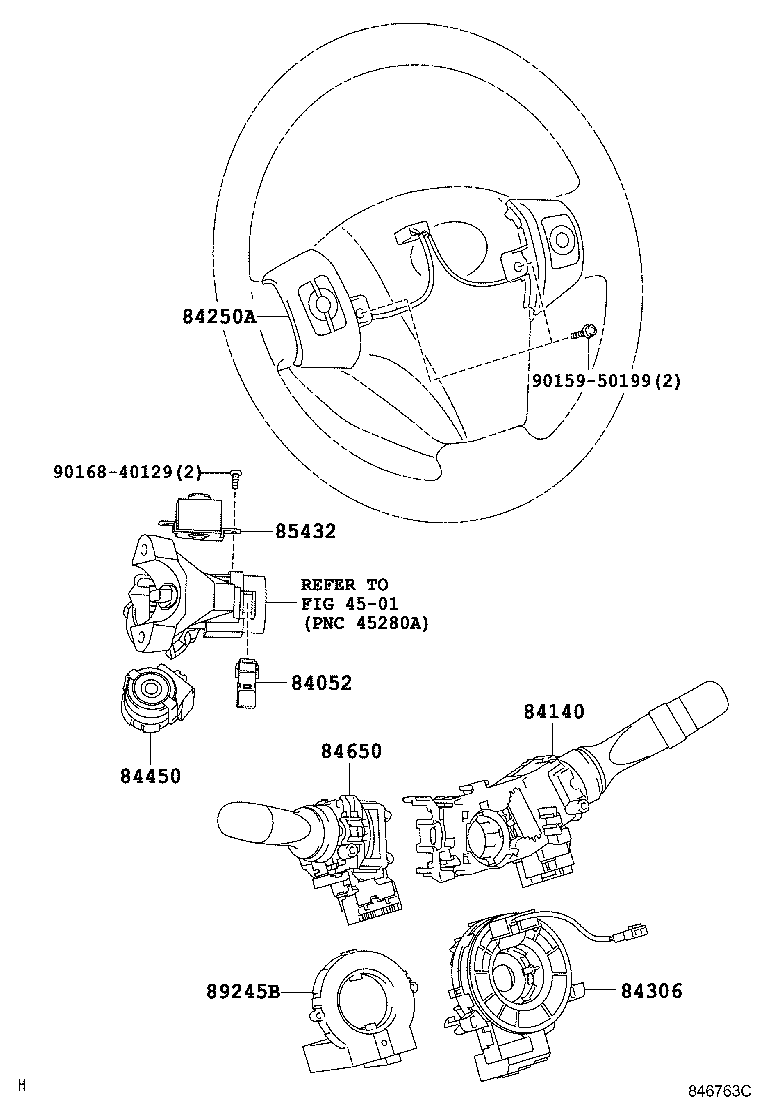

ILLUST NO. 6 OF 7(0501-0708) ; (0708- )B,F,ILL,U
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
KSP90,NCP9#,SCP90..F,RS,X Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 84052-71010 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 84052-71010 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52090 |
KSP90,NCP95,SCP90..ILL |
1 | ||
| 84140-52180 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 84140-12590 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84140-12600 |
KSP90,NCP9#,SCP90..F,U,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 84140-52130 |
KSP90,NCP9#,SCP90..B,F,U,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 84140-52100 |
KSP90,NCP95,SCP90..ILL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84140-52110 |
KSP90,NCP95,SCP90..ILL ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 84140-52120 |
KSP90,NCP95,SCP90..ILL ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52010B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/4ｽﾋﾟｰｶ/異型 2DIN,LT.SILVER,TRIM1#,4# |
1 | ||
| 84250-52010B0 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),LT.SILVER,TRIM1#,4# |
1 | ||
| 84250-52010B0 |
KSP90,NCP95,SCP90..F ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN,LT.SILVER,TRIM1#,4# |
1 | ||
| 84250-52010B1 |
KSP90,NCP95,SCP90..ILL ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN,SILVER,TRIM4# |
1 | ||
| 84250-52010B0 |
KSP90,NCP9#,SCP90..F,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,LT.SILVER,TRIM1#,4# |
1 | ||
| 84250-52010B1 |
KSP90,NCP95,SCP90..ILL ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK),SILVER,TRIM4# |
1 | ||
| 84250-52010B0 |
KSP90,NCP95,SCP90..F ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK),LT.SILVER,TRIM1#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
KSP90,NCP9#,SCP90..F,RS,X ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ |
1 | ||
| 84306-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 84306-52090 |
KSP90,NCP9#,SCP90..F,ILL,RS ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN |
1 | ||
| 84306-52090 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK) |
1 | ||
| 84306-52090 |
KSP90,NCP9#,SCP90..F,ILL,RS ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 2ｽﾋﾟｰｶ(G−BOOK) |
1 | ||
| 84306-52090 |
NCP9#,SCP90..U,X ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/4ｽﾋﾟｰｶ/異型 2DIN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
KSP90,NCP9#,SCP90..F,RS,X Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 84450-71010 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 84450-71010 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52190 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
KSP90,NCP9#,SCP90..ATM..(B,F,ILL,RS,X) |
1 | ||
| 85432-71010 |
KSP90,NCP9#,SCP90..ATM..(F,ILL,RS,X) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 85432-71010 |
KSP90,NCP9#,SCP90..ATM..(F,RS,X) Lﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
