SCP90-AHXGK (2005)

Toyota Vitz

Production Dec 2005 - Aug 2007
Engine 2SZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0708)ILL,RS,U,X

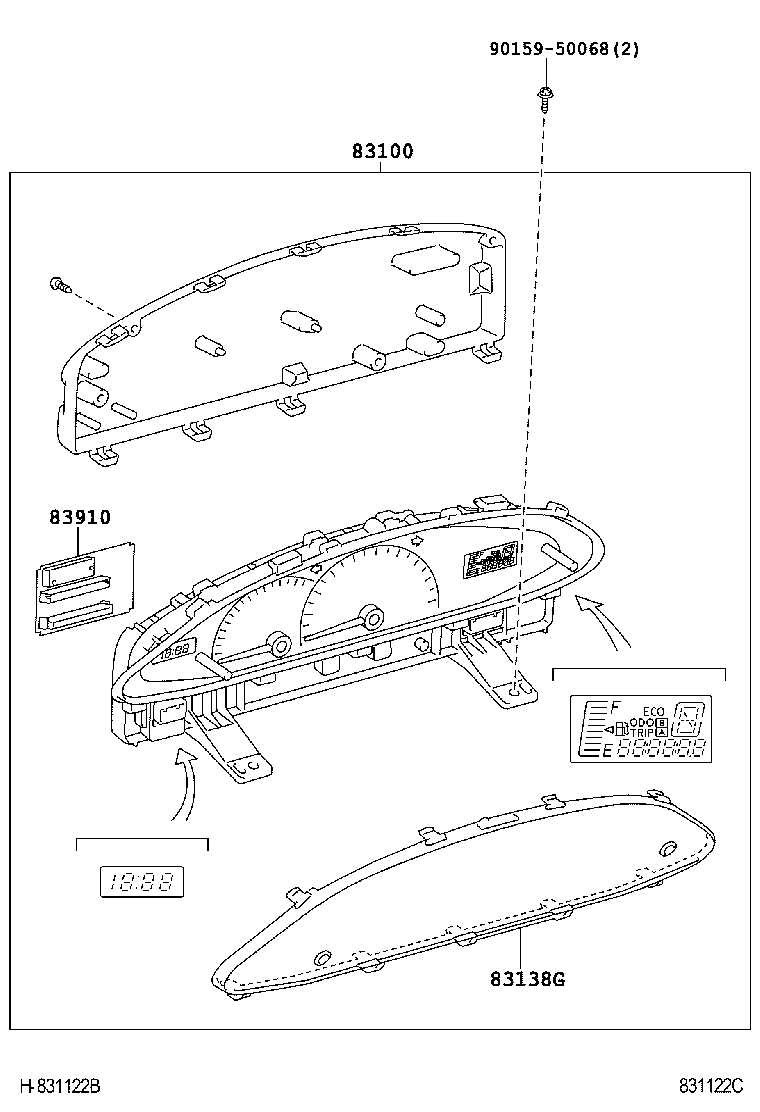

Click highlighted areas on diagram

diagram 83100 83138G 83910 9015950068
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-52A11

KSP90,SCP90..B,F

DENSO

 1
83800-52A10

KSP90,SCP90..B,F

DENSO

 1
83800-52A30

NCP91,SCP90..U,X

DENSO

 1
83800-52A50

KSP90,NCP91,SCP90..CVFC..(ILL,RS)

DENSO

 1
83800-52A31

NCP91,SCP90..U,X

DENSO

 1
83138G - GLASS, COMBINATION METER
83852-52A00

KSP90,NCP95,SCP90..B,F

 1
83852-52A30

KSP90,NCP9#,SCP90..ILL,RS,U,X

 1
83910 - CLOCK ASSY
83910-52090

KSP90,NCP95,SCP90..B,F

 1
83910-52080

KSP90,NCP9#,SCP90..ILL,RS,U,X

 1
Common parts
90159-50068
