SCP90-AHXGK (2005)

Toyota Vitz

Production Dec 2005 - Aug 2007
Engine 2SZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0708)ILL,RS ; (0708- )

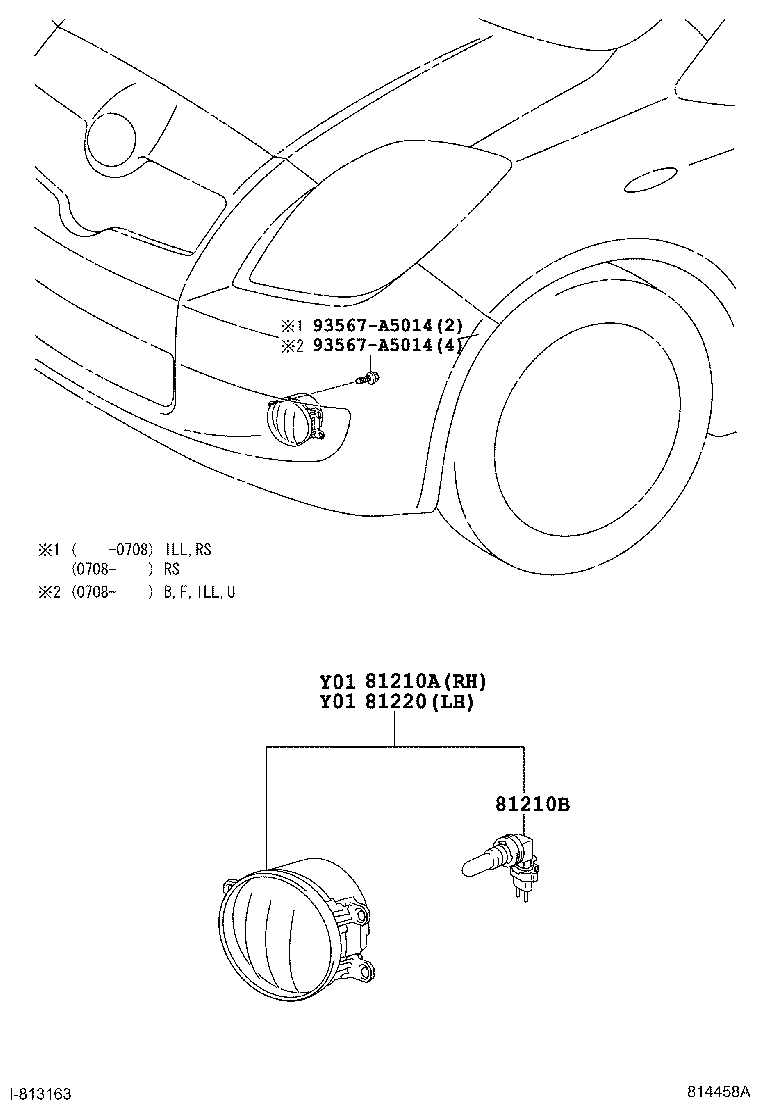

Click highlighted areas on diagram

diagram 81210A 81210B 81220 93567A5014 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D040

KSP90,NCP9#,SCP90..ILL,RS

 1
81210-0D041

KSP90,NCP9#,SCP90..ILL,RS

 1
81220 - LAMP ASSY, FOG, LH
81220-0D041

KSP90,NCP9#,SCP90..ILL,RS

 1
81220-0D040

KSP90,NCP9#,SCP90..ILL,RS

 1
Common parts
93567-A5014
