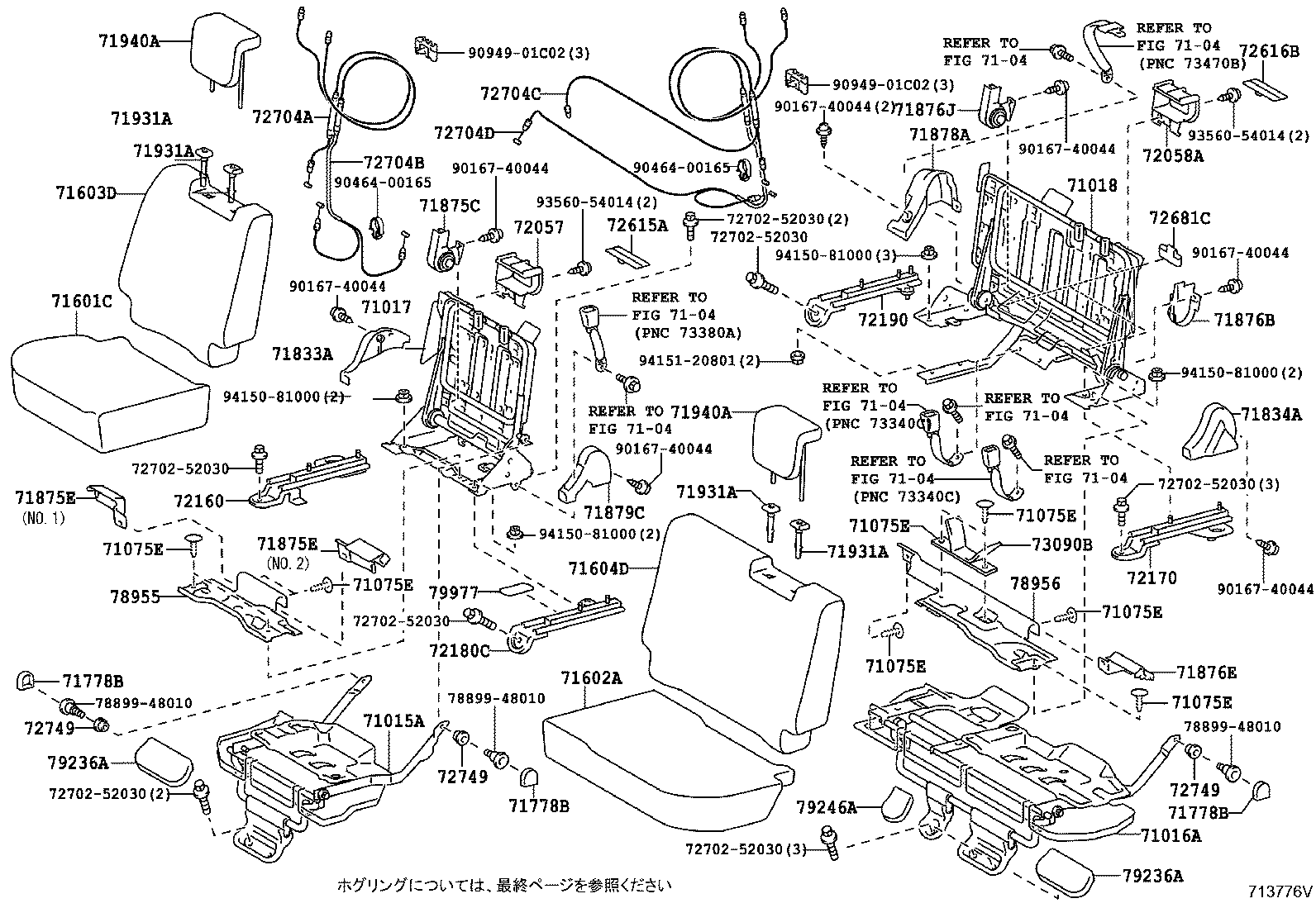

SCP90-AHXGK (2005)
Toyota Vitz
(0501-0708)NCP91,SCP90..F,X
ｽﾗｲﾄﾞｼｷｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-52310 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-52060 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52401 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 71017-52400 |
NCP91,SCP90..F,U,X |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52330 |
NCP91,SCP90..F,U,X |
1 | ||
| 71018-52331 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH | ||||
| 71601-52B00C2 |
NCP91,SCP90..F,X BLACK,TRIM1# |
1 | ||
| 71602A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH | ||||
| 71602-52200C2 |
NCP91,SCP90..F,X BLACK,TRIM1# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52A90C2 |
NCP91,SCP90..F,X BLACK,TRIM1# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52A50C2 |
NCP91,SCP90..F,X BLACK,TRIM1# |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
3 | ||
| 71778-52010B0 |
SCP90..ILL DK.GRAY,TRIM4# |
3 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
3 | ||
| 71778-52010B0 |
SCP90..ILL DK.GRAY,TRIM4# |
3 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
3 | ||
| 71778-52010B0 |
SCP90..ILL DK.GRAY,TRIM4# |
3 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52060B1 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71833-52060B1 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-52060B1 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71834-52060B1 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52120B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875-52121B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875-52121B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875-52120B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52130B0 |
SCP90..ILL DK.GRAY,TRIM4#,NO.1 |
1 | ||
| 71876-52140B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4#,NO.2 |
1 | ||
| 71876-52140B0 |
SCP90..ILL DK.GRAY,TRIM4#,NO.2 |
1 | ||
| 71875-52130B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4#,NO.1 |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52130B0 |
SCP90..ILL DK.GRAY,TRIM4#,NO.1 |
1 | ||
| 71876-52140B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4#,NO.2 |
1 | ||
| 71876-52140B0 |
SCP90..ILL DK.GRAY,TRIM4#,NO.2 |
1 | ||
| 71875-52130B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4#,NO.1 |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52120B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876-52121B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71876-52120B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71876-52121B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52130B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876-52130B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-52141B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875-52140B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875-52141B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875-52140B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52070B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71878-52070B2 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52090B2 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71879-52090B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP9#,SCP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NCP9#,SCP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP95,SCP90..ILL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP9#,SCP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NCP9#,SCP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP95,SCP90..ILL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP9#,SCP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NCP9#,SCP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP95,SCP90..ILL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP9#,SCP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NCP9#,SCP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP95,SCP90..ILL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52240C0 |
NCP9#,SCP90..F,X BLACK,TRIM1# |
2 | ||
| 71940-52430E1 |
NCP95,SCP90..ILL GRAGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52240C0 |
NCP9#,SCP90..F,X BLACK,TRIM1# |
2 | ||
| 71940-52430E1 |
NCP95,SCP90..ILL GRAGE,TRIM4# |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-52020 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-52030 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72160-52030 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72170-52020 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52070B0 |
NCP91,SCP90..F,RS,U,X DK.GRAY,TRIM1# |
1 | ||
| 72616B - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-52070B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 72681C - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-52010 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52030 |
NCP9#,SCP90..F,ILL,U,X |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52050 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-52040 |
NCP9#,SCP90..F,ILL,U,X |
1 | ||
| 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-52060 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91,SCP90..F,ILL,U,X |
3 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91,SCP90..F,ILL,U,X |
3 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91,SCP90..F,ILL,U,X |
3 | ||
| 73090B - PLATE ASSY, SEAT BELT ANCHOR | ||||
| 73090-52010 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 78956 - COVER, REAR SEAT UNDER TRAY LH | ||||
| 78955-52020B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 78955-52020B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-52020C0 |
SCP90..ILL BLACK,TRIM4# |
2 | ||
| 79236-52020C0 |
NCP91,SCP90..F,U,X BLACK,TRIM1#,4# |
2 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-52020C0 |
SCP90..ILL BLACK,TRIM4# |
2 | ||
| 79236-52020C0 |
NCP91,SCP90..F,U,X BLACK,TRIM1#,4# |
2 | ||
| 79246A - COVER, NO.2 SEAT LEG, NO.2 | ||||
| 79246-52020C0 |
SCP90..ILL BLACK,TRIM4# |
1 | ||
| 79246-52020C0 |
NCP91,SCP90..F,U,X BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90167-40044 | ||||
| 90464-00165 | ||||
| 90949-01C02 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| 94151-20801 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0512- )NCP91,SCP90..ILL

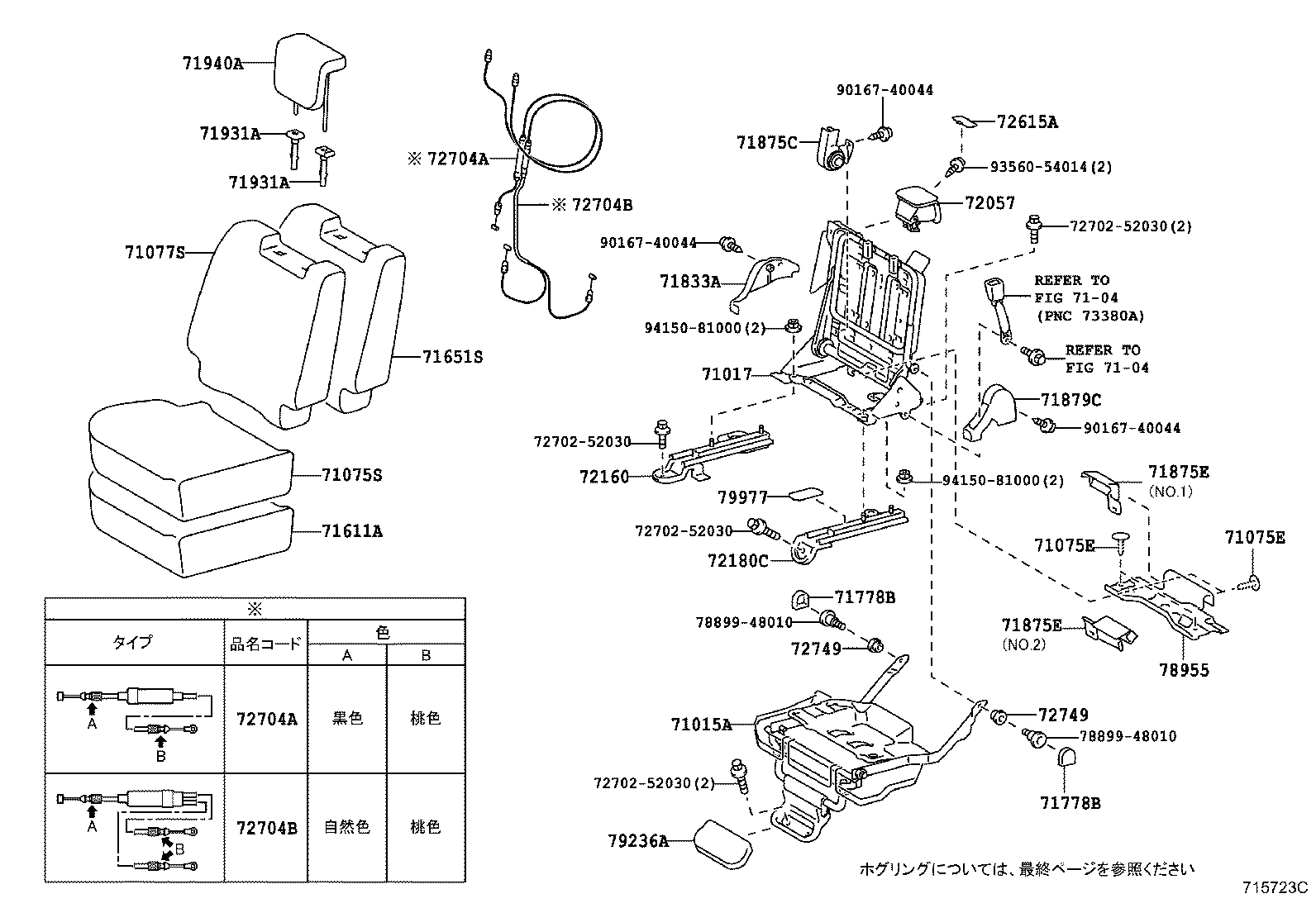

ｽﾗｲﾄﾞｼｷｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-52310 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52401 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 71017-52400 |
NCP91,SCP90..F,U,X |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-52B90E1 |
SCP90..ILL GREGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-52C70E2 |
SCP90..ILL GREGE,TRIM4# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-52150 |
SCP90..ILL |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-52470 |
SCP90..ILL |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
3 | ||
| 71778-52010B0 |
SCP90..ILL DK.GRAY,TRIM4# |
3 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
3 | ||
| 71778-52010B0 |
SCP90..ILL DK.GRAY,TRIM4# |
3 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52060B1 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71833-52060B1 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52120B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875-52121B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875-52121B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875-52120B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52130B0 |
SCP90..ILL DK.GRAY,TRIM4#,NO.1 |
1 | ||
| 71876-52140B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4#,NO.2 |
1 | ||
| 71876-52140B0 |
SCP90..ILL DK.GRAY,TRIM4#,NO.2 |
1 | ||
| 71875-52130B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4#,NO.1 |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52130B0 |
SCP90..ILL DK.GRAY,TRIM4#,NO.1 |
1 | ||
| 71876-52140B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4#,NO.2 |
1 | ||
| 71876-52140B0 |
SCP90..ILL DK.GRAY,TRIM4#,NO.2 |
1 | ||
| 71875-52130B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4#,NO.1 |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52090B2 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71879-52090B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP9#,SCP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NCP9#,SCP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP95,SCP90..ILL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP9#,SCP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NCP9#,SCP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP95,SCP90..ILL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52240C0 |
NCP9#,SCP90..F,X BLACK,TRIM1# |
2 | ||
| 71940-52430E1 |
NCP95,SCP90..ILL GRAGE,TRIM4# |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-52020 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72160-52030 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52070B0 |
NCP91,SCP90..F,RS,U,X DK.GRAY,TRIM1# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52030 |
NCP9#,SCP90..F,ILL,U,X |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52030 |
NCP9#,SCP90..F,ILL,U,X |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52050 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52050 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91,SCP90..F,ILL,U,X |
3 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91,SCP90..F,ILL,U,X |
3 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-52020C0 |
SCP90..ILL BLACK,TRIM4# |
2 | ||
| 79236-52020C0 |
NCP91,SCP90..F,U,X BLACK,TRIM1#,4# |
2 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90167-40044 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0512- )NCP91,SCP90..ILL

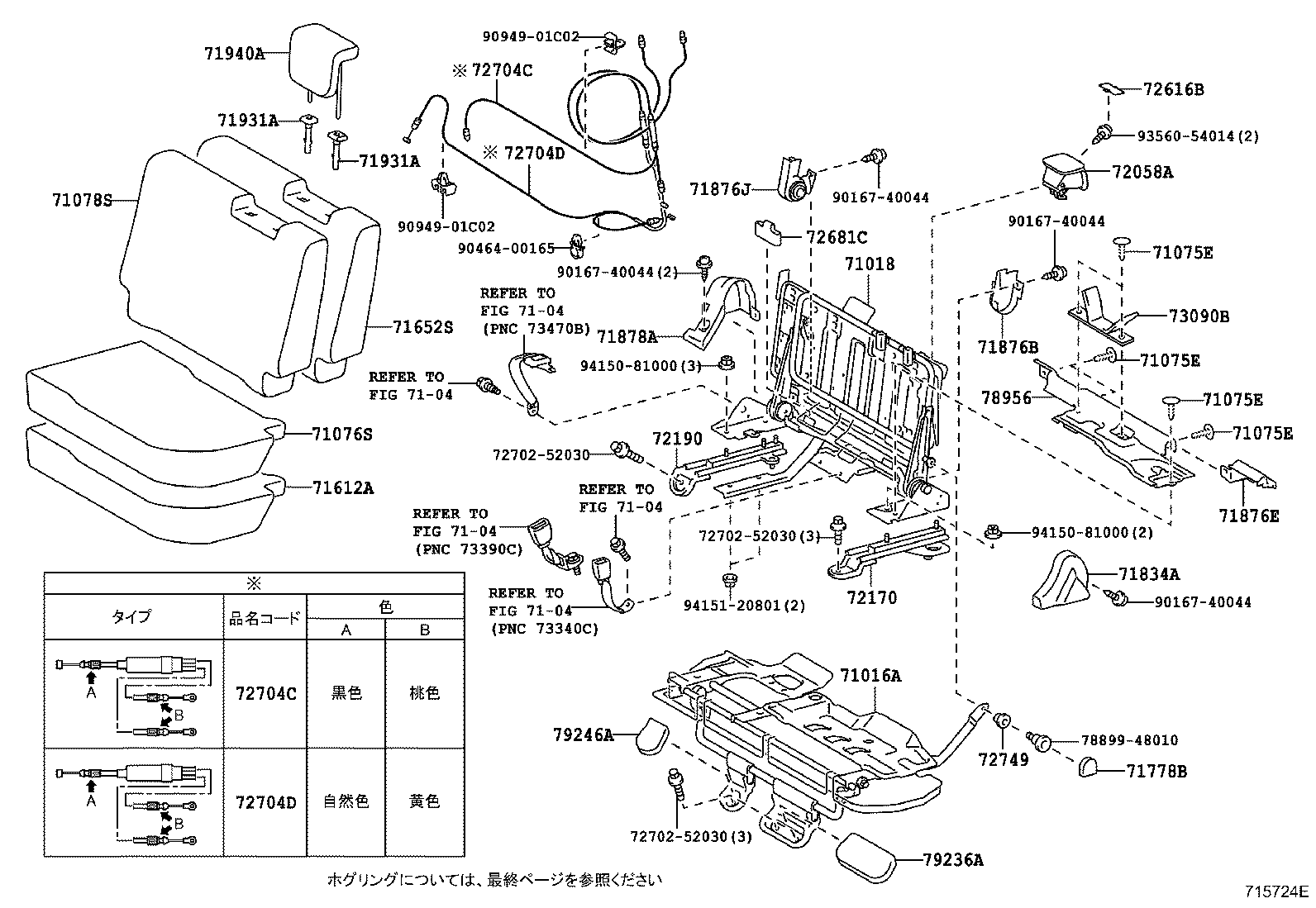

ｽﾗｲﾄﾞｼｷｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-52060 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52330 |
NCP91,SCP90..F,U,X |
1 | ||
| 71018-52331 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
10 | ||
| 90467-06085B2 |
SCP90..ILL DK.GRAY,TRIM4# |
10 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-52090E2 |
SCP90..ILL GREGE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-52B90E2 |
SCP90..ILL GREGE,TRIM4# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-52090 |
SCP90..ILL |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-52350 |
SCP90..ILL |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
SCP90..F ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ),DK.GRAY,TRIM1#,4# |
1 | ||
| 71778-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
3 | ||
| 71778-52010B0 |
SCP90..ILL DK.GRAY,TRIM4# |
3 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-52060B1 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71834-52060B1 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52120B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876-52121B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71876-52120B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71876-52121B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52130B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71876-52130B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-52141B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875-52140B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71875-52141B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71875-52140B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52070B2 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 71878-52070B2 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020E1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-52030B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP9#,SCP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-47010B2 |
NCP9#,SCP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP95,SCP90..ILL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020E1 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NCP9#,SCP90 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
KSP90,NCP9#,SCP90..B,F,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030B0 |
KSP90,NCP9#,SCP90..B,F,RS,U,X ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP9#,SCP90 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
KSP90,NCP95,SCP90..ILL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52240C0 |
NCP9#,SCP90..F,X BLACK,TRIM1# |
2 | ||
| 71940-52430E1 |
NCP95,SCP90..ILL GRAGE,TRIM4# |
2 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-52010B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-52030 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72170-52020 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72616B - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-52070B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1# |
1 | ||
| 72681C - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-52010 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-52040 |
NCP9#,SCP90..F,ILL,U,X |
1 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-52040 |
NCP9#,SCP90..F,ILL,U,X |
1 | ||
| 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-52060 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-52060 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91,SCP90..F,ILL,U,X |
3 | ||
| 73090B - PLATE ASSY, SEAT BELT ANCHOR | ||||
| 73090-52010 |
NCP91,SCP90..F,ILL,U,X |
1 | ||
| 78956 - COVER, REAR SEAT UNDER TRAY LH | ||||
| 78955-52020B0 |
NCP91,SCP90..F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 78955-52020B0 |
SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-52020C0 |
SCP90..ILL BLACK,TRIM4# |
2 | ||
| 79236-52020C0 |
NCP91,SCP90..F,U,X BLACK,TRIM1#,4# |
2 | ||
| 79246A - COVER, NO.2 SEAT LEG, NO.2 | ||||
| 79246-52020C0 |
SCP90..ILL BLACK,TRIM4# |
1 | ||
| 79246-52020C0 |
NCP91,SCP90..F,U,X BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90167-40044 | ||||
| 90464-00165 | ||||
| 90949-01C02 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| 94151-20801 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
