SCP90-AHXGK (2005)
Toyota Vitz
(0501-0708)F,ILL,RS,U,X ; (0708- )F,ILL,RS,U
ｱﾘ(ｽﾏｰﾄｷｰ ｼｽﾃﾑ)

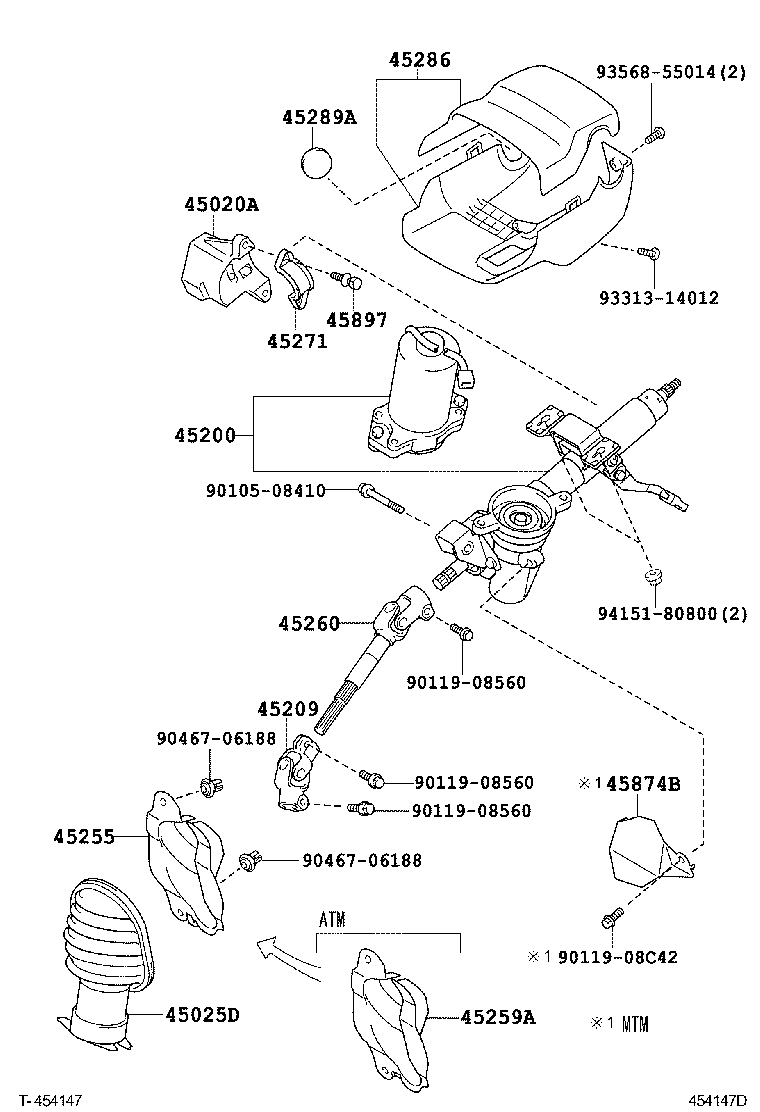

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-52140 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52140 |
KSP90,NCP91,SCP90 |
1 | ||
| 45200 - POST ASSY, STEERING | ||||
| 45200-52260 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 45200-52270 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52040 |
KSP90,NCP9#,SCP90 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52010 |
KSP90,NCP9#,SCP90..ATM |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52170 |
KSP90,NCP9#,SCP90 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-52930B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-52930B0 |
KSP90,NCP95,SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 45286-52930B0 |
KSP90,NCP9#,SCP90..F,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ,DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-52930B0 |
KSP90,NCP95,SCP90..ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ,DK.GRAY,TRIM4# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-52010B0 |
KSP90,NCP9#,SCP90..F,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ,DK.GRAY,TRIM1#,4# |
1 | ||
| 45289-52010B0 |
KSP90,NCP95,SCP90..ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ,DK.GRAY,TRIM4# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
KSP90,NCP9#,SCP90 |
2 | ||
| Common parts | ||||
| 90105-08410 | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90467-06188 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
(0501-0708)B,F,ILL,RS,X ; (0708- )KSP90 ; (0708- )NCP9#,SCP90..F,RS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52140 |
KSP90,NCP91,SCP90 |
1 | ||
| 45200 - POST ASSY, STEERING | ||||
| 45200-52260 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 45200-52270 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52040 |
KSP90,NCP9#,SCP90 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52010 |
KSP90,NCP9#,SCP90..ATM |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52170 |
KSP90,NCP9#,SCP90 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-22510 |
KSP90,NCP9#,SCP90..ATM..(B,F,ILL,RS,X) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-52930B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-52930B0 |
KSP90,NCP95,SCP90..ILL DK.GRAY,TRIM4# |
1 | ||
| 45286-52930B0 |
KSP90,NCP9#,SCP90..F,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ,DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-52930B0 |
KSP90,NCP95,SCP90..ILL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ,DK.GRAY,TRIM4# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
KSP90,NCP9#,SCP90 |
2 | ||
| Common parts | ||||
| 90105-08410 | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90467-06188 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
