SCP90-AHXEK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 2SZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

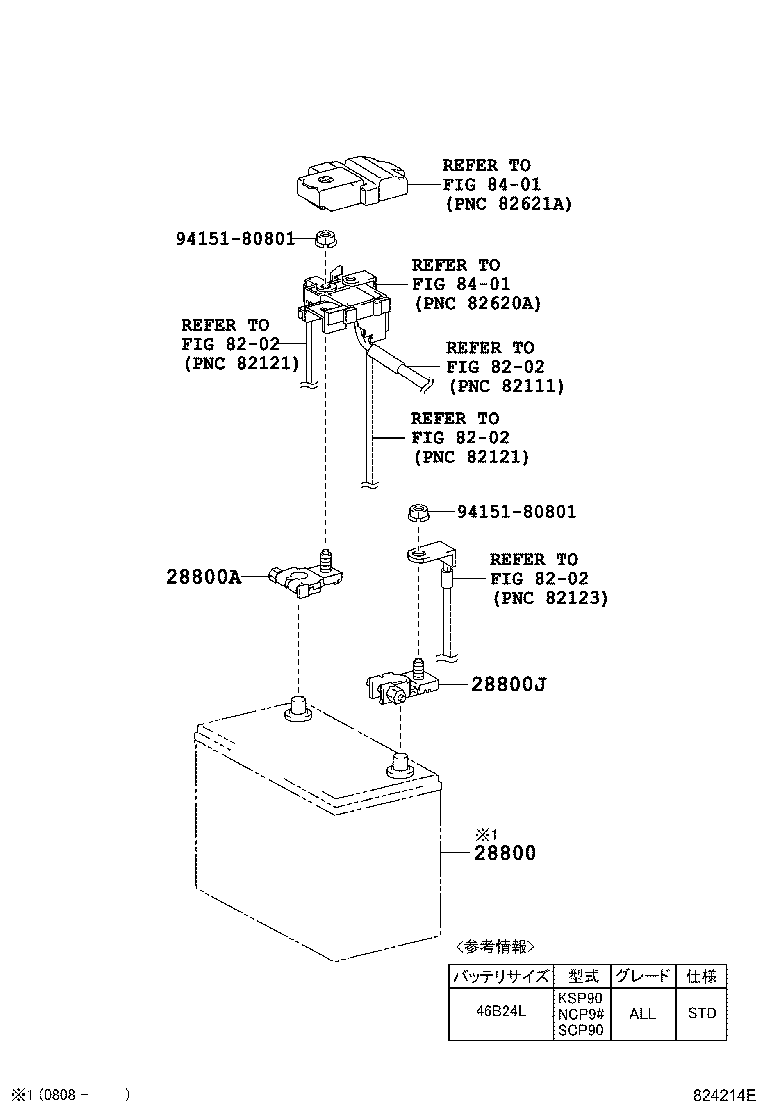

Click highlighted areas on diagram

diagram 28800 28800A 28800J 8202 8202 8202 8202 8401 8401 9415180801 9415180801
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05055

1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06058

1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90

 1
Common parts
94151-80801
Linked diagrams
8202
8401
