SCP90-AHXEK (2005)
Toyota Vitz

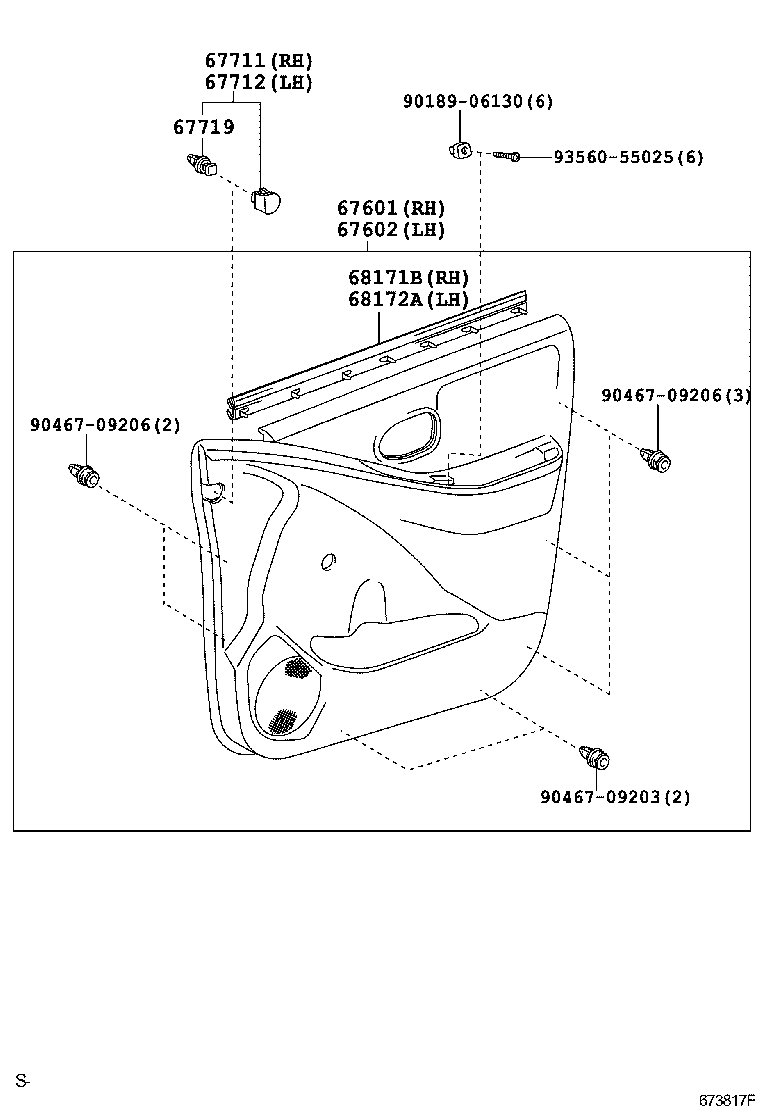

ILLUST NO. 2 OF 3(0501- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-52U00B0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
1 | ||
| 67610-52U00B1 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
1 | ||
| 67610-52U10B2 |
NCP95,SCP90..U GREGE,TRIM4# |
1 | ||
| 67610-52U10B1 |
NCP95,SCP90..U GREGE,TRIM4# |
1 | ||
| 67610-52U10B0 |
NCP95,SCP90..U BLACK,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-52G60B0 |
KSP90,NCP9#,SCP90..B,F,X BLACK,TRIM1# |
1 | ||
| 67620-52G70B0 |
NCP95,SCP90..U BLACK,TRIM1# |
1 | ||
| 67620-52G70B2 |
NCP95,SCP90..U GREGE,TRIM4# |
1 | ||
| 67620-52G60B1 |
KSP90,NCP9#,SCP90..B,F,X GREGE,TRIM4# |
1 | ||
| 67620-52G70B1 |
NCP95,SCP90..U GREGE,TRIM4# |
1 | ||
| 67711 - COVER, FRONT DOOR TRIM, RH | ||||
| 67711-52020B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 67712 - COVER, FRONT DOOR TRIM, LH | ||||
| 67712-52020B0 |
KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4# |
1 | ||
| 67719 - COVER, FRONT DOOR TRIM COVER | ||||
| 67719-52010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52150 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90189-06130 | ||||
| 90467-09203 | ||||
| 90467-09206 | ||||
| 93560-55025 | ||||

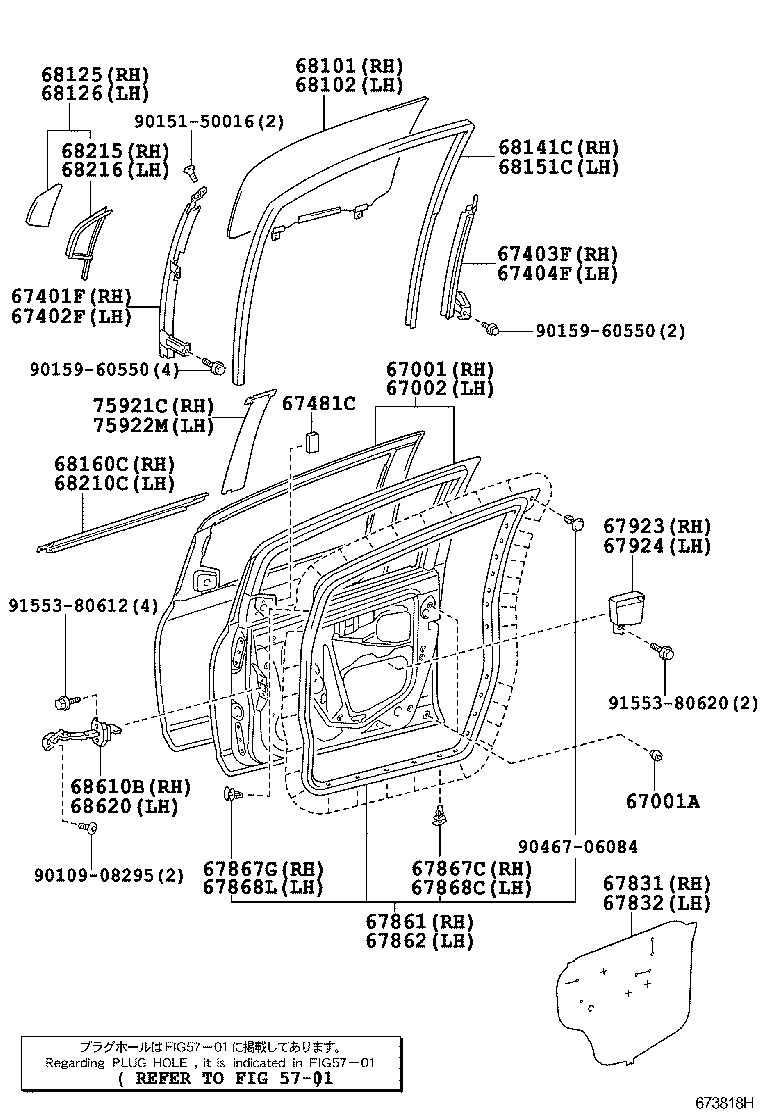

ILLUST NO. 1 OF 3(0501- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52260 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
KSP90,NCP9#,SCP90 |
4 | ||
| 90541-09137 |
KSP90,NCP9#,SCP90 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-52340 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52090 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52060 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52160 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52130 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67481C - SEAL, FRONT DOOR FRONT LOWER FRAME | ||||
| 67481-52010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52350 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 67831-52350 |
NCP95,SCP90..U |
1 | ||
| 67831-52280 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-52280 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 67832-52210 |
NCP95,SCP90..U |
1 | ||
| 67832-52210 |
KSP90,NCP9#,SCP90..F,ILL,RS,X ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52150 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67861-52151 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52150 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67862-52151 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KSP90,NCP9#,SCP90 |
24 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52010 |
KSP90,NCP9#,SCP90 |
10 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KSP90,NCP9#,SCP90 |
24 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52020 |
KSP90,NCP9#,SCP90 |
10 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-52090 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67923-52091 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67923-52092 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67923-52093 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-52122 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67924-52120 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67924-52121 |
KSP90,NCP9#,SCP90 |
1 | ||
| 67924-52123 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-52180 |
KSP90,NCP9#,SCP90 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-52180 |
KSP90,NCP9#,SCP90 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68101-52030 |
KSP90,NCP9#,SCP90 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68102-52020 |
KSP90,NCP9#,SCP90 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52170 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-52150 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-52110 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-52110 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-52010 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68610-12161 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-12091 |
KSP90,NCP9#,SCP90 |
1 | ||
| 68610-52100 |
KSP90,NCP9#,SCP90 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-52070 |
KSP90,NCP9#,SCP90 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-52070 |
KSP90,NCP9#,SCP90 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90159-60550 | ||||
| 90467-06084 | ||||
| 91553-80612 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 3 OF 3(0501- )
ﾄﾘﾑｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|
