SCP13-AHXGK (2002)

Toyota Vitz

Production Dec 2002 - Jan 2005
Engine 2SZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )2SZFE

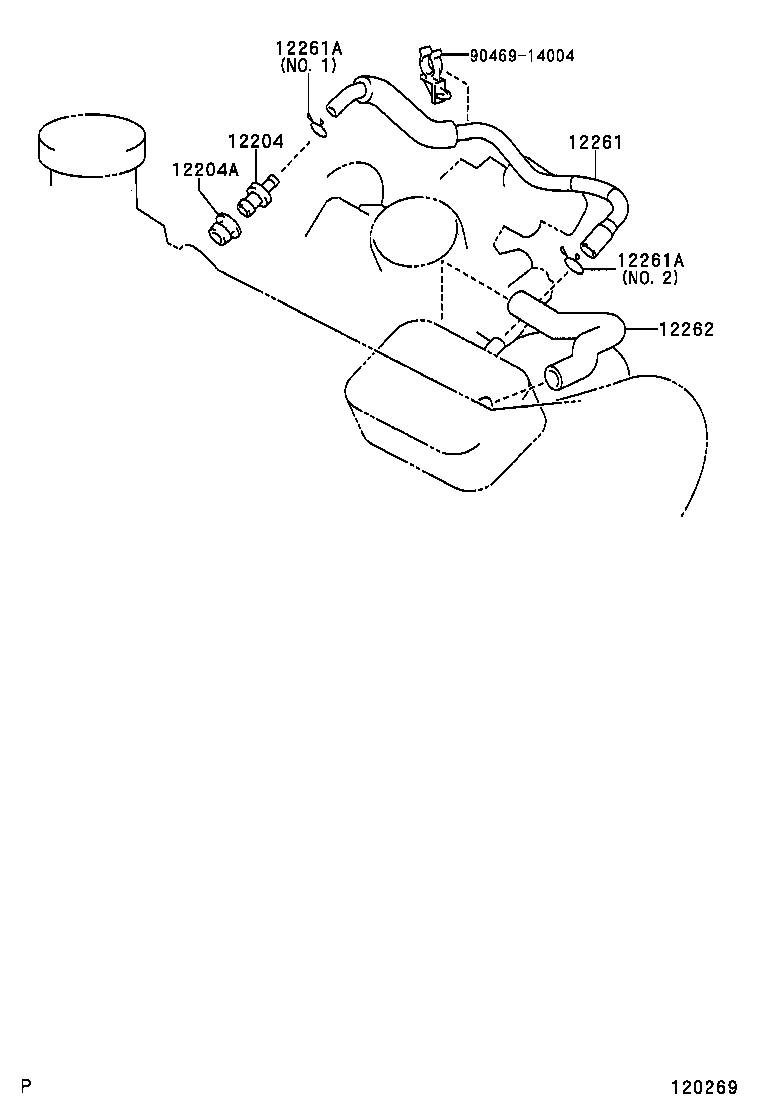

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 9046914004
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-23020

2SZFE..SCP13

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1SZFE,2SZFE..SCP1#

 1
12261 - HOSE, VENTILATION
12261-23040

2SZFE..SCP13

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1SZFE,2SZFE..SCP1#

NO.1

 1
90467-18003

1SZFE,2SZFE..SCP1#

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1SZFE,2SZFE..SCP1#

NO.1

 1
90467-18003

1SZFE,2SZFE..SCP1#

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
90910-05227

1SZFE,2SZFE..SCP1#

 1
90910-05224

1SZFE,2SZFE..SCP1#

 1
Common parts
90469-14004
