SCP13-AHXEK (2002)

Toyota Vitz

Production Dec 2002 - Jan 2005
Engine 2SZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )SCP13

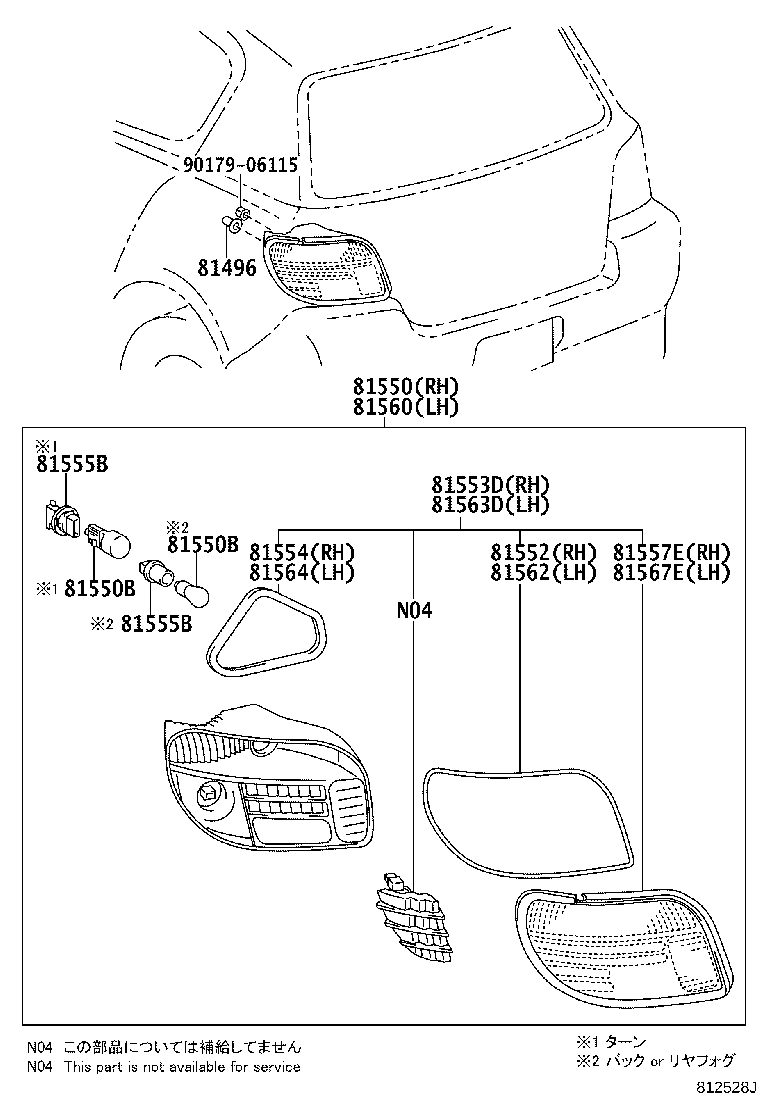

Click highlighted areas on diagram

diagram 81496 81550 81550B 81550B 81552 81553D 81554 81555B 81555B 81557E 81560 81562 81563D 81564 81567E 9017906115
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52010

NCP1#,SCP1#

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-52280

NCP10,13

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ = ﾊﾞﾝﾊﾟ-ﾂﾞｹ)

 1
81550-52400

SCP13

 1
81550-52410

SCP13

ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 1
81550-52420

NCP10,13

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

NCP1#,SCP1#

12V 21W,ﾀｰﾝｼｸﾞﾅﾙ,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

NCP1#,SCP1#

12V 21W,ﾀｰﾝｼｸﾞﾅﾙ,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用

 2
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-52400

SCP13

 1
81553D - LENS, REAR COMBINATION LAMP, NO.1 RH
81553-52410

SCP13

ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 1
81553-52400

SCP13

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-52280

NCP1#,SCP1#

 1
81555B - SOCKET PLUG, NO.1
90075-60015

NCP1#,SCP1#

ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用

 2
90075-60052

NCP1#,SCP1#

ﾀｰﾝｼｸﾞﾅﾙ

 2
81555B - SOCKET PLUG, NO.1
90075-60015

NCP1#,SCP1#

ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用

 2
90075-60052

NCP1#,SCP1#

ﾀｰﾝｼｸﾞﾅﾙ

 2
81557E - LENS, REAR COMBINATION LAMP, RH NO.2
81557-52400

SCP13

 1
81557-52410

SCP13

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-52260

NCP10,13

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ = ﾊﾞﾝﾊﾟ-ﾂﾞｹ)

 1
81560-52390

NCP10,13

 1
81560-52380

SCP13

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-52400

SCP13

 1
81563D - LENS, REAR COMBINATION LAMP, NO.1 LH
81563-52380

SCP13

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-52260

NCP1#,SCP1#

 1
81567E - LENS, REAR COMBINATION LAMP, LH NO.2
81567-52380

SCP13

 1
Common parts
90179-06115
