SCP10-AHPNK (1999)

Toyota Vitz

Production Jan 1999 - Jan 2005
Engine 1SZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

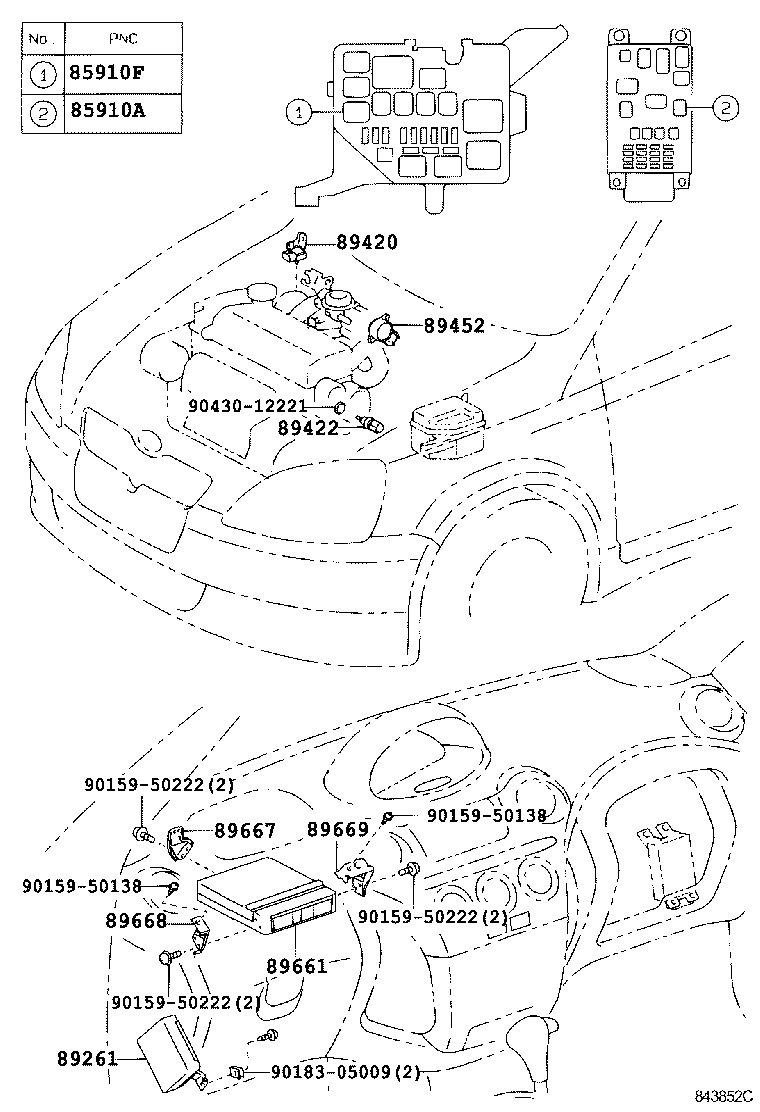

(9901-0112)SCP10

Click highlighted areas on diagram

diagram 85910A 85910F 89261 89420 89422 89452 89661 89667 89668 89669 9015950138 9015950138 9015950222 9015950222 9015950222 9018305009 9043012221
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

NCP1#,SCP10

 1
90987-02027

NCP1#,SCP10

 1
90987-02012

NCP1#,SCP10

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

NCP1#,SCP10

 1
90987-02027

NCP1#,SCP1#

 1
90987-02022

NCP1#,SCP10

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-22030

NCP1#,SCP10

ﾏｰｸ 89422−22030 *369

 1
89422-16010

SCP10

 1
89422-22030

NCP1#,SCP10

ﾏｰｸ 89422−22030 *369

 1
89422-16010

NCP1#,SCP10

ﾏｰｸ 89422−16010 *369

 1
89422-16010

NCP1#,SCP1#

ﾏｰｸ 89422−16010 *369

 1
89422-22030

NCP1#,SCP1#

ﾏｰｸ 89422−22030 *369

 1
89422-16010

NCP1#,SCP10

ﾏｰｸ 89422−16010 *369

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-52010

SCP10

 1
89452-52011

SCP10

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52020

SCP10..4FC

FUJITSU TEN

 1
89661-52590

SCP10..4FC

FUJITSU TEN

 1
89661-52591

SCP10..4FC

FUJITSU TEN,ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89661-52591

 1
89661-52592

SCP10..4FC

FUJITSU TEN,ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89661-52592

 1
89661-52550

SCP10..4FC

FUJITSU TEN

 1
89666-52360

SCP10..ATM

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52010

NCP1#,SCP10

 1
89667-52010

NCP1#,SCP10

 1
89667-52010

NCP1#,SCP10

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52120

NCP1#,SCP10

 1
89668-52010

NCP1#,SCP10

 1
89668-52120

SCP10;NCP15..3D..4FC..(CLA,U)

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-52010

NCP1#,SCP10

 1
89669-52070

SCP10;NCP15..3D..4FC..(CLA,U)

 1
89669-52070

NCP1#,SCP10

 1
Common parts
90159-50138
90159-50222
90183-05009
90430-12221

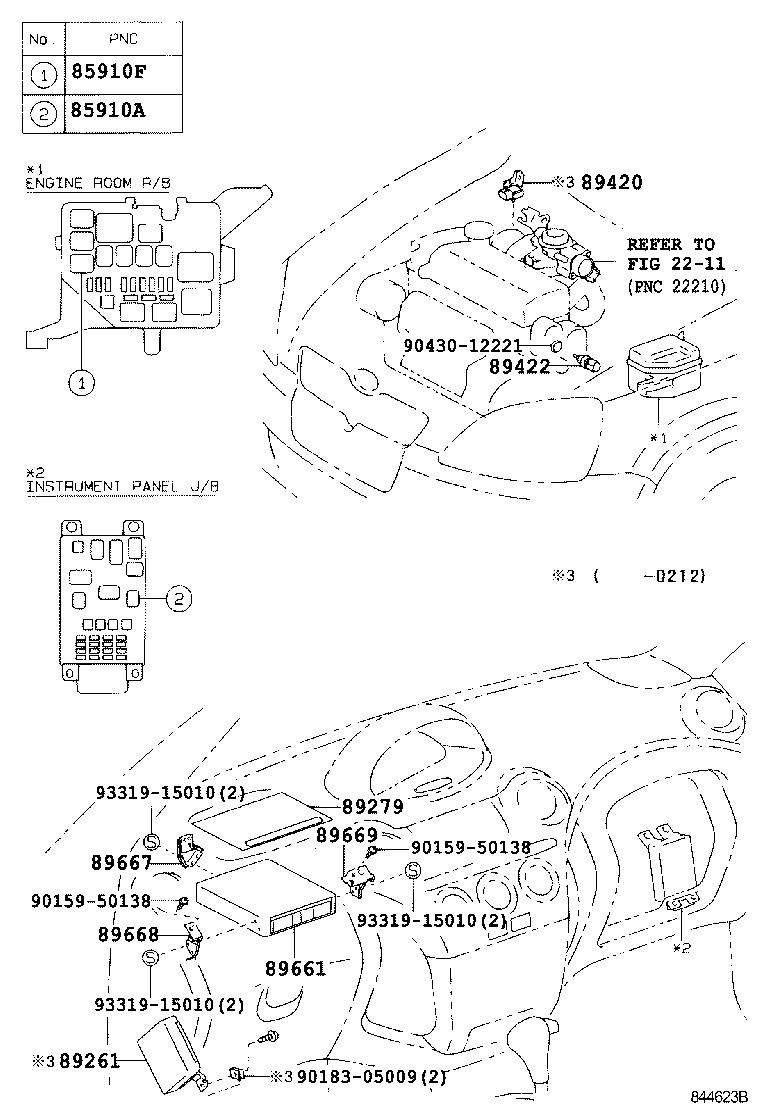

(0112- )SCP10

Click highlighted areas on diagram

diagram 2211 85910A 85910F 89261 89279 89420 89422 89661 89667 89668 89669 9015950138 9015950138 9018305009 9043012221 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

NCP1#,SCP10

 1
90987-02027

NCP1#,SCP10

 1
90987-02012

NCP1#,SCP10

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

NCP1#,SCP10

 1
90987-02027

NCP1#,SCP1#

 1
90987-02022

NCP1#,SCP10

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-52100

NCP1#,SCP10

 1
89279-52100

NCP1#,SCP10

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-22030

NCP1#,SCP10

ﾏｰｸ 89422−22030 *369

 1
89422-16010

SCP10

 1
89422-22030

NCP1#,SCP10

ﾏｰｸ 89422−22030 *369

 1
89422-16010

NCP1#,SCP10

ﾏｰｸ 89422−16010 *369

 1
89422-16010

NCP1#,SCP1#

ﾏｰｸ 89422−16010 *369

 1
89422-22030

NCP1#,SCP1#

ﾏｰｸ 89422−22030 *369

 1
89422-16010

NCP1#,SCP10

ﾏｰｸ 89422−16010 *369

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52020

SCP10..4FC

FUJITSU TEN

 1
89661-52590

SCP10..4FC

FUJITSU TEN

 1
89661-52591

SCP10..4FC

FUJITSU TEN,ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89661-52591

 1
89661-52592

SCP10..4FC

FUJITSU TEN,ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89661-52592

 1
89661-52550

SCP10..4FC

FUJITSU TEN

 1
89666-52360

SCP10..ATM

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52010

NCP1#,SCP10

 1
89667-52010

NCP1#,SCP10

 1
89667-52010

NCP1#,SCP10

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52120

NCP1#,SCP10

 1
89668-52010

NCP1#,SCP10

 1
89668-52120

SCP10;NCP15..3D..4FC..(CLA,U)

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-52010

NCP1#,SCP10

 1
89669-52070

SCP10;NCP15..3D..4FC..(CLA,U)

 1
89669-52070

NCP1#,SCP10

 1
Common parts
90159-50138
90183-05009
90430-12221
93319-15010
Linked diagrams
2211
