SCP10-AHPNK (1999)
Toyota Vitz

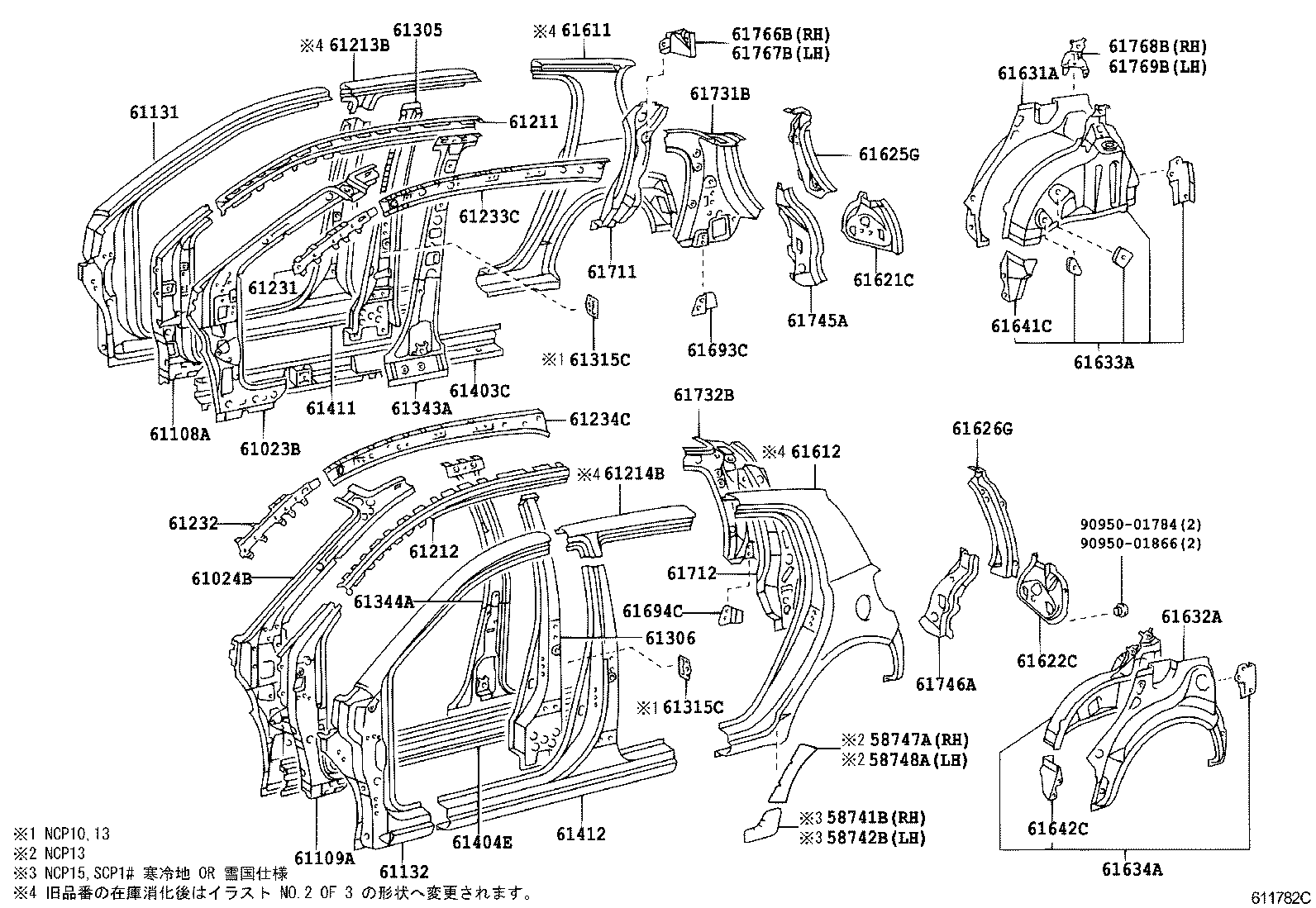

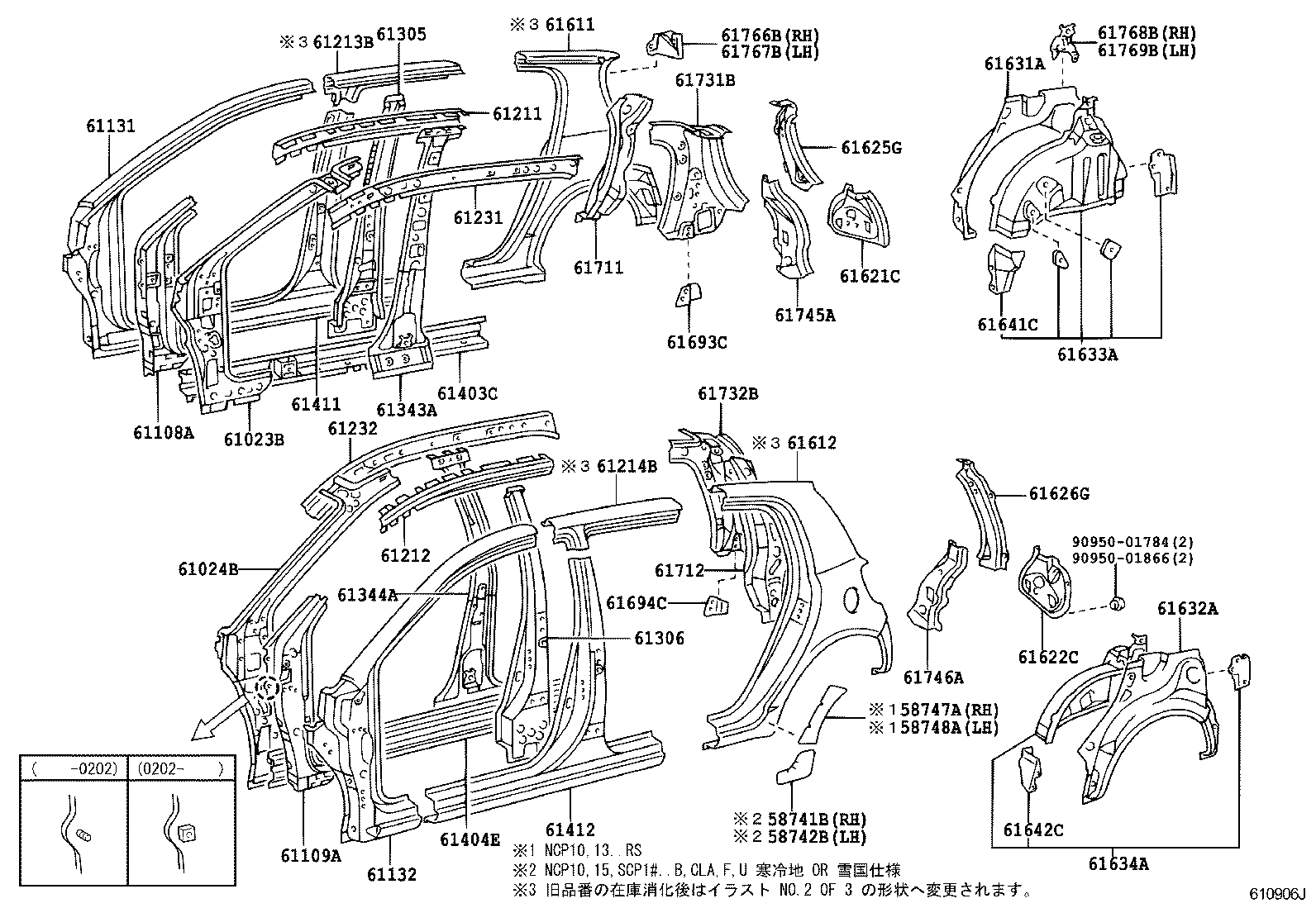

ILLUST NO. 1 OF 3(9901-0212)5D
ｻｲﾄﾞ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52012 |
NCP15,SCP1#..5D |
1 | ||
| 58741-52010 |
NCP1#,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 58741-52011 |
NCP1#,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52012 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 58742-52012 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 58742-52010 |
NCP1#,SCP10..5D |
1 | ||
| 58742-52011 |
NCP1#,SCP10..5D |
1 | ||
| 58742-52012 |
NCP15,SCP1#..5D |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52011 |
NCP1#,SCP10 |
1 | ||
| 61023-52011 |
NCP1#,SCP10 |
1 | ||
| 61023-52100 |
NCP1#,SCP1# |
1 | ||
| 61023-52010 |
NCP1#,SCP10 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52080 |
NCP1#,SCP1# |
1 | ||
| 61024-52011 |
NCP1#,SCP10 |
1 | ||
| 61024-52010 |
NCP1#,SCP10 |
1 | ||
| 61024-52011 |
NCP1#,SCP10 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52010 |
NCP1#,SCP10 |
1 | ||
| 61108-52090 |
NCP1#,SCP10 |
1 | ||
| 61108-52100 |
NCP1#,SCP1# |
1 | ||
| 61108-52011 |
NCP1#,SCP10 |
1 | ||
| 61108-52011 |
NCP1#,SCP10 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52010 |
NCP1#,SCP10 |
1 | ||
| 61109-52011 |
NCP1#,SCP10 |
1 | ||
| 61109-52120 |
NCP1#,SCP1# |
1 | ||
| 61109-52011 |
NCP1#,SCP10 |
1 | ||
| 61109-52090 |
NCP1#,SCP10 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61131-52010 |
NCP15,SCP1# |
1 | ||
| 61131-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61132-52010 |
NCP15,SCP1# |
1 | ||
| 61132-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61211-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61211-52010 |
NCP15,SCP10..5D |
1 | ||
| 61201-52060 |
NCP1#,SCP1#..5D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61212-52010 |
NCP15,SCP10..5D |
1 | ||
| 61212-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61202-52050 |
NCP1#,SCP1#..5D |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-52020 |
NCP1#,SCP10..5D |
1 | ||
| 61231-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61231-52250 |
NCP1#,SCP1# |
1 | ||
| 61231-52250 |
NCP1#,SCP1# |
1 | ||
| 61231-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-52020 |
NCP1#,SCP10..5D |
1 | ||
| 61232-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61232-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61232-52260 |
NCP1#,SCP1# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61305-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61305-52010 |
SCP10..5D |
1 | ||
| 61305-52901 |
NCP1#,SCP1#..5D |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61306-52901 |
NCP1#,SCP1#..5D |
1 | ||
| 61306-52010 |
SCP10..5D |
1 | ||
| 61306-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61343-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61343-52903 |
NCP1#,SCP1#..5D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61344-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61344-52903 |
NCP1#,SCP1#..5D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61403-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61403-52101 |
NCP1#,SCP1#..5D |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61404-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61404-52101 |
NCP1#,SCP1#..5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61411-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61411-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61412-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61412-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61601-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61601-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61602-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61602-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61621-52010 |
NCP1#,SCP1# |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61622-52010 |
NCP1#,SCP1# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61625-52010 |
NCP1#,SCP1# |
1 | ||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-52010 |
NCP1#,SCP1# |
1 | ||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61631-52010 |
NCP1#,SCP1# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61632-52010 |
NCP1#,SCP1# |
1 | ||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61607-52902 |
SCP10..B,F ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61607-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61607-52914 |
NCP10,SCP10..B,F,RS ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61607-52914 |
NCP10,13,SCP1#..F,RS,U ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61607-52914 |
SCP10..B,F;NCP10..RS,U ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61607-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52902 |
SCP10..B,F ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61608-52914 |
SCP10..B,F;NCP10..RS,U ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61608-52914 |
NCP10,SCP10..B,F,RS ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61608-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61608-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61608-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61608-52914 |
NCP10,13,SCP1#..F,RS,U ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52010 |
NCP10,13,SCP10 |
1 | ||
| 61641-52010 |
NCP10,13,SCP10 |
1 | ||
| 61641-52010 |
NCP10,13,SCP1# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52010 |
NCP10,13,SCP10 |
1 | ||
| 61642-52010 |
NCP10,13,SCP10 |
1 | ||
| 61642-52010 |
NCP10,13,SCP1# |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-52100 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 61693-52100 |
SCP13..U;NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 61693-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 61694-52100 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 61694-52100 |
SCP13..U;NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61711-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61711-52011 |
NCP1#,SCP1#..5D |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61712-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61712-52011 |
NCP1#,SCP1#..5D |
1 | ||
| 61712-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52011 |
NCP1#,SCP1#..5D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61732-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61732-52011 |
NCP1#,SCP1#..5D |
1 | ||
| 61732-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61745-52010 |
NCP1#,SCP1# |
1 | ||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61746-52010 |
NCP1#,SCP1# |
1 | ||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61766-52010 |
NCP1#,SCP1# |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52010 |
NCP1#,SCP1# |
1 | ||
| 61767-52010 |
NCP1#,SCP10 |
1 | ||
| 61767-52010 |
NCP1#,SCP10 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-52010 |
NCP10,13,SCP10 |
1 | ||
| 61768-52010 |
NCP10,13,SCP10 |
1 | ||
| 61768-52010 |
NCP10,13,SCP1# |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-52010 |
NCP10,13,SCP10 |
1 | ||
| 61769-52010 |
NCP10,13,SCP1# |
1 | ||
| 61769-52010 |
NCP10,13,SCP10 |
1 | ||
| Common parts | ||||
| 90950-01784 | ||||
| 90950-01866 | ||||
ILLUST NO. 3 OF 3(9901- )5D
ﾌﾟﾗｸﾞ, ﾎｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 59198 - SEAL, NOISE SHUTTER | ||||
| 59198-12010 |
NCP1#,SCP10..5D |
2 | ||
| 59198-12010 |
NCP1#,SCP10..5D |
2 | ||
| 59198-12010 |
NCP1#,SCP1#..5D |
2 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61825-52010 |
NCP1#,SCP10 |
1 | ||
| 61825-52010 |
NCP1#,SCP10 |
1 | ||
| 61815-32020 |
SCP10 |
1 | ||
| 61825-52010 |
NCP1#,SCP1# |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61825-52010 |
NCP1#,SCP10 |
1 | ||
| 61815-32020 |
SCP10 |
1 | ||
| 61825-52010 |
NCP1#,SCP1# |
1 | ||
| 61825-52010 |
NCP1#,SCP10 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP1#,SCP10 |
8 | ||
| 61824-52010 |
NCP1#,SCP10..F,RS,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-12040 |
SCP10..F,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-52010 |
NCP1#,SCP10 |
8 | ||
| 61824-12040 |
SCP10 |
8 | ||
| 61824-52010 |
NCP1#,SCP10..F,RS,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-52010 |
NCP1#,SCP1# |
8 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP1#,SCP10 |
8 | ||
| 61824-52010 |
NCP1#,SCP10..F,RS,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-12040 |
SCP10..F,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-52010 |
NCP1#,SCP10 |
8 | ||
| 61824-12040 |
SCP10 |
8 | ||
| 61824-52010 |
NCP1#,SCP10..F,RS,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-52010 |
NCP1#,SCP1# |
8 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP1#,SCP10 |
8 | ||
| 61824-52010 |
NCP1#,SCP10..F,RS,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-12040 |
SCP10..F,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-52010 |
NCP1#,SCP10 |
8 | ||
| 61824-12040 |
SCP10 |
8 | ||
| 61824-52010 |
NCP1#,SCP10..F,RS,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61824-52010 |
NCP1#,SCP1# |
8 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12130 |
NCP1#,SCP10 |
2 | ||
| 62151-52010 |
NCP1#,SCP10 |
2 | ||
| 62151-52010 |
NCP1#,SCP10 |
2 | ||
| 62151-52010 |
NCP1#,SCP1# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12130 |
NCP1#,SCP1# |
2 | ||
| 62554-12130 |
NCP1#,SCP10 |
2 | ||
| 62554-12130 |
NCP1#,SCP10 |
2 | ||
| Common parts | ||||
| 90333-25003 | ||||
| 90333-30008 | ||||
| 90950-01266 | ||||
| 90950-01637 | ||||
| 90950-01646 | ||||
| 90950-01685 | ||||
| 90950-01826 | ||||
| 90950-01850 | ||||
| 90950-01882 | ||||
| 90950-01941 | ||||
| 90950-01944 | ||||
| 90950-06125 | ||||
ILLUST NO. 1 OF 3(0212- )5D
ｻｲﾄﾞ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52012 |
NCP15,SCP1#..5D |
1 | ||
| 58741-52010 |
NCP1#,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 58741-52011 |
NCP1#,SCP10..5D |
1 | ||
| 58741-52012 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52012 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 58742-52012 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 58742-52010 |
NCP1#,SCP10..5D |
1 | ||
| 58742-52011 |
NCP1#,SCP10..5D |
1 | ||
| 58742-52012 |
NCP15,SCP1#..5D |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52100 |
NCP1#,SCP1# |
1 | ||
| 61023-52011 |
NCP1#,SCP10 |
1 | ||
| 61023-52011 |
NCP1#,SCP10 |
1 | ||
| 61023-52010 |
NCP1#,SCP10 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52080 |
NCP1#,SCP1# |
1 | ||
| 61024-52011 |
NCP1#,SCP10 |
1 | ||
| 61024-52010 |
NCP1#,SCP10 |
1 | ||
| 61024-52011 |
NCP1#,SCP10 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52010 |
NCP1#,SCP10 |
1 | ||
| 61108-52090 |
NCP1#,SCP10 |
1 | ||
| 61108-52100 |
NCP1#,SCP1# |
1 | ||
| 61108-52011 |
NCP1#,SCP10 |
1 | ||
| 61108-52011 |
NCP1#,SCP10 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52010 |
NCP1#,SCP10 |
1 | ||
| 61109-52011 |
NCP1#,SCP10 |
1 | ||
| 61109-52120 |
NCP1#,SCP1# |
1 | ||
| 61109-52011 |
NCP1#,SCP10 |
1 | ||
| 61109-52090 |
NCP1#,SCP10 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61131-52010 |
NCP15,SCP1# |
1 | ||
| 61131-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61132-52010 |
NCP15,SCP1# |
1 | ||
| 61132-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61211-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61211-52010 |
NCP15,SCP10..5D |
1 | ||
| 61201-52060 |
NCP1#,SCP1#..5D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61212-52010 |
NCP15,SCP10..5D |
1 | ||
| 61212-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61202-52050 |
NCP1#,SCP1#..5D |
1 | ||

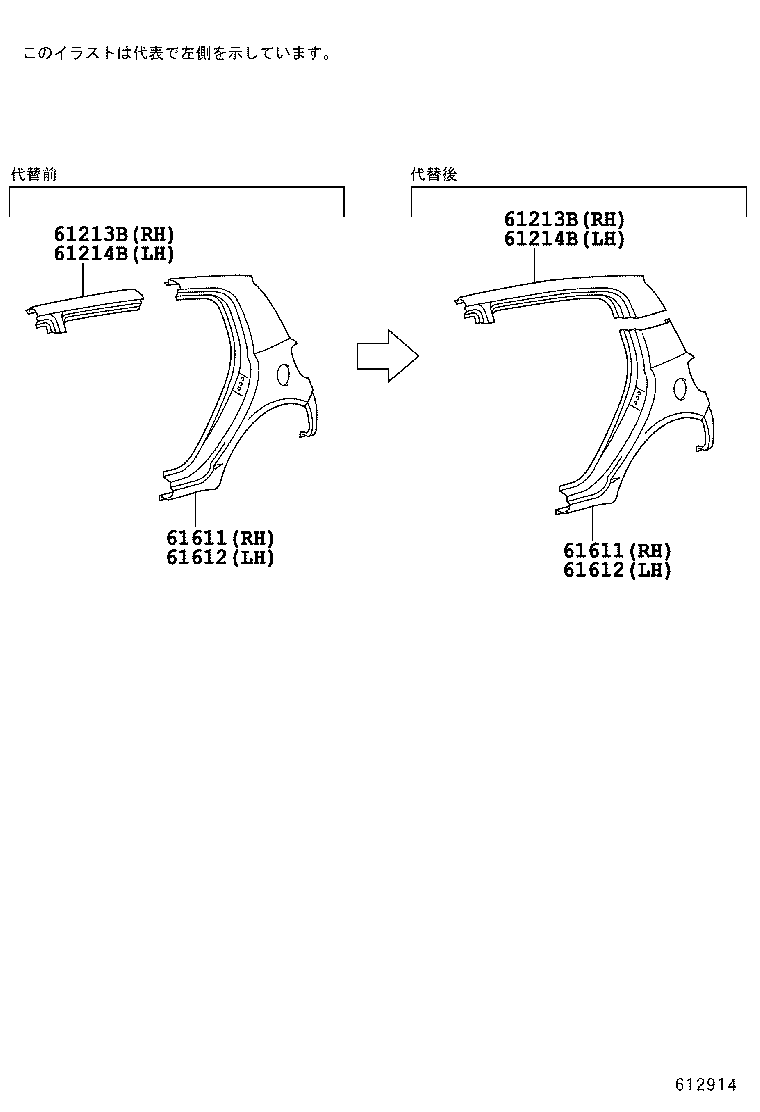

| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-52020 |
NCP1#,SCP10..5D |
1 | ||
| 61231-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61231-52250 |
NCP1#,SCP1# |
1 | ||
| 61231-52250 |
NCP1#,SCP1# |
1 | ||
| 61231-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-52020 |
NCP1#,SCP10..5D |
1 | ||
| 61232-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61232-52021 |
NCP1#,SCP10..5D |
1 | ||
| 61232-52260 |
NCP1#,SCP1# |
1 | ||
| 61233C - HOLDER, SEAT BELT COVER, RH | ||||
| 61233-52120 |
NCP1#,SCP1#..5D |
1 | ||
| 61234C - HOLDER, SEAT BELT COVER, LH | ||||
| 61234-52120 |
NCP1#,SCP1#..5D |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61305-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61305-52010 |
SCP10..5D |
1 | ||
| 61305-52901 |
NCP1#,SCP1#..5D |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61306-52901 |
NCP1#,SCP1#..5D |
1 | ||
| 61306-52010 |
SCP10..5D |
1 | ||
| 61306-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61343-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61343-52903 |
NCP1#,SCP1#..5D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61344-52900 |
NCP1#,SCP10..5D |
1 | ||
| 61344-52903 |
NCP1#,SCP1#..5D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61403-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61403-52101 |
NCP1#,SCP1#..5D |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61404-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61404-52101 |
NCP1#,SCP1#..5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61411-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61411-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61412-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61412-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61601-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61601-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61602-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61602-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61621-52010 |
NCP1#,SCP1# |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61622-52010 |
NCP1#,SCP1# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61625-52010 |
NCP1#,SCP1# |
1 | ||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-52010 |
NCP1#,SCP1# |
1 | ||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61631-52010 |
NCP1#,SCP1# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61632-52010 |
NCP1#,SCP1# |
1 | ||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61607-52902 |
SCP10..B,F ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61607-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61607-52914 |
NCP10,SCP10..B,F,RS ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61607-52914 |
NCP10,13,SCP1#..F,RS,U ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61607-52914 |
SCP10..B,F;NCP10..RS,U ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61607-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52902 |
SCP10..B,F ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61608-52914 |
SCP10..B,F;NCP10..RS,U ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61608-52914 |
NCP10,SCP10..B,F,RS ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61608-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61608-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61608-52912 |
SCP10..5D..4FC..F ﾛ-ｿﾝ ｼﾖｳ |
1 | ||
| 61608-52914 |
NCP10,13,SCP1#..F,RS,U ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ & ABS) |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52010 |
NCP10,13,SCP10 |
1 | ||
| 61641-52010 |
NCP10,13,SCP10 |
1 | ||
| 61641-52010 |
NCP10,13,SCP1# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52010 |
NCP10,13,SCP10 |
1 | ||
| 61642-52010 |
NCP10,13,SCP10 |
1 | ||
| 61642-52010 |
NCP10,13,SCP1# |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-52100 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 61693-52100 |
SCP13..U;NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 61693-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 61694-52100 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 61694-52100 |
SCP13..U;NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61711-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61711-52011 |
NCP1#,SCP1#..5D |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61712-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61712-52011 |
NCP1#,SCP1#..5D |
1 | ||
| 61712-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61731-52011 |
NCP1#,SCP1#..5D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61732-52011 |
NCP1#,SCP10..5D |
1 | ||
| 61732-52011 |
NCP1#,SCP1#..5D |
1 | ||
| 61732-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61745-52010 |
NCP1#,SCP1# |
1 | ||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61746-52010 |
NCP1#,SCP1# |
1 | ||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61766-52010 |
NCP1#,SCP1# |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52010 |
NCP1#,SCP1# |
1 | ||
| 61767-52010 |
NCP1#,SCP10 |
1 | ||
| 61767-52010 |
NCP1#,SCP10 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-52010 |
NCP10,13,SCP10 |
1 | ||
| 61768-52010 |
NCP10,13,SCP10 |
1 | ||
| 61768-52010 |
NCP10,13,SCP1# |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-52010 |
NCP10,13,SCP10 |
1 | ||
| 61769-52010 |
NCP10,13,SCP1# |
1 | ||
| 61769-52010 |
NCP10,13,SCP10 |
1 | ||
| Common parts | ||||
| 90950-01784 | ||||
| 90950-01866 | ||||
ILLUST NO. 2 OF 3(9901- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61213-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52010 |
NCP1#,SCP1#..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61214-52010 |
NCP1#,SCP10..5D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61601-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61601-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61601-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61601-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61602-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61602-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52010 |
NCP15,SCP1#..5D |
1 | ||
| 61602-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
| 61602-52010 |
NCP10,15,SCP10..5D..(B,CLA,F,U) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
