SCP10-AHPEK (1999)
Toyota Vitz

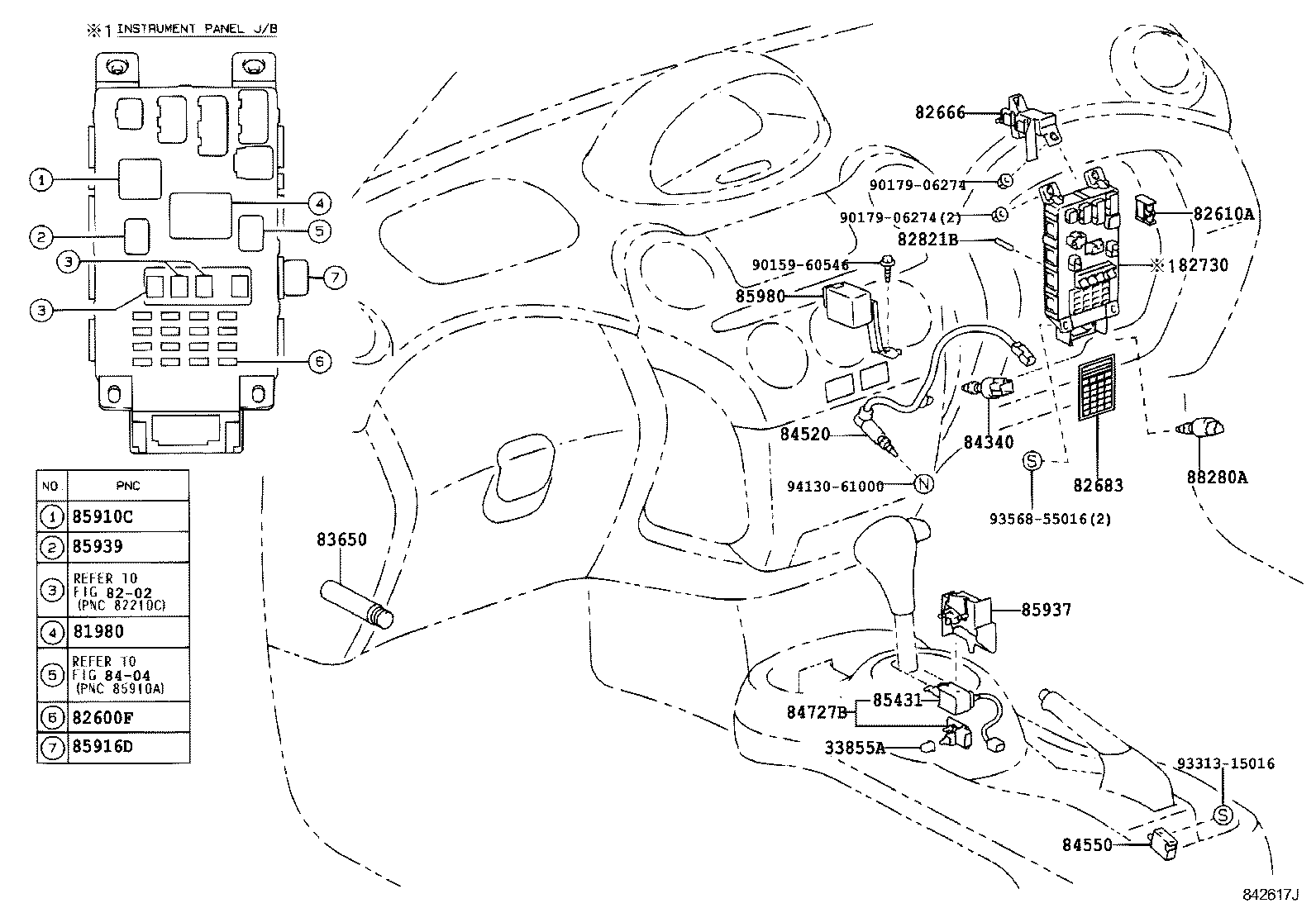

ILLUST NO. 3 OF 6(9901- )NCP1#,SCP10
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33855A - COVER, SHIFT LOCK UNIT | ||||
| 33855-52010 |
NCP1#,SCP10..4FC |
1 | ||
| 33855-52010 |
NCP1#,SCP10..4FC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
NCP1#,SCP10 |
1 | ||
| 81980-50020 |
SCP10 |
1 | ||
| 81980-50030 |
NCP1#,SCP10 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
NCP1#,SCP10 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
NCP1#,SCP10 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09008 |
NCP1#,SCP10 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
NCP1#,SCP10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
NCP1#,SCP10 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
NCP1#,SCP10..CLA,F,RS,U 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
NCP10,15,SCP10..B,CLA,F,U 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｶﾞﾜ |
1 | ||
| 90982-09013 |
NCP1#,SCP10 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
NCP1#,SCP10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
NCP1#,SCP10 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
NCP1#,SCP10 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
NCP1#,SCP10 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
SCP10..B,F |
1 | ||
| 82610-20080 |
SCP10;NCP15..3D..4FC..(CLA,U) |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-52010 |
NCP1#,SCP10 |
1 | ||
| 82666-52010 |
NCP1#,SCP10 |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 82683-52150 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 82683-52011 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-52010 |
NCP1#,SCP10 |
1 | ||
| 82732-52010 |
NCP1#,SCP10 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NCP1#,SCP10 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NCP1#,SCP10 |
1 | ||
| 90986-01005 |
NCP1#,SCP10 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
NCP1#,SCP10 |
1 | ||
| 84340-32050 |
NCP1#,SCP10 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP1#,SCP10 |
1 | ||
| 84727B - SWITCH & SOLENOID SET, SHIFT LOCK | ||||
| 84727-52010 |
NCP1#,SCP10..4FC |
1 | ||
| 84727-52010 |
NCP1#,SCP10..4FC |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-52010 |
NCP1#,SCP10..4FC |
1 | ||
| 85431-52010 |
NCP1#,SCP10..4FC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04006 |
NCP1#,SCP10 |
1 | ||
| 90987-04006 |
NCP1#,SCP10 |
1 | ||
| 85937 - PROTECTOR, SHIFT LOCK CONTROL | ||||
| 85937-52010 |
NCP1#,SCP10..4FC |
1 | ||
| 85937-52010 |
NCP1#,SCP10..4FC |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02012 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 90987-02012 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52040 |
NCP15,SCP10..F ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 85980-52010 |
NCP10,15,SCP10..F,RS |
1 | ||
| 85980-52040 |
NCP10,15,SCP10..CLA,U |
1 | ||
| 85980-52010 |
NCP10,15,SCP10..F,RS |
1 | ||
| 85980-52100 |
NCP13;NCP10,15,SCP10..CLA,U |
1 | ||
| 85980-52100 |
NCP10,15,SCP10..F,RS ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 85980-52100 |
NCP13;NCP10,15,SCP10..CLA,U |
1 | ||
| 85980-52100 |
NCP10,15,SCP10..F,RS ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| Common parts | ||||
| 90159-60546 | ||||
| 90179-06274 | ||||
| 93313-15016 | ||||
| 93568-55016 | ||||
| 94130-61000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

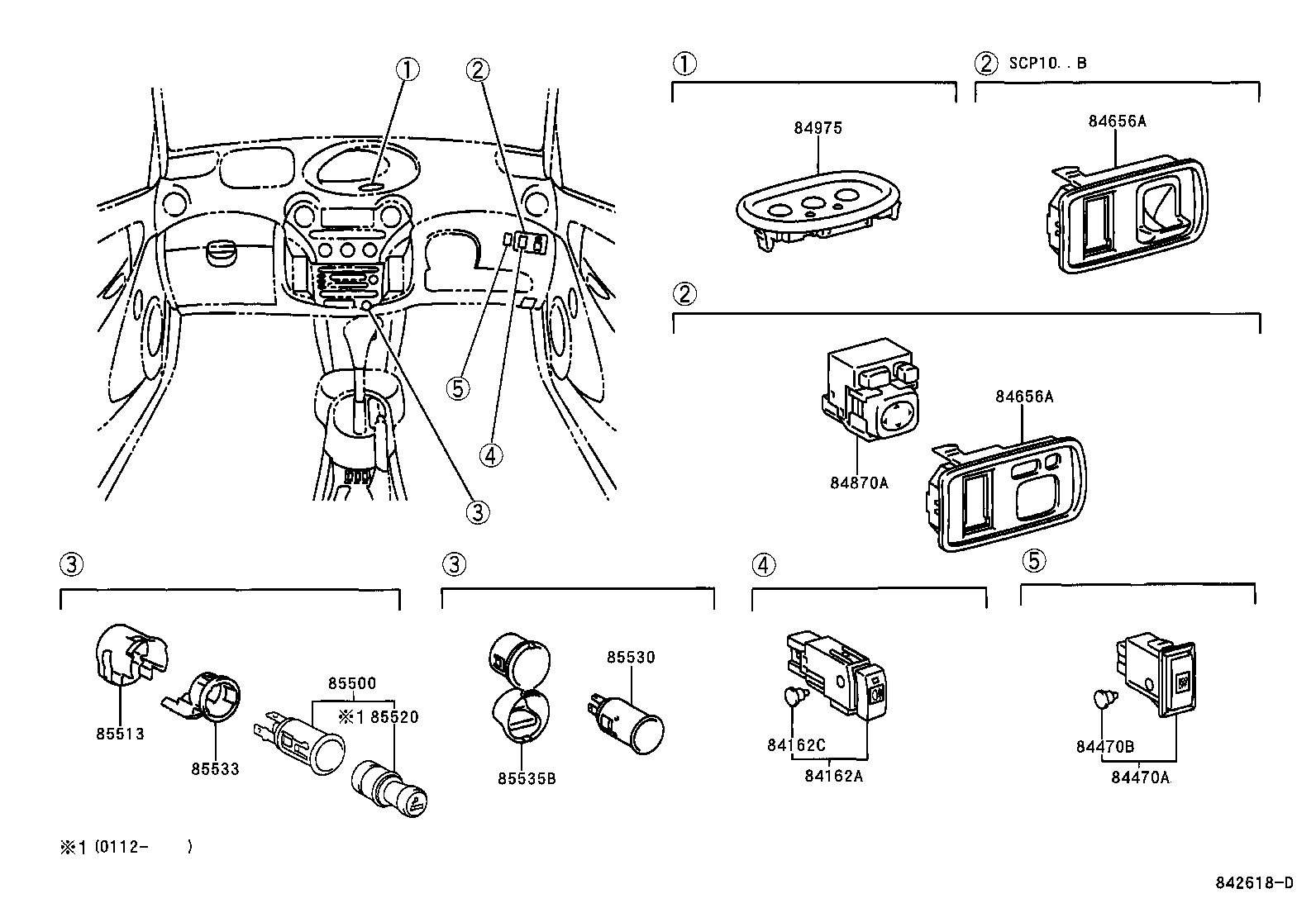

ILLUST NO. 4 OF 6(9901-0212)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-52010 |
NCP1#,SCP10 |
1 | ||
| 84165-52010 |
NCP1#,SCP10 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-09009 |
NCP1#,SCP10 14V 40MA |
1 | ||
| 90010-09009 |
NCP1#,SCP10 14V 40MA |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-52010G0 |
NCP15,SCP10..F MIST GREEN,TRIM7# |
1 | ||
| 84656-52010B0 |
NCP15,SCP10..F MD.GRAY,TRIM1# |
1 | ||
| 84656-52010B0 |
NCP10..U;NCP15,SCP10..F MD.GRAY,TRIM1# |
1 | ||
| 84656-52020G0 |
NCP10,15,SCP10..U MIST GREEN,TRIM7# |
1 | ||
| 84656-52020B0 |
NCP15,SCP10..F 10 MILLION ｾﾚｸｼﾖﾝ *(T),MD.GRAY,TRIM1# |
1 | ||
| 84656-52020B0 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾄﾞｱ ﾐﾗ-),MD.GRAY,TRIM1# |
1 | ||
| 84656-52020B0 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾄﾞｱ ﾐﾗ-),MD.GRAY,TRIM1# |
1 | ||
| 84656-52020B0 |
NCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F Dﾊﾟﾂｹ-ｼﾞ BEAUTIFUL ｾﾚｸｼﾖﾝ *(V),MD.GRAY,TRIM1# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-52010G0 |
NCP15,SCP10..F MIST GREEN,TRIM7# |
1 | ||
| 84656-52010B0 |
NCP15,SCP10..F MD.GRAY,TRIM1# |
1 | ||
| 84656-52010B0 |
NCP10..U;NCP15,SCP10..F MD.GRAY,TRIM1# |
1 | ||
| 84656-52020G0 |
NCP10,15,SCP10..U MIST GREEN,TRIM7# |
1 | ||
| 84656-52020B0 |
NCP15,SCP10..F 10 MILLION ｾﾚｸｼﾖﾝ *(T),MD.GRAY,TRIM1# |
1 | ||
| 84656-52020B0 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾄﾞｱ ﾐﾗ-),MD.GRAY,TRIM1# |
1 | ||
| 84656-52020B0 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾄﾞｱ ﾐﾗ-),MD.GRAY,TRIM1# |
1 | ||
| 84656-52020B0 |
NCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F Dﾊﾟﾂｹ-ｼﾞ BEAUTIFUL ｾﾚｸｼﾖﾝ *(V),MD.GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
NCP10..RS,U;NCP15,SCP10..F |
1 | ||
| 84872-52040 |
NCP15,SCP10..F ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 84870-52010 |
SCP10..F |
1 | ||
| 84872-52040 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 84872-52030 |
NCP10,15,SCP10..F,RS |
1 | ||
| 84872-52040 |
NCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F Dﾊﾟﾂｹ-ｼﾞ BEAUTIFUL ｾﾚｸｼﾖﾝ *(V) |
1 | ||
| 84872-52040 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 84870-52020 |
SCP10..U |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-52110B0 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ｱﾅﾛｸﾞﾒ-ﾀ),SHADOW GRAY,TRIM1# |
1 | ||
| 84975-52020H0 |
NCP10,15,SCP10..F,U ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 84975-52010B0 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ｱﾅﾛｸﾞﾒ-ﾀ),SHADOW GRAY,TRIM1# |
1 | ||
| 84975-52020B0 |
NCP10,15,SCP10..CLA,F,U ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ),SHADOW GRAY,TRIM1# |
1 | ||
| 84975-52010H0 |
NCP10,15,SCP10..B,F,U ｱﾘ(ｱﾅﾛｸﾞﾒ-ﾀ),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 84975-52120B0 |
NCP10,15,SCP10..CLA,F,U ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ),SHADOW GRAY,TRIM1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
NCP1#,SCP10 |
1 | ||
| 85500-28050 |
NCP1#,SCP10 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
NCP1#,SCP10 |
1 | ||
| 85513-12020 |
NCP1#,SCP10 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NCP1#,SCP10 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 85530-33020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP1#,SCP10 |
1 | ||
| 85533-30060 |
NCP1#,SCP10 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 85535-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||

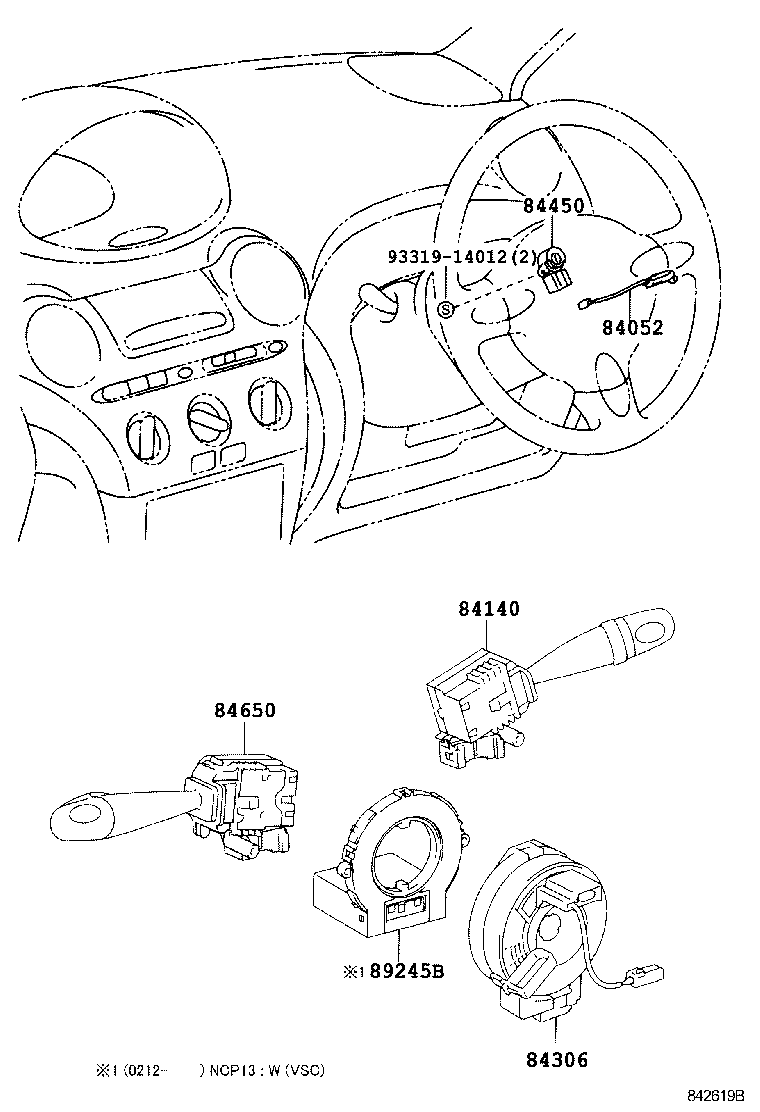

ILLUST NO. 5 OF 6(9901- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
NCP1#,SCP10 |
1 | ||
| 84052-60010 |
NCP1#,SCP10 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12510 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 84140-12510 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 84140-52010 |
NCP1#,SCP10 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52010 |
NCP1#,SCP10 |
1 | ||
| 84306-52010 |
NCP1#,SCP10 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
NCP1#,SCP10 |
1 | ||
| 84450-52010 |
NCP1#,SCP10 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52010 |
SCP10..B,F ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-52020 |
NCP10,15,SCP10..CLA,U |
1 | ||
| 84652-52130 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-52120 |
NCP10..RS,U;NCP15,SCP10..B,F ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-52130 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-52120 |
NCP10,15,SCP10..B,F,RS ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||

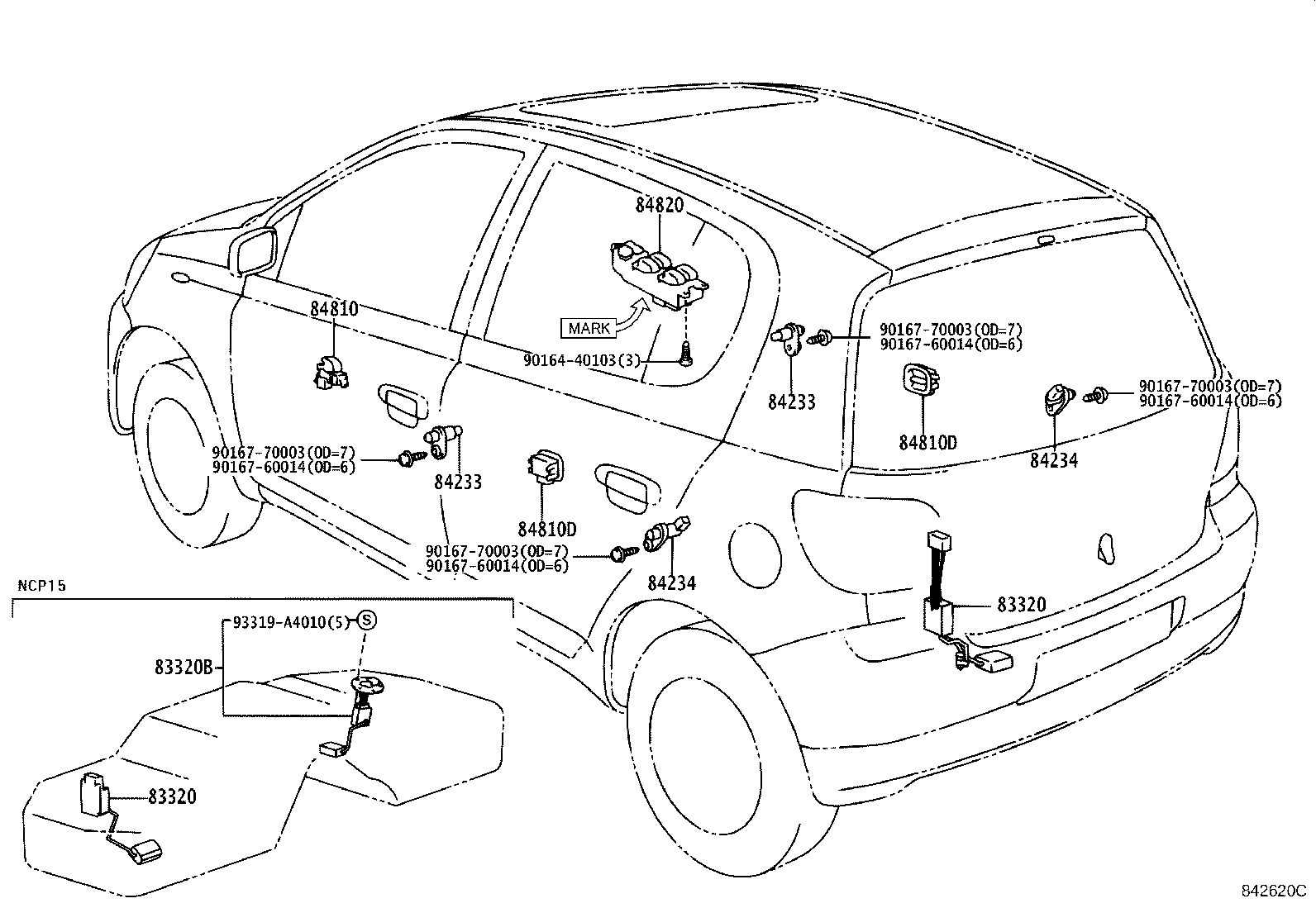

ILLUST NO. 6 OF 6(9901- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52010 |
NCP10,SCP10 |
1 | ||
| 83320-52010 |
NCP10,SCP10 |
1 | ||
| 83320-52011 |
NCP10,SCP10 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52010 |
NCP10,SCP10 |
1 | ||
| 83320-52010 |
NCP10,SCP10 |
1 | ||
| 83320-52011 |
NCP10,SCP10 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP1#,SCP10 |
2 | ||
| 84231-52010 |
NCP1#,SCP10 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP1#,SCP10 |
2 | ||
| 84231-52010 |
NCP1#,SCP10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP1#,SCP10..5D |
2 | ||
| 84231-52020 |
NCP1#,SCP10..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP1#,SCP10..5D |
2 | ||
| 84231-52020 |
NCP1#,SCP10..5D |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 84810-12080 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B0 |
NCP10,15,SCP10..5D..(CLA,F,U) SHADOW GRAY,TRIM1# |
2 | ||
| 84810-52010H0 |
NCP10,15,SCP10..5D..(F,U) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 84810-52010B0 |
NCP10,15,SCP10..5D..(CLA,F,U) SHADOW GRAY,TRIM1# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B0 |
NCP10,15,SCP10..5D..(CLA,F,U) SHADOW GRAY,TRIM1# |
2 | ||
| 84810-52010H0 |
NCP10,15,SCP10..5D..(F,U) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 84810-52010B0 |
NCP10,15,SCP10..5D..(CLA,F,U) SHADOW GRAY,TRIM1# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52010 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 84820-52180 |
NCP1#,SCP10..5D..(CLA,F,RS,U) ﾏｰｸ=84820−52180 |
1 | ||
| 84820-52010 |
NCP1#,SCP10..5D..(CLA,F,RS,U) ﾏｰｸ=84820−52010 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-60014 | ||||
| 90167-70003 | ||||
| 93319-A4010 | ||||

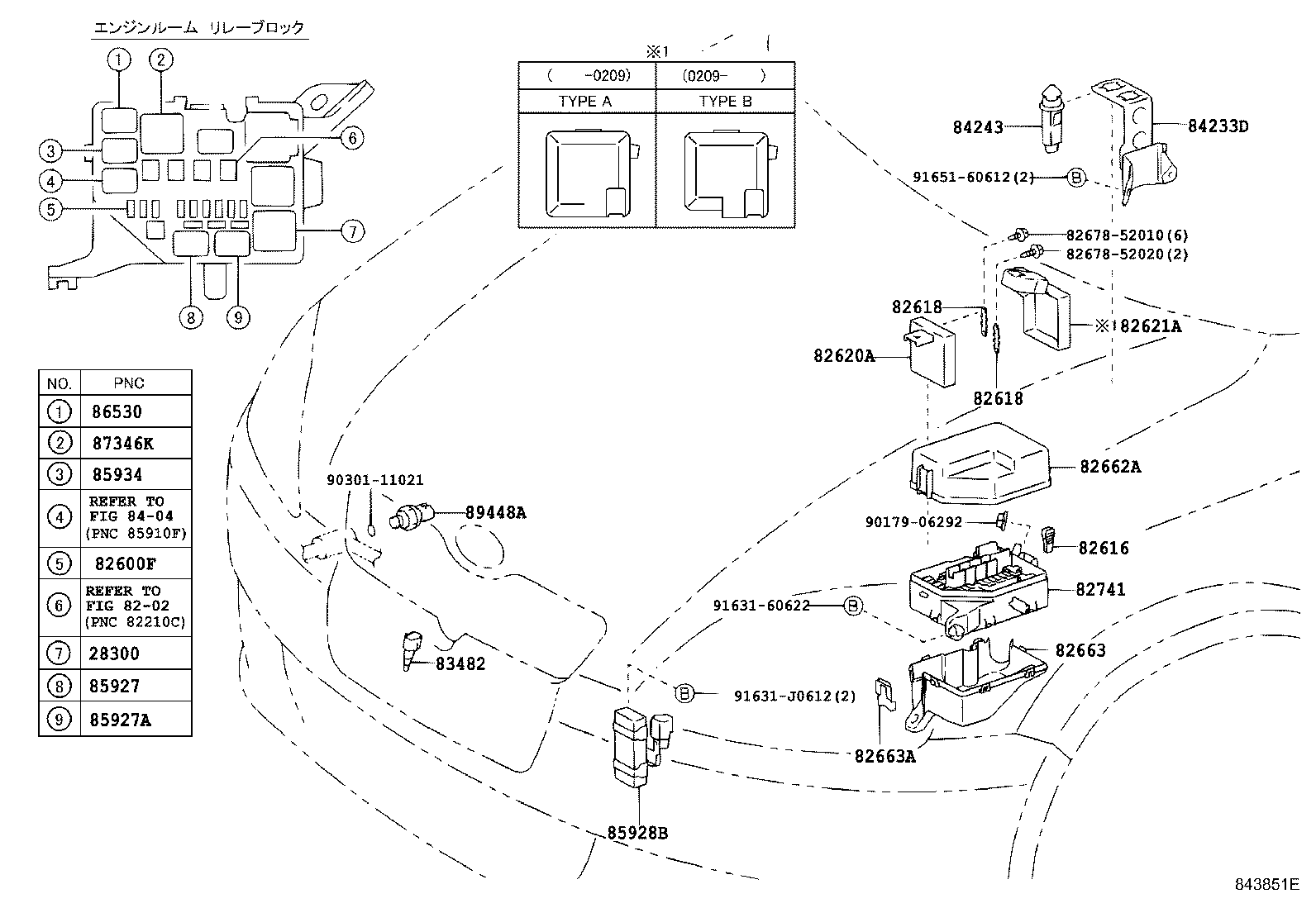

ILLUST NO. 2 OF 6(9901-0212)
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28300-10020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
NCP1#,SCP10 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
NCP1#,SCP10 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09008 |
NCP1#,SCP10 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
NCP1#,SCP10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
NCP1#,SCP10 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
NCP1#,SCP10..CLA,F,RS,U 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
NCP10,15,SCP10..B,CLA,F,U 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｶﾞﾜ |
1 | ||
| 90982-09013 |
NCP1#,SCP10 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
NCP1#,SCP10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
NCP1#,SCP10 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
NCP1#,SCP10 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
NCP1#,SCP10 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
NCP1#,SCP10 |
1 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52010 |
NCP1#,SCP10 60A |
2 | ||
| 82618-52020 |
NCP15,SCP10 100A |
1 | ||
| 82618-52010 |
NCP1#,SCP10 60A |
2 | ||
| 82618-52020 |
NCP15;SCP10..B,F 100A |
1 | ||
| 82618-52020 |
NCP15;NCP10,SCP10..B,F,U 100A |
1 | ||
| 82618-52030 |
NCP10,13,SCP10 120A |
1 | ||
| 82618-52030 |
NCP10,13,SCP10..B,F,RS 120A |
1 | ||
| 82618-52030 |
NCP10,13,SCP10..B,F,RS 120A |
1 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52010 |
NCP1#,SCP10 60A |
2 | ||
| 82618-52020 |
NCP15,SCP10 100A |
1 | ||
| 82618-52010 |
NCP1#,SCP10 60A |
2 | ||
| 82618-52020 |
NCP15;SCP10..B,F 100A |
1 | ||
| 82618-52020 |
NCP15;NCP10,SCP10..B,F,U 100A |
1 | ||
| 82618-52030 |
NCP10,13,SCP10 120A |
1 | ||
| 82618-52030 |
NCP10,13,SCP10..B,F,RS 120A |
1 | ||
| 82618-52030 |
NCP10,13,SCP10..B,F,RS 120A |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52010 |
NCP1#,SCP10 |
1 | ||
| 82620-52010 |
NCP1#,SCP10 |
1 | ||
| 82620-52011 |
NCP1#,SCP10 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52020 |
SCP10 ﾅｼ(ABS) |
1 | ||
| 82621-52011 |
NCP15;NCP10,SCP10..B,F,U ｱﾘ(ABS),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82621-52021 |
NCP10,13,SCP10 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82621-52010 |
NCP15;NCP10,SCP10..B,F,U ｱﾘ(ABS),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 82621-52010 |
NCP10..CLA;NCP15,SCP10 |
1 | ||
| 82621-52020 |
SCP10 ﾅｼ(ABS),TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52010 |
NCP1#,SCP10 |
1 | ||
| 82662-52010 |
NCP1#,SCP10 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52010 |
NCP1#,SCP10 |
1 | ||
| 82663-52040 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52050 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52010 |
NCP1#,SCP10 |
1 | ||
| 82741-52010 |
NCP1#,SCP10 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
NCP1#,SCP10 |
1 | ||
| 90987-02022 |
NCP1#,SCP10 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP1#,SCP10 |
1 | ||
| 90987-04004 |
NCP1#,SCP10 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52010 |
NCP1#,SCP10 |
1 | ||
| 85928-52010 |
NCP1#,SCP10 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
NCP1#,SCP10 |
1 | ||
| 90987-02028 |
NCP1#,SCP10 |
1 | ||
| 90987-02022 |
SCP10 |
1 | ||
| 90987-02022 |
SCP10 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02022 |
NCP1#,SCP10 |
1 | ||
| 90987-02012 |
NCP1#,SCP10 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02016 |
SCP10 |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-51010 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 82678-52010 | ||||
| 82678-52020 | ||||
| 90179-06292 | ||||
| 90301-11021 | ||||
| 91631-60622 | ||||
| 91631-J0612 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

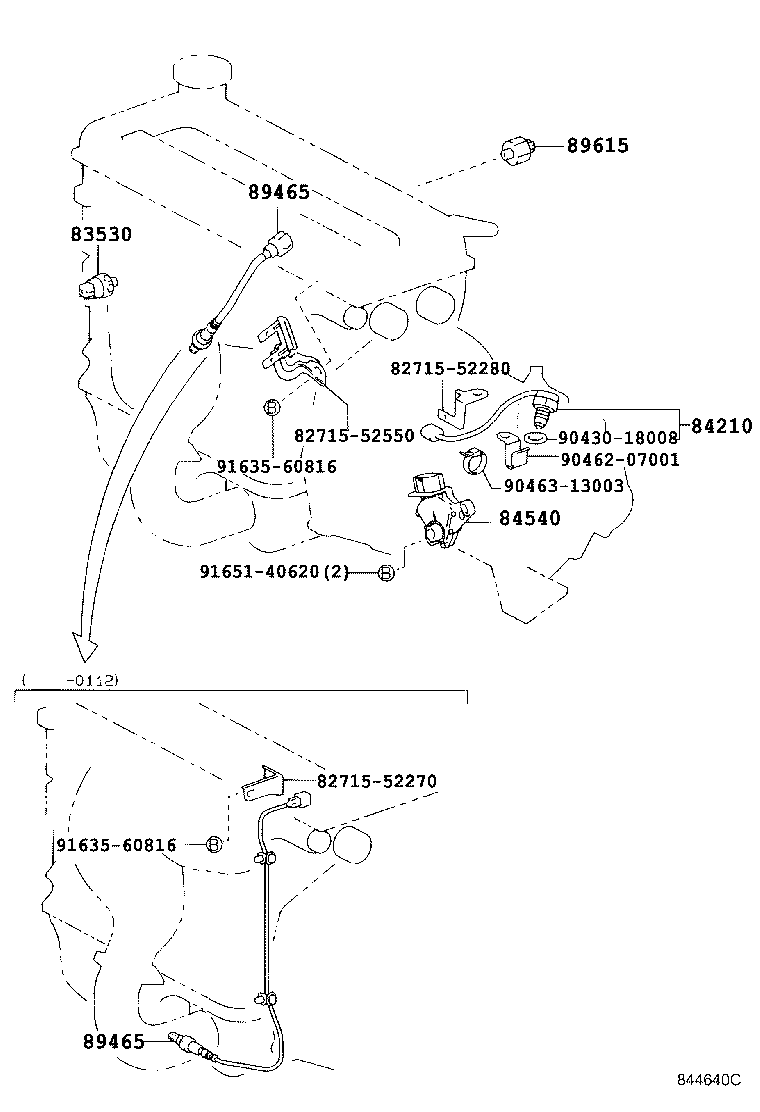

ILLUST NO. 1 OF 6(9901- )SCP10
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP1#,SCP10 YAZAKI |
1 | ||
| 83530-28020 |
NCP1#,SCP10 DENSO |
1 | ||
| 83530-28020 |
NCP1#,SCP10 DENSO |
1 | ||
| 83530-60020 |
NCP1#,SCP10 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52010 |
NCP10,15,SCP10..4FC |
1 | ||
| 84540-52010 |
NCP10,15,SCP10..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52170 |
SCP10 |
1 | ||
| 89465-52010 |
SCP10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52170 |
SCP10 |
1 | ||
| 89465-52010 |
SCP10 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52010 |
SCP10 |
1 | ||
| 89615-52010 |
SCP10 MATSUSHITA |
1 | ||
| Common parts | ||||
| 82715-52270 | ||||
| 82715-52280 | ||||
| 82715-52550 | ||||
| 90430-18008 | ||||
| 90462-07001 | ||||
| 90463-13003 | ||||
| 91635-60816 | ||||
| 91651-40620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
