SCP10-AHPEK (1999)

Toyota Vitz

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )5D

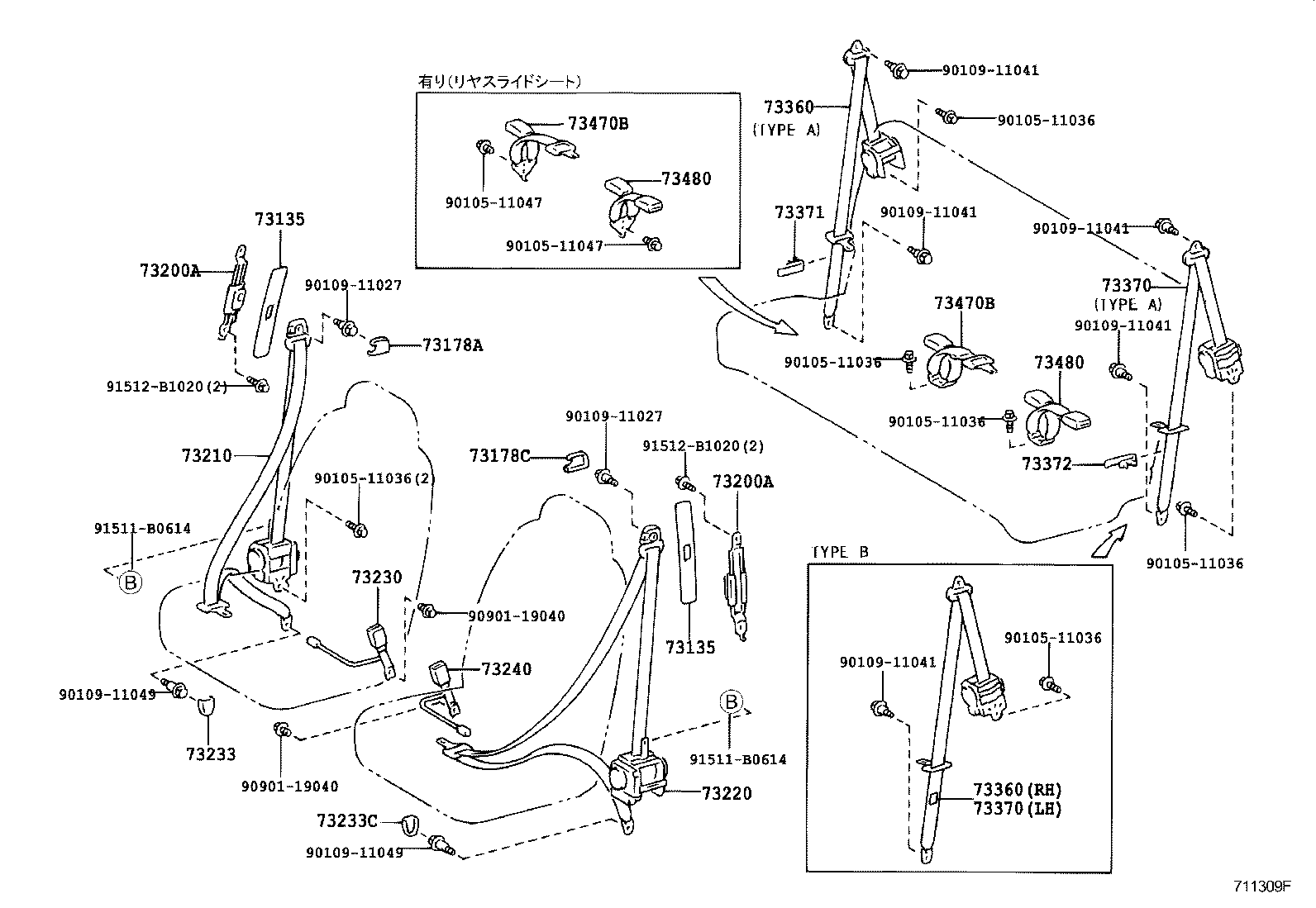

Click highlighted areas on diagram

diagram 73135 73135 73178A 73178C 73200A 73200A 73210 73220 73230 73233 73233C 73240 73360 73360 73370 73370 73371 73372 73470B 73470B 73480 73480 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511047 9010511047 9010911027 9010911027 9010911041 9010911041 9010911041 9010911041 9010911041 9010911049 9010911049 9090119040 9090119040 91511B0614 91511B0614 91512B1020 91512B1020
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B7

SCP10..5D

LT. GRAY,TRIM1#

 2
73135-12030G2

NCP10,15,SCP10..5D..(B,F,U)

AGATE,TRIM7#

 2
73135-12030G1

SCP10..5D

LT. GREEN,TRIM7#

 2
73135-12030B9

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 2
73135-12030B9

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B7

SCP10..5D

LT. GRAY,TRIM1#

 2
73135-12030G2

NCP10,15,SCP10..5D..(B,F,U)

AGATE,TRIM7#

 2
73135-12030G1

SCP10..5D

LT. GREEN,TRIM7#

 2
73135-12030B9

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 2
73135-12030B9

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 1
73178-33020G1

NCP10,15,SCP10..5D..(B,F,U)

AGATE,TRIM7#

 1
73178-12040G3

NCP1#,SCP10..5D..(B,F,U)

AGATE,TRIM7#

 1
73178-33020G1

NCP15,SCP10..5D..(B,F)

AGATE,TRIM7#

 1
73178-33020B3

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 1
73178-12040B5

NCP1#,SCP10..5D

LT.GRAY,TRIM1#

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-33020G1

NCP10,15,SCP10..5D..(B,F,U)

AGATE,TRIM7#

 1
73178-12040G3

NCP1#,SCP10..5D..(B,F,U)

AGATE,TRIM7#

 1
73178-12040B5

NCP1#,SCP10..5D

LT.GRAY,TRIM1#

 1
73178-33020B3

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 1
73178-33020B3

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020B2

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 2
73200-60020G1

NCP10,15,SCP10..5D..(B,F,U)

AGATE,TRIM7#

 2
73200-60020B2

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020B2

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 2
73200-60020G1

NCP10,15,SCP10..5D..(B,F,U)

AGATE,TRIM7#

 2
73200-60020B2

NCP10,15,SCP10..5D..(B,CLA,F,U)

LT.GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52060C0

SCP10..5D

BLACK,TRIM1#

 1
73210-52061C1

NCP1#,SCP10..5D..(B,F,U)

BLACK,TRIM7#

 1
73210-52060C1

SCP10..5D

BLACK,TRIM7#

 1
73210-52061C0

NCP1#,SCP10..5D

BLACK,TRIM1#

 1
73210-52320C3

NCP10,15,SCP10..5D..(B,F,U)

BLACK,TRIM7#

 1
73210-52320C2

NCP10,15,SCP10..5D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73210-52320C1

NCP10,15,SCP10..5D..(B,F,U)

BLACK,TRIM7#

 1
73210-52200C1

NCP1#,SCP10..5D..(B,F,U)

BLACK,TRIM7#

 1
73210-52200C0

NCP1#,SCP10..5D

BLACK,TRIM1#

 1
73210-52320C0

NCP10,15,SCP10..5D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73210-52320C0

NCP10,15,SCP10..5D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52070C1

SCP10..5D

BLACK,TRIM7#

 1
73220-52070C0

SCP10..5D

BLACK,TRIM1#

 1
73220-52080C0

SCP10..5D

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM1#

 1
73220-52081C1

NCP10,SCP10..5D..(B,F,U)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM7#

 1
73220-52080C1

SCP10..5D

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM7#

 1
73220-52081C0

NCP10,SCP10..5D

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM1#

 1
73220-52340C2

NCP10,SCP10..5D..(B,CLA,F)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM1#

 1
73220-52071C1

NCP1#,SCP10..5D..(B,F,U)

BLACK,TRIM7#

 1
73220-52071C0

NCP1#,SCP10..5D

BLACK,TRIM1#

 1
73220-52230C0

NCP10,SCP10..5D..(B,F,U)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM1#,7#

 1
73220-52350C2

NCP10,15,SCP10..5D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73220-52350C3

NCP10,15,SCP10..5D..(B,F,U)

BLACK,TRIM7#

 1
73220-52340C0

NCP10,SCP10..5D..(B,CLA,F,U)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM1#

 1
73220-52340C3

NCP10,SCP10..5D..(B,F,U)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM7#

 1
73220-52233C4

NCP10,SCP10..5D..(B,CLA,F,U)

ﾅｼ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM1#

 1
73220-52350C0

NCP10,15,SCP10..5D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73220-52350C1

NCP10,15,SCP10..5D..(B,F,U)

BLACK,TRIM7#

 1
73220-52340C1

NCP10,SCP10..5D..(B,F,U)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM7#

 1
73220-52350C0

NCP10,15,SCP10..5D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73220-52233C5

NCP10,SCP10..5D..(B,F,U)

ﾅｼ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM7#

 1
73220-52233C4

NCP10,SCP10..5D..(B,CLA,F,U)

ﾅｼ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52010B0

NCP10,15,SCP10..B,F,U

SHADOW GRAY,TRIM1#,7#

 1
73230-52180B0

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73230-52010B2

NCP10,15,SCP10..B,F,U

DK.GRAY,TRIM1#,7#

 1
73230-52180B0

NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U)

DK.GRAY,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B3

NCP10,15,SCP10..B,F,U

SHADOW GRAY,TRIM1#,7#

 1
73233-33010B8

NCP10,15,SCP10..B,F,U

DK.GRAY,TRIM1#,7#

 1
73233-33010B8

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73233C - COVER, LAP BELT OUTER ANCHOR, LH
73233-33010B3

NCP1#,SCP10..B,F,U

SHADOW GRAY,TRIM1#,7#

 1
73233-33010B8

NCP15..3D..(F,U);NCP10,SCP10..B,F,U

DK.GRAY,TRIM1#,7#

 1
73233-33010B8

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52021B0

NCP1#,SCP10..B,F,U

SHADOW GRAY,TRIM1#,7#

 1
73230-52190B0

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73230-52021B0

NCP10,15,SCP10..F,U

SHADOW GRAY,TRIM1#,7#

 1
73230-52020B0

SCP10

SHADOW GRAY,TRIM1#,7#

 1
73230-52190B0

NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U)

DK.GRAY,TRIM1#

 1
73230-52021B2

NCP10,15,SCP10..B,F,U

DK.GRAY,TRIM1#,7#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52020C3

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73360-52020C4

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73360-52020C2

SCP10..F,U

BLACK,TRIM7#

 1
73360-52020C4

NCP10,15,SCP10..CLA,F,U

BLACK,TRIM1#

 1
73360-52020C1

SCP10..F,U

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52020C3

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73360-52020C4

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73360-52020C2

SCP10..F,U

BLACK,TRIM7#

 1
73360-52020C4

NCP10,15,SCP10..CLA,F,U

BLACK,TRIM1#

 1
73360-52020C1

SCP10..F,U

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52020C2

SCP10..F,U

BLACK,TRIM7#

 1
73370-52020C3

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73370-52020C4

NCP10,15,SCP10..CLA,F,U

BLACK,TRIM1#

 1
73370-52020C4

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73370-52020C1

SCP10..F,U

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52020C2

SCP10..F,U

BLACK,TRIM7#

 1
73370-52020C3

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73370-52020C4

NCP10,15,SCP10..CLA,F,U

BLACK,TRIM1#

 1
73370-52020C4

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73370-52020C1

SCP10..F,U

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-16050B1

NCP10,15,SCP10..B,CLA,F,U

SHADOW GRAY,TRIM1#

 1
73371-16050H0

NCP10,15,SCP10..B,F,U

FRENCH TURQUOISE,TRIM7#

 1
73371-16050B1

NCP10,15,SCP10..B,CLA,F,U

SHADOW GRAY,TRIM1#

 1
73371-52010B1

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-16050H0

NCP10,15,SCP10..B,F,U

FRENCH TURQUOISE,TRIM7#

 1
73371-16050B1

NCP10,15,SCP10..B,CLA,F,U

SHADOW GRAY,TRIM1#

 1
73371-52010B1

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73371-16050B1

NCP10,15,SCP10..B,CLA,F,U

SHADOW GRAY,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52010C0

NCP10,SCP10..B,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#,7#

 1
73470-52030C0

SCP10..B,F

BLACK,TRIM1#,7#

 1
73470-52030C1

SCP10..B,F

BLACK,TRIM1#,7#

 1
73470-52030C0

SCP10..F

BLACK,TRIM1#,7#

 1
73470-52010C1

NCP10,SCP10..B,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#,7#

 1
73470-52010C1

SCP10..5D..4FC..F

ﾛ-ｿﾝ ｼﾖｳ,BLACK,TRIM12

 1
73470-52010C1

NCP10,SCP10..B,CLA,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#

 1
73470-52010C1

SCP10..5D..4FC..F

ﾛ-ｿﾝ ｼﾖｳ,BLACK,TRIM12

 1
73470-52030C1

NCP10..U;SCP10..B,F

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52010C0

NCP10,SCP10..B,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#,7#

 1
73470-52030C0

SCP10..B,F

BLACK,TRIM1#,7#

 1
73470-52030C1

SCP10..B,F

BLACK,TRIM1#,7#

 1
73470-52030C0

SCP10..F

BLACK,TRIM1#,7#

 1
73470-52010C1

NCP10,SCP10..B,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#,7#

 1
73470-52010C1

SCP10..5D..4FC..F

ﾛ-ｿﾝ ｼﾖｳ,BLACK,TRIM12

 1
73470-52010C1

NCP10,SCP10..B,CLA,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#

 1
73470-52010C1

SCP10..5D..4FC..F

ﾛ-ｿﾝ ｼﾖｳ,BLACK,TRIM12

 1
73470-52030C1

NCP10..U;SCP10..B,F

BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52010C0

NCP10,SCP10..B,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#,7#

 1
73480-52030C0

SCP10..B,F

BLACK,TRIM1#,7#

 1
73480-52030C1

NCP10..U;SCP10..B,F

BLACK,TRIM1#

 1
73480-52010C1

NCP10,SCP10..B,CLA,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#

 1
73480-52030C1

SCP10..B,F

BLACK,TRIM1#,7#

 1
73480-52030C0

SCP10..F

BLACK,TRIM1#,7#

 1
73480-52010C1

SCP10..5D..4FC..F

ﾛ-ｿﾝ ｼﾖｳ,BLACK,TRIM12

 1
73480-52010C1

SCP10..5D..4FC..F

ﾛ-ｿﾝ ｼﾖｳ,BLACK,TRIM12

 1
73480-52010C1

NCP10,SCP10..B,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#,7#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52010C0

NCP10,SCP10..B,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#,7#

 1
73480-52030C0

SCP10..B,F

BLACK,TRIM1#,7#

 1
73480-52030C1

NCP10..U;SCP10..B,F

BLACK,TRIM1#

 1
73480-52010C1

NCP10,SCP10..B,CLA,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#

 1
73480-52030C1

SCP10..B,F

BLACK,TRIM1#,7#

 1
73480-52030C0

SCP10..F

BLACK,TRIM1#,7#

 1
73480-52010C1

SCP10..5D..4FC..F

ﾛ-ｿﾝ ｼﾖｳ,BLACK,TRIM12

 1
73480-52010C1

SCP10..5D..4FC..F

ﾛ-ｿﾝ ｼﾖｳ,BLACK,TRIM12

 1
73480-52010C1

NCP10,SCP10..B,U

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),BLACK,TRIM1#,7#

 1
Common parts
90105-11036
90105-11047
90109-11027
90109-11041
90109-11049
90901-19040
91511-B0614
91512-B1020
