SCP10-AHPEK (1999)
Toyota Vitz
Production
Jan 1999
-
Dec 2002
Engine
1SZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9901- )SCP10

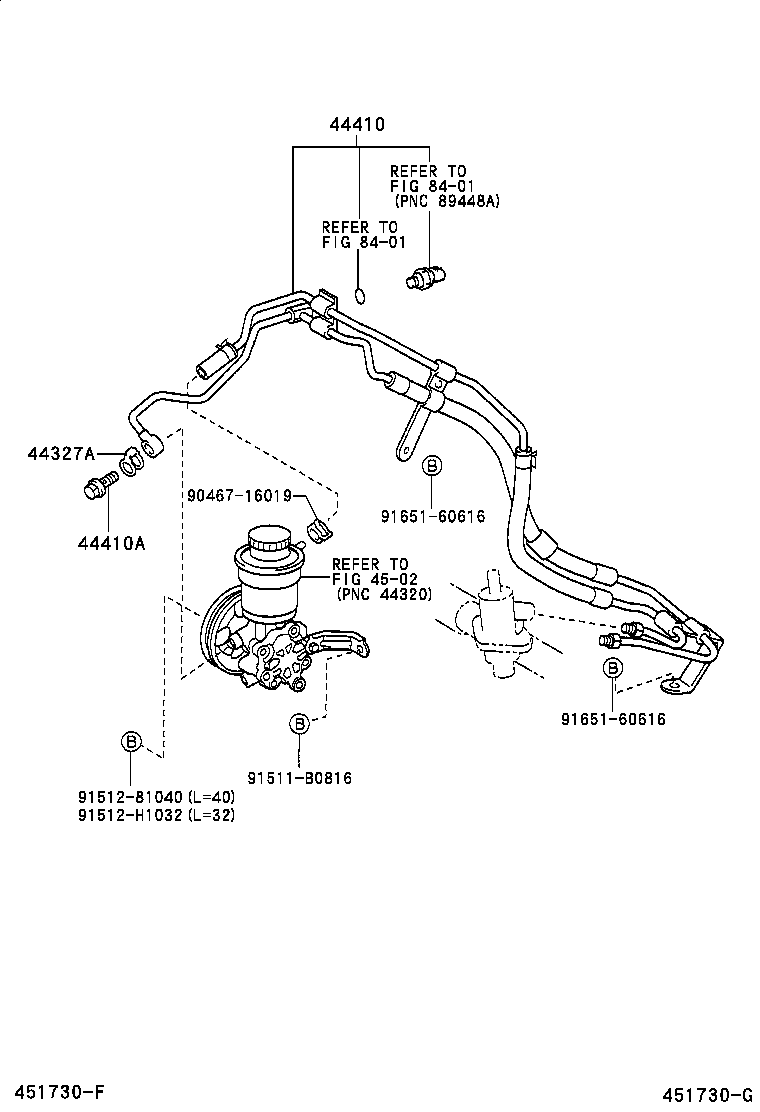

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
SCP10 |
1 | ||
| 44327-12010 |
SCP10 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-52011 |
SCP10 |
1 | ||
| 44410-52011 |
SCP10 |
1 | ||
| 44410-52010 |
SCP10 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 96341-41603 |
SCP10 |
1 | ||
| 96341-41603 |
SCP10 |
1 | ||
| Common parts | ||||
| 90467-16019 | ||||
| 91511-B0816 | ||||
| 91512-81040 | ||||
| 91512-H1032 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 8401 | ||||
