SCP10-AHMEK (1999)
Toyota Vitz
Production
Jan 1999
-
Dec 2002
Engine
1SZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901- )

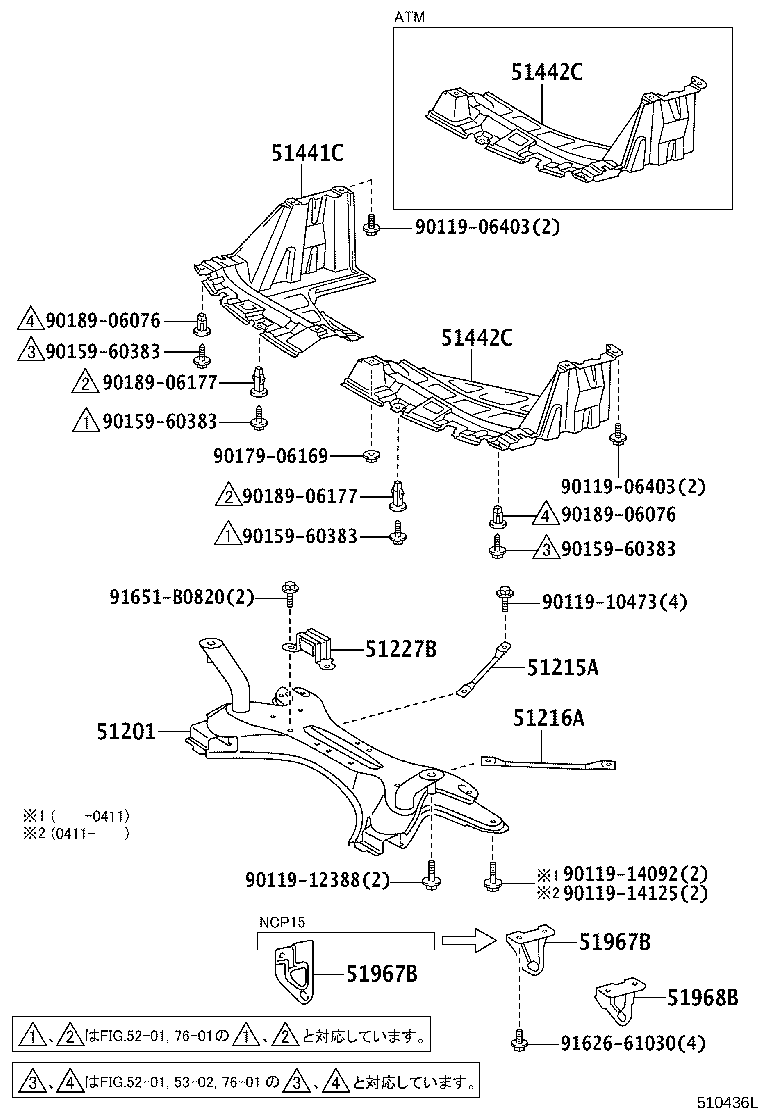

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-52010 |
SCP10 |
1 | ||
| 51201-52011 |
NCP10,13,SCP10 |
1 | ||
| 51201-52012 |
NCP10,13,SCP10 |
1 | ||
| 51201-52013 |
NCP10,13,SCP10 |
1 | ||
| 51201-52011 |
NCP10,13,SCP10 |
1 | ||
| 51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51215-52010 |
NCP10,13,SCP10..RS,U |
1 | ||
| 51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51215-52010 |
NCP10,13,SCP10..RS,U |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-52030 |
SCP10 |
1 | ||
| 51441-52030 |
SCP10 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-52030 |
NCP1#,SCP10..5F |
1 | ||
| 51442-52030 |
NCP1#,SCP10..5F |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-52030 |
NCP1#,SCP10..5F |
1 | ||
| 51442-52030 |
NCP1#,SCP10..5F |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-10100 |
NCP10,13,SCP10 |
1 | ||
| 51967-10100 |
NCP10,13,SCP10 |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-10100 |
NCP10,13,SCP10 |
1 | ||
| 51967-10100 |
NCP10,13,SCP10 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51967-10090 |
NCP10,13,SCP10 |
1 | ||
| 51967-10090 |
NCP10,13,SCP10 |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90119-10473 | ||||
| 90119-12388 | ||||
| 90119-14092 | ||||
| 90119-14125 | ||||
| 90159-60383 | ||||
| 90179-06169 | ||||
| 90189-06076 | ||||
| 90189-06177 | ||||
| 91626-61030 | ||||
| 91651-B0820 | ||||
