SCP10-AHMDK (1999)
Toyota Vitz

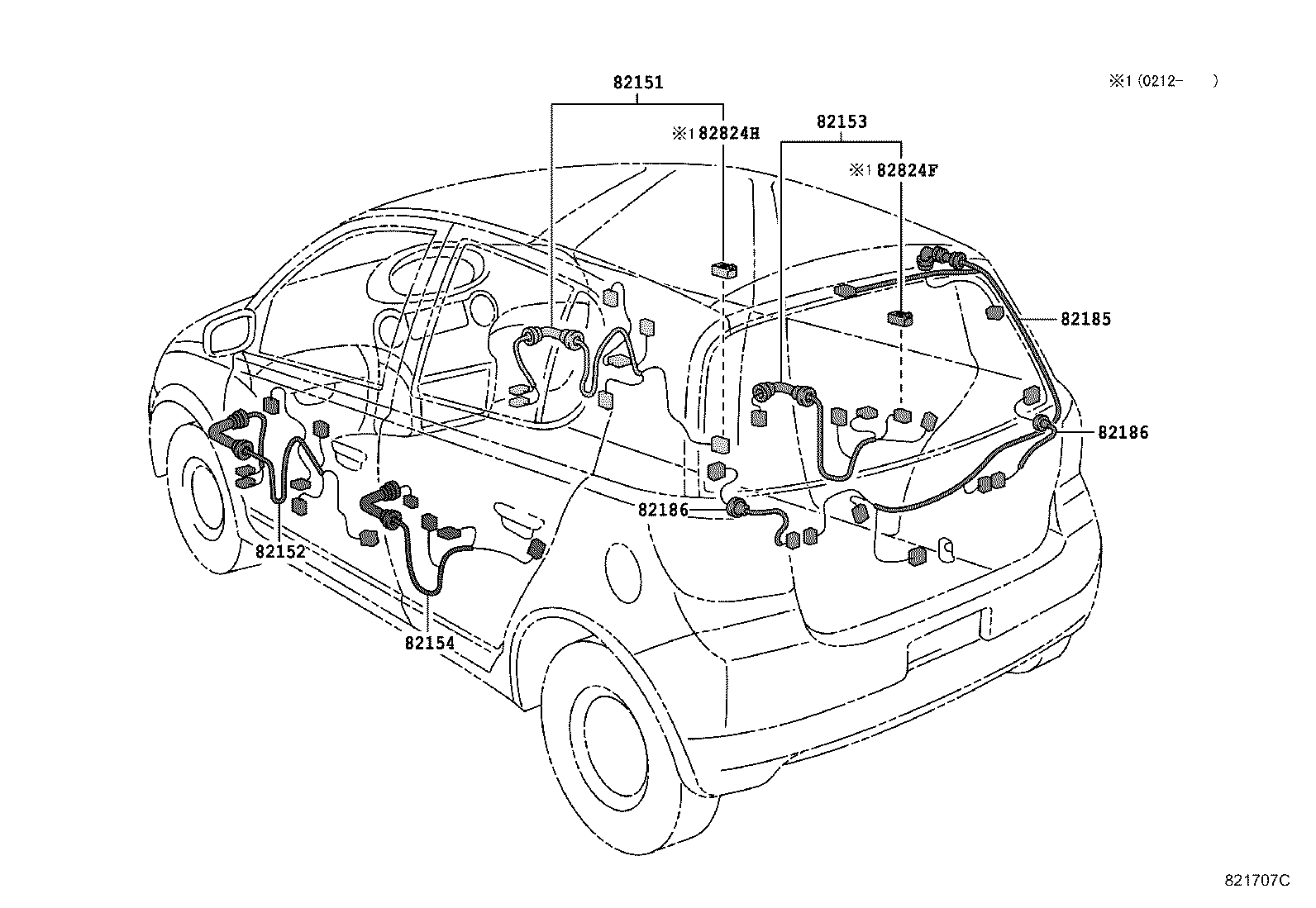

ILLUST NO. 4 OF 8(9901- )5D
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52080 |
SCP10..5D..(F,U) |
1 | ||
| 82151-52081 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82151-52082 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82151-52011 |
SCP10..B |
1 | ||
| 82151-52082 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82151-52083 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82151-52083 |
NCP1#,SCP1#..5D..(CLA,F,RS,U) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52011 |
SCP10..B |
1 | ||
| 82152-52081 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82152-52080 |
SCP10..5D..(F,U) |
1 | ||
| 82152-52081 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82152-52081 |
NCP1#,SCP1#..5D..(CLA,F,RS,U) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-52020 |
NCP1#,SCP1#..5D..(CLA,F,RS,U) |
1 | ||
| 82153-52020 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82153-52020 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-52020 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82154-52020 |
NCP1#,SCP10..5D..(CLA,F,RS,U) |
1 | ||
| 82154-52020 |
NCP1#,SCP1#..5D..(CLA,F,RS,U) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52040 |
NCP1#,SCP10 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185-52060 |
NCP1#,SCP10 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185-52010 |
SCP10..B |
1 | ||
| 82185-52020 |
SCP10..B ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 82185-52020 |
SCP10..B ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 82185-52170 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 82185-52060 |
SCP10..B ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185-52020 |
SCP10..B ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 82185-52060 |
SCP10..B ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185-52170 |
NCP15,SCP10..(4FC,5F)..F |
1 | ||
| 82185-52260 |
NCP15,SCP10..5D..(4FC,5F)..F L ﾊﾟﾂｹ-ｼﾞ *(L) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52010 |
NCP1#,SCP10 |
2 | ||
| 82186-52010 |
NCP1#,SCP10 |
2 | ||
| 82186-52010 |
NCP1#,SCP1# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52010 |
NCP1#,SCP10 |
2 | ||
| 82186-52010 |
NCP1#,SCP10 |
2 | ||
| 82186-52010 |
NCP1#,SCP1# |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1#,SCP1#..5D..(CLA,F,RS,U) |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1#,SCP1# |
1 | ||

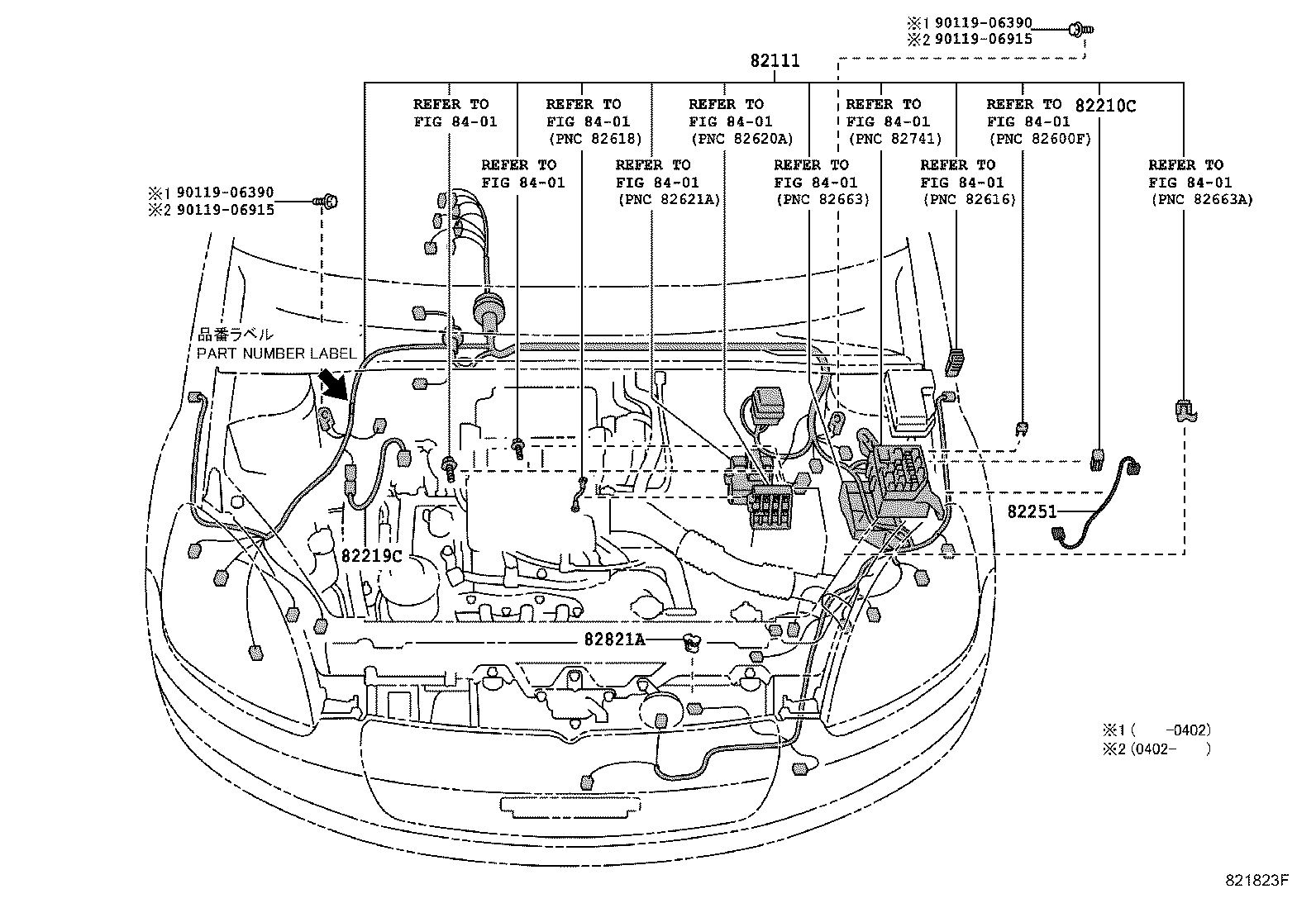

ILLUST NO. 1 OF 8(9901- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-52010 |
SCP10..B,F |
1 | ||
| 82111-52030 |
SCP10..B ﾅｼ(ABS) |
1 | ||
| 82111-52040 |
SCP10..F ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82111-52022 |
SCP10..B,F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52022 |
SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52021 |
SCP10..B,F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52041 |
SCP10..F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82111-52020 |
SCP10..B,F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52011 |
SCP10..B,F |
1 | ||
| 82111-52011 |
SCP10 |
1 | ||
| 82111-52023 |
SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52043 |
NCP10,SCP10..CLA,F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82111-52031 |
SCP10..B ﾅｼ(ABS) |
1 | ||
| 82111-52012 |
SCP10 |
1 | ||
| 82111-52042 |
NCP10,SCP10..CLA,F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82111-5C020 |
SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82115-52060 |
SCP10..5F..B ﾊﾞﾂﾃﾘ=55D23R |
1 | ||
| 82111-5C021 |
NCP10,SCP10..B,F,U ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82111-52032 |
SCP10..B ﾅｼ(ABS) |
1 | ||
| 82111-5C081 |
SCP10..5F..B |
1 | ||
| 82111-5C080 |
SCP10..5F..B ｴｺ ﾊﾟﾂｹ-ｼﾞ*(E) OR ﾋﾞｼﾈｽ ｴｺ ﾊﾟﾂｹ-ｼﾞ*(C) |
1 | ||
| 82111-5C011 |
NCP10,SCP10..B,F,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 82111-5C010 |
SCP10 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 82111-5D310 |
SCP10..4FC,5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-5D310 |
1 | ||
| 82111-5D300 |
SCP10..4FC,5F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-5D300 |
1 | ||
| 82111-5D590 |
SCP10..5D..(4FC,5F)..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-5D590 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08285 |
NCP1#,SCP10 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
NCP1#,SCP1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08283 |
NCP1#,SCP10 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08283 |
NCP1#,SCP10 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08284 |
NCP1#,SCP10 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08284 |
NCP1#,SCP10 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08284 |
NCP1#,SCP1# 40A,ﾒｽ端子,緑 |
1 | ||
| 82251 - WIRE, SPEED SENSOR | ||||
| 82251-52010 |
SCP10..B |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-10050 |
SCP10..B |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

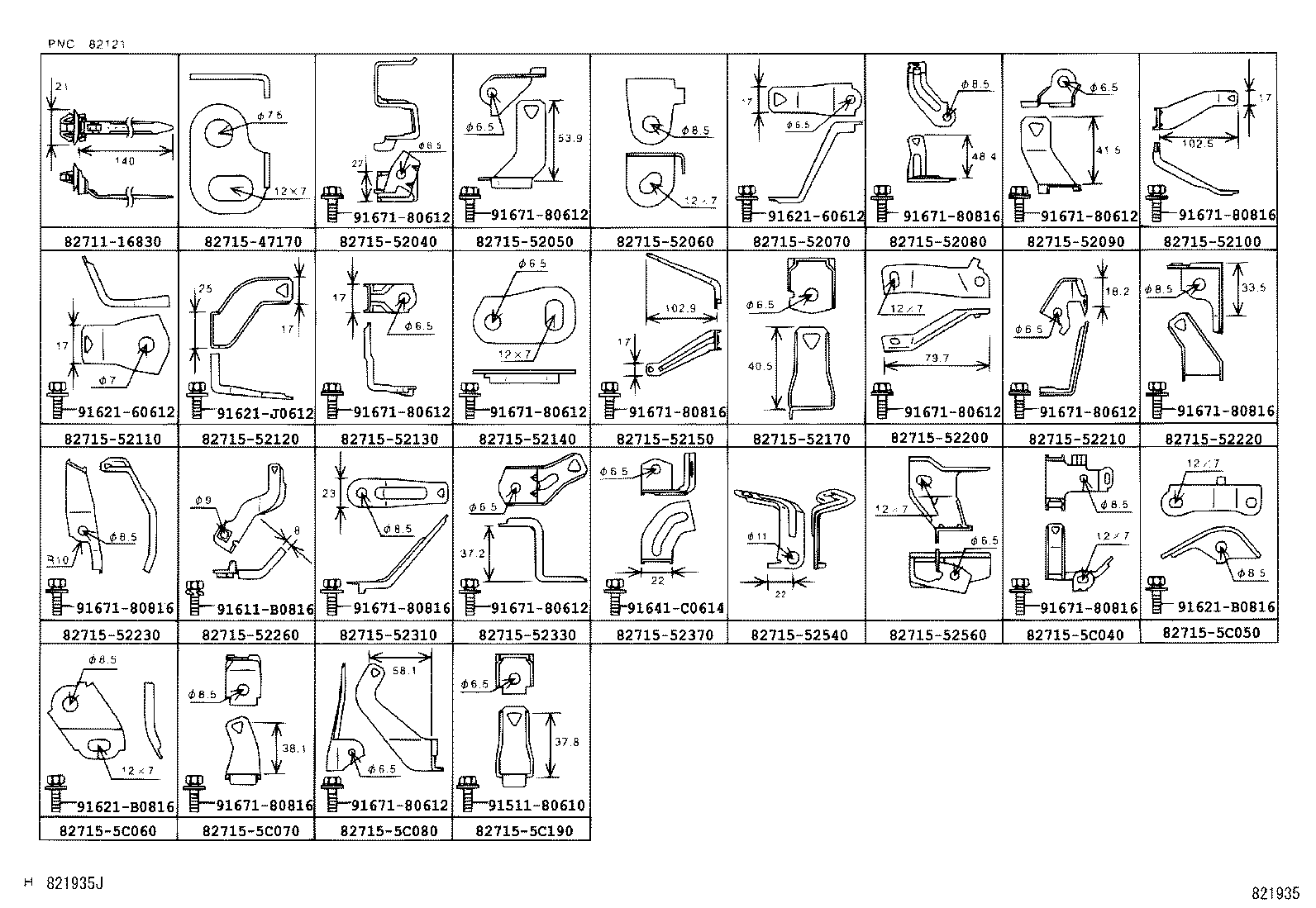

ILLUST NO. 6 OF 8(9901- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16830 | ||||
| 82715-47170 | ||||
| 82715-52040 | ||||
| 82715-52050 | ||||
| 82715-52060 | ||||
| 82715-52070 | ||||
| 82715-52080 | ||||
| 82715-52090 | ||||
| 82715-52100 | ||||
| 82715-52110 | ||||
| 82715-52120 | ||||
| 82715-52130 | ||||
| 82715-52140 | ||||
| 82715-52150 | ||||
| 82715-52170 | ||||
| 82715-52200 | ||||
| 82715-52210 | ||||
| 82715-52220 | ||||
| 82715-52230 | ||||
| 82715-52260 | ||||
| 82715-52310 | ||||
| 82715-52330 | ||||
| 82715-52370 | ||||
| 82715-52540 | ||||
| 82715-52560 | ||||
| 82715-5C040 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-5C070 | ||||
| 82715-5C080 | ||||
| 82715-5C190 | ||||
| 91511-80610 | ||||
| 91611-B0816 | ||||
| 91621-60612 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 91641-C0614 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||

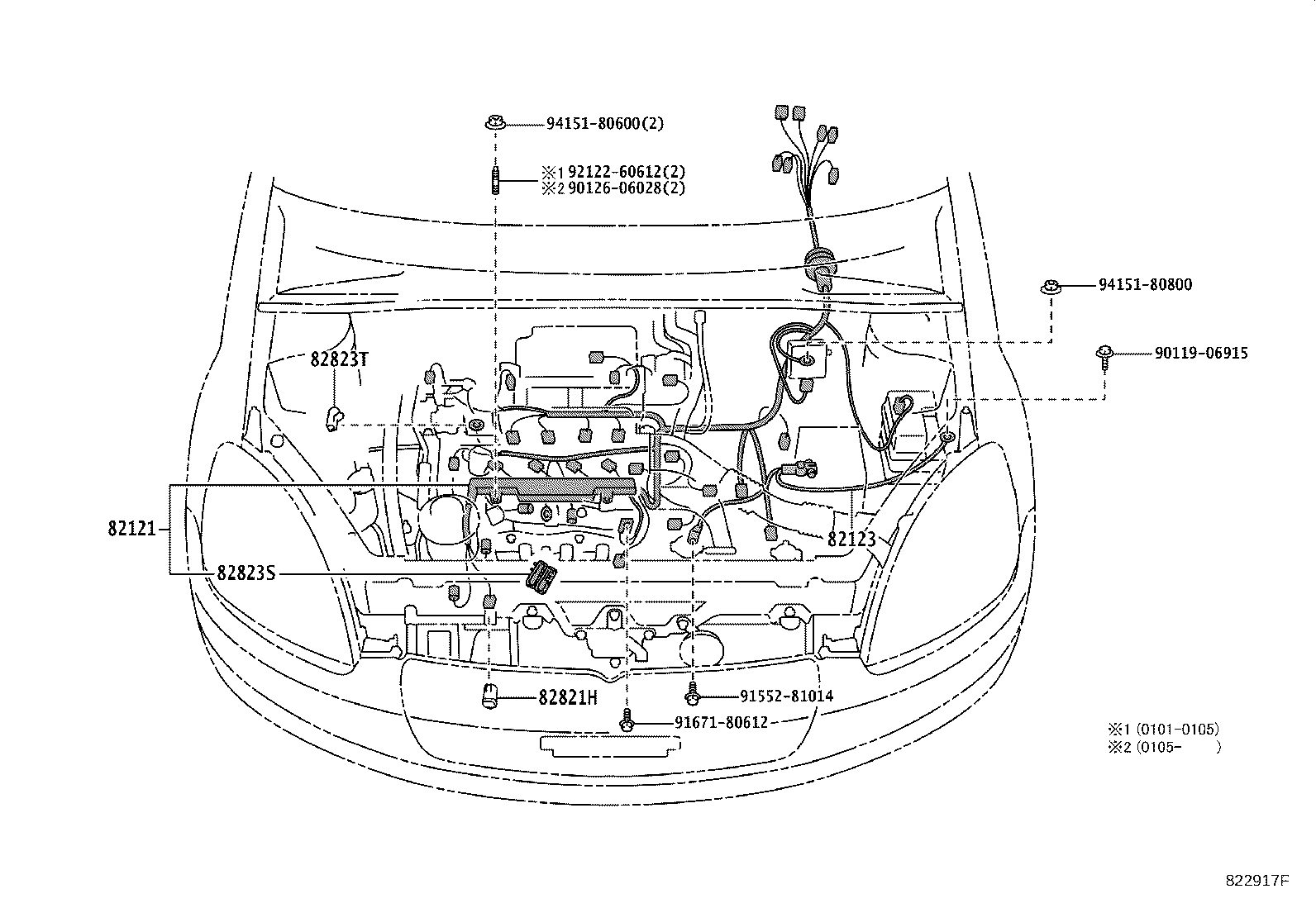

ILLUST NO. 2 OF 8(9901- )SCP1#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52010 |
SCP10..5F |
1 | ||
| 82121-52430 |
SCP10..5F..B ﾊﾞﾂﾃﾘ=55D23R |
1 | ||
| 82121-52011 |
SCP10..5F |
1 | ||
| 82121-52520 |
SCP10..5F |
1 | ||
| 82121-52430 |
SCP10..5F..B ﾊﾞﾂﾃﾘ=55D23R |
1 | ||
| 82121-52520 |
SCP10..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52030 |
SCP10..5F..B ﾊﾞﾂﾃﾘ=55D23R |
1 | ||
| 82123-52060 |
NCP1#,SCP10 |
1 | ||
| 82123-52061 |
NCP1#,SCP10 |
1 | ||
| 82123-52030 |
SCP10..5F..B ﾊﾞﾂﾃﾘ=55D23R |
1 | ||
| 82123-52061 |
NCP1#,SCP10 |
1 | ||
| 82123-52061 |
NCP1#,SCP10 |
1 | ||
| 82123-52010 |
SCP10;NCP1#..5F;NCP1#..4FC..CLA |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12400 |
SCP10..B |
1 | ||
| 82821-12400 |
SCP10..B |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NCP1#,SCP10 |
1 | ||
| 82823-20080 |
NCP1#,SCP1# |
1 | ||
| 82823-20080 |
NCP1#,SCP1# |
1 | ||
| 82823-20080 |
NCP1#,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP10,15;SCP10..4FC;NCP13,SCP10..5F..(F,RS,U) |
1 | ||
| 82823-22050 |
NCP13..4FC;SCP10..5F..B |
1 | ||
| 82823-22050 |
NCP1#,SCP10 |
1 | ||
| 82823-22050 |
NCP1#,SCP1# |
1 | ||
| 82823-22050 |
NCP1#,SCP1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90126-06028 | ||||
| 91552-81014 | ||||
| 91671-80612 | ||||
| 92122-60612 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

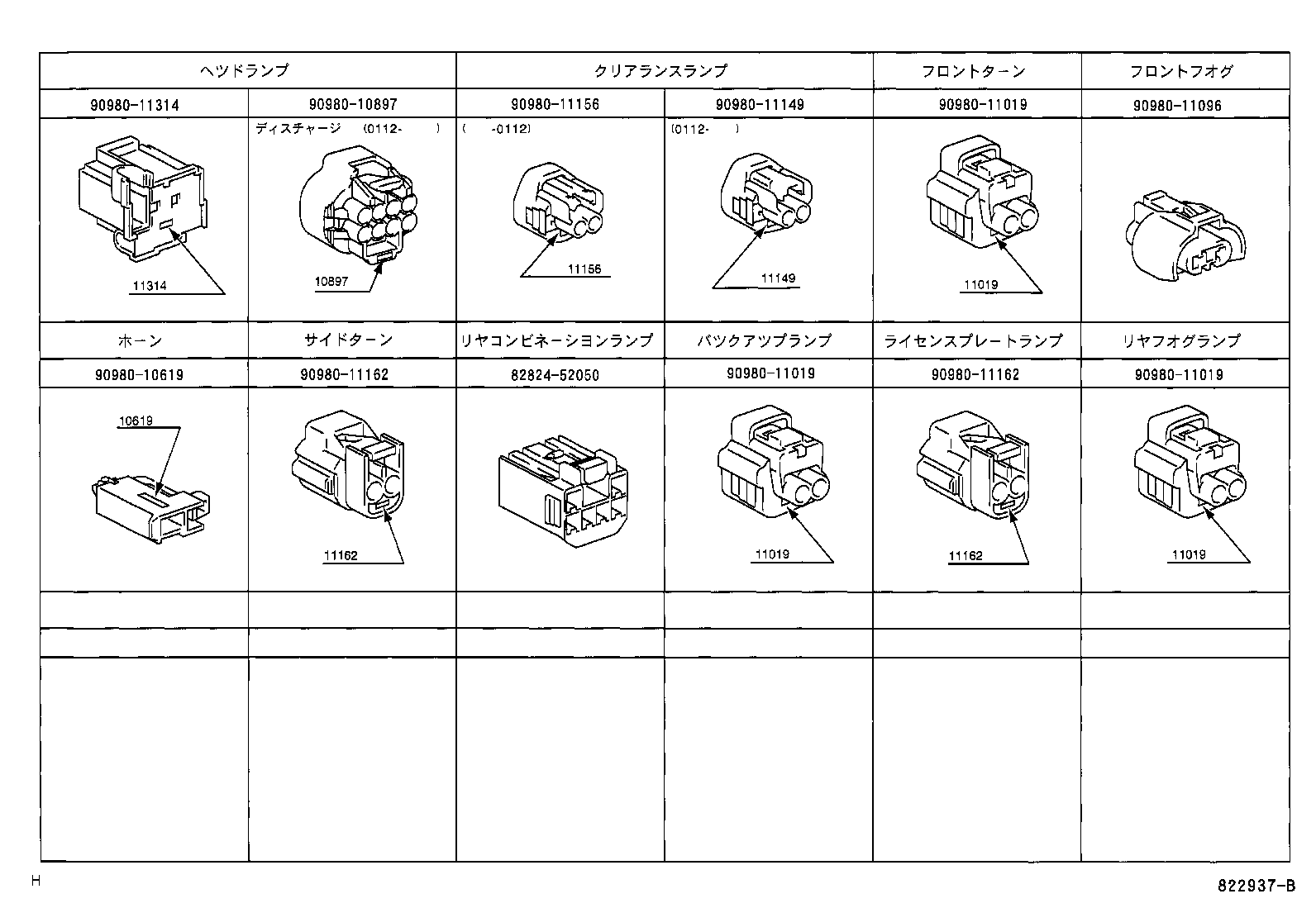

ILLUST NO. 8 OF 8(9901- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52050 | ||||
| 90980-10619 | ||||
| 90980-10897 | ||||
| 90980-11019 | ||||
| 90980-11096 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||

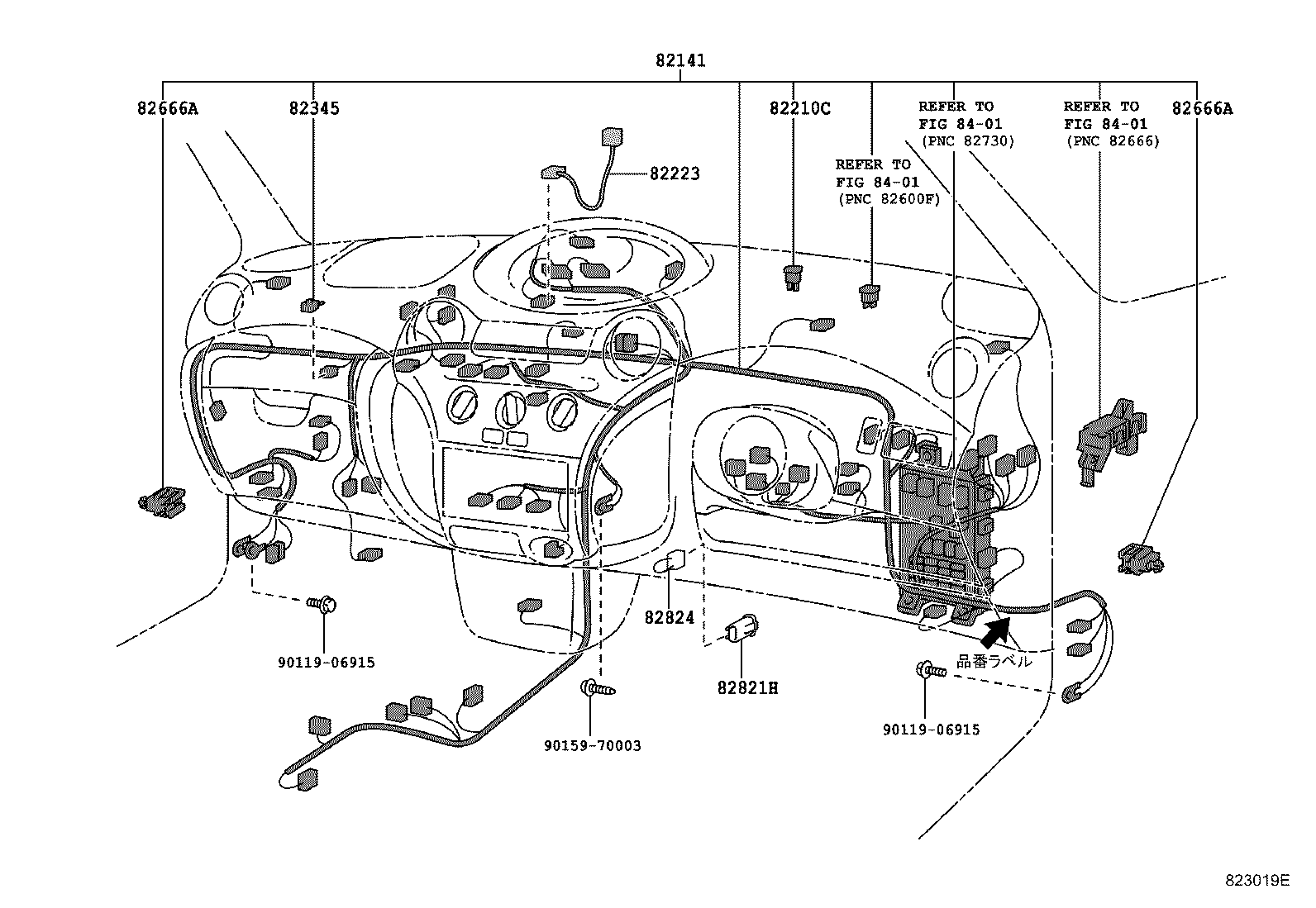

ILLUST NO. 3 OF 8(9901- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-52030 |
SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52030 |
1 | ||
| 82141-52010 |
SCP10..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52010 |
1 | ||
| 82141-52020 |
SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52020 |
1 | ||
| 82141-52011 |
SCP10..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52011 |
1 | ||
| 82141-52050 |
SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52050 |
1 | ||
| 82141-52021 |
NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52021 |
1 | ||
| 82141-52060 |
SCP10..F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52060 |
1 | ||
| 82141-52061 |
NCP10,15,SCP10..CLA,F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52061 |
1 | ||
| 82141-52070 |
SCP10..F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52070 |
1 | ||
| 82141-52051 |
NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52051 |
1 | ||
| 82141-52031 |
NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52031 |
1 | ||
| 82141-52071 |
NCP10,15,SCP10..CLA,F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52071 |
1 | ||
| 82145-52330 |
SCP10..5F..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82145-52330 |
1 | ||
| 82141-52062 |
NCP10,15,SCP10..CLA,F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52062 |
1 | ||
| 82141-52032 |
NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52032 |
1 | ||
| 82141-52072 |
NCP10,15,SCP10..CLA,F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52072 |
1 | ||
| 82141-5C040 |
SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C040 |
1 | ||
| 82141-52022 |
NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52022 |
1 | ||
| 82145-52301 |
NCP10,15,SCP10..CLA,F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82145-52301 |
1 | ||
| 82141-5C060 |
SCP10..F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C060 |
1 | ||
| 82141-52012 |
SCP10..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52012 |
1 | ||
| 82141-5C030 |
SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C030 |
1 | ||
| 82145-52291 |
NCP10,15,SCP10..CLA,F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82145-52291 |
1 | ||
| 82141-52052 |
NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-52052 |
1 | ||
| 82141-5C050 |
SCP10..F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C050 |
1 | ||
| 82141-5C020 |
SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C020 |
1 | ||
| 82141-5C090 |
SCP10..5F..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C090 |
1 | ||
| 82141-5C050 |
NCP10,15,SCP10..CLA,F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C050 |
1 | ||
| 82141-5C030 |
NCP10..U;NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C030 |
1 | ||
| 82141-5C020 |
NCP10..U;NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C020 |
1 | ||
| 82141-5C060 |
NCP10,15,SCP10..CLA,F,U ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C060 |
1 | ||
| 82141-5C040 |
NCP10..U;NCP15,SCP10..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C040 |
1 | ||
| 82141-5C010 |
SCP10..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5C010 |
1 | ||
| 82145-5C550 |
NCP15..5D..4FC;SCP10..5D..(4FC,5F)..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82145-5C550 |
1 | ||
| 82141-5D850 |
NCP15,SCP10..(4FC,5F)..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5D850 |
1 | ||
| 82141-5D860 |
NCP15,SCP10..(4FC,5F)..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5D860 |
1 | ||
| 82141-5D840 |
SCP10..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5D840 |
1 | ||
| 82141-5D890 |
NCP15,SCP10..5D..(4FC,5F)..(CLA,F,U) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-5D890 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08285 |
NCP1#,SCP10 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
NCP1#,SCP1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08283 |
NCP1#,SCP10 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08283 |
NCP1#,SCP10 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08284 |
NCP1#,SCP10 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08284 |
NCP1#,SCP10 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08284 |
NCP1#,SCP1# 40A,ﾒｽ端子,緑 |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-52010 |
NCP1#,SCP10..B,F,RS |
1 | ||
| 82223-52010 |
NCP1#,SCP10 |
1 | ||
| 82223-52010 |
NCP1#,SCP10 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
NCP15,SCP1# |
1 | ||
| 82345-20040 |
SCP10 |
1 | ||
| 82345-20040 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52020 |
NCP10,15,SCP10..CLA,F,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 82666-52020 |
NCP1#,SCP10..CLA,F,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 82666-52030 |
NCP10,15,SCP10..CLA,F,U |
2 | ||
| 82666-52030 |
NCP15,SCP1#..CLA,F,U |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52020 |
NCP10,15,SCP10..CLA,F,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 82666-52020 |
NCP1#,SCP10..CLA,F,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
2 | ||
| 82666-52030 |
NCP10,15,SCP10..CLA,F,U |
2 | ||
| 82666-52030 |
NCP15,SCP1#..CLA,F,U |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12400 |
SCP10..B |
1 | ||
| 82821-12400 |
SCP10..B |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52100 |
SCP10..B |
1 | ||
| 82824-52100 |
SCP10..B |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||

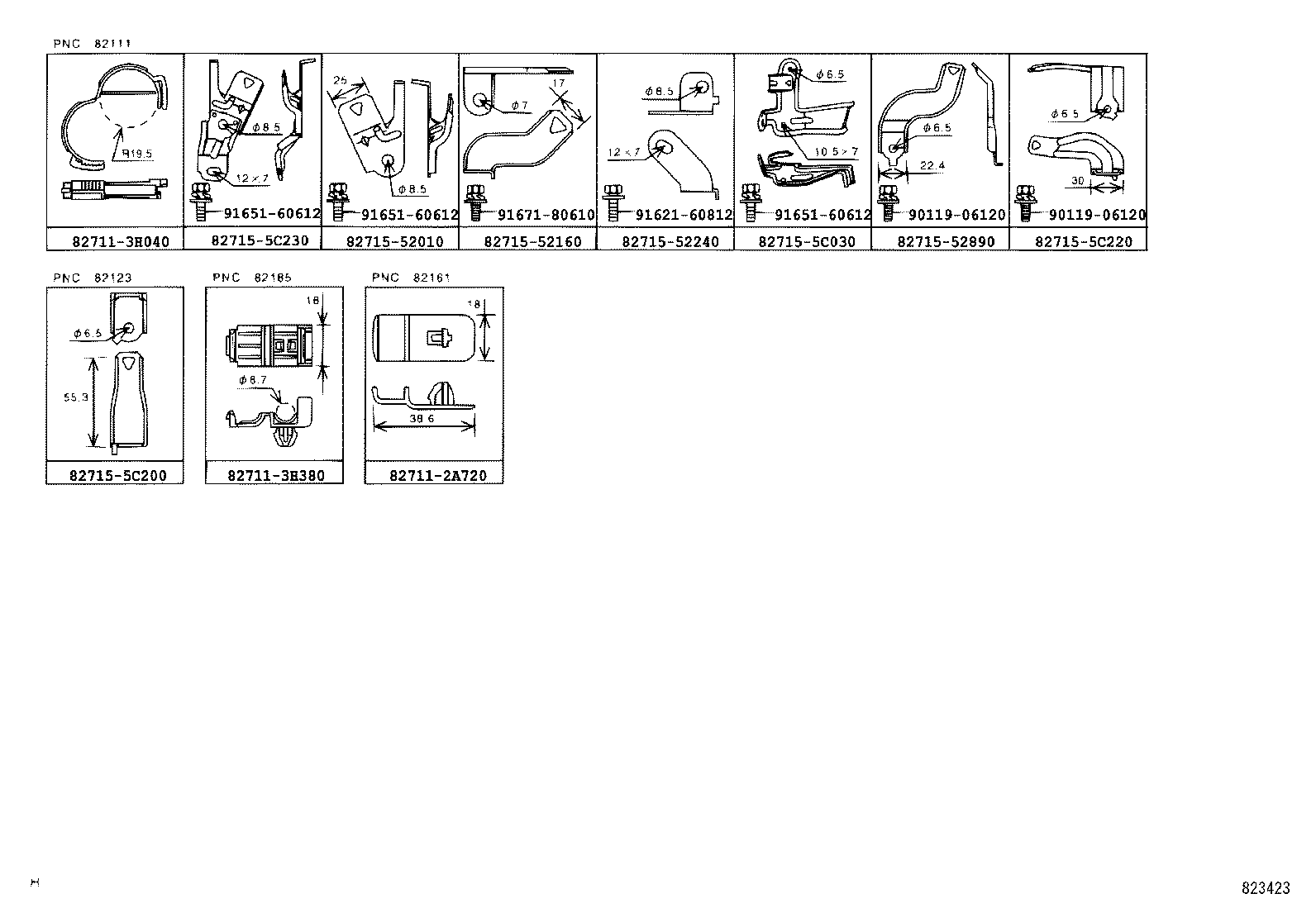

ILLUST NO. 6 OF 8(9901- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2A720 | ||||
| 82711-3H040 | ||||
| 82711-3H380 | ||||
| 82715-52010 | ||||
| 82715-52160 | ||||
| 82715-52240 | ||||
| 82715-52890 | ||||
| 82715-5C030 | ||||
| 82715-5C200 | ||||
| 82715-5C220 | ||||
| 82715-5C230 | ||||
| 90119-06120 | ||||
| 91621-60812 | ||||
| 91651-60612 | ||||
| 91671-80610 | ||||

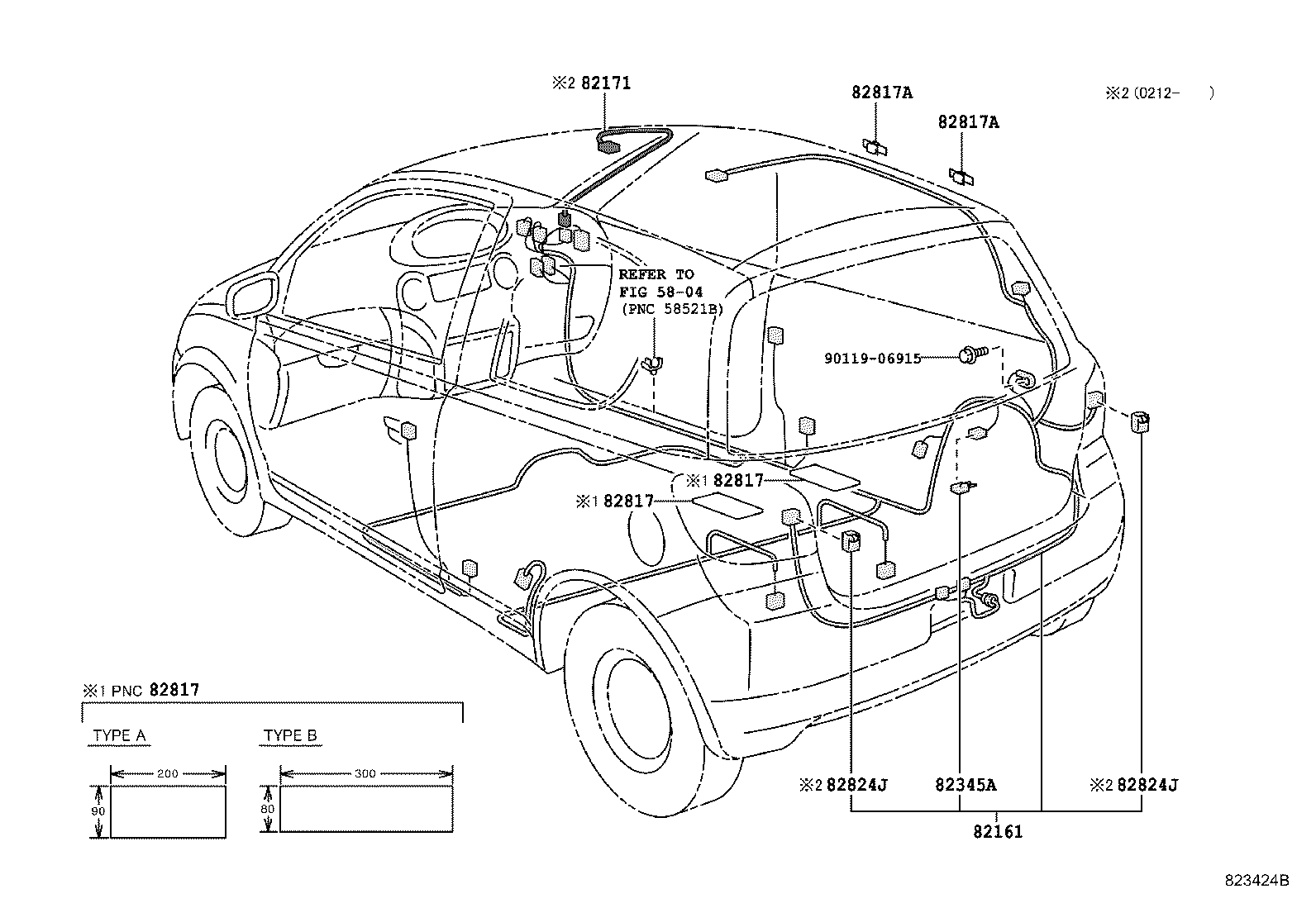

ILLUST NO. 5 OF 8(9901- )B,CLA,F,U
ﾌﾛｱ,ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-52051 |
NCP10,SCP10..5D..(CLA,F,U) |
1 | ||
| 82161-52040 |
NCP10,SCP10..5D..(CLA,F,U) ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ OR ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-52050 |
NCP10,SCP10..5D..(CLA,F,U) |
1 | ||
| 82161-52030 |
SCP10..5D..B |
1 | ||
| 82161-52031 |
SCP10..5D..B |
1 | ||
| 82161-5C030 |
NCP10,SCP10..5D..(B,CLA,F,U) ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82161-52041 |
NCP10,SCP10..5D..(CLA,F,U) ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ OR ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-5C120 |
NCP10,SCP10..5D..(B,CLA,F,U) ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82161-5C090 |
SCP10..5D..B |
1 | ||
| 82161-5C110 |
NCP10,SCP10..5D..(CLA,F,U) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82161-5C100 |
NCP10,SCP10..5D..(CLA,F,U) |
1 | ||
| 82161-5D310 |
SCP10..5D..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-5D310 |
1 | ||
| 82161-5D350 |
SCP10..5D..B ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-5D350 |
1 | ||
| 82161-5D370 |
SCP10..5D..(4FC,5F)..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-5D370 |
1 | ||
| 82161-5D330 |
SCP10..5D..(4FC,5F)..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-5D330 |
1 | ||
| 82161-5D320 |
SCP10..5D..(4FC,5F)..F ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-5D320 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52190 |
NCP1#,SCP1# |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 82345-32010 |
NCP15..3D;NCP10,13,SCP10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30150 |
NCP10,13;SCP10..5D TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-30150 |
NCP10,13,SCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP1# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 82817-30150 |
NCP10,13,SCP1# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30150 |
NCP10,13;SCP10..5D TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-30150 |
NCP10,13,SCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP1# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 82817-30150 |
NCP10,13,SCP1# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30150 |
NCP10,13;SCP10..5D TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-30150 |
NCP10,13,SCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-16100 |
NCP10,13,SCP1# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 82817-30150 |
NCP10,13,SCP1# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52020 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 82817-52020 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52020 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 82817-52020 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1#,SCP1# |
2 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-52050 |
NCP1#,SCP1# |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
