SCP10-AHMDK (1999)

Toyota Vitz

Production Jan 1999 - Jan 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )

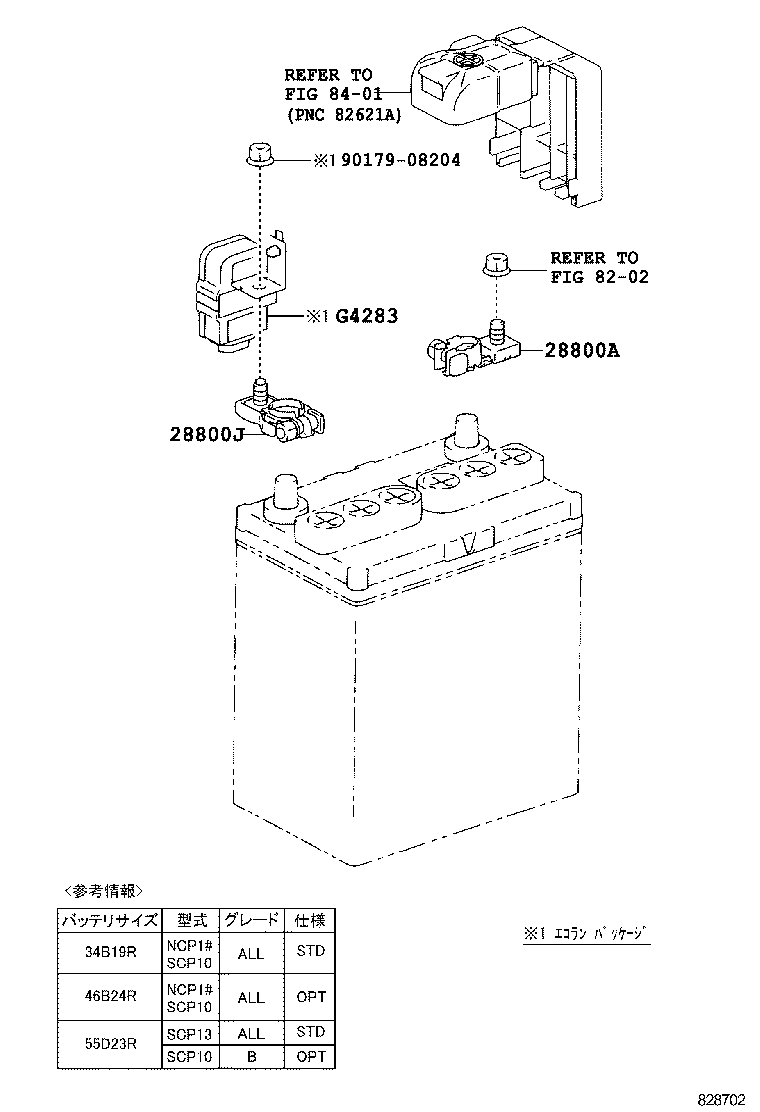

Click highlighted areas on diagram

diagram 28800A 28800J 8202 8401 9017908204 G4283
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05053

1SZFE..SCP10..5F..B

ﾊﾞﾂﾃﾘ=55D23R

 1
90982-05052

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 1
90982-05052

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 1
90982-05052

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 1
90982-05053

1SZFE..SCP10..5F..B

ﾊﾞﾂﾃﾘ=55D23R

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06022

1SZFE..SCP10..5F..B

 1
90982-06022

1SZFE..SCP10..5F..B

 1
G4283 - SENSOR, BATTERY CURRENT
G4283-52010

SCP10..5F..B

 1
G4283-52010

SCP10..5F..B

 1
Common parts
90179-08204
Linked diagrams
8202
8401
