SCP10-AHMDK (1999)
Toyota Vitz

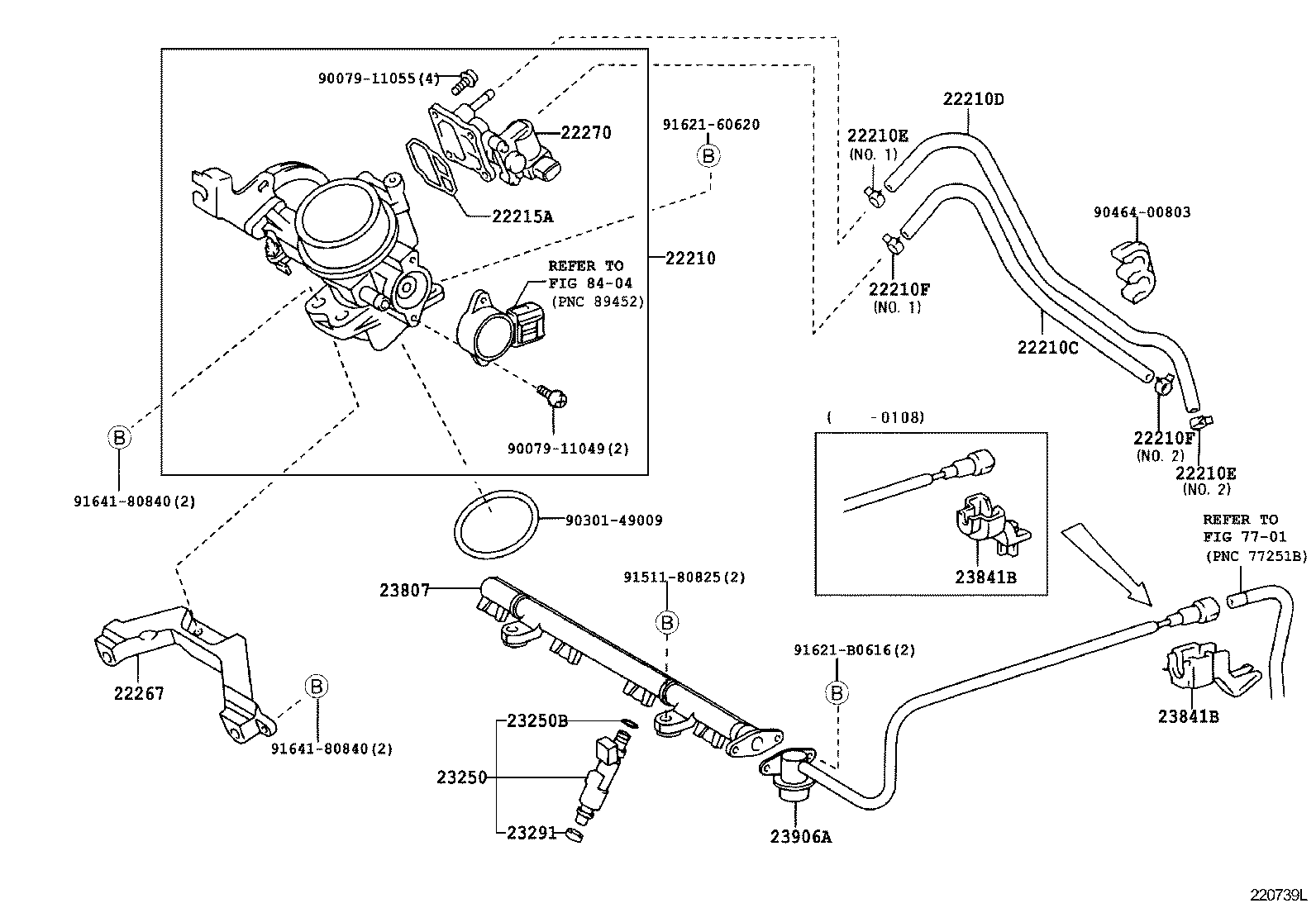

ILLUST NO. 1 OF 2(9901-0112)1SZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-23010 |
1SZFE..SCP10 |
1 | ||
| 22210-23020 |
1SZFE..SCP10..5F |
1 | ||
| 22210-23020 |
1SZFE..SCP10..5F |
1 | ||
| 22210-23020 |
1SZFE..SCP10..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-23030 |
1SZFE..SCP10 |
1 | ||
| 16261-23010 |
1SZFE..SCP10 |
1 | ||
| 16261-23030 |
1SZFE..SCP10 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-23010 |
1SZFE..SCP10 |
1 | ||
| 16264-23030 |
1SZFE..SCP10 |
1 | ||
| 16264-23030 |
1SZFE..SCP10 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 22215A - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22215-74400 |
1SZFE..SCP10..5F |
1 | ||
| 22215-74400 |
1SZFE..SCP10 |
1 | ||
| 22215-74400 |
1SZFE..SCP10..5F |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-23010 |
1SZFE..SCP10 |
1 | ||
| 22267-23010 |
1SZFE..SCP10 |
1 | ||
| 22267-23010 |
1SZFE..SCP10 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-23010 |
1SZFE..SCP10 |
1 | ||
| 22270-23010 |
1SZFE..SCP10..5F |
1 | ||
| 22270-23010 |
1SZFE..SCP10..5F |
1 | ||
| 22270-23010 |
1SZFE..SCP10..5F |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-29015 |
1SZFE..SCP10 |
4 | ||
| 23209-29015 |
1SZFE,2SZFE..SCP1# |
4 | ||
| 23209-29015 |
1SZFE..SCP10 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1SZFE,2SZFE..SCP1# |
4 | ||
| 90301-07024 |
1SZFE..SCP10 |
4 | ||
| 90301-07024 |
1SZFE..SCP10 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-23010 |
1SZFE..SCP10 |
4 | ||
| 23291-23010 |
1SZFE,2SZFE..SCP1# |
4 | ||
| 23291-23010 |
1SZFE..SCP10 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-23020 |
1SZFE..SCP10 |
1 | ||
| 23807-23030 |
1SZFE..SCP10 |
1 | ||
| 23807-23030 |
1SZFE..SCP10 |
1 | ||
| 23807-23021 |
1SZFE..SCP10 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
1SZFE..SCP10 |
1 | ||
| 23841-28010 |
1SZFE..SCP10 |
1 | ||
| 23841-23010 |
1SZFE..SCP10 |
1 | ||
| 23841-28010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
1SZFE..SCP10 |
1 | ||
| 23841-28010 |
1SZFE..SCP10 |
1 | ||
| 23841-23010 |
1SZFE..SCP10 |
1 | ||
| 23841-28010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23906A - HOSE SUB-ASSY, FUEL | ||||
| 23901-23010 |
1SZFE..SCP10 |
1 | ||
| 23906-23020 |
1SZFE..SCP10 |
1 | ||
| 23901-23010 |
1SZFE..SCP10 |
1 | ||
| 23901-23010 |
1SZFE..SCP10 |
1 | ||
| Common parts | ||||
| 90079-11049 | ||||
| 90079-11055 | ||||
| 90301-49009 | ||||
| 90464-00803 | ||||
| 91511-80825 | ||||
| 91621-60620 | ||||
| 91621-B0616 | ||||
| 91641-80840 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8404 | ||||

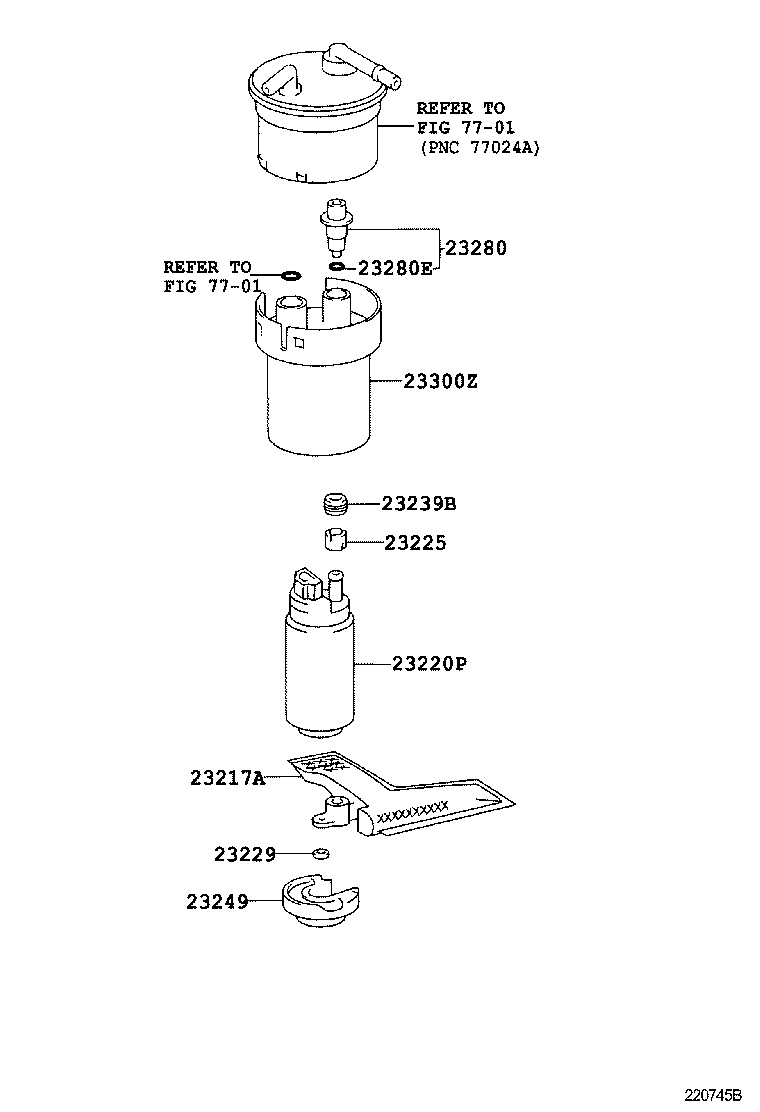

ILLUST NO. 2 OF 2(9901- )1SZFE,2SZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-23010 |
1SZFE..SCP10..5F..B |
1 | ||
| 23217-23010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23217-23010 |
1SZFE..SCP10..4FC;1SZFE..SCP10..5F..(F,U) |
1 | ||
| 23217-0D090 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23217-23010 |
1SZFE..SCP10 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-22030 |
1SZFE..SCP10 |
1 | ||
| 23221-23010 |
1SZFE..SCP10..5F..B ｴｺ ﾊﾟﾂｹ-ｼﾞ*(E) OR ﾋﾞｼﾈｽ ｴｺ ﾊﾟﾂｹ-ｼﾞ*(C) |
1 | ||
| 23221-23010 |
1SZFE..SCP10 |
1 | ||
| 23221-22030 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23225 - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1SZFE..SCP10 |
1 | ||
| 23225-21010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23225-21010 |
1SZFE..SCP10 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1SZFE..SCP10 |
1 | ||
| 23229-16010 |
1SZFE..SCP10 |
1 | ||
| 23229-16010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23239B - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1SZFE..SCP10 |
1 | ||
| 23239-21010 |
1SZFE..SCP10 |
1 | ||
| 23239-21010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1SZFE..SCP10 |
1 | ||
| 23249-74610 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23249-74610 |
1SZFE..SCP10 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1SZFE..SCP10 |
1 | ||
| 23280-22010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23280-22010 |
1SZFE..SCP10 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1SZFE..SCP10 |
1 | ||
| 90301-07020 |
1SZFE..SCP10 |
1 | ||
| 90301-07020 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-23030 |
1SZFE..SCP10 |
1 | ||
| 23300-23040 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23300-23030 |
1SZFE..SCP10 |
1 | ||
| 23300-23040 |
1SZFE..SCP10 |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||

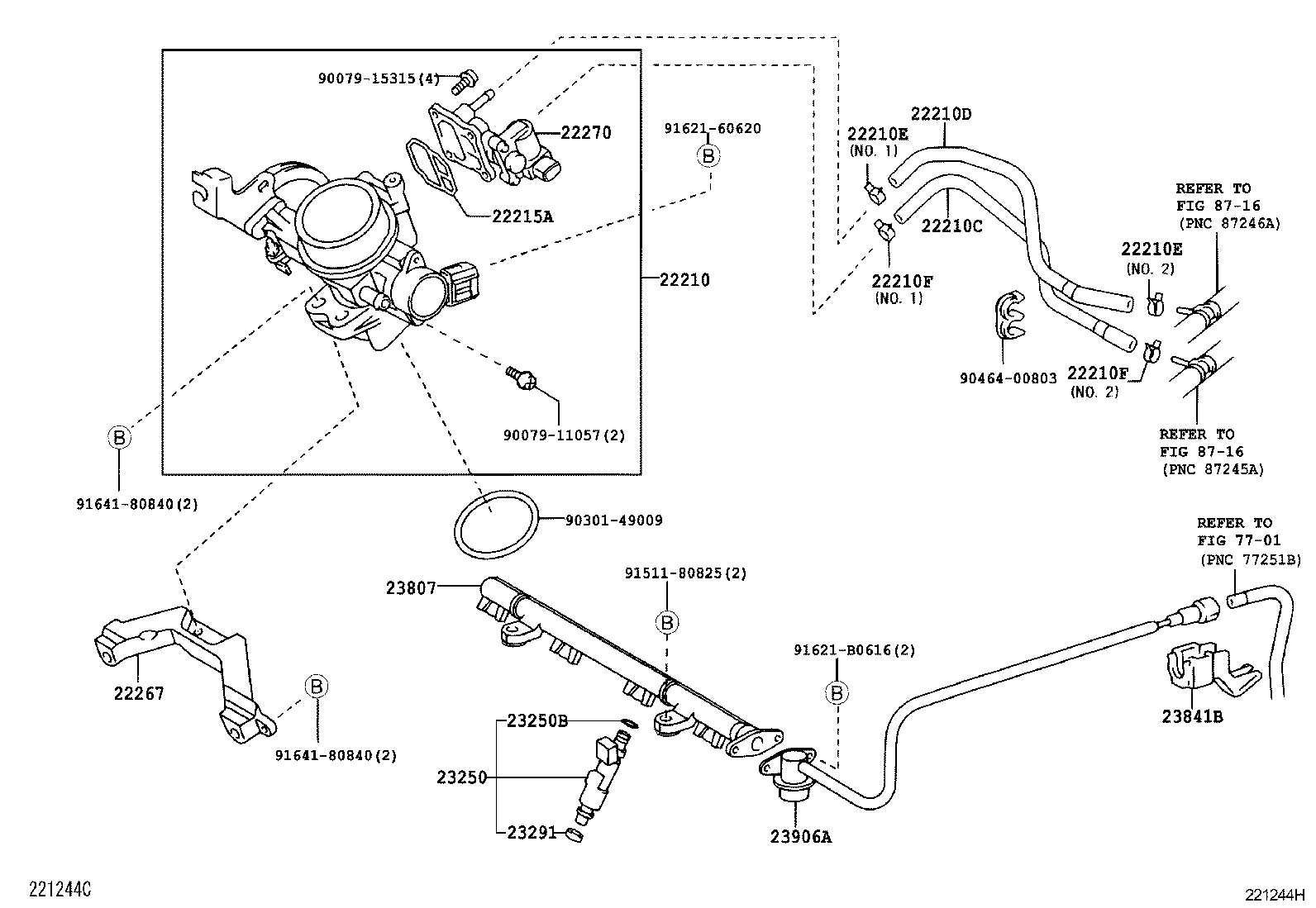

ILLUST NO. 1 OF 2(0112- )1SZFE..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-23010 |
1SZFE..SCP10 |
1 | ||
| 22210-23020 |
1SZFE..SCP10..5F |
1 | ||
| 22210-23020 |
1SZFE..SCP10..5F |
1 | ||
| 22210-23020 |
1SZFE..SCP10..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-23030 |
1SZFE..SCP10 |
1 | ||
| 16261-23010 |
1SZFE..SCP10 |
1 | ||
| 16261-23030 |
1SZFE..SCP10 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-23010 |
1SZFE..SCP10 |
1 | ||
| 16264-23030 |
1SZFE..SCP10 |
1 | ||
| 16264-23030 |
1SZFE..SCP10 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-12001 |
1SZFE..SCP10 NO.2 |
1 | ||
| 90466-10002 |
1SZFE..SCP10 NO.1 |
1 | ||
| 22215A - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22215-74400 |
1SZFE..SCP10..5F |
1 | ||
| 22215-74400 |
1SZFE..SCP10 |
1 | ||
| 22215-74400 |
1SZFE..SCP10..5F |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-23010 |
1SZFE..SCP10 |
1 | ||
| 22267-23010 |
1SZFE..SCP10 |
1 | ||
| 22267-23010 |
1SZFE..SCP10 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-23010 |
1SZFE..SCP10 |
1 | ||
| 22270-23010 |
1SZFE..SCP10..5F |
1 | ||
| 22270-23010 |
1SZFE..SCP10..5F |
1 | ||
| 22270-23010 |
1SZFE..SCP10..5F |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-29015 |
1SZFE..SCP10 |
4 | ||
| 23209-29015 |
1SZFE,2SZFE..SCP1# |
4 | ||
| 23209-29015 |
1SZFE..SCP10 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1SZFE,2SZFE..SCP1# |
4 | ||
| 90301-07024 |
1SZFE..SCP10 |
4 | ||
| 90301-07024 |
1SZFE..SCP10 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-23010 |
1SZFE..SCP10 |
4 | ||
| 23291-23010 |
1SZFE,2SZFE..SCP1# |
4 | ||
| 23291-23010 |
1SZFE..SCP10 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-23020 |
1SZFE..SCP10 |
1 | ||
| 23807-23030 |
1SZFE..SCP10 |
1 | ||
| 23807-23030 |
1SZFE..SCP10 |
1 | ||
| 23807-23021 |
1SZFE..SCP10 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
1SZFE..SCP10 |
1 | ||
| 23841-28010 |
1SZFE..SCP10 |
1 | ||
| 23841-23010 |
1SZFE..SCP10 |
1 | ||
| 23841-28010 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 23906A - HOSE SUB-ASSY, FUEL | ||||
| 23901-23010 |
1SZFE..SCP10 |
1 | ||
| 23906-23020 |
1SZFE..SCP10 |
1 | ||
| 23901-23010 |
1SZFE..SCP10 |
1 | ||
| 23901-23010 |
1SZFE..SCP10 |
1 | ||
| Common parts | ||||
| 90079-11057 | ||||
| 90079-15315 | ||||
| 90301-49009 | ||||
| 90464-00803 | ||||
| 91511-80825 | ||||
| 91621-60620 | ||||
| 91621-B0616 | ||||
| 91641-80840 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8716 | ||||
