SCP10-AGPNK (1999)
Toyota Vitz
(9901-0212)

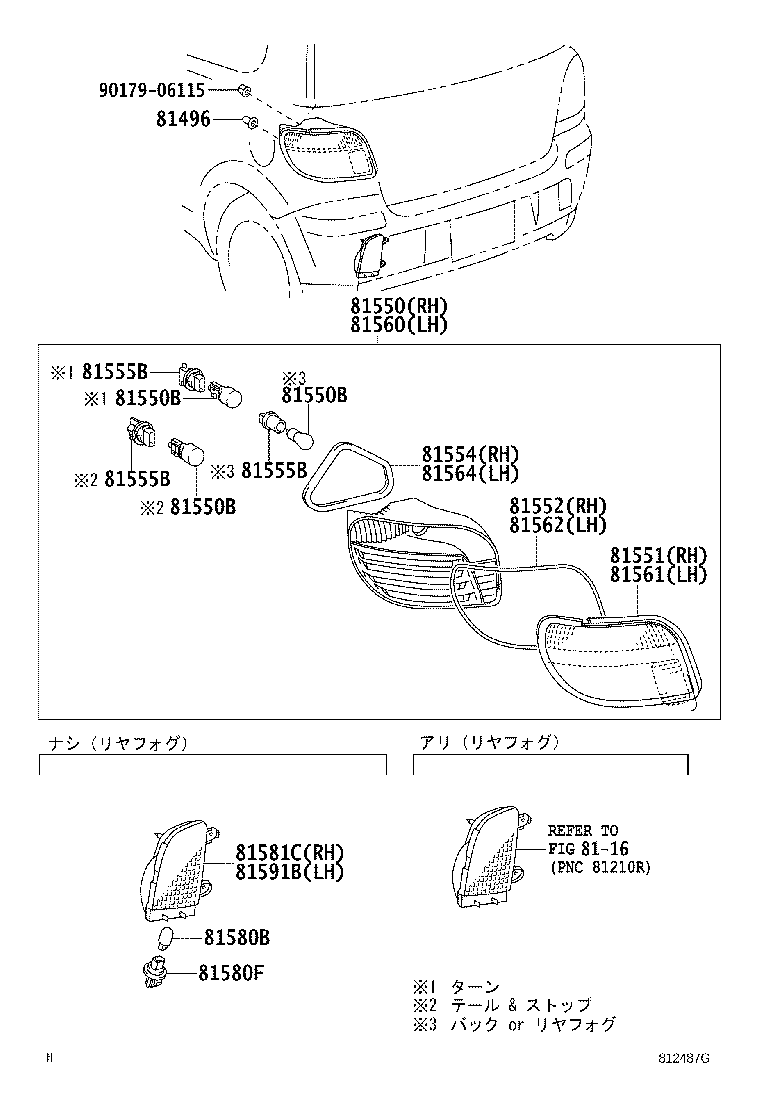

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52010 |
NCP1#,SCP10 |
2 | ||
| 81496-52010 |
NCP1#,SCP10 |
2 | ||
| 81496-52010 |
NCP1#,SCP1# |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-52020 |
SCP10 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52010 |
SCP10 |
1 | ||
| 81550-52130 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81550-52290 |
NCP10,15,SCP10..B,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81550-52280 |
NCP15,SCP10 |
1 | ||
| 81550-52140 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52290 |
NCP15,SCP10..(4FC,5F)..(B,F,U) ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-52020 |
SCP10 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52010 |
SCP10 |
1 | ||
| 81550-52130 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81550-52290 |
NCP10,15,SCP10..B,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81550-52280 |
NCP15,SCP10 |
1 | ||
| 81550-52140 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52290 |
NCP15,SCP10..(4FC,5F)..(B,F,U) ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15009 |
NCP1#,SCP10 12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP1#,SCP1# 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,F,U 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15009 |
NCP1#,SCP10 12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP1#,SCP1# 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,F,U 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15009 |
NCP1#,SCP10 12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP1#,SCP1# 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,F,U 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-52020 |
SCP10 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81551-52130 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81551-52010 |
SCP10 |
1 | ||
| 81551-52290 |
NCP10,15,SCP10..B,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81551-52280 |
NCP15,SCP10 |
1 | ||
| 81551-52140 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81551-52290 |
NCP15,SCP10..(4FC,5F)..(B,F,U) ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81551-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-52020 |
NCP1#,SCP10 |
1 | ||
| 81552-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81552-52280 |
NCP1#,SCP10 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-52280 |
NCP1#,SCP1# |
1 | ||
| 81554-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81554-52020 |
NCP1#,SCP10 |
1 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60019 |
NCP1#,SCP10 ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60015 |
NCP1#,SCP1# ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP10,15,SCP10..B,F,U ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60018 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP1#,SCP1# ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60019 |
NCP1#,SCP10 ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60015 |
NCP1#,SCP1# ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP10,15,SCP10..B,F,U ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60018 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP1#,SCP1# ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60019 |
NCP1#,SCP10 ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60015 |
NCP1#,SCP1# ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP10,15,SCP10..B,F,U ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60018 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP1#,SCP1# ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-52010 |
SCP10 |
1 | ||
| 81560-52260 |
NCP15,SCP10 |
1 | ||
| 81560-52120 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81560-52260 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-52010 |
SCP10 |
1 | ||
| 81560-52260 |
NCP15,SCP10 |
1 | ||
| 81560-52120 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81560-52260 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-52260 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81561-52260 |
NCP15,SCP10 |
1 | ||
| 81561-52120 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81561-52010 |
SCP10 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-52280 |
NCP1#,SCP10 |
1 | ||
| 81552-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81552-52020 |
NCP1#,SCP10 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-52020 |
NCP1#,SCP10 |
1 | ||
| 81564-52260 |
NCP1#,SCP1# |
1 | ||
| 81564-52260 |
NCP10,15,SCP10..B,F,U |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
(0212- )NCP1#,SCP10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52010 |
NCP1#,SCP10 |
2 | ||
| 81496-52010 |
NCP1#,SCP10 |
2 | ||
| 81496-52010 |
NCP1#,SCP1# |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-52020 |
SCP10 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52010 |
SCP10 |
1 | ||
| 81550-52130 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81550-52290 |
NCP10,15,SCP10..B,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81550-52280 |
NCP15,SCP10 |
1 | ||
| 81550-52140 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550-52290 |
NCP15,SCP10..(4FC,5F)..(B,F,U) ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15009 |
NCP1#,SCP10 12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP1#,SCP1# 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,F,U 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15009 |
NCP1#,SCP10 12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP1#,SCP1# 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,F,U 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15009 |
NCP1#,SCP10 12V 21W,ｱﾝﾊﾞｰ,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP1#,SCP1# 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90981-13044 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,F,U 12V 21W,ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90981-11048 |
NCP1#,SCP10 12V 21/5W,ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90981-13043 |
NCP10,15,SCP10..B,CLA,F,U 12V 21W,ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-52020 |
SCP10 ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81551-52130 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81551-52010 |
SCP10 |
1 | ||
| 81551-52290 |
NCP10,15,SCP10..B,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81551-52280 |
NCP15,SCP10 |
1 | ||
| 81551-52140 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81551-52290 |
NCP15,SCP10..(4FC,5F)..(B,F,U) ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 81551-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-52020 |
NCP1#,SCP10 |
1 | ||
| 81552-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81552-52280 |
NCP1#,SCP10 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-52280 |
NCP1#,SCP1# |
1 | ||
| 81554-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81554-52020 |
NCP1#,SCP10 |
1 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60019 |
NCP1#,SCP10 ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60015 |
NCP1#,SCP1# ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP10,15,SCP10..B,F,U ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60018 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP1#,SCP1# ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60019 |
NCP1#,SCP10 ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60015 |
NCP1#,SCP1# ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP10,15,SCP10..B,F,U ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60018 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP1#,SCP1# ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60015 |
NCP10,15,SCP10..B,CLA,F,U ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60019 |
NCP1#,SCP10 ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60015 |
NCP1#,SCP1# ﾊﾞｯｸ OR ﾘﾔ ﾌｫｸﾞ用 |
2 | ||
| 90075-60017 |
NCP1#,SCP10 ﾃｰﾙ & ｽﾄｯﾌﾟ |
2 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60018 |
NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP10,15,SCP10..B,F,U ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 90075-60017 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾚﾌﾄ |
1 | ||
| 90075-60018 |
NCP15,SCP10 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ﾃｰﾙ & ｽﾄｯﾌﾟ,ﾗｲﾄ |
1 | ||
| 90075-60052 |
NCP1#,SCP1# ﾀｰﾝｼｸﾞﾅﾙ |
2 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-52010 |
SCP10 |
1 | ||
| 81560-52260 |
NCP15,SCP10 |
1 | ||
| 81560-52120 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81560-52260 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-52260 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81561-52260 |
NCP15,SCP10 |
1 | ||
| 81561-52120 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 81561-52010 |
SCP10 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-52280 |
NCP1#,SCP10 |
1 | ||
| 81552-52280 |
NCP10,15,SCP10..B,F,U |
1 | ||
| 81552-52020 |
NCP1#,SCP10 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-52020 |
NCP1#,SCP10 |
1 | ||
| 81564-52260 |
NCP1#,SCP1# |
1 | ||
| 81564-52260 |
NCP10,15,SCP10..B,F,U |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8116 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
