SCP10-AGPNK (1999)

Toyota Vitz

Production Jan 1999 - Jan 2005
Engine 1SZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )3D

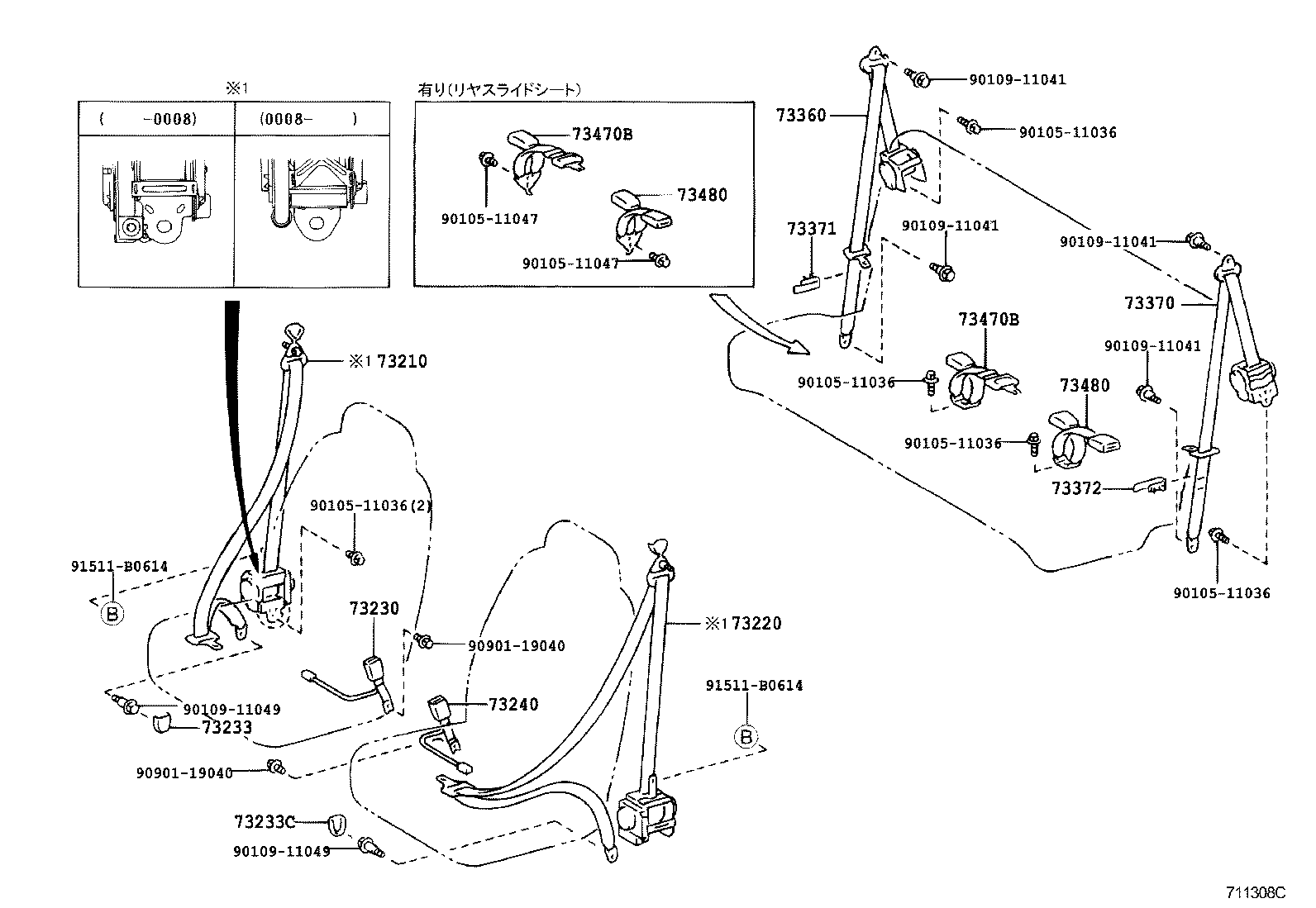

Click highlighted areas on diagram

diagram 73210 73220 73230 73233 73233C 73240 73360 73370 73371 73372 73470B 73470B 73480 73480 9010511036 9010511036 9010511036 9010511036 9010511036 9010511047 9010511047 9010911041 9010911041 9010911041 9010911041 9010911049 9010911049 9090119040 9090119040 91511B0614 91511B0614
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52010C1

SCP10..3D

BLACK,TRIM7#

 1
73210-52010C0

SCP10..3D

BLACK,TRIM1#

 1
73210-52011C0

NCP1#,SCP10..3D

BLACK,TRIM1#

 1
73210-52180C1

NCP1#,SCP10..3D..(B,F,U)

BLACK,TRIM7#

 1
73210-52330C0

NCP10,15,SCP10..3D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73210-52180C0

NCP1#,SCP10..3D

BLACK,TRIM1#

 1
73210-52011C1

NCP1#,SCP10..3D..(B,F,U)

BLACK,TRIM7#

 1
73210-52330C2

NCP1#,SCP10..3D

BLACK,TRIM1#,9#

 1
73210-52330C1

NCP10,15,SCP10..3D..(B,F,U)

BLACK,TRIM7#

 1
73210-52330C3

NCP1#,SCP10..3D

BLACK,TRIM7#

 1
73210-52330C0

NCP10,15,SCP10..3D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73210-52332C0

NCP1#,SCP10..3D

BLACK,TRIM9#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52010C0

SCP10..3D

BLACK,TRIM1#

 1
73220-52020C0

SCP10..3D

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM1#

 1
73220-52020C1

SCP10..3D

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM7#

 1
73220-52010C1

SCP10..3D

BLACK,TRIM7#

 1
73220-52021C1

NCP10,SCP10..3D..(B,F,U)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM7#

 1
73220-52011C0

NCP1#,SCP10..3D

BLACK,TRIM1#

 1
73220-52011C1

NCP1#,SCP10..3D..(B,F,U)

BLACK,TRIM7#

 1
73220-52021C0

NCP10,SCP10..3D

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM1#

 1
73220-52370C3

NCP10,15,SCP10..3D..(B,F,U)

BLACK,TRIM7#

 1
73220-52210C0

NCP10,SCP10..3D..(B,CLA,F,U)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM1#

 1
73220-52210C1

NCP10,SCP10..3D..(B,F,U)

ｱﾘ(*80,ｳﾝﾃﾝｾｷ ﾉﾐ),BLACK,TRIM7#

 1
73220-52210C2

NCP10,SCP10..3D..(B,CLA,F,U)

ﾅｼ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM1#

 1
73220-52370C2

NCP10,15,SCP10..3D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73220-52370C1

NCP10,15,SCP10..3D..(B,F,U)

BLACK,TRIM7#

 1
73220-52370C0

NCP10,15,SCP10..3D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73220-52370C0

NCP10,15,SCP10..3D..(B,CLA,F,U)

BLACK,TRIM1#

 1
73220-52372C0

NCP1#,SCP10..3D

BLACK,TRIM9#

 1
73220-52210C3

NCP10,SCP10..3D..(B,F,U)

ﾅｼ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM7#

 1
73220-52210C2

NCP10,SCP10..3D..(B,CLA,F,U)

ﾅｼ(SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52010B0

NCP10,15,SCP10..B,F,U

SHADOW GRAY,TRIM1#,7#

 1
73230-52180B0

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73230-52010B2

NCP10,15,SCP10..B,F,U

DK.GRAY,TRIM1#,7#

 1
73230-52310B0

NCP10,13,SCP1#..4FC,5F,CVFC

DK.GRAY,TRIM9#

 1
73230-52180B0

NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U)

DK.GRAY,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B3

NCP10,15,SCP10..B,F,U

SHADOW GRAY,TRIM1#,7#

 1
73233-33010B8

NCP10,15,SCP10..B,F,U

DK.GRAY,TRIM1#,7#

 1
73233-33010B8

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73233-33010B8

NCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS

DK.GRAY,TRIM9#

 1
73233C - COVER, LAP BELT OUTER ANCHOR, LH
73233-33010B3

NCP1#,SCP10..B,F,U

SHADOW GRAY,TRIM1#,7#

 1
73233-33010B8

NCP10,15,SCP10..3D..(B,F,U)

DK.GRAY,TRIM1#,7#

 1
73233-33010B8

NCP15..3D..(F,U);NCP10,SCP10..B,F,U

DK.GRAY,TRIM1#,7#

 1
73233-33010B3

NCP10,15,SCP10..3D..(B,F,U)

SHADOW GRAY,TRIM1#,7#

 1
73233-33010B8

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73233-33010B8

NCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS

DK.GRAY,TRIM9#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52021B0

NCP1#,SCP10..B,F,U

SHADOW GRAY,TRIM1#,7#

 1
73230-52190B0

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73230-52021B0

NCP10,15,SCP10..F,U

SHADOW GRAY,TRIM1#,7#

 1
73230-52020B0

SCP10

SHADOW GRAY,TRIM1#,7#

 1
73230-52320B0

NCP15,SCP1#..4FC,5F,CVFC

DK.GRAY,TRIM9#

 1
73230-52190B0

NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U)

DK.GRAY,TRIM1#

 1
73230-52021B2

NCP10,15,SCP10..B,F,U

DK.GRAY,TRIM1#,7#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52020C3

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73360-52020C4

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73360-52020C2

SCP10..F,U

BLACK,TRIM7#

 1
73360-52020C4

NCP10,15,SCP10..CLA,F,U

BLACK,TRIM1#

 1
73360-52020C1

SCP10..F,U

BLACK,TRIM1#

 1
73360-52180C0

NCP1#,SCP1#..(4FC,5F,CVFC)..(CLA,F,RS,U)

BLACK,TRIM9#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52020C2

SCP10..F,U

BLACK,TRIM7#

 1
73370-52020C3

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73370-52130C0

NCP1#,SCP1#..(4FC,5F,CVFC)..(CLA,F,RS,U)

BLACK,TRIM9#

 1
73370-52020C4

NCP10,15,SCP10..CLA,F,U

BLACK,TRIM1#

 1
73370-52020C4

NCP10,15,SCP10..F,U

BLACK,TRIM1#,7#

 1
73370-52020C1

SCP10..F,U

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-16050B1

NCP10,15,SCP10..B,CLA,F,U

SHADOW GRAY,TRIM1#

 1
73371-16050H0

NCP10,15,SCP10..B,F,U

FRENCH TURQUOISE,TRIM7#

 1
73371-16050B1

NCP10,15,SCP10..B,CLA,F,U

SHADOW GRAY,TRIM1#

 1
73371-52010B1

NCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS

DK.GRAY,TRIM9#

 1
73371-52010B1

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-16050H0

NCP10,15,SCP10..B,F,U

FRENCH TURQUOISE,TRIM7#

 1
73371-16050B1

NCP10,15,SCP10..B,CLA,F,U

SHADOW GRAY,TRIM1#

 1
73371-52010B1

NCP10,15,SCP10..B,CLA,F,U

DK.GRAY,TRIM1#

 1
73371-52010B1

NCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS

DK.GRAY,TRIM9#

 1
73371-16050B1

NCP10,15,SCP10..B,CLA,F,U

SHADOW GRAY,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52030C0

SCP10..B,F

BLACK,TRIM1#,7#

 1
73470-52030C1

SCP10..B,F

BLACK,TRIM1#,7#

 1
73470-52030C0

SCP10..F

BLACK,TRIM1#,7#

 1
73470-52030C1

NCP10..U;SCP10..B,F

BLACK,TRIM1#

 1
73470-52200C0

NCP10,13,SCP1#..(4FC,5F,CVFC)..(F,RS,U)

BLACK,TRIM9#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52030C0

SCP10..B,F

BLACK,TRIM1#,7#

 1
73470-52030C1

SCP10..B,F

BLACK,TRIM1#,7#

 1
73470-52030C0

SCP10..F

BLACK,TRIM1#,7#

 1
73470-52030C1

NCP10..U;SCP10..B,F

BLACK,TRIM1#

 1
73470-52200C0

NCP10,13,SCP1#..(4FC,5F,CVFC)..(F,RS,U)

BLACK,TRIM9#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52030C0

SCP10..B,F

BLACK,TRIM1#,7#

 1
73480-52030C1

NCP10..U;SCP10..B,F

BLACK,TRIM1#

 1
73480-52030C1

SCP10..B,F

BLACK,TRIM1#,7#

 1
73480-52030C0

SCP10..F

BLACK,TRIM1#,7#

 1
73480-52160C1

NCP10,13,SCP1#..(4FC,5F,CVFC)..(F,RS,U)

BLACK,TRIM9#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52030C0

SCP10..B,F

BLACK,TRIM1#,7#

 1
73480-52030C1

NCP10..U;SCP10..B,F

BLACK,TRIM1#

 1
73480-52030C1

SCP10..B,F

BLACK,TRIM1#,7#

 1
73480-52030C0

SCP10..F

BLACK,TRIM1#,7#

 1
73480-52160C1

NCP10,13,SCP1#..(4FC,5F,CVFC)..(F,RS,U)

BLACK,TRIM9#

 1
Common parts
90105-11036
90105-11047
90109-11041
90109-11049
90901-19040
91511-B0614
