SCP10-AGPNK (1999)

Toyota Vitz

Production Jan 1999 - Jan 2005
Engine 1SZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

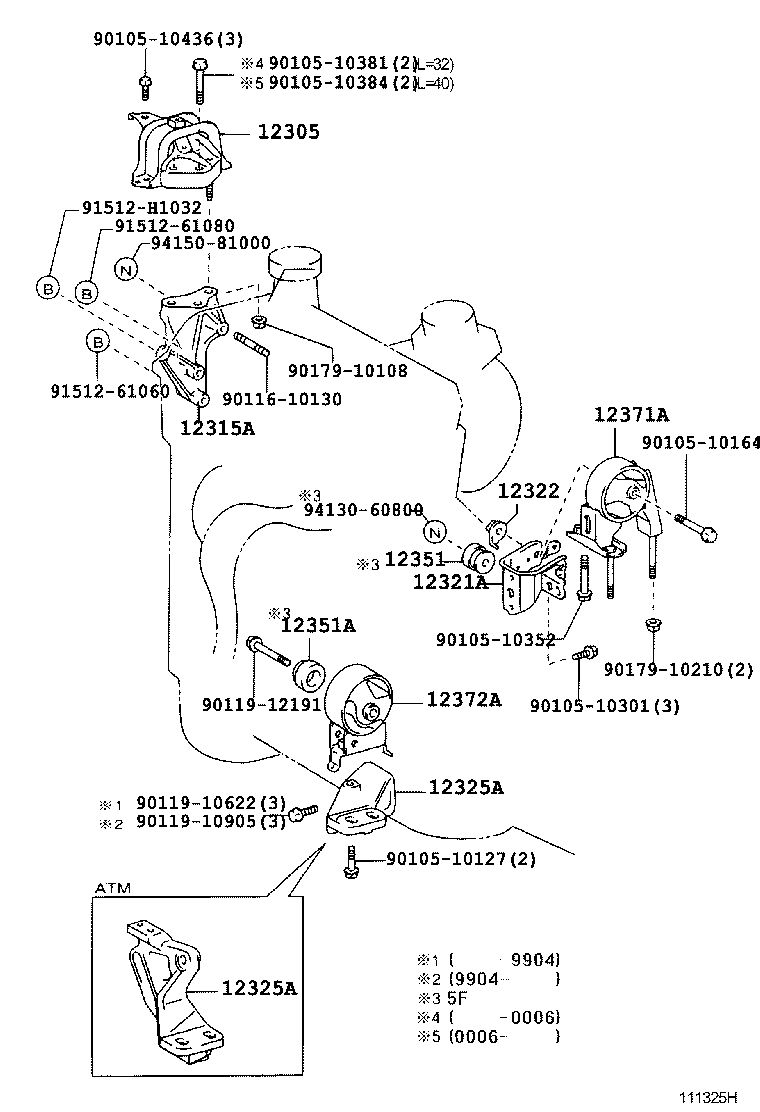

(9901-0212)1SZFE

Click highlighted areas on diagram

diagram 12305 12315A 12321A 12322 12325A 12325A 12351 12351A 12371A 12372A 9010510127 9010510164 9010510301 9010510352 9010510381 9010510384 9010510436 9011610130 9011910622 9011910905 9011912191 9017910108 9017910210 9151261060 9151261080 91512H1032 9413060800 9415081000
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-23010

1SZFE..SCP10

 1
12305-23011

1SZFE..SCP10

 1
12305-23011

1SZFE..SCP10

 1
12305-23011

1SZFE..SCP10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-23021

1SZFE..SCP10

 1
12315-23021

1SZFE..SCP10

 1
12315-23021

1SZFE..SCP10

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-23031

1SZFE..SCP10..4FC

 1
12321-23030

1SZFE..SCP10..4FC

 1
12321-23032

1SZFE..SCP10..4FC

 1
12321-23032

1SZFE..SCP10..ATM

 1
12321-23032

1SZFE..SCP10..4FC

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-23020

1SZFE..SCP10

 1
12322-23020

1SZFE,2SZFE..SCP1#

 1
12322-23020

1SZFE..SCP10

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-23020

1SZFE..SCP10..4FC

 1
12325-23020

1SZFE..SCP10..4FC

 1
12325-23020

1SZFE..SCP10..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-23020

1SZFE..SCP10..4FC

 1
12325-23020

1SZFE..SCP10..4FC

 1
12325-23020

1SZFE..SCP10..ATM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-23010

1SZFE..SCP10..4FC

 1
12371-23011

1SZFE..SCP10..4FC

 1
12371-23011

1SZFE..SCP10..4FC

 1
12371-23011

1SZFE..SCP10..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-23020

1SZFE..SCP10..4FC

 1
12372-23020

1SZFE..SCP10..4FC

 1
12372-23020

1SZFE..SCP10..ATM

 1
Common parts
90105-10127
90105-10164
90105-10301
90105-10352
90105-10381
90105-10384
90105-10436
90116-10130
90119-10622
90119-10905
90119-12191
90179-10108
90179-10210
91512-61060
91512-61080
91512-H1032
94130-60800
94150-81000

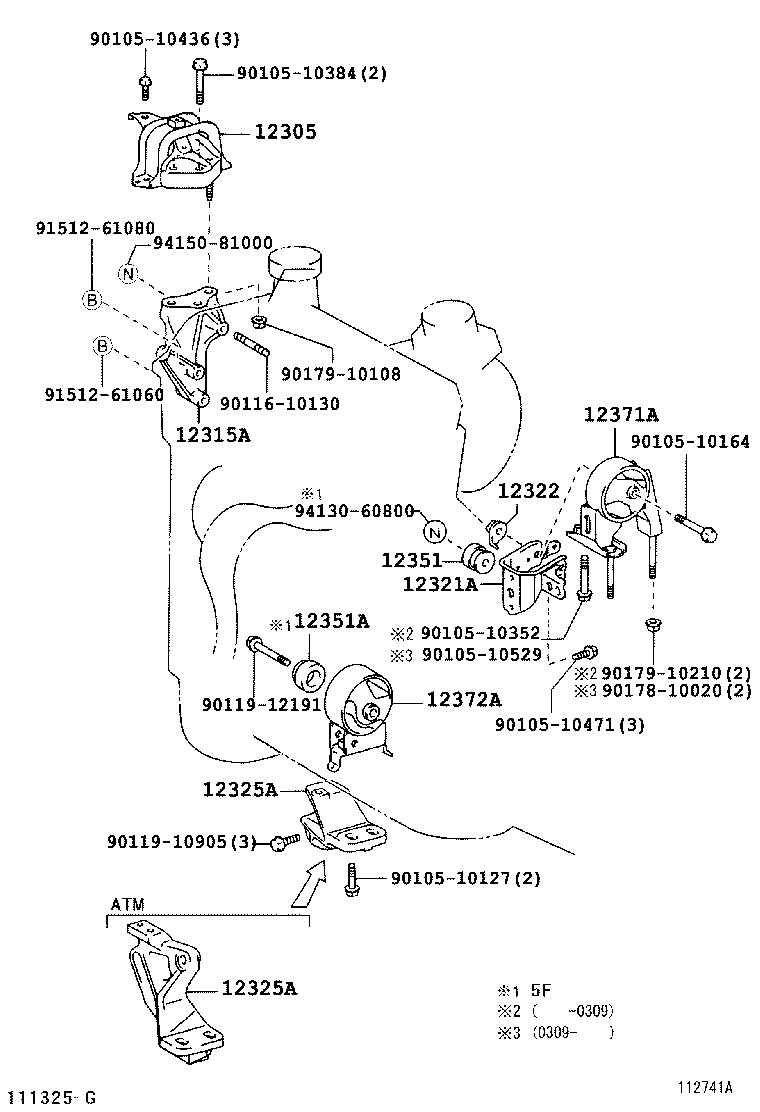

(0212- )1SZFE

Click highlighted areas on diagram

diagram 12305 12315A 12321A 12322 12325A 12325A 12351 12351A 12371A 12372A 9010510127 9010510164 9010510352 9010510384 9010510436 9010510471 9010510529 9011610130 9011910905 9011912191 9017810020 9017910108 9017910210 9151261060 9151261080 9413060800 9415081000
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-23010

1SZFE..SCP10

 1
12305-23011

1SZFE..SCP10

 1
12305-23011

1SZFE..SCP10

 1
12305-23011

1SZFE..SCP10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-23021

1SZFE..SCP10

 1
12315-23021

1SZFE..SCP10

 1
12315-23021

1SZFE..SCP10

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-23031

1SZFE..SCP10..4FC

 1
12321-23030

1SZFE..SCP10..4FC

 1
12321-23032

1SZFE..SCP10..4FC

 1
12321-23032

1SZFE..SCP10..ATM

 1
12321-23032

1SZFE..SCP10..4FC

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-23020

1SZFE..SCP10

 1
12322-23020

1SZFE,2SZFE..SCP1#

 1
12322-23020

1SZFE..SCP10

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-23020

1SZFE..SCP10..4FC

 1
12325-23020

1SZFE..SCP10..4FC

 1
12325-23020

1SZFE..SCP10..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-23020

1SZFE..SCP10..4FC

 1
12325-23020

1SZFE..SCP10..4FC

 1
12325-23020

1SZFE..SCP10..ATM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-23010

1SZFE..SCP10..4FC

 1
12371-23011

1SZFE..SCP10..4FC

 1
12371-23011

1SZFE..SCP10..4FC

 1
12371-23011

1SZFE..SCP10..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-23020

1SZFE..SCP10..4FC

 1
12372-23020

1SZFE..SCP10..4FC

 1
12372-23020

1SZFE..SCP10..ATM

 1
Common parts
90105-10127
90105-10164
90105-10352
90105-10384
90105-10436
90105-10471
90105-10529
90116-10130
90119-10905
90119-12191
90178-10020
90179-10108
90179-10210
91512-61060
91512-61080
94130-60800
94150-81000
