SCP10-AGMNK (1999)
Toyota Vitz

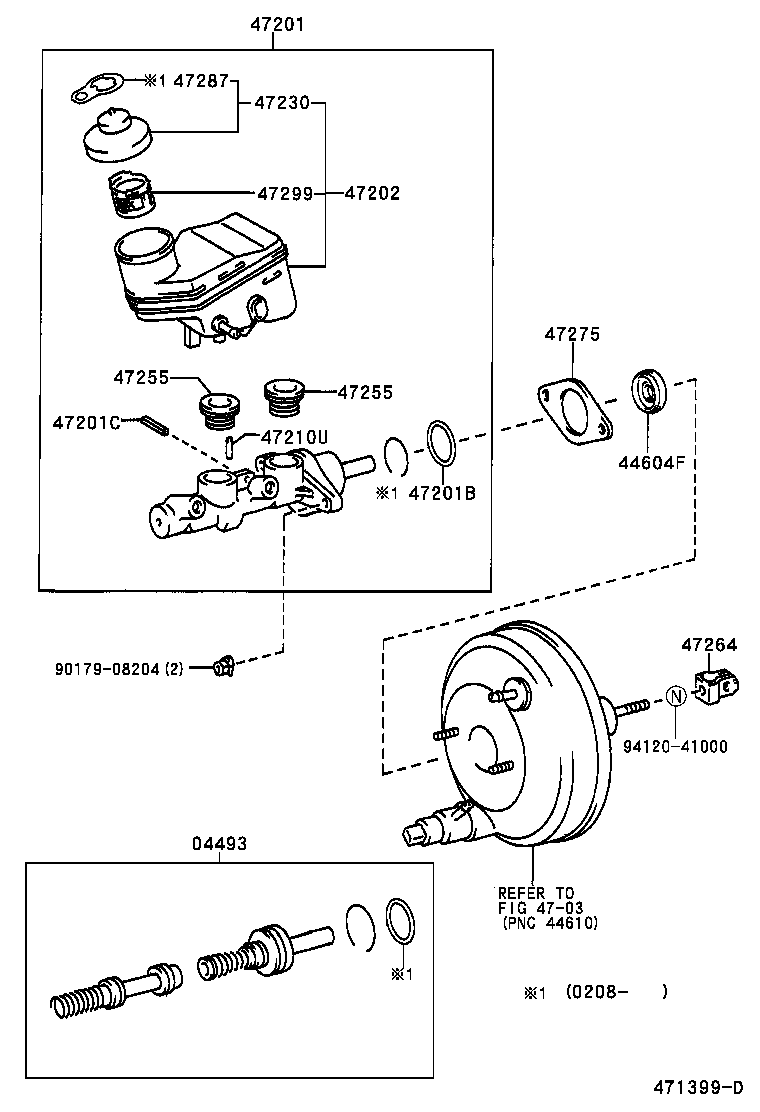

ILLUST NO. 1 OF 2(9901- )
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-52010 |
NCP15,SCP10..B,F,U ｱﾘ(ABS) |
1 | ||
| 04493-52010 |
NCP15,SCP10..B,F,U ｱﾘ(ABS) |
1 | ||
| 04493-52040 |
NCP1#,SCP1# |
1 | ||
| 04493-52040 |
NCP1#,SCP10 |
1 | ||
| 44604F - SEAL, BRAKE BOOSTER BODY | ||||
| 44604-52030 |
NCP1#,SCP10 |
1 | ||
| 44604-52030 |
NCP1#,SCP10 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-52010 |
SCP10..5F S-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ｱﾘ(ABS) |
1 | ||
| 47201-52210 |
NCP1#,SCP10..5F..(B,F,RS) |
1 | ||
| 47201-52011 |
SCP10..5F D-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ｱﾘ(ABS) |
1 | ||
| 47201-52011 |
SCP10..5F D-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ｱﾘ(ABS) |
1 | ||
| 47201-52210 |
NCP1#,SCP10..5F |
1 | ||
| 47201-52210 |
NCP1#,SCP10..5F |
1 | ||
| 47201-52210 |
NCP1#,SCP10..5F |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
NCP1#,SCP10 |
1 | ||
| 90029-20059 |
NCP1#,SCP1# |
1 | ||
| 90029-20059 |
NCP1#,SCP10 |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15804 |
NCP1#,SCP10 |
1 | ||
| 90029-15804 |
NCP1#,SCP10 |
1 | ||
| 90029-15804 |
NCP1#,SCP1# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52010 |
NCP15,SCP10..5F..(B,F,U) ｱﾘ(ABS) |
1 | ||
| 47220-52010 |
NCP15,SCP10..5F..(B,F,U) ｱﾘ(ABS) |
1 | ||
| 47220-52050 |
NCP1#,SCP10..5F |
1 | ||
| 47220-52050 |
NCP1#,SCP10..5F |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
NCP1#,SCP10 |
1 | ||
| 90029-14204 |
NCP1#,SCP1# |
1 | ||
| 90029-14204 |
NCP1#,SCP10 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
NCP15,SCP10..B,F,U ｱﾘ(ABS) |
1 | ||
| 47230-20140 |
NCP1#,SCP1# |
1 | ||
| 47230-20140 |
NCP1#,SCP10 |
1 | ||
| 47230-12040 |
NCP15,SCP10..B,F,U ｱﾘ(ABS) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 31417-35010 |
NCP1#,SCP10 |
2 | ||
| 31417-35010 |
NCP1#,SCP1# |
2 | ||
| 31417-35010 |
NCP1#,SCP10 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 31417-35010 |
NCP1#,SCP10 |
2 | ||
| 31417-35010 |
NCP1#,SCP1# |
2 | ||
| 31417-35010 |
NCP1#,SCP10 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-52040 |
NCP1#,SCP1# |
1 | ||
| 47264-52040 |
NCP1#,SCP1# |
1 | ||
| 47264-52040 |
NCP1#,SCP10 |
1 | ||
| 47264-52010 |
NCP1#,SCP10 |
1 | ||
| 47264-52010 |
NCP1#,SCP10 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
NCP1#,SCP10 |
1 | ||
| 47275-12020 |
NCP1#,SCP10 |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
NCP1#,SCP10 |
1 | ||
| 47287-20010 |
NCP1#,SCP1# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
NCP1#,SCP10 |
1 | ||
| 47299-20060 |
NCP1#,SCP10 |
1 | ||
| 47299-20060 |
NCP1#,SCP1# |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4703 | ||||
ILLUST NO. 1 OF 2(9901- )
ﾅｼ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-52010 |
NCP15,SCP10..B,F,U ｱﾘ(ABS) |
1 | ||
| 04493-52010 |
NCP15,SCP10..B,F,U ｱﾘ(ABS) |
1 | ||
| 04493-52040 |
NCP1#,SCP1# |
1 | ||
| 04493-52040 |
NCP1#,SCP10 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-52010 |
SCP10..5F S-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ｱﾘ(ABS) |
1 | ||
| 47201-52210 |
NCP1#,SCP10..5F..(B,F,RS) |
1 | ||
| 47201-52011 |
SCP10..5F D-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ｱﾘ(ABS) |
1 | ||
| 47201-52011 |
SCP10..5F D-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ｱﾘ(ABS) |
1 | ||
| 47201-52210 |
NCP1#,SCP10..5F |
1 | ||
| 47201-52210 |
NCP1#,SCP10..5F |
1 | ||
| 47201-52210 |
NCP1#,SCP10..5F |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
NCP1#,SCP10 |
1 | ||
| 90029-20059 |
NCP1#,SCP1# |
1 | ||
| 90029-20059 |
NCP1#,SCP10 |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15804 |
NCP1#,SCP10 |
1 | ||
| 90029-15804 |
NCP1#,SCP10 |
1 | ||
| 90029-15804 |
NCP1#,SCP1# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52010 |
NCP15,SCP10..5F..(B,F,U) ｱﾘ(ABS) |
1 | ||
| 47220-52010 |
NCP15,SCP10..5F..(B,F,U) ｱﾘ(ABS) |
1 | ||
| 47220-52050 |
NCP1#,SCP10..5F |
1 | ||
| 47220-52050 |
NCP1#,SCP10..5F |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
NCP15,SCP10..B,F,U ｱﾘ(ABS) |
1 | ||
| 47230-20140 |
NCP1#,SCP1# |
1 | ||
| 47230-20140 |
NCP1#,SCP10 |
1 | ||
| 47230-12040 |
NCP15,SCP10..B,F,U ｱﾘ(ABS) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 31417-35010 |
NCP1#,SCP10 |
2 | ||
| 31417-35010 |
NCP1#,SCP1# |
2 | ||
| 31417-35010 |
NCP1#,SCP10 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 31417-35010 |
NCP1#,SCP10 |
2 | ||
| 31417-35010 |
NCP1#,SCP1# |
2 | ||
| 31417-35010 |
NCP1#,SCP10 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-52040 |
NCP1#,SCP1# |
1 | ||
| 47264-52040 |
NCP1#,SCP1# |
1 | ||
| 47264-52040 |
NCP1#,SCP10 |
1 | ||
| 47264-52010 |
NCP1#,SCP10 |
1 | ||
| 47264-52010 |
NCP1#,SCP10 |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
NCP1#,SCP10 |
1 | ||
| 47287-20010 |
NCP1#,SCP1# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
NCP1#,SCP10 |
1 | ||
| 47299-20060 |
NCP1#,SCP10 |
1 | ||
| 47299-20060 |
NCP1#,SCP1# |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4703 | ||||

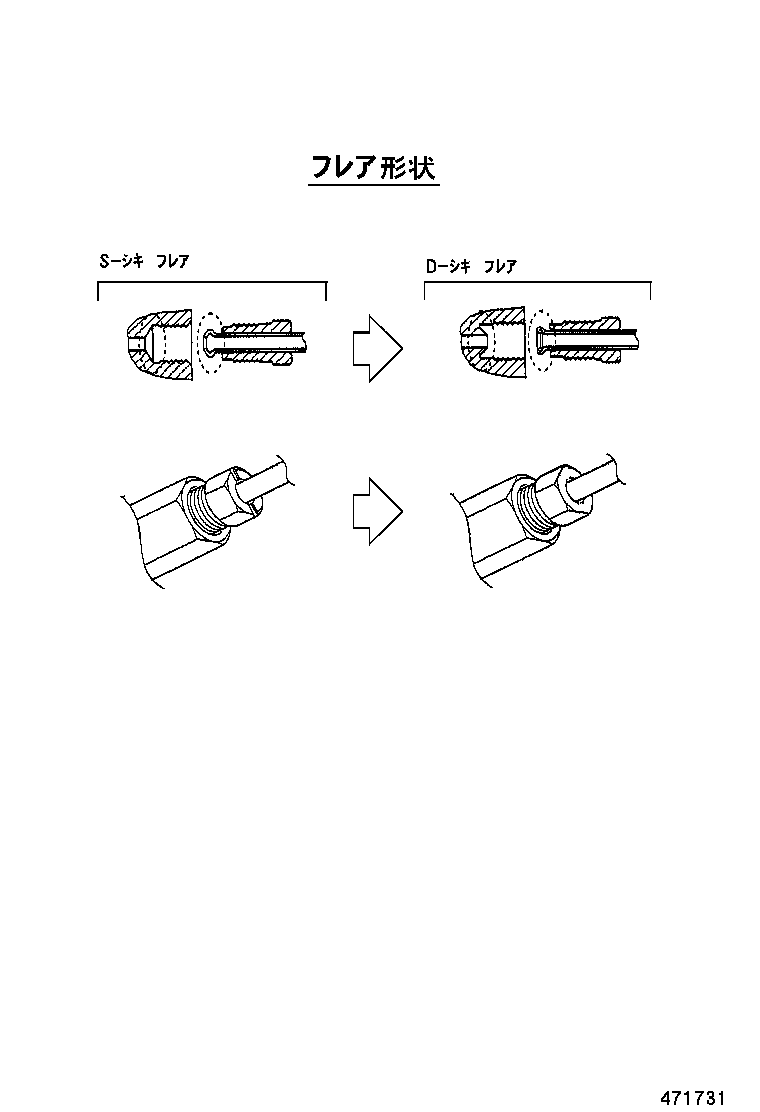

ILLUST NO. 2 OF 2(9901- )
| Part # | Description | Qty | Price |
|---|
