SCP10-AGMNK (1999)
Toyota Vitz
(9901- )SCP10..5F
C550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-08054 |
SCP10..5F |
2 | ||
| 90250-08054 |
SCP10..5F |
2 | ||
| 90250-08054 |
SCP10..5F |
2 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-23004 |
SCP10..5F..(F,U) |
1 | ||
| 90311-23004 |
SCP10..5F |
1 | ||
| 90311-23004 |
SCP10..5F |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-52030 |
SCP10..5F |
1 | ||
| 31115-52030 |
SCP10..5F |
1 | ||
| 31115-52030 |
SCP10..5F |
1 | ||
| 31115-52031 |
SCP10..5F |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
SCP10..5F |
1 | ||
| 33449-60010 |
SCP10..5F |
1 | ||
| 33449-60010 |
SCP10..5F |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-52030 |
SCP10..5F |
1 | ||
| 41221-52030 |
SCP10..5F |
1 | ||
| 41221-52030 |
SCP10..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12313 |
SCP10..5F |
6 | ||
| 90105-12313 |
SCP10..5F |
6 | ||
| 90105-12313 |
SCP10..5F |
6 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-52040 |
SCP10..5F |
1 | ||
| 41311-52040 |
SCP10..5F |
1 | ||
| 41311-52040 |
SCP10..5F |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-41002 |
SCP10..5F 厚さ=1.25,ﾏｰｸ B |
1 | ||
| 90564-41001 |
SCP10..5F 厚さ=1.20,ﾏｰｸ A |
1 | ||
| 90564-41011 |
SCP10..5F 厚さ=1.70,ﾏｰｸ L |
1 | ||
| 90564-41010 |
SCP10..5F 厚さ=1.65,ﾏｰｸ K |
1 | ||
| 90564-41007 |
SCP10..5F 厚さ=1.50,ﾏｰｸ G |
1 | ||
| 90564-41003 |
SCP10..5F 厚さ=1.30,ﾏｰｸ C |
1 | ||
| 90564-41004 |
SCP10..5F 厚さ=1.35,ﾏｰｸ D |
1 | ||
| 90564-41006 |
SCP10..5F 厚さ=1.45,ﾏｰｸ F |
1 | ||
| 90564-41009 |
SCP10..5F 厚さ=1.60,ﾏｰｸ J |
1 | ||
| 90564-41005 |
SCP10..5F 厚さ=1.40,ﾏｰｸ E |
1 | ||
| 90564-41013 |
SCP10..5F 厚さ=1.80,ﾏｰｸ N |
1 | ||
| 90564-41012 |
SCP10..5F 厚さ=1.75,ﾏｰｸ M |
1 | ||
| 90564-41008 |
SCP10..5F 厚さ=1.55,ﾏｰｸ H |
1 | ||
| 90564-41001 |
SCP10..5F 厚さ=1.20,ﾏｰｸ A |
1 | ||
| 90564-41004 |
SCP10..5F 厚さ=1.35,ﾏｰｸ D |
1 | ||
| 90564-41003 |
SCP10..5F 厚さ=1.30,ﾏｰｸ C |
1 | ||
| 90564-41008 |
SCP10..5F 厚さ=1.55,ﾏｰｸ H |
1 | ||
| 90564-41005 |
SCP10..5F 厚さ=1.40,ﾏｰｸ E |
1 | ||
| 90564-41007 |
SCP10..5F 厚さ=1.50,ﾏｰｸ G |
1 | ||
| 90564-41006 |
SCP10..5F 厚さ=1.45,ﾏｰｸ F |
1 | ||
| 90564-41013 |
SCP10..5F 厚さ=1.80,ﾏｰｸ N |
1 | ||
| 90564-41009 |
SCP10..5F 厚さ=1.60,ﾏｰｸ J |
1 | ||
| 90564-41010 |
SCP10..5F 厚さ=1.65,ﾏｰｸ K |
1 | ||
| 90564-41012 |
SCP10..5F 厚さ=1.75,ﾏｰｸ M |
1 | ||
| 90564-41002 |
SCP10..5F 厚さ=1.25,ﾏｰｸ B |
1 | ||
| 90564-41011 |
SCP10..5F 厚さ=1.70,ﾏｰｸ L |
1 | ||
| 90564-41001 |
SCP10..5F 厚さ=1.20,ﾏｰｸ A |
1 | ||
| 90564-41002 |
SCP10..5F 厚さ=1.25,ﾏｰｸ B |
1 | ||
| 90564-41004 |
SCP10..5F 厚さ=1.35,ﾏｰｸ D |
1 | ||
| 90564-41003 |
SCP10..5F 厚さ=1.30,ﾏｰｸ C |
1 | ||
| 90564-41009 |
SCP10..5F 厚さ=1.60,ﾏｰｸ J |
1 | ||
| 90564-41008 |
SCP10..5F 厚さ=1.55,ﾏｰｸ H |
1 | ||
| 90564-41007 |
SCP10..5F 厚さ=1.50,ﾏｰｸ G |
1 | ||
| 90564-41010 |
SCP10..5F 厚さ=1.65,ﾏｰｸ K |
1 | ||
| 90564-41013 |
SCP10..5F 厚さ=1.80,ﾏｰｸ N |
1 | ||
| 90564-41011 |
SCP10..5F 厚さ=1.70,ﾏｰｸ L |
1 | ||
| 90564-41012 |
SCP10..5F 厚さ=1.75,ﾏｰｸ M |
1 | ||
| 90564-41005 |
SCP10..5F 厚さ=1.40,ﾏｰｸ E |
1 | ||
| 90564-41006 |
SCP10..5F 厚さ=1.45,ﾏｰｸ F |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38004 |
SCP10..5F |
1 | ||
| 90366-38004 |
NCP10,SCP10..5F..(B,CLA,F,U) |
1 | ||
| 90366-38004 |
SCP10..5F |
1 | ||
| 90366-38004 |
SCP10..5F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-38029 |
SCP10..5F |
1 | ||
| 90366-38029 |
SCP10..5F |
1 | ||
| 90366-38029 |
SCP10..5F |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-52010 |
SCP10..5F |
2 | ||
| 41331-52010 |
SCP10..5F |
2 | ||
| 41331-52010 |
SCP10..5F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-52010 |
SCP10..5F |
2 | ||
| 41331-52010 |
SCP10..5F |
2 | ||
| 41331-52010 |
SCP10..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-52010 |
SCP10..5F |
2 | ||
| 41341-52010 |
SCP10..5F |
2 | ||
| 41341-52011 |
SCP10..5F |
2 | ||
| 41341-52010 |
SCP10..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-52010 |
SCP10..5F |
2 | ||
| 41341-52010 |
SCP10..5F |
2 | ||
| 41341-52011 |
SCP10..5F |
2 | ||
| 41341-52010 |
SCP10..5F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04053 |
NCP15..4FC;NCP10,SCP10 |
1 | ||
| 90250-04053 |
NCP15..4FC;NCP10,SCP10 |
1 | ||
| 90250-04053 |
NCP15..4FC;NCP10,SCP10 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-52010 |
SCP10..5F |
1 | ||
| 41342-52010 |
SCP10..5F |
1 | ||
| 41342-52010 |
SCP10..5F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-52020 |
SCP10..5F |
2 | ||
| 41351-52020 |
SCP10..5F |
2 | ||
| 41351-52020 |
SCP10..5F |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-52020 |
SCP10..5F |
2 | ||
| 41351-52020 |
SCP10..5F |
2 | ||
| 41351-52020 |
SCP10..5F |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52070 |
SCP10..5F 厚さ=0.50 |
2 | ||
| 41361-52120 |
SCP10..5F 厚さ=0.75 |
2 | ||
| 41361-52080 |
SCP10..5F 厚さ=0.55 |
2 | ||
| 41361-52090 |
SCP10..5F 厚さ=0.60 |
2 | ||
| 41361-52100 |
SCP10..5F 厚さ=0.65 |
2 | ||
| 41361-52150 |
SCP10..5F 厚さ=0.90 |
2 | ||
| 41361-52140 |
SCP10..5F 厚さ=0.85 |
2 | ||
| 41361-52110 |
SCP10..5F 厚さ=0.70 |
2 | ||
| 41361-52160 |
SCP10..5F 厚さ=0.95 |
2 | ||
| 41361-52130 |
SCP10..5F 厚さ=0.80 |
2 | ||
| 41361-52070 |
SCP10..5F 厚さ=0.50 |
2 | ||
| 41361-52120 |
SCP10..5F 厚さ=0.75 |
2 | ||
| 41361-52100 |
SCP10..5F 厚さ=0.65 |
2 | ||
| 41361-52150 |
SCP10..5F 厚さ=0.90 |
2 | ||
| 41361-52110 |
SCP10..5F 厚さ=0.70 |
2 | ||
| 41361-52080 |
SCP10..5F 厚さ=0.55 |
2 | ||
| 41361-52130 |
SCP10..5F 厚さ=0.80 |
2 | ||
| 41361-52140 |
SCP10..5F 厚さ=0.85 |
2 | ||
| 41361-52090 |
SCP10..5F 厚さ=0.60 |
2 | ||
| 41361-52160 |
SCP10..5F 厚さ=0.95 |
2 | ||
| 41361-52110 |
SCP10..5F 厚さ=0.70 |
2 | ||
| 41361-52100 |
SCP10..5F 厚さ=0.65 |
2 | ||
| 41361-52090 |
SCP10..5F 厚さ=0.60 |
2 | ||
| 41361-52080 |
SCP10..5F 厚さ=0.55 |
2 | ||
| 41361-52160 |
SCP10..5F 厚さ=0.95 |
2 | ||
| 41361-52150 |
SCP10..5F 厚さ=0.90 |
2 | ||
| 41361-52120 |
SCP10..5F 厚さ=0.75 |
2 | ||
| 41361-52070 |
SCP10..5F 厚さ=0.50 |
2 | ||
| 41361-52140 |
SCP10..5F 厚さ=0.85 |
2 | ||
| 41361-52130 |
SCP10..5F 厚さ=0.80 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52070 |
SCP10..5F 厚さ=0.50 |
2 | ||
| 41361-52120 |
SCP10..5F 厚さ=0.75 |
2 | ||
| 41361-52080 |
SCP10..5F 厚さ=0.55 |
2 | ||
| 41361-52090 |
SCP10..5F 厚さ=0.60 |
2 | ||
| 41361-52100 |
SCP10..5F 厚さ=0.65 |
2 | ||
| 41361-52150 |
SCP10..5F 厚さ=0.90 |
2 | ||
| 41361-52140 |
SCP10..5F 厚さ=0.85 |
2 | ||
| 41361-52110 |
SCP10..5F 厚さ=0.70 |
2 | ||
| 41361-52160 |
SCP10..5F 厚さ=0.95 |
2 | ||
| 41361-52130 |
SCP10..5F 厚さ=0.80 |
2 | ||
| 41361-52070 |
SCP10..5F 厚さ=0.50 |
2 | ||
| 41361-52120 |
SCP10..5F 厚さ=0.75 |
2 | ||
| 41361-52100 |
SCP10..5F 厚さ=0.65 |
2 | ||
| 41361-52150 |
SCP10..5F 厚さ=0.90 |
2 | ||
| 41361-52110 |
SCP10..5F 厚さ=0.70 |
2 | ||
| 41361-52080 |
SCP10..5F 厚さ=0.55 |
2 | ||
| 41361-52130 |
SCP10..5F 厚さ=0.80 |
2 | ||
| 41361-52140 |
SCP10..5F 厚さ=0.85 |
2 | ||
| 41361-52090 |
SCP10..5F 厚さ=0.60 |
2 | ||
| 41361-52160 |
SCP10..5F 厚さ=0.95 |
2 | ||
| 41361-52110 |
SCP10..5F 厚さ=0.70 |
2 | ||
| 41361-52100 |
SCP10..5F 厚さ=0.65 |
2 | ||
| 41361-52090 |
SCP10..5F 厚さ=0.60 |
2 | ||
| 41361-52080 |
SCP10..5F 厚さ=0.55 |
2 | ||
| 41361-52160 |
SCP10..5F 厚さ=0.95 |
2 | ||
| 41361-52150 |
SCP10..5F 厚さ=0.90 |
2 | ||
| 41361-52120 |
SCP10..5F 厚さ=0.75 |
2 | ||
| 41361-52070 |
SCP10..5F 厚さ=0.50 |
2 | ||
| 41361-52140 |
SCP10..5F 厚さ=0.85 |
2 | ||
| 41361-52130 |
SCP10..5F 厚さ=0.80 |
2 | ||

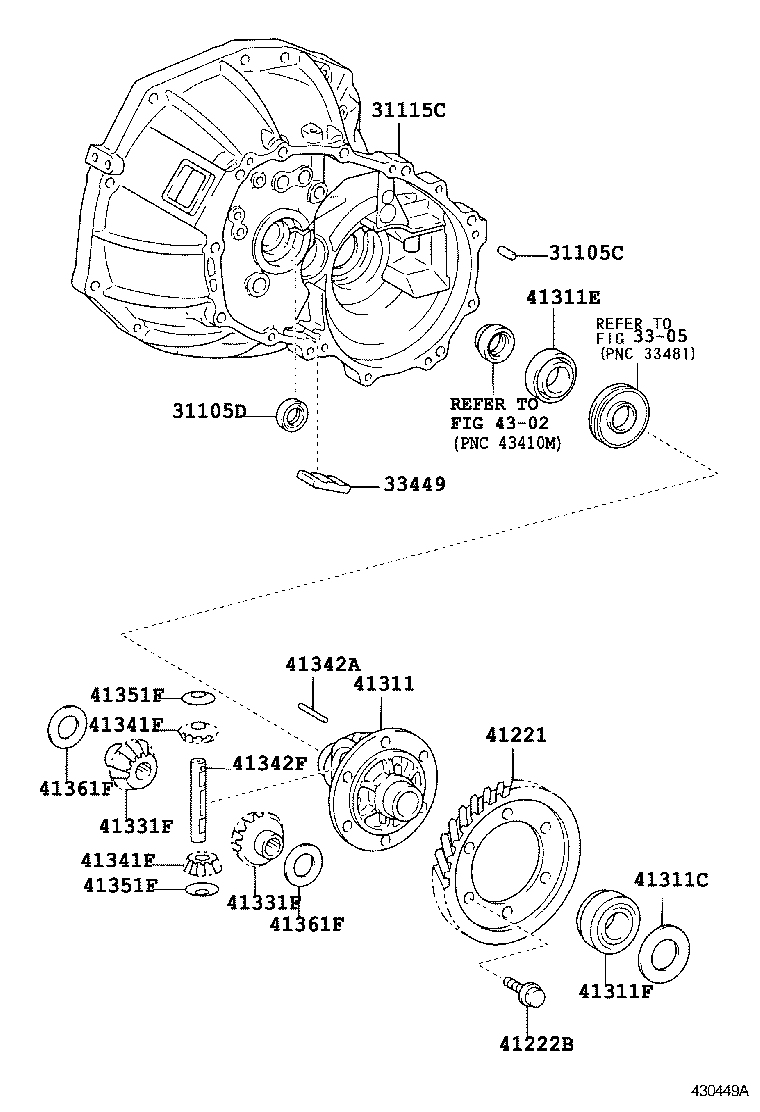

| Linked diagrams | ||||
| 3305 | ||||
| 4302 | ||||
