SCP10-AGMNK (1999)
Toyota Vitz
Production
Jan 1999
-
Jan 2005
Engine
1SZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

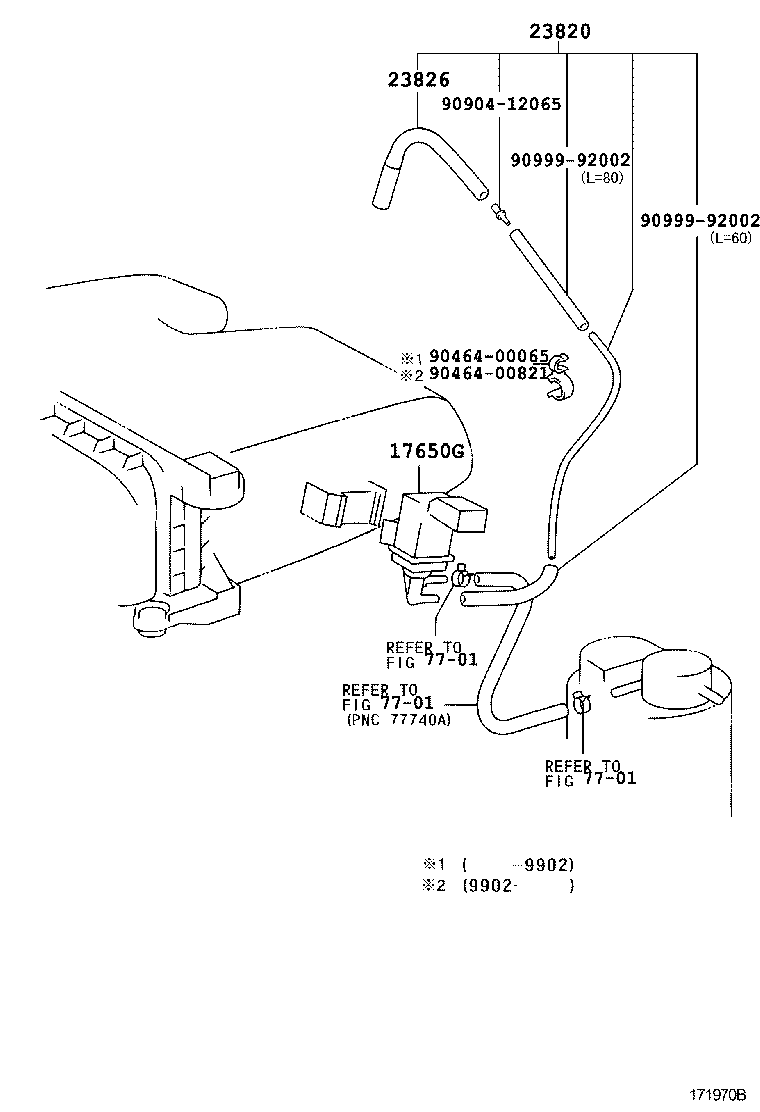

(9901-9908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12203 |
1SZFE..SCP10 |
1 | ||
| 90910-12202 |
1SZFE..SCP10 |
1 | ||
| 90910-12202 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 90910-12202 |
1SZFE..SCP10 |
1 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-23010 |
1SZFE..SCP10 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-23010 |
1SZFE..SCP10 |
1 | ||
| 23826-23020 |
1SZFE..SCP10 |
1 | ||
| 23826-23020 |
1SZFE..SCP10 |
1 | ||
| 23826-23020 |
1SZFE..SCP10 |
1 | ||
| Common parts | ||||
| 90464-00065 | ||||
| 90464-00821 | ||||
| 90904-12065 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 7701 | ||||

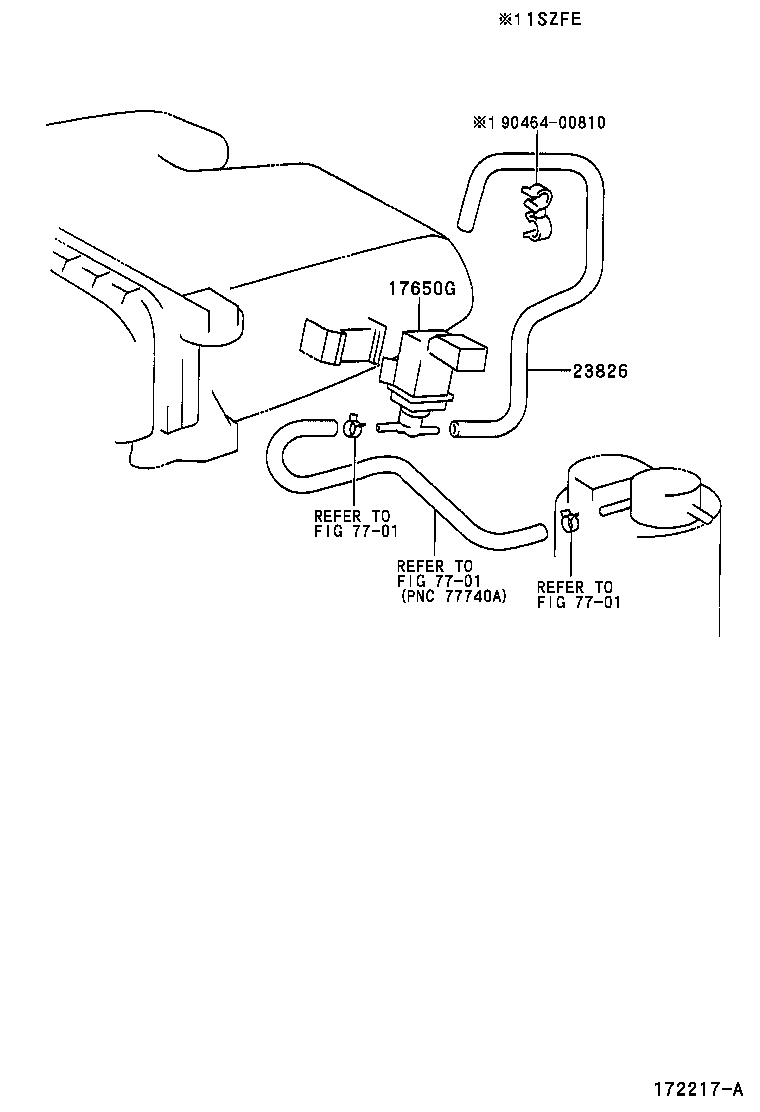

(9908- )1SZFE,2SZFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12203 |
1SZFE..SCP10 |
1 | ||
| 90910-12202 |
1SZFE..SCP10 |
1 | ||
| 90910-12202 |
1SZFE,2SZFE..SCP1# |
1 | ||
| 90910-12202 |
1SZFE..SCP10 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-23010 |
1SZFE..SCP10 |
1 | ||
| 23826-23020 |
1SZFE..SCP10 |
1 | ||
| 23826-23020 |
1SZFE..SCP10 |
1 | ||
| 23826-23020 |
1SZFE..SCP10 |
1 | ||
| Common parts | ||||
| 90464-00810 | ||||
| Linked diagrams | ||||
| 7701 | ||||
