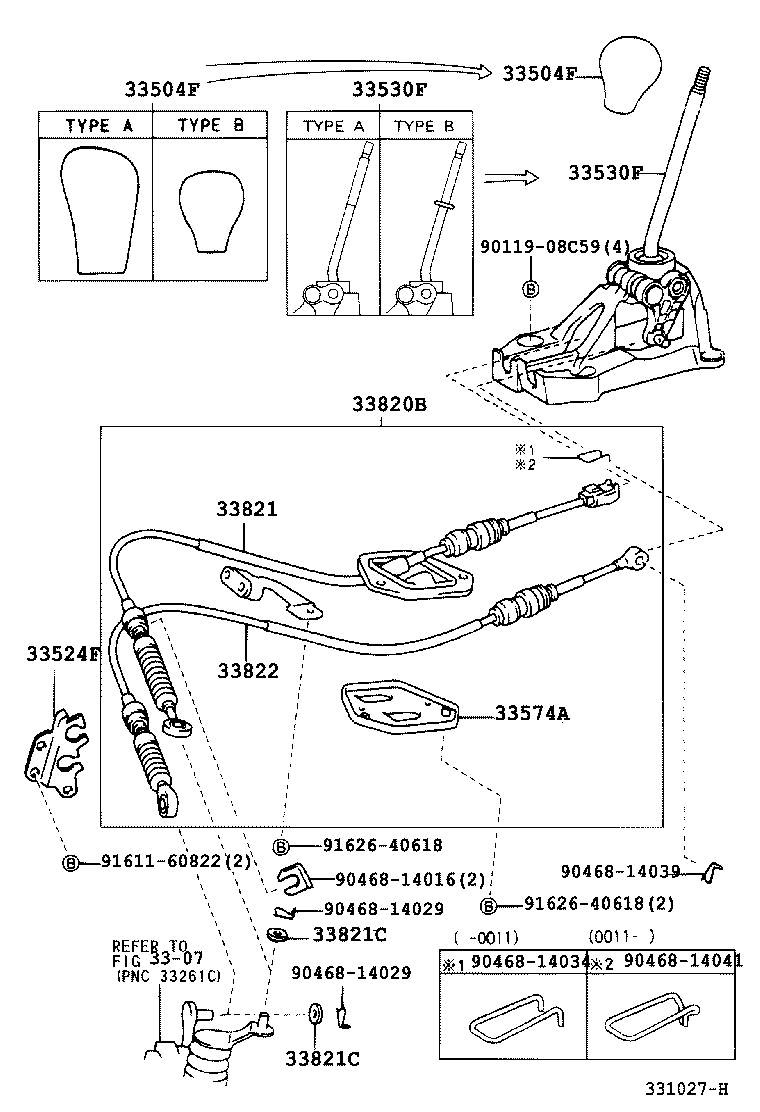

Toyota Vitz SCP10 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12180B6	NCP10,SCP10..5F..U TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE GRAY,TRIM1#	01/1999 - 12/2001	1
33504-14050B7	NCP10,15,SCP10..5F..(B,F,U) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE GRAY,TRIM1#	01/1999 - 12/2001	1
33504-13010B0	NCP10,15,SCP10..5F..(B,CLA,F,U) DK.GRAY,TRIM1#	12/2001 - 12/2002	1
33504-14050G1	NCP10,15,SCP10..5F..(B,F,U) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MIST GREEN,TRIM7#	01/1999 - 12/2001	1
33504-12180G4	NCP10,SCP10..5F..U TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MIST GREEN,TRIM7#	10/1999 - 12/2001	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12180B6	NCP10,SCP10..5F..U TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE GRAY,TRIM1#	01/1999 - 12/2001	1
33504-14050B7	NCP10,15,SCP10..5F..(B,F,U) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE GRAY,TRIM1#	01/1999 - 12/2001	1
33504-13010B0	NCP10,15,SCP10..5F..(B,CLA,F,U) DK.GRAY,TRIM1#	12/2001 - 12/2002	1
33504-14050G1	NCP10,15,SCP10..5F..(B,F,U) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MIST GREEN,TRIM7#	01/1999 - 12/2001	1
33504-12180G4	NCP10,SCP10..5F..U TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MIST GREEN,TRIM7#	10/1999 - 12/2001	1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-52030	SCP10..5F	12/2001 - 12/2002	1
33524-52030	SCP10..5F	01/1999 - 12/2001	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-52010	NCP10,15,SCP10..5F..(B,CLA,F,U)	01/1999 - 12/2001	1
33530-52010	NCP15,SCP10..5F..(B,F) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	12/2001 - 12/2002	1
33530-52080	NCP10,15,SCP10..5F..(CLA,F,U) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2001 - 12/2002	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-52010	NCP10,15,SCP10..5F..(B,CLA,F,U)	01/1999 - 12/2001	1
33530-52010	NCP15,SCP10..5F..(B,F) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	12/2001 - 12/2002	1
33530-52080	NCP10,15,SCP10..5F..(CLA,F,U) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/2001 - 12/2002	1
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-52010	NCP1#,SCP10	01/1999 - 12/2001	1
33574-52010	NCP15,SCP10;NCP10,13..4FC	12/2001 - 12/2002	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52050	SCP10..5F	01/1999 - 03/2001	1
33820-52051	SCP10..5F	03/2001 - 12/2001	1
33820-52051	SCP10..5F	12/2001 - 12/2002	1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-52011	SCP10..5F	03/2001 - 12/2001	1
33821-52010	SCP10..5F	01/1999 - 03/2001	1
33821-52011	SCP10..5F	12/2001 - 12/2002	1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267	NCP1#,SCP10..5F 外径=28	01/1999 - 12/2001	2
90201-08267	NCP10..5F..RS;NCP13,SCP10..5F 外径=28	10/2002 - 12/2002	2
90201-08267	NCP10,15,SCP10..5F 外径=28	08/2002 - 10/2002	2
90201-08267	NCP1#,SCP10..5F 外径=28	12/2001 - 08/2002	2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267	NCP1#,SCP10..5F 外径=28	01/1999 - 12/2001	2
90201-08267	NCP10..5F..RS;NCP13,SCP10..5F 外径=28	10/2002 - 12/2002	2
90201-08267	NCP10,15,SCP10..5F 外径=28	08/2002 - 10/2002	2
90201-08267	NCP1#,SCP10..5F 外径=28	12/2001 - 08/2002	2
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-52010	SCP10..5F	01/1999 - 12/2001	1
33822-52010	SCP10..5F	12/2001 - 12/2002	1
Common parts
90119-08C59
90468-14016
90468-14029
90468-14034
90468-14039
90468-14041
91611-60822
91626-40618
Linked diagrams
3307

SCP10-AGMEK (1999)

(9901- )SCP10..5F
