SCP10-AGMDK (1999)

Toyota Vitz

Production Jan 1999 - Jan 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )B,CLA,F,U

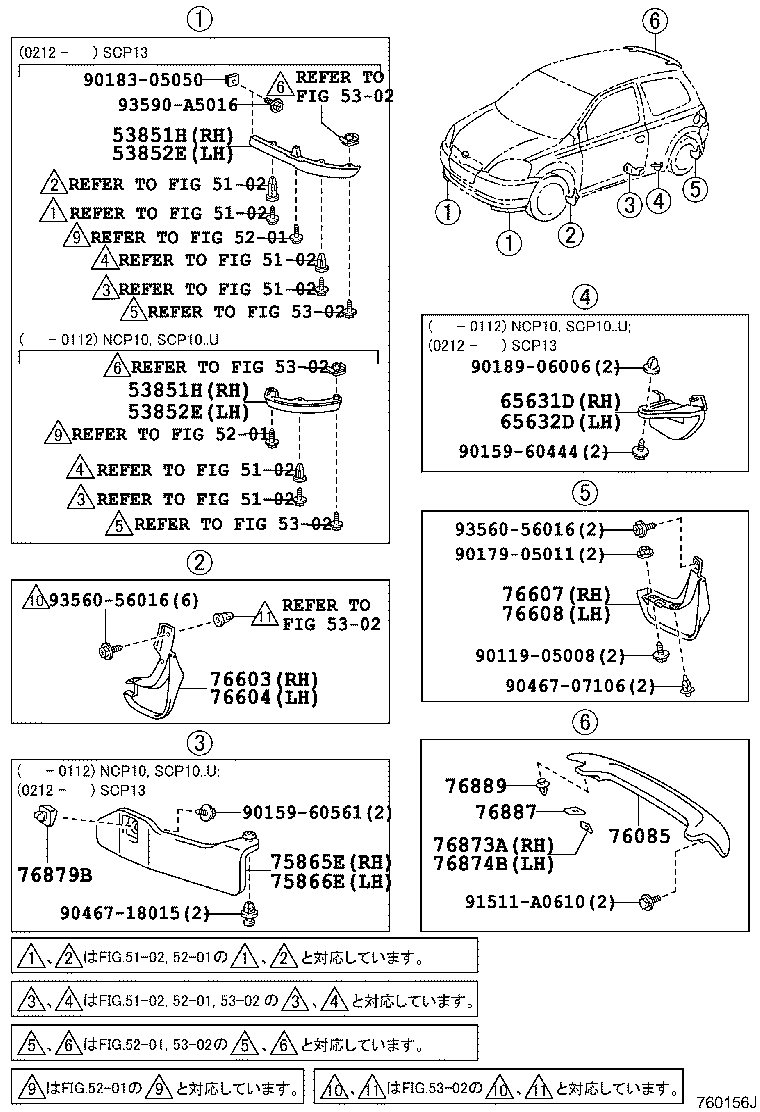

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 5201 5201 5302 5302 5302 5302 5302 53851H 53851H 53852E 53852E 65631D 65632D 75865E 75866E 76085 76603 76604 76607 76608 76873A 76874B 76879B 76887 76889 9011905008 9015960444 9015960561 9017905011 9018305050 9018906006 9046707106 9046718015 91511A0610 9356056016 9356056016 93590A5016
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76871-52900

SCP10..B;NCP15,SCP13..F,U;SCP10..3D..4FC..F;SCP10..(4HC,5F)..F

 1
76871-52900

NCP1#,SCP10..B,F,RS,U

 1
76871-52900

NCP1#,SCP10..B,F,RS,U

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-52010

NCP10,15,SCP10..B,CLA,F,U

 1
76621-52010

NCP10,15,SCP10..B,CLA,F,U

 1
76621-52010

NCP15,SCP1#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-52010

NCP10,15,SCP10..B,CLA,F,U

 1
76622-52010

NCP15,SCP1#

 1
76622-52010

NCP10,15,SCP10..B,CLA,F,U

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-52010

NCP10,15,SCP10..B,CLA,F,U

 1
76625-52050

NCP10,15,SCP10..B,F,U

 1
76625-52050

NCP15,SCP1#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-52010

NCP10,15,SCP10..B,CLA,F,U

 1
76626-52050

NCP10,15,SCP10..B,F,U

 1
76626-52050

NCP15,SCP1#

 1
76873A - PROTECTOR, REAR SPOILER, RH
76873-52010

NCP1#,SCP10..B,F,RS,U

 1
76873-52010

NCP1#,SCP1#..B,F,RS,U

 1
76873-52010

NCP1#,SCP1#..B,F,RS,U

 1
76874B - PROTECTOR, REAR SPOILER, LH
76874-52010

NCP1#,SCP1#..B,F,RS,U

 1
76874-52010

NCP1#,SCP1#..B,F,RS,U

 1
76874-52010

NCP1#,SCP10..B,F,RS,U

 1
76887 - SEAL, REAR SPOILER
76887-52010

NCP1#,SCP1#..B,F,RS,U

 2
76887-52010

NCP1#,SCP1#..B,F,RS,U

 2
76887-52010

NCP1#,SCP10..B,F,RS,U

 2
76889 - CLIP, REAR SPOILER, NO.2
76889-52010

NCP10,15,SCP10..B,F,U

 2
76889-52010

NCP15,SCP1#..B,F,U

 2
76889-52010

NCP10,15,SCP10..B,F,U

 2
Common parts
90119-05008
90159-60444
90159-60561
90179-05011
90183-05050
90189-06006
90467-07106
90467-18015
91511-A0610
93560-56016
93590-A5016
Linked diagrams
5102
5201
5302
