SCP10-AGMDK (1999)

Toyota Vitz

Production Jan 1999 - Jan 2005
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

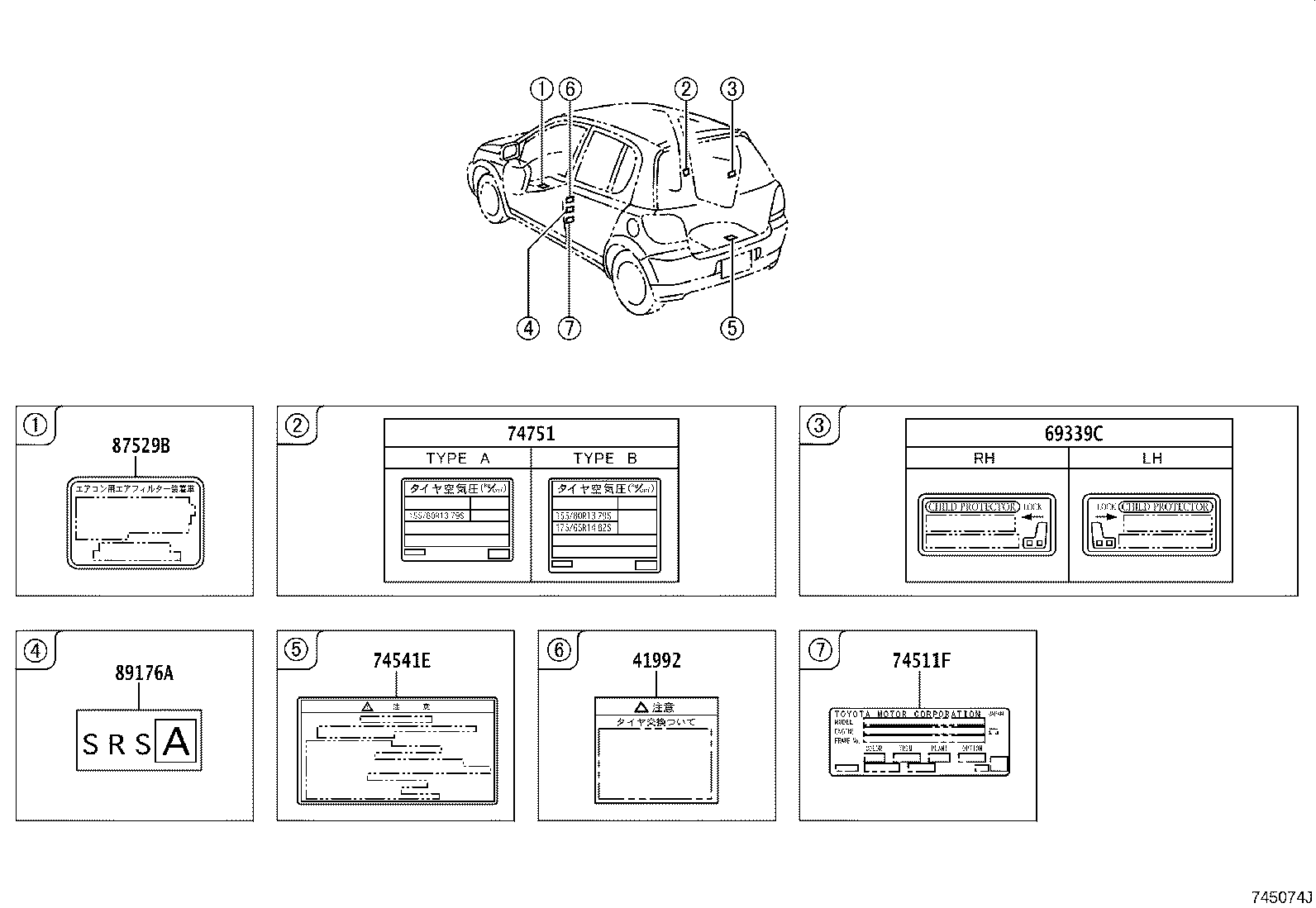

ILLUST NO. 2 OF 3(9901- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ&ﾅｲｿｳ(1/2)

diagram 41992 69339C 74511F 74541E 74751 87529B 89176A
Part # Description Qty Price
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

NCP1#,SCP1#

*111

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

NCP1#,SCP10

 1
42668-28060

NCP1#,SCP10

 1
42668-28060

NCP1#,SCP10

 1
42668-28060

NCP1#,SCP1#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-52020

NCP10,SCP10..F,U

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, 185/55R15 OR 175/65R14

 1
42661-52010

NCP10,SCP10

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, 155/80R13

 1
42661-52011

NCP10,SCP10..B,CLA,F,U

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, 155/80R13

 1
42661-52011

NCP10,SCP10..B,CLA,F,U

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, 155/80R13

 1
42661-52011

SCP10

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42661-52021

NCP10,SCP10..CLA,F,U

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, 155/80R13 OR 175/65R14

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

NCP1#,SCP10

 1
87529-50020

NCP1#,SCP1#

 1
87529-50020

NCP1#,SCP10

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

NCP1#,SCP1#

 1
89176-32010

NCP1#,SCP10

 1
89176-32010

NCP1#,SCP10

 1

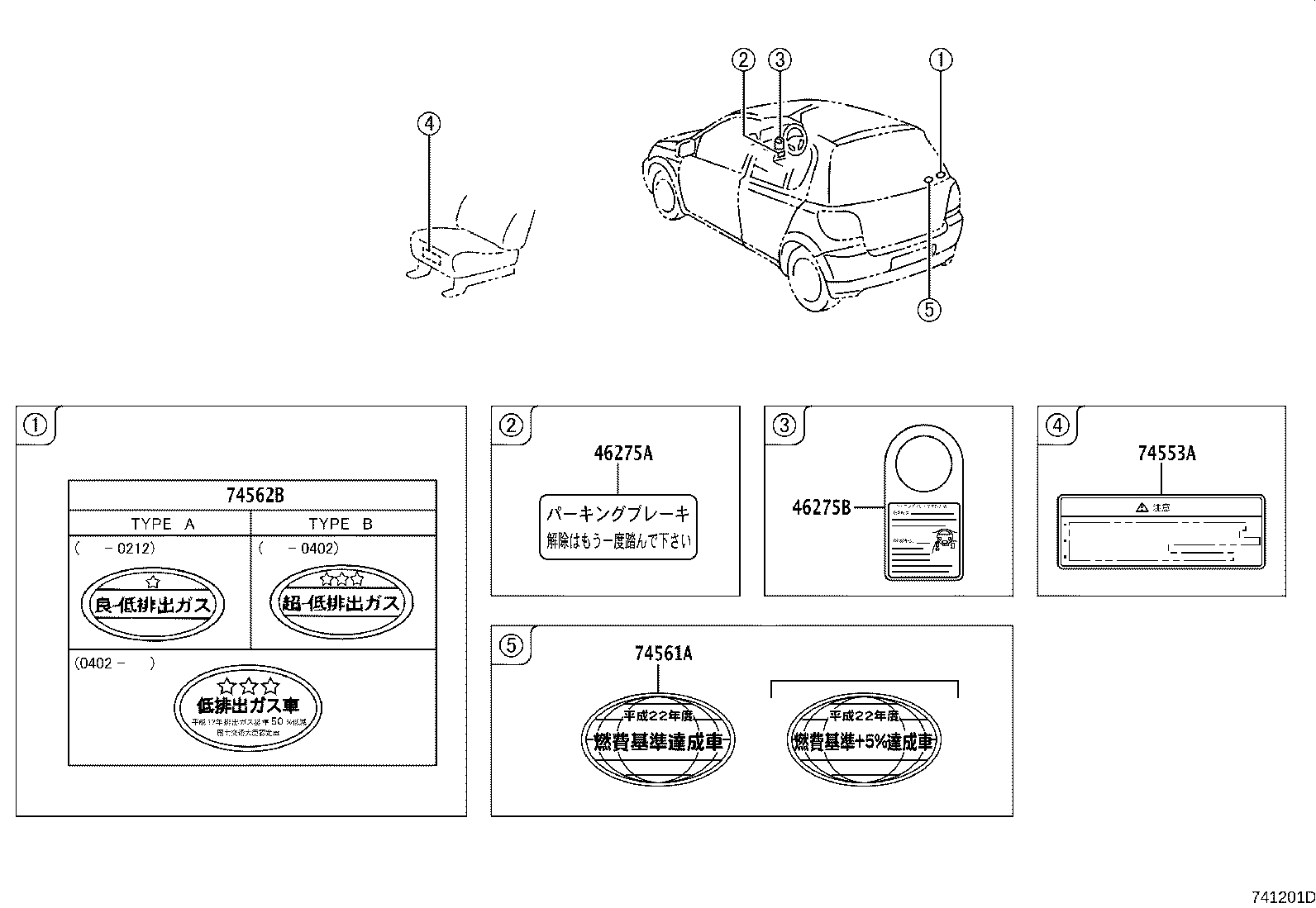

ILLUST NO. 3 OF 3(9901- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ&ﾅｲｿｳ(2/2)

diagram 46275A 46275B 74553A 74561A 74562B
Part # Description Qty Price
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-52020

SCP10;NCP10,SCP13..5F,CVFC

 1
74562B - LABEL, EMISSION INFORMATION
74562-40040

NCP1#,SCP10

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
74562-40050

SCP10..B,F

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
74562-40050

NCP1#,SCP1#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
74562-40040

SCP10..5F..B

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
74562-12610

NCP1#,SCP1#

 1
74562-40040

NCP1#..F,RS;SCP10..5F..B;NCP15..5D..4FC..(CLA,U)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1

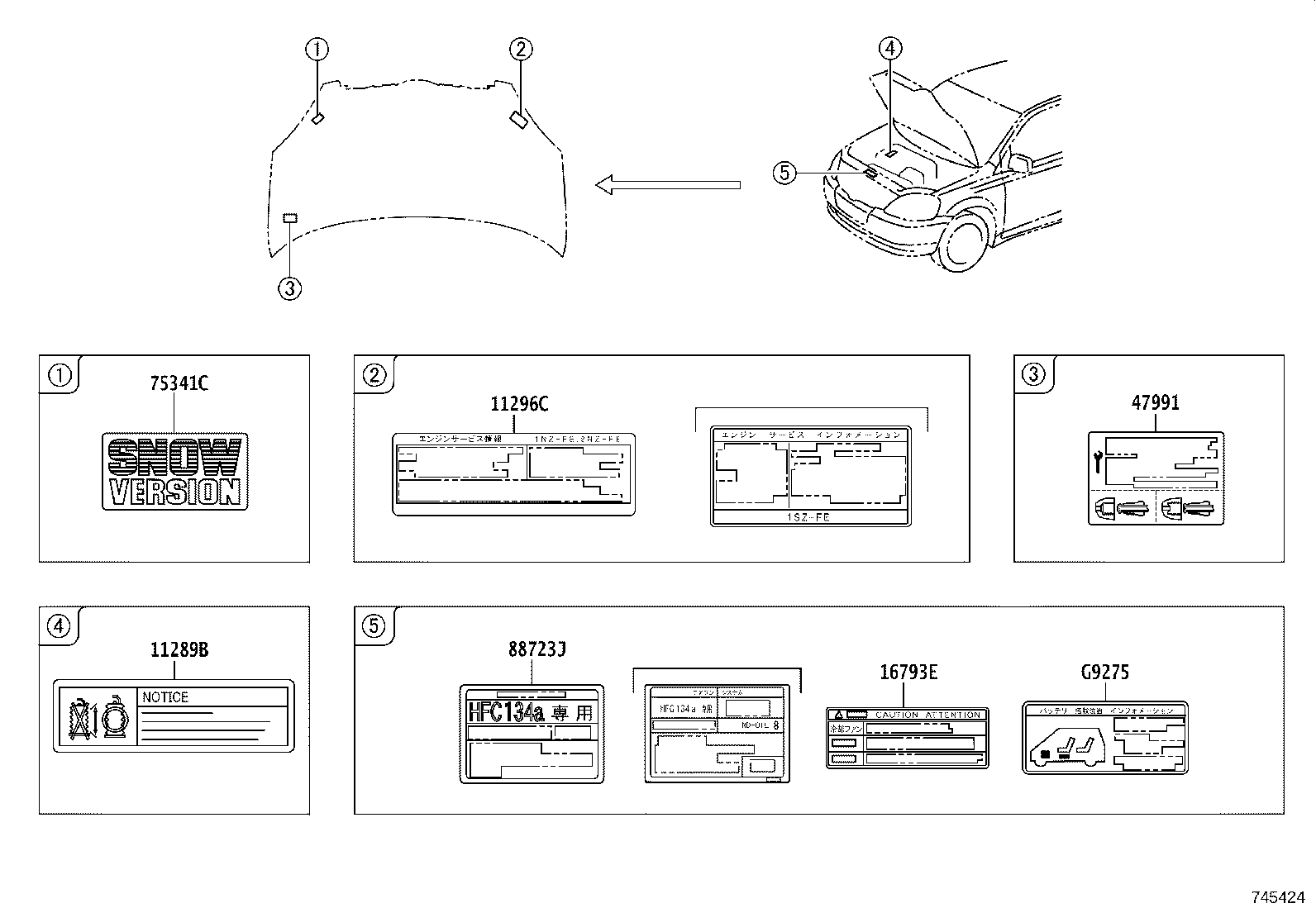

ILLUST NO. 1 OF 3(9901- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

diagram 11289B 11296C 16793E 47991 75341C 88723J G9275
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-23020

1SZFE..SCP10

 1
11296-23041

1SZFE..SCP10

 1
11296-23041

1SZFE..SCP10

 1
11296-23041

1SZFE..SCP10..B,F

ﾏｰｸ WC

 1
11296-23040

1SZFE..SCP10

 1
16793E - LABEL, COOLING FAN CAUTION
16793-46010

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 1
16793-46010

1NZFE,2NZFE,1SZFE..NCP1#,SCP10

 1
16793-46010

1NZFE,2NZFE,1SZFE,2SZFE..NCP1#,SCP1#

 1
47991 - LABEL, BRAKE TUBE INFORMATION
47991-13010

NCP1#,SCP10

 1
47991-13010

NCP1#,SCP1#

 1
47991-13010

NCP1#,SCP10

 1
75341C - PLATE, HOOD NAME
75341-20060

NCP1#,SCP10

 1
75341-20060

NCP1#,SCP10

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-22060

NCP1#,SCP10

 1
88723-22060

NCP1#,SCP10

 1
88733-52010

SCP10

 1
88733-52010

SCP10

 1
