NSP135-AHXNK (2010)
Toyota Vitz
(1012- )

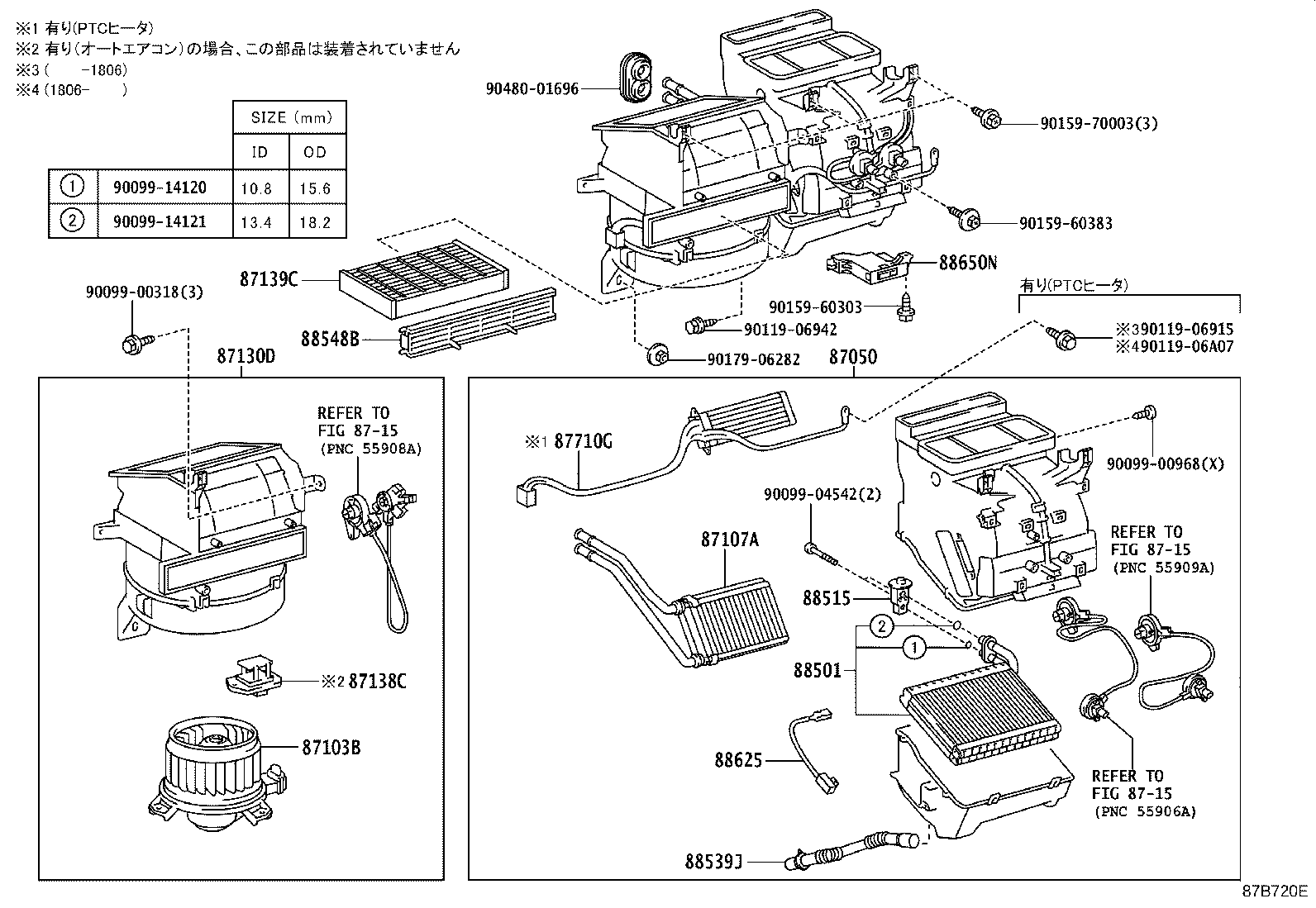

ﾏﾆｭｱﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52131 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87050-52141 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87050-52151 |
KSP130,NSP13#..(F,JEWL)..CBU 寒冷地仕様 |
1 | ||
| 87050-52161 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87050-52161 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87050-52141 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87050-52161 |
NCP131,NSP13#..(RS,U)..CBU 寒冷地仕様 |
1 | ||
| 87050-52141 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87050-52161 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87050-52141 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52120 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87103-52132 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87103-52132 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87103-52132 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87103-52132 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87103-52121 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87103-52132 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87103-52132 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87103-52131 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87103-52132 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52061 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87130-52050 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87130-52061 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87130-52061 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87130-52061 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87130-52061 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87130-52061 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87130-52061 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
KSP130,NCP131,NSP13#..CBU 微細塵ﾌｨﾙﾀ |
1 | ||
| 87139-52020 |
KSP130,NCP131,NSP13#..CBU 標準仕様 |
1 | ||
| 87139-50100 |
KSP130,NCP131,NSP13#..CBU 花粉･脱臭ﾌｨﾙﾀ |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52060 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87710-52060 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87710-52060 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87710-52060 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52102 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88501-52103 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88539-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52710 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 88650-52680 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 88650-52710 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 88650-52710 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 88650-52880 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 88650-52690 |
KSP130,NSP13#..(F,JEWL)..CBU 寒冷地仕様 |
1 | ||
| 88650-52710 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 88650-52710 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88650-52710 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 88650-52710 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90119-06A07 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(1012- )

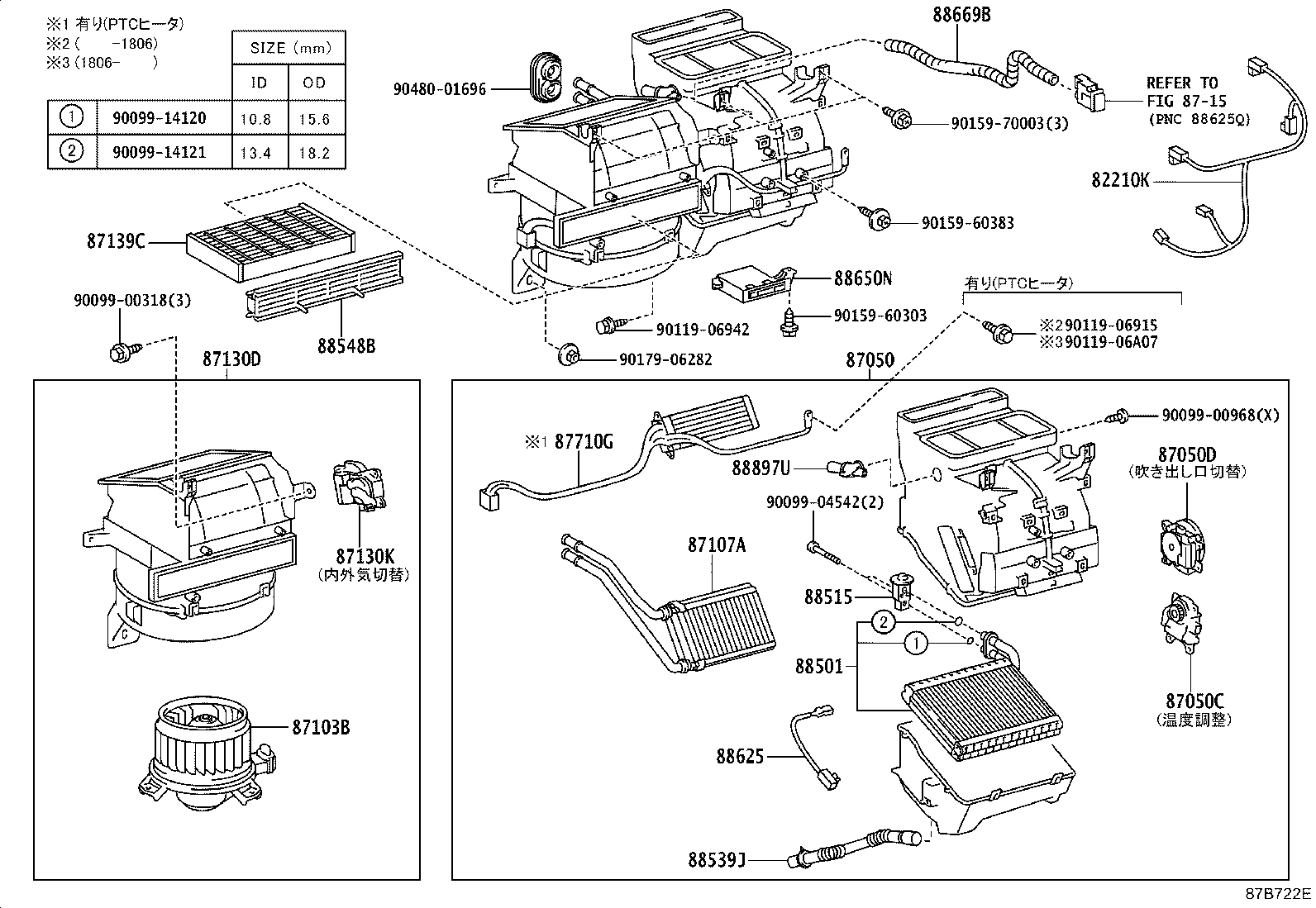

ｵｰﾄｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-52030 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 82212-52030 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 82212-52030 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 82212-52030 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52131 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87050-52141 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87050-52151 |
KSP130,NSP13#..(F,JEWL)..CBU 寒冷地仕様 |
1 | ||
| 87050-52161 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87050-52161 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87050-52141 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87050-52161 |
NCP131,NSP13#..(RS,U)..CBU 寒冷地仕様 |
1 | ||
| 87050-52141 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87050-52161 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87050-52141 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-52080 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87106-52080 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87106-52080 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87106-52080 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87106-52080 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87106-52080 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87106-52080 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-52090 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87106-52090 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87106-52090 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87106-52090 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87106-52090 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87106-52090 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87106-52090 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52120 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87103-52132 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87103-52132 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87103-52132 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87103-52132 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87103-52121 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87103-52132 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87103-52132 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87103-52131 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87103-52132 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52061 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87130-52050 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 87130-52061 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87130-52061 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87130-52061 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87130-52061 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87130-52061 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87130-52061 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-52100 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87106-52100 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87106-52100 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 87106-52100 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87106-52100 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87106-52100 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87106-52100 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
KSP130,NCP131,NSP13#..CBU 微細塵ﾌｨﾙﾀ |
1 | ||
| 87139-52020 |
KSP130,NCP131,NSP13#..CBU 標準仕様 |
1 | ||
| 87139-50100 |
KSP130,NCP131,NSP13#..CBU 花粉･脱臭ﾌｨﾙﾀ |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-52060 |
KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
1 | ||
| 87710-52060 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 87710-52060 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 87710-52060 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52102 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88501-52103 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88539-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52710 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 88650-52680 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 88650-52710 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 88650-52710 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 88650-52880 |
KSP130,NSP13#..(F,JEWL)..CBU |
1 | ||
| 88650-52690 |
KSP130,NSP13#..(F,JEWL)..CBU 寒冷地仕様 |
1 | ||
| 88650-52710 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 88650-52710 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88650-52710 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 88650-52710 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52050 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 88669-52050 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 88669-52050 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 88669-52050 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88669-52050 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 88669-52050 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88669-52050 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 88897-32090 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 88897-32090 |
NSP13#..F..CBU “Ciel”(内装色=ﾍﾞｰｼﾞｭ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾍﾞｰｼﾞｭ/ﾍﾞｰｼﾞｭﾊﾟｲﾋﾟﾝｸﾞ) |
1 | ||
| 88897-32090 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88897-32090 |
NSP13#..F..CBU ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| 88897-32090 |
NSP13#..F..CBU “Ciel”(内装色=ﾌﾞﾗｯｸ)*(D)or*(E)&寒冷地仕様&ｼｰﾄ表皮−ｼﾙﾌｨｰﾄﾞ(ｽｴｰﾄﾞ調,ﾌﾞﾗｯｸ/ﾋﾟﾝｸﾍﾞｰｼﾞｭｽﾃｯﾁ) |
1 | ||
| 88897-32090 |
NSP13#..F..CBU 寒冷地仕様&ｼｰﾄ表皮−“SMILE EDITION”*(A)or(B) |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06915 | ||||
| 90119-06942 | ||||
| 90119-06A07 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
