NSP135-AHXGK (2014)
Toyota Vitz

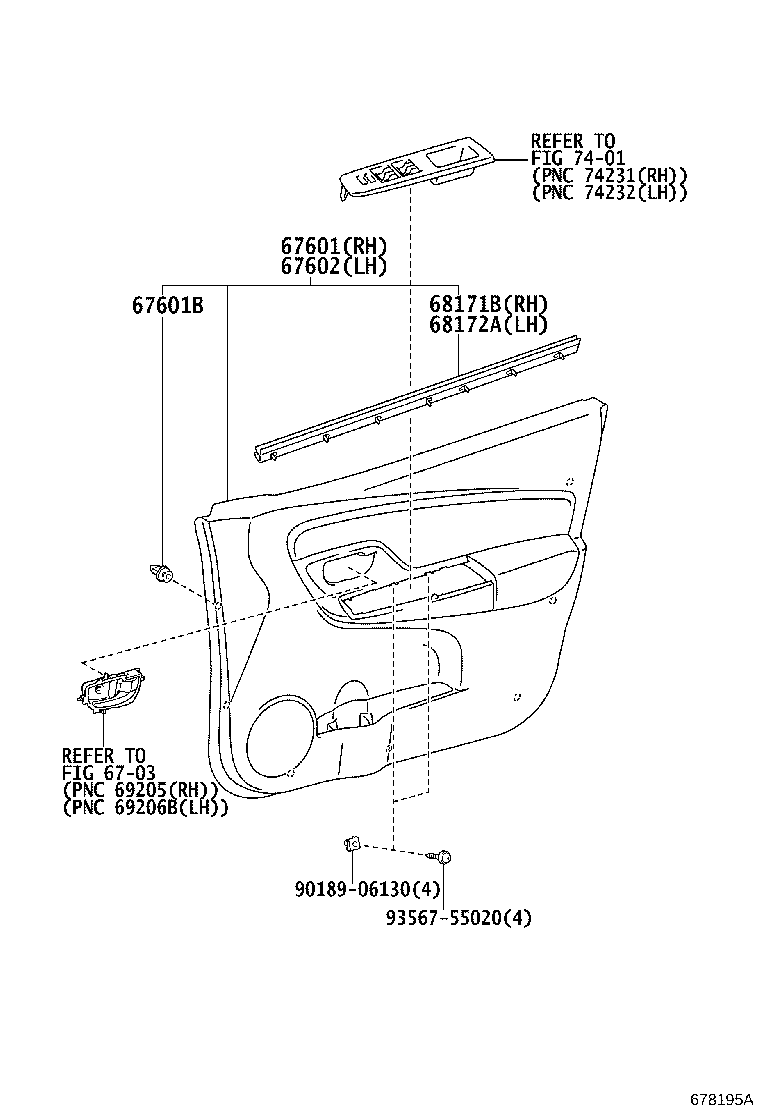

ILLUST NO. 3 OF 3(1404- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-52R60F0 |
KSP130,NSP13#..F..CBU GINGER/BLACK,TRIM5# |
1 | ||
| 67610-52R70B1 |
NCP131,NSP13#..U..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67610-52R60E0 |
KSP130,NSP13#..JEWL TRUFFE/BLACK,TRIM4# |
1 | ||
| 67610-52R60B0 |
KSP130,NSP13#..(F,JEWL)..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67610-5CF00C0 |
KSP130,NSP13#..F..CBU Smart Style,BLACK/BLUE BLACK,TRIM20 |
1 | ||
| 67610-5CF00C0 |
KSP130,NSP13#..F..CBU “Smart Style”,BLUE BLACK,TRIM2#,5# |
1 | ||
| 67610-5CL20C1 |
KSP130,NSP13#..F..CBU BLACK/IVORY,TRIM0# |
1 | ||
| 67610-5CL30C3 |
KSP130,NSP13#..JEWL BLACK/BURGUNDY,TRIM3# |
1 | ||
| 67610-5CL40C1 |
NCP131,NSP13#..U..CBU BLACK,TRIM2# |
1 | ||
| 67610-5CL20C0 |
KSP130,NSP13#..JEWL ｼｰﾄ表皮−ｼｬｲﾆｰﾃﾞｺﾚｰｼｮﾝ(内装色:ｸﾘｽﾌﾟｱｲﾎﾞﾘｰ)用,BLACK/BLACK,TRIM2# |
1 | ||
| 67610-5CL30C2 |
KSP130,NSP13#..JEWL BLACK/BLACK,TRIM2# |
1 | ||
| 67610-5CL20C1 |
KSP130,NSP13#..JEWL ｼｰﾄ表皮−ｼｬｲﾆｰﾃﾞｺﾚｰｼｮﾝ(内装色:ｸﾘｽﾌﾟｱｲﾎﾞﾘｰ)用,BLACK/IVORY,TRIM4# |
1 | ||
| 67610-5CL20C0 |
KSP130,NSP13#..F..CBU BLACK/BLACK,TRIM2# |
1 | ||
| 67610-5CF00C0 |
KSP130,NSP13#..F..CBU “LED Edition”,BLUE BLACK,TRIM2#,5# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
KSP130,NCP131,NSP13#..CBU |
14 | ||
| 90467-09206 |
KSP130,NCP131,NSP13#..CBU |
14 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-5C830F0 |
KSP130,NSP13#..F..CBU GINGER/BLACK,TRIM5# |
1 | ||
| 67620-5C830B0 |
KSP130,NSP13#..(F,JEWL)..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C840B1 |
NCP131,NSP13#..U..CBU GRAY/BLACK,TRIM1# |
1 | ||
| 67620-5C830E0 |
KSP130,NSP13#..JEWL TRUFFE/BLACK,TRIM4# |
1 | ||
| 67620-5CE60C0 |
KSP130,NSP13#..F..CBU “Smart Style”,BLUE BLACK,TRIM2#,5# |
1 | ||
| 67620-5CL10C3 |
KSP130,NSP13#..JEWL BLACK/BURGUNDY,TRIM3# |
1 | ||
| 67620-5CE60C0 |
KSP130,NSP13#..F..CBU Smart Style,BLACK/BLUE BLACK,TRIM20 |
1 | ||
| 67620-5CL20C1 |
NCP131,NSP13#..U..CBU BLACK,TRIM2# |
1 | ||
| 67620-5CL10C2 |
KSP130,NSP13#..JEWL BLACK/BLACK,TRIM2# |
1 | ||
| 67620-5CL00C1 |
KSP130,NSP13#..JEWL ｼｰﾄ表皮−ｼｬｲﾆｰﾃﾞｺﾚｰｼｮﾝ(内装色:ｸﾘｽﾌﾟｱｲﾎﾞﾘｰ)用,BLACK/IVORY,TRIM4# |
1 | ||
| 67620-5CL00C0 |
KSP130,NSP13#..F..CBU BLACK/BLACK,TRIM2# |
1 | ||
| 67620-5CE60C0 |
KSP130,NSP13#..F..CBU “LED Edition”,BLUE BLACK,TRIM2#,5# |
1 | ||
| 67620-5CL00C0 |
KSP130,NSP13#..JEWL ｼｰﾄ表皮−ｼｬｲﾆｰﾃﾞｺﾚｰｼｮﾝ(内装色:ｸﾘｽﾌﾟｱｲﾎﾞﾘｰ)用,BLACK/BLACK,TRIM2# |
1 | ||
| 67620-5CL00C1 |
KSP130,NSP13#..F..CBU BLACK/IVORY,TRIM0# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52210 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68171-52210 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 68172-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90189-06130 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
